XD6WM2310Tonn. 10.1 inch Tablet with BT and WIFI

100135925_EN_12252023 USER GUIDE 10.1" Tablet 1 Table of contents Introduction .......................................................................................... 3 In The Box .............................................................................................. 4 Start Your Tablet.................................................................................. 5 Storage Card........................................................................................ 5 Home Screen At-a-Glance............................................................. 6 Customize Your Home Screen ........................................................ 7 Gesture Navigation ............................................................................9 More Gestures ...................................................................................... 10 Screenshots .......................................................................................... 12 Screen Recordings.............................................................................. 12 Manage Your Apps............................................................................. 13 Split Screen ........................................................................................... 14 Switch Between Apps........................................................................ 14 Connect to the Internet .................................................................... 15 Connect Bluetooth ............................................................................. 16 Screen Lock........................................................................................... 17 Magnification ....................................................................................... 17 Factory Reset ....................................................................................... 18 2 Table of contents Quick Settings and Notifications................................................... 20 Use the Cameras ................................................................................ 21 Files .......................................................................................................... 22 Google Play Updates ........................................................................ 23 Google Assistant ................................................................................. 23 Set up the Google Kids Space....................................................... 24 Remove Google Kids Space ........................................................... 24 Google Discover.................................................................................. 25 YouTube Kids ........................................................................................ 25 Google Play Protect........................................................................... 26 More Google Apps ............................................................................. 26 Technical Specifications................................................................... 27 Safety Instructions.............................................................................. 28 Troubleshooting................................................................................... 32 The Fine Print ........................................................................................ 33 Compliance Information .................................................................. 35 Certification Information .................................................................. 38 System Updates .................................................................................. 19 Force Shutdown .................................................................................. 19 3 Introduction Thank you for purchasing the onn. tablet with Android 14. With a responsive octa-core processor, this tablet is perfect for daily tasks, streaming music and movies, taking photos, checking emails, and interacting with social media. 2.0 GHz Octa-core processor can provide better performance when handling high-load tasks and reduce power consumption under light-load tasks. The tablet oers Bluetooth connectivity, mobile productivity services and 3GB RAM + 32GB ROM capacity, along with a memory card slot that supports up to 1TB of additional storage. The following information will help you get the most out of your tablet. What You Should Know to Ensure Best Performance: Fully charge the battery before first use. When downloading updates in the background, tablet performance may be aected until completion. Close unused apps. Open apps that run in the background will aect overall performance. 4 In The Box Battery consumption: Playback time for a fully charged battery will vary depending on your display settings, apps that stay open, and internet usage (e.g., streaming video content). It is recommended to use a tablet screen protector and a tablet case to protect the tablet. 10.1" Tablet User Guide Charger Quick Start GuideUSB-C Cable Memory Card Ejection Pin USER GUIDE 10.1" Tablet 100135925_EN_12252023 QUICK START GUIDE 10.1” Tablet 100135925_EN_12222023 5 Start Your Tablet 1. Press and hold the Power button for a few seconds. (If your tablet won't turn on, or if you are instructed to connect a charger, connect the AC adapter and charge the unit.) 2. At the Start-up screen, swipe up from the bottom of the screen to unlock. 3. Once you reach the home screen, you can start using your tablet. Storage Card Supported card type: Micro SD Card Maximum capacity: 1 TB 1.Status Bar. 2.Search Box. 3.Favorite apps bar. 6 Home Screen At-a-Glance 2 1 3 Note: on certain screens, the apps pinned to "favorite apps" will appear in the form of a taskbar for your convenience. 7 Customize Your Home Screen Home Screen At-a-Glance The Home Screen is the starting point for using your tablet. For convenience, the home screen has been set up, but you can customize your home screen as follows: Favorite App…

Text truncated - open the document above for the full version.

Rev1/26/2023 Shenzhen Tinno Mobile Technology Corp 27-001, South side of Tianlong mobile HQ Building, Tongfa South Road, Xili Street, Nanshan District, Shenzhen, Guangdong Province, 518000, China Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 01-16-2024 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: XD6WM2310T Shenzhen Tinno Mobile Technology Corpcertifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, ContactPerson:xiaopingLI E-mail:[email protected] Rev1/26/2023 Shenzhen Tinno Mobile Technology Corp 27-001, South side of Tianlong mobile HQ Building, Tongfa South Road, Xili Street, Nanshan District, Shenzhen, Guangdong Province, 518000, China Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date:01-16-2024 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: XD6WM2310T Shenzhen Tinno Mobile Technology Corp certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, ContactPerson:xiaopingLI E-mail:[email protected]

ShenzhenTinnoMobileTechnology Corp. 27-001,SouthsideofTianlongmobileHQBuilding,TongfaSouthRoad,XiliStreet,NanshanDistrict,Shenzhen,PRC U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO:American Certification Body, Inc. 313 ParkAvenue Suite300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: TINNO USA INC Contact Name: Brandy Kang Street Address: 2301W.PLANOParkway,SUITE102 City/Province/Zip: Plano, TX 75075 Telephone No: (626) 200-5096 Email: [email protected] FRN #: 0033457680 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of theApplicantnoted below. U.S. Agent Signature: Date: 2023-10-14 Signed by (Printed Name/Title): Brandy Kang / CEO The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen Tinno Mobile Technology Corp. Grantee Code: XD6 Contact Name: Xiaoping Li Street Address: 27-001, South side of Tianlong mobile HQ Building, Tongfa South Road, Xili Street, Nanshan District City/Province/Zip: Shenzhen /Guangdong/518000 Telephone No: (86) 755-86095550 Email: [email protected] FRN #: 0018783100 Applicant Signature 1 : Date:2023-10-14 Signed by (Printed Name/Title): Xiaoping Li / Manager 1 - Lettersshouldbeplacedonappropriateletterhead.

Shenzhen Tinno Mobile Technology Corp 27-001,SouthsideofTianlongmobileHQBuilding,TongfaSouthRoad,XiliStreet,NanshanDistrict, Shenzhen,GuangdongProvince,518000,China Date: January 8, 2024 PowerofAttorney To whom it may concern, Please be notified that I, xiaoping LI, have designated wu xuewen in Shenzhen Balun Technology Co., Ltd. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by wu xuewen in Shenzhen Balun Technology Co., Ltd. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: XD6WM2310T If you have any acknowledgement and response, please send it to Shenzhen Balun Technology Co., Ltd. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person:xiaoping LI E-mail:[email protected]

Rev. 1/1/03 ShenzhenTinnoMobileTechnologyCorp 27-001,SouthsideofTianlongmobileHQBuilding,TongfaSouthRoad,XiliStreet,NanshanDistrict, Shenzhen,GuangdongProvince,518000,China Date: January 8, 2024 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: XD6WM2310T, PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: Schematics Block Diagram Parts List Operation Description Tune up Procedure Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthisapplication andallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrantforthis application. Sincerely, ________________________ ContactPerson:xiaoping LI E-mail:[email protected]

1/1 ShenzhenTinnoMobileTechnologyCorp 27-001,SouthsideofTianlongmobileHQBuilding,TongfaSouthRoad,XiliStreet,NanshanDistrict, Shenzhen,GuangdongProvince,518000,China Date: January 8, 2024 Federal Communications Commission Authorization and Evaluation Division RE : CertificationApplication FCC ID : XD6WM2310T ToWhom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarilywithheld from public disclosure for an initial period of 180 days: External Photos Internal Photos Test set-up photos Users Manual The application contains technical information, which Shenzhen Tinno Mobile Technology Corp deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, ____ ContactPerson:xiaoping LI E-mail:[email protected]

ShenzhenTinnoMobileTechnologyCorp. 27-001,SouthSideofTianlongMobileHeadquartersBuilding, TongfaSouthRoad,XiliCommunity,XiliStreet,NanshanDistrict,Shenzhen,PRC Date:January9,2024 ProductEqualityDeclaration We,ShenzhenTinnoMobileTechnologyCorp.,declareonoursoleresponsibilityforthe productTBIND100135925，TBPPY100135925，TBPPY100135925，TBVAN100135925,These modelsdifferencesonlybymodelnameandcolor. ModelColor TBPPY100135925 papaya TBLVD100135925 lavender TBVAN100135925 vanilla TBIND100135925 indigo Exceptlistingsabove,theothersarethesame. Sincerelyyours, ContactPerson:Xiaoping.li Company:ShenzhenTinnoMobileTechnologyCorp. Tel:+86-755-8609-5550 E-Mail:[email protected]

ShenzhenTinnoMobileTechnologyCorp 27-001,SouthsideofTianlongmobileHQBuilding,TongfaSouthRoad,XiliStreet, NanshanDistrict,Shenzhen,GuangdongProvince,518000,China Date: January 8, 2024 We, Shenzhen Tinno Mobile Technology Corp, declare that this EUT (FCC ID: XD6WM2310T) doesn't haveAd Hoc Mode function on "non-US/Canada frequencies". In addition, the frequency selection feature is disabled by firmware for devices marketed to the US/Canada. For DTS part of this device, only channels 1~11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ ContactPerson:xiaoping LI E-mail:[email protected]

ShenzhenTinnoMobileTechnologyCorp UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: XD6WM2310T (1) DFS Device --Master,Client with Radar detection capability , Client without radar detection capability,N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHzYes,NoYes,NoYes,NoYes,No 5150 – 5250 MHzYes,NoYes,NoYes,NoYes,No 5250 – 5350 MHzYes,NoYes,NoYes,NoYes,No 5470 – 5725 MHzYes,NoYes,NoYes,NoYes,No 5725 – 5850 MHzYes,NoYes,NoYes,NoYes,No (3) Country code selection ability -Yes ,No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement -Yes ,No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply ,No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) The active or passive mode was controlled by software. For non-DFS frequency used active scanning, for DFS frequency was switched to passive scanning by software Mechanism If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Contact Person: xiaoping LI E-mail: [email protected]

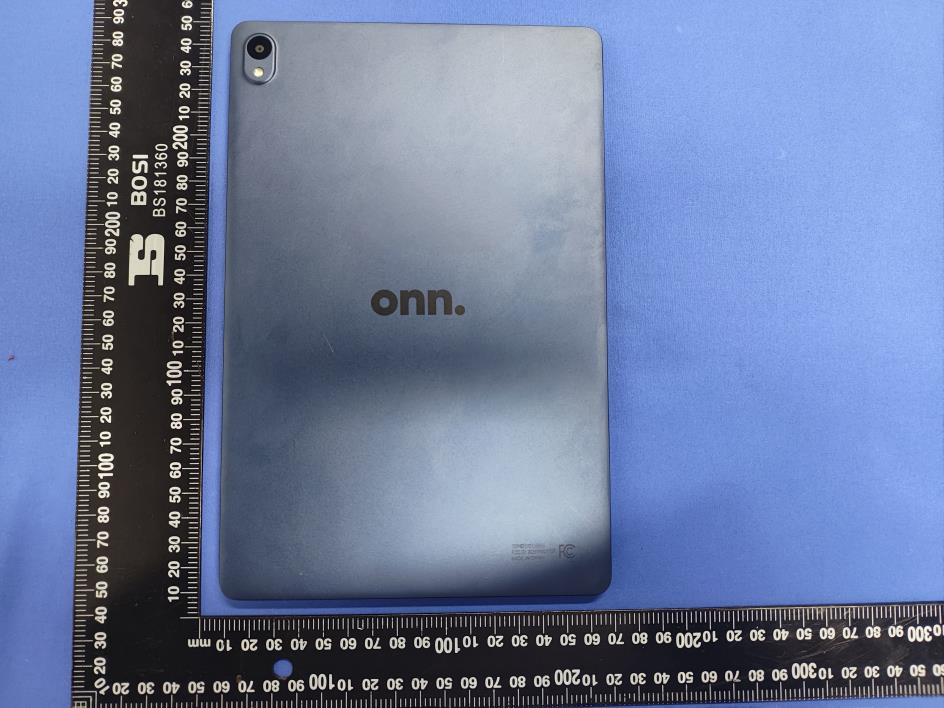

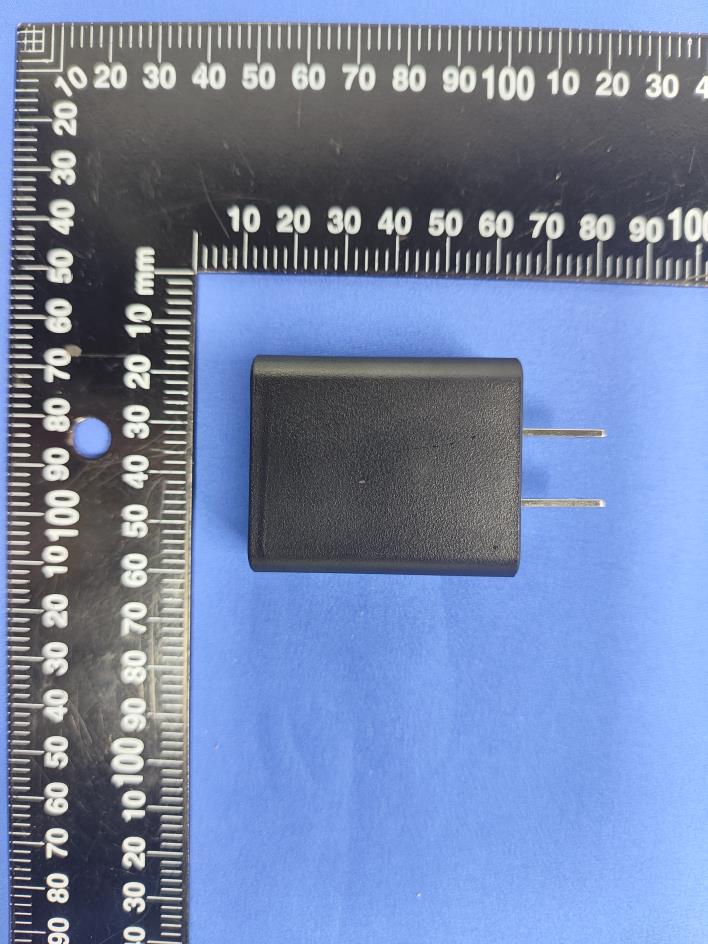

Report No.: BL-SZ23C0537-AW 1 / 5 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ23C0537-AW 2 / 5 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: BL-SZ23C0537-AW 3 / 5 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-SZ23C0537-AW 4 / 5 Accessory-Power Supply Unit Close-up Report No.: BL-SZ23C0537-AW 5 / 5 Accessory- USB Cable --BLANK BELOW--

59.70mm 114.70mm 38.00mm 10.62mm 15.00mm 41.00mm TBIND100135925 FCC ID: XD6WM2310T MADE IN CHINA 114.70mm 59.70mm Dorsal view bottom

Report No.: BL-SZ23C0537-AI 1 / 5 EUT INTERNAL PHOTOS EUT UNCOVER VIEW 1 EUT UNCOVER VIEW 2 GPS Antenna BT &2.4G WIFI Antenna 5G WIFI Antenna Report No.: BL-SZ23C0537-AI 2 / 5 EUT UNCOVER VIEW 3 MAIN BOARD TOP VIEW (WITH SHIELDING) Report No.: BL-SZ23C0537-AI 3 / 5 MAIN BOARD TOP VIEW (WITHOUT SHIELDING) MAIN BOARD REAR VIEW Report No.: BL-SZ23C0537-AI 4 / 5 SECONDARY BOARD 1 TOP VIEW SECONDARY BOARD 1 REAR VIEW Report No.: BL-SZ23C0537-AI 5 / 5 BATTERY TOP VIEW BATTERY REAR VIEW --BLANK BELOW--

Report No.: BL-SZ23C0537-AC 38 / 61 Report No.: BL-SZ23C0537-AC 39 / 61 Report No.: BL-SZ23C0537-AC 40 / 61 Report No.: BL-SZ23C0537-AC 41 / 61 Report No.: BL-SZ23C0537-AC 42 / 61 Report No.: BL-SZ23C0537-AC 43 / 61 Report No.: BL-SZ23C0537-AC 44 / 61 Report No.: BL-SZ23C0537-AC 45 / 61 D2450V2 Dipole impedance and return loss Validation Meas. Results Current Meas. Previous Meas. Max. Deviation Meas. Data 2023.05.17 2022.05.18 / Return Loss(dB) -26.656 -26.401 0.97% Impedance 54.73 Ω -1.149 jΩ 54.102 Ω +2.830 jΩ -3.979Ω (Imaginary part) Return Loss for Head TSL Impedance for Head TSL Report No.: BL-SZ23C0537-AC 46 / 61 F.4 5GHz Dipole Report No.: BL-SZ23C0537-AC 47 / 61 Report No.: BL-SZ23C0537-AC 48 / 61 Report No.: BL-SZ23C0537-AC 49 / 61 Report No.: BL-SZ23C0537-AC 50 / 61 Report No.: BL-SZ23C0537-AC 51 / 61 Report No.: BL-SZ23C0537-AC 52 / 61 Report No.: BL-SZ23C0537-AC 53 / 61 Report No.: BL-SZ23C0537-AC 54 / 61 Report No.: BL-SZ23C0537-AC 55 / 61 Report No.: BL-SZ23C0537-AC 56 / 61 Report No.: BL-SZ23C0537-AC 57 / 61 Report No.: BL-SZ23C0537-AC 58 / 61 Report No.: BL-SZ23C0537-AC 59 / 61 Report No.: BL-SZ23C0537-AC 60 / 61 D5GHzV2 Dipole impedance and return loss Validation Meas. Results Current Meas. Previous Meas. Max. Deviation Meas. Data 2023.05.16 2022.05.17 / 5.25GHz Return Loss(dB) -27.820 -29.961 -7.15% 5.25GHz Impedance 49.06 Ω -0.322 jΩ 48.925 Ω +1.802 jΩ -2.124Ω (Imaginary part) 5.6GHz Return Loss(dB) -21.574 -25.244 -14.54% 5.6GHz Impedance 52.121Ω +3.482 jΩ 47.163Ω +3.417 jΩ 4.958Ω (Real part) 5.75GHz Return Loss(dB) -27.547 -27.284 0.96% 5.75GHz Impedance 46.944Ω +4.023 jΩ 50.693Ω +8.724 jΩ -4.701Ω (Imaginary part) Return Loss for Head TSL Impedance for Head TSL Report No.: BL-SZ23C0537-AC 61 / 61 --END OF REPORT--

Report No.: BL-SZ23C0537-AC 1 / 61 CALIBRATION REPORT F.1 E-Field Probe (EX3DV4 - SN:7607) Report No.: BL-SZ23C0537-AC 2 / 61 Report No.: BL-SZ23C0537-AC 3 / 61 Report No.: BL-SZ23C0537-AC 4 / 61 Report No.: BL-SZ23C0537-AC 5 / 61 Report No.: BL-SZ23C0537-AC 6 / 61 Report No.: BL-SZ23C0537-AC 7 / 61 Report No.: BL-SZ23C0537-AC 8 / 61 Report No.: BL-SZ23C0537-AC 9 / 61 Report No.: BL-SZ23C0537-AC 10 / 61 Report No.: BL-SZ23C0537-AC 11 / 61 Report No.: BL-SZ23C0537-AC 12 / 61 Report No.: BL-SZ23C0537-AC 13 / 61 Report No.: BL-SZ23C0537-AC 14 / 61 Report No.: BL-SZ23C0537-AC 15 / 61 Report No.: BL-SZ23C0537-AC 16 / 61 Report No.: BL-SZ23C0537-AC 17 / 61 Report No.: BL-SZ23C0537-AC 18 / 61 Report No.: BL-SZ23C0537-AC 19 / 61 Report No.: BL-SZ23C0537-AC 20 / 61 Report No.: BL-SZ23C0537-AC 21 / 61 Report No.: BL-SZ23C0537-AC 22 / 61 Report No.: BL-SZ23C0537-AC 23 / 61 E-Field Probe (EX3DV4 -SN:7510) Report No.: BL-SZ23C0537-AC 24 / 61 Report No.: BL-SZ23C0537-AC 25 / 61 Report No.: BL-SZ23C0537-AC 26 / 61 Report No.: BL-SZ23C0537-AC 27 / 61 Report No.: BL-SZ23C0537-AC 28 / 61 Report No.: BL-SZ23C0537-AC 29 / 61 Report No.: BL-SZ23C0537-AC 30 / 61 Report No.: BL-SZ23C0537-AC 31 / 61 Report No.: BL-SZ23C0537-AC 32 / 61 F.2 Data Acquisition Electronics (DAE4 - SN:878) Report No.: BL-SZ23C0537-AC 33 / 61 Report No.: BL-SZ23C0537-AC 34 / 61 Report No.: BL-SZ23C0537-AC 35 / 61 Report No.: BL-SZ23C0537-AC 36 / 61 Report No.: BL-SZ23C0537-AC 37 / 61 F.3 2450 MHz Dipole

Report No.: BL-SZ23C0537-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 61 Web: www.titcgroup.com Template No.: TRP-FCC DASY-Body-2 (2023-01-30) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Shenzhen Tinno Mobile Technology Corp Address: 27-001, South side of Tianlong mobile HQ Building, Tongfa South Road, Xili Street, Nanshan District, Shenzhen, Guangdong Province, 518000, China Equipment Type: onn. 10.1" Tablet Model Name: TBIND100135925 (refer to section 2.3) Brand Name: onn. FCC ID: XD6WM2310T Test Standard: FCC 47 CFR Part 2.1093 (refer to section 3.1) Maximum SAR: Body (1 g@0mm): 1.19 W/kg Sample Arrival Date: Dec. 11, 2023 Test Date: Jan. 02, 2024 - Jan. 03, 2024 Date of Issue: Jan. 25, 2024 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Xiong Lining Checked by: Xu Rui Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ23C0537-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 61 Web: www.titcgroup.com Template No.: TRP-FCC DASY-Body-2 (2023-01-30) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Jan. 11, 2024 Initial Issue Rev. 02 Jan. 25, 2024 Updated section 8 CONDUCTED RF OUPUT POWER. TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 4 1.1 Test Laboratory ............................................................................................................ 4 1.2 Test Location ................................................................................................................ 4 1.3 Test Environment Condition .......................................................................................... 4 2 PRODUCT INFORMATION ....................................................................................................... 5 2.1 Applicant Information .................................................................................................... 5 2.2 Manufacturer Information .............................................................................................. 5 2.3 General Description for Equipment under Test (EUT) ................................................... 5 2.4 Ancillary Equipment ...................................................................................................... 5 2.5 Technical Information ................................................................................................... 6 3 SUMMARY OF TEST RESULT ................................................................................................. 7 3.1 Test Standards ............................................................................................................. 7 3.2 Device Category and SAR Limit ................................................................................... 8 3.3 Test Result Summary ................................................................................................... 9 3.4 Test Uncertainty ......................................................................................................... 10 4 MEASUREMENT SYSTEM ..................................................................................................... 11 4.1 Specific Absorption Rate (SAR) Definition .................................................................. 11 4.2 DASY SAR System .................................................................................................... 12 5 SYSTEM VERIFICATION ........................................................................................................ 19 5.1 Purpose of System Check .......................................................................................... 19 5.2 System Check Setup .................................................................................................. 19 6 TEST POSITION CONFIGURATIONS .................................................................................... 20 6.1 Body-worn Position Conditions ................................................................................... 20 6.2 Hotspot Mode Exposure Position Conditions .............................................................. 21 Report No.: BL-SZ23C0537-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 61 Web: www.titcgroup.com Template No.: TRP-FCC DASY-Body-2 (2023-01-30) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 6.3 Product Specific 10g Exposure Consideration ............................................................ 21 7 MEASUREMENT PROCEDURE ............................................................................................. 22 7.1 Measurement Process Diagram ................................................................................. 22 7.2 SAR Scan General Requirement ................................................................................ 23 7.3 Measurement Procedure ............................................................................................ 24 7.4 Area & Zoom Scan Procedure .................................................................................... 24 7.5 Interim Procedures for WLAN 6E ................................................................................ 24 8 CONDUCTED RF OUPUT POWER ........................................................................................ 25 8.1 WIFI ............................................................................................................................ 25 8.2 Bluetooth .................................................................................................................... 28 9 TEST EXCLUSION CONSIDE…

Text truncated - open the document above for the full version.

Company:ShenzhenRuiDeCommunicationTechnologyCO.,LTD Address:ZoneBandD,3rdFloor,Building1,BaishaTechnologyIndustrialPark,No.3011Shahe WestRoad,NanshanDistrict,Shenzhen Web:www.myetheta.com AntennaDataSheet Catalogue 1.CapabilityStatus 2.AntennaLocation 3.AntennaPassiveEfficiency 4.SimpleAntennaPatternPlot 5.Antennareturnloss Company:ShenzhenRuiDeCommunicationTechnologyCO.,LTD Address:ZoneBandD,3rdFloor,Building1,BaishaTechnologyIndustrialPark,No.3011Shahe WestRoad,NanshanDistrict,Shenzhen Web:www.myetheta.com 1.CapabilityStatus ProjectName:T402AA Company:ShenzhenRuiDeCommunicationTechnologyCO.,LTD Address:ZoneBandD,3rdFloor,Building1,BaishaTechnologyIndustrialPark,No.3011 ShaheWestRoad,NanshanDistrict,Shenzhen Web:www.myetheta.com TEL:0755-26625028 Shanghai:Satimo:2GTS1800:3NFCMicropross:1 SARDASY5:1 Shenzhen:GTS1800:1GTS2800:1NFCMicropross:1 Xian:GTS2800:1 Beijing:GTS1800:2GTS2800:1 SatimoSG24GTS2800 DASY4/5NFC a.Fullcategorytestingcapability Supportsystem Company:ShenzhenRuiDeCommunicationTechnologyCO.,LTD Address:ZoneBandD,3rdFloor,Building1,BaishaTechnologyIndustrialPark,No.3011Shahe WestRoad,NanshanDistrict,Shenzhen Web:www.myetheta.com GSM/WCDMA/EVDO/TDSCDMA/TDD/FDD/5G-SA/5G-NSA/eMTC/NB-iot/GPS/WiFi/BT/CA/ENDC Commonequipment SP9500、AnritsuMT8820C、5071C、CMW500、DASY4/5SAR StarPointSP9500AnritsuMT8820C 2.AntennaLocation ANT1:5GWIFI ANT2:2.4WIFI Company:ShenzhenRuiDeCommunicationTechnologyCO.,LTD Address:ZoneBandD,3rdFloor,Building1,BaishaTechnologyIndustrialPark,No.3011Shahe WestRoad,NanshanDistrict,Shenzhen Web:www.myetheta.com ANT3:GPS 3.AntennaPassiveEfficiency a.Antenna1 Band AverageGainMaximumGain TXRXTXRX WIF I5G 5.15Ghz-5.25Ghz-0.8dBi-0.9dBi0.5dBi0.5dBi 5.25Ghz-5.35Ghz-0.6dBi-0.8dBi0.6dBi0.6dBi 5.47Ghz-5.725Ghz-0.9dBi-1.1dBi0.7dBi0.7dBi 5.725Ghz-5.85Ghz-1.2dBi-1.0dBi0.6dBi0.6dBi b.Antenna2 Band AverageGainMaximumGain TXRXTXRX WIFI 2.4G 2.4Ghz-2.5Ghz-6.2dBi-6.2dBi-5.2dBi-5.2dBi c.Antenna3 Company:ShenzhenRuiDeCommunicationTechnologyCO.,LTD Address:ZoneBandD,3rdFloor,Building1,BaishaTechnologyIndustrialPark,No.3011Shahe WestRoad,NanshanDistrict,Shenzhen Web:www.myetheta.com Band AverageGainMaximumGain TXRXTXRX GPSL11575.5/-4.5dBi/-4.5dBi 4.SimpleAntennaPatternPlot a.Antenna1 b.Antenna2 c.Antenna3 Company:ShenzhenRuiDeCommunicationTechnologyCO.,LTD Address:ZoneBandD,3rdFloor,Building1,BaishaTechnologyIndustrialPark,No.3011Shahe WestRoad,NanshanDistrict,Shenzhen Web:www.myetheta.com 5.Antennareturnloss a.Antenna1 5GWIFI b.Antenna2 2.4WIF c.Antenna3 GPS Company:ShenzhenRuiDeCommunicationTechnologyCO.,LTD Address:ZoneBandD,3rdFloor,Building1,BaishaTechnologyIndustrialPark,No.3011Shahe WestRoad,NanshanDistrict,Shenzhen Web:www.myetheta.com

Report No.: BL-SZ23C0537-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 71 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Address: Equipment Type: Model Name: Brand Name: FCC ID: Test Standard: Sample Arrival Date: Test Date: Date of Issue: Shenzhen Tinno Mobile Technology Corp 27-001, South side of Ti…

Text truncated - open the document above for the full version.
