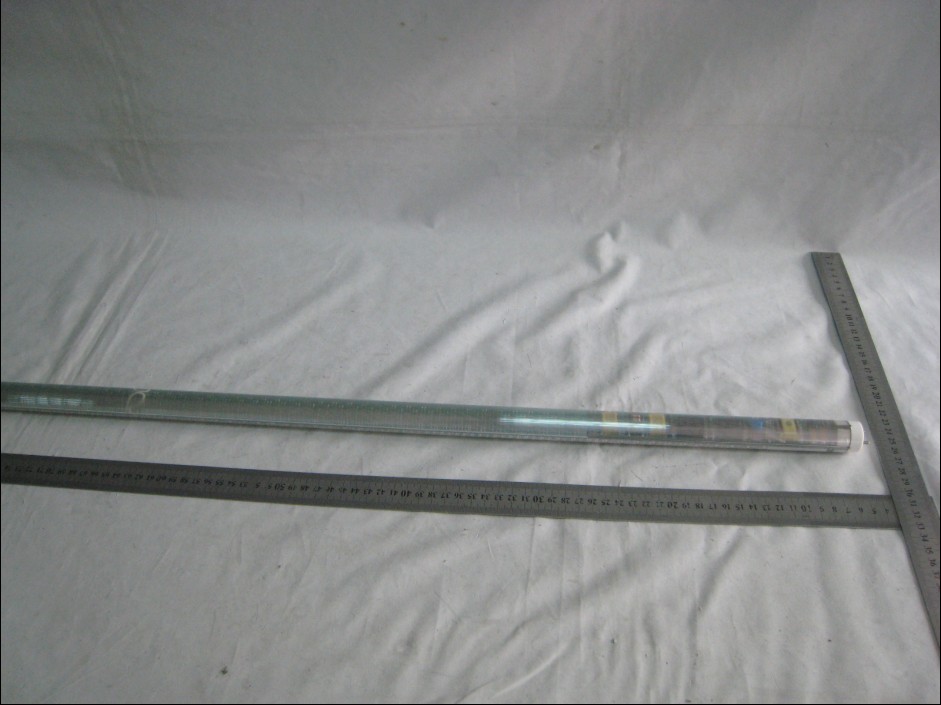

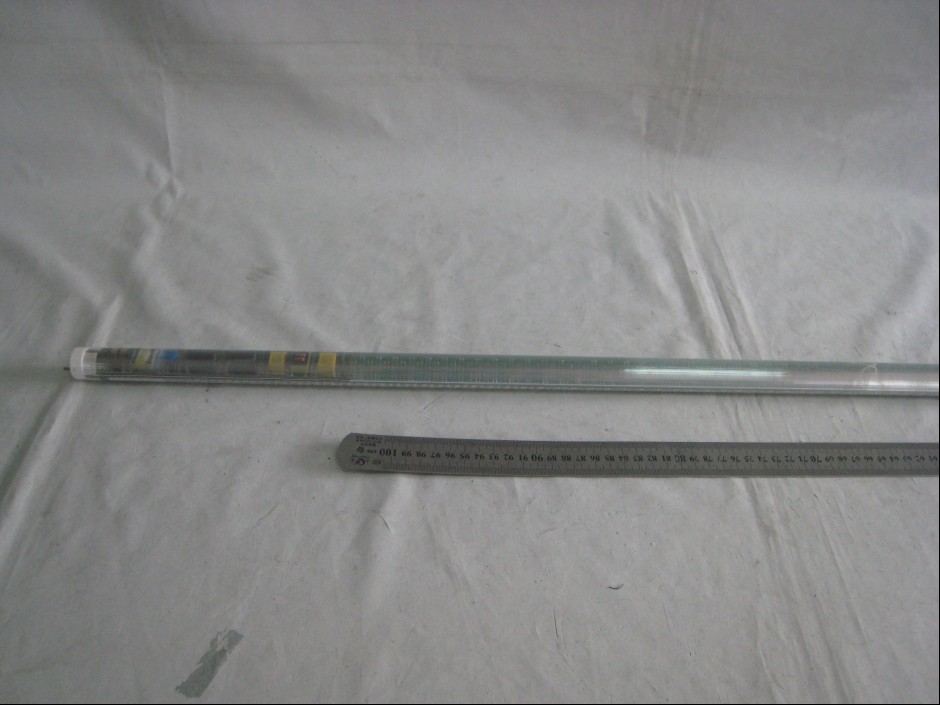

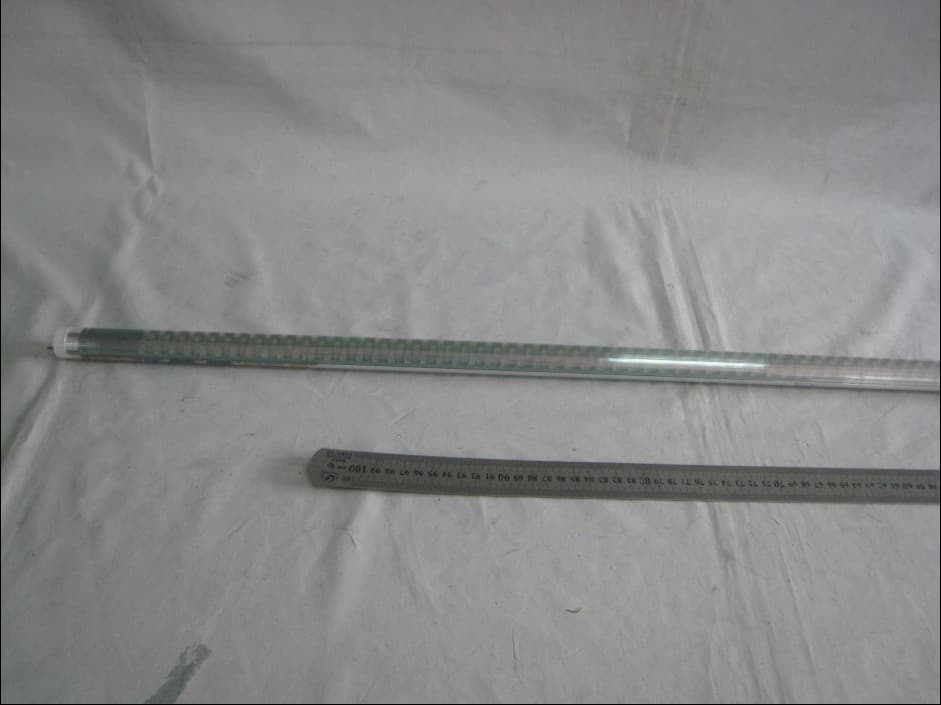

XE6-XZ-T8-16W0LED DAY LIGHT LAMP

XZ-T8-16W Series Led Tube User's manual 1. Production Description Product name: LED Day Light Lamp Model: XZ-T8-16W Input Voltage Range: AC100V-AC240V Output Voltage: DC 12 V Wattage: 16W Led Lamp: 257pcs Output Current: 900mA±5% Temperature rise range: ≤60 Operating Temperature:-20 ~80 Storage Temperature: 20 ~80 Operating Frequency: 50 - 60Hz Dimension: 1196mm*25mm,1210mm*25mm 2. How to Use? Put both tube sides into the lamp holder groove simultaneously and revolve 90 degree. 3. Safety use guide 3.1. Shut down the power before installment in order to get an electric shock. Only specialists are allowed to the installment. 3.2. Keep the lamp off heat source, hot vapor and caustic gas in order to reduce the life time. 3.3. Before the installment, make sure the position can be possible withstand 10 times product weight, install the lamp on no shocking, no vibration, no fire and flat place. 3.4. Electronic control system of LED tube is designed by engineers to be operated in the term of regular work. They adopt plastic forming for the surface part, the Integrative shaping can be wiped directly, also keep the LED tube in prime lightness, and then remain to be operated as above terms. If it is overtaken than the regular work term for a long term, there will cause damage for LED tube and lower the lifetime of products. 4. Cleaning and maintenance 4.1. First shut down the power, take off the tube from lamp holder. Gently scratches the lamp surface with the flannelette. 4.2. Never clean the lamp in water, it damages the product easily. 5. Federal Communications Commission (FCC) Statement Manufacturers of RF lighting devices must provide an advisory statement, either on the product packaging or with other user documentation, similar to the following: This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment operating between 0.45-30MHz. Variations of this language are permitted provided all the points of the statement are addressed and may be presented in any legible font or text style.

Block Diagram L N FUSE Full-bridge Rectification Circuit Transformation Circuit Regulators Circuit Filter Circuit LED Lamp (Oscillate Freq.:100 KHz)

Sincho Electric Co., Ltd. 104, Sin-Tso Rd, Sin-Yuan Hsiang, Ping-Tung Hsien, 932 Taiwan FCC ID: XE6-XZ-T8-16W0 Power of Attorney 2009-06-03 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road To Whom It May Concern: We, the undersigned, hereby authorize Most Technology Service Co., Ltd.(Mark Wen/General Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Most Technology Service Co., Ltd.(Mark Wen/General Manager) on our behalf shall have the same effect as acts of our own. This authorization will expire on Jun. 02, 2010. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Sincho Electric Co., Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely Sincho Electric Co., Ltd. Wu Lang (Manager)

Label Drawing FCC ID: XE6-XZ-T8-16W0 Model Number: XZ-T8-16W

Label Location

Circuit Description Fuse: When input is shorted, it performs input shorted protect function R1: Performs Surge-protect Circuit function L1, C1: Work together with to perform EMI function. D1-D4: Performs Full-bridge rectification function. EC1, EC2: Performs Filter function. T1: Performs Transformation function. U3: Performs Regulators function.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2009-5-25Sheet of File:C:\Documents and Settings\..\.SchDocDrawn By: D8 FR107 D9 1N4148 D10 SR110 T1 Trans3 1234 5678 U1 DH321 C4 10UF/16V C3 104P C5 4700PF/250V C2 502/250V EC2 22UF/250V EC3 22UF/25V R1 20K R2 24R R3 0.47R R5 1K R4 12K DZ1 15.6V 1 2 34 5 6 U3 EC4 22UF/25V L2 10UH EC1 22UF/250V D6 FR107 D7 FR107 D5 FR107 VAR1 471K/300VAC F1 FUSE 250V/1A t RT1 2.5R/5A C1 0.1uF/275Vac L1 60mH 2 1 3 4 D1-D4 IN4007 L N R7 1K C6 684P R10 51R R8 1KC7 684P R9 500R R6 330R 2 4 3 1 U2 EL817B-S D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 D? LED0 R1 20K R1 20K C4 10UF/16V P2 P1 + - P0C101 P0C102 P0C201 P0C202 P0C301 P0C302 P0C401 P0C402 P0C401 P0C402 P0C501 P0C502 P0C601 P0C602 P0C701 P0C702 P0D10D401 P0D10D402 P0D10D403 P0D10D404 P0D501 P0D502 P0D601 P0D602 P0D701 P0D702 P0D801 P0D802 P0D901 P0D902 P0D1001 P0D1002 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0D?01 P0D?02 P0DZ101 P0DZ102 P0EC101 P0EC102 P0EC201 P0EC202 P0EC301 P0EC302 P0EC401 P0EC402 P0F101 P0F102 P0L101 P0L102 P0L103 P0L104 P0L201 P0L202 P0R101 P0R102 P0R101 P0R102 P0R101 P0R102 P0R201 P0R202 P0R301 P0R302 P0R401 P0R402 P0R501 P0R502 P0R601 P0R602 P0R701 P0R702 P0R801 P0R802 P0R901 P0R902 P0R1001 P0R1002 P0RT101 P0RT102 P0T101 P0T102 P0T103 P0T104 P0T105 P0T106 P0U101 P0U102 P0U103 P0U104 P0U105 P0U106 P0U107 P0U108 P0U201 P0U202 P0U203 P0U204 P0U301 P0U302 P0U303 P0U304 P0U305 P0U306 P0VAR101 P0VAR102 P0C502 P0D?01 P0EC401 P0L202 P0R402 P0D?02 P0EC402 P0R302 P0R902 P0C301 P0C401 P0D10D404 P0D501 P0DZ101 P0EC202 P0T105 P0U101 P0U203 P0F101 P0RT101 P0C101 P0F102 P0L102 P0VAR101 P0C102 P0L101 P0RT102 P0VAR102 P0C201 P0D802 P0R102 P0C202 P0D10D401 P0D702 P0EC101 P0R101 P0T103 P0U105 P0C302 P0U102 P0U204 P0C402 P0D902 P0DZ102 P0U103 P0C601 P0C701 P0R1001 P0U303 P0C602 P0R702 P0C702 P0R802 P0D10D402 P0L104 P0D10D403 P0L103 P0D502 P0D601 P0EC102 P0D602 P0D701 P0EC201 P0D801 P0T104 P0U106 P0U107 P0U108 P0D901 P0R202 P0D1001 P0T101 P0D1002 P0EC301 P0L201 P0R602 P0D?01 P0D?02 P0R101 P0R102 P0R201 P0T106 P0R401 P0R501 P0R701 P0U301 P0R601 P0U201 P0U306 P0R801 P0R901 P0U305 P0R1002 P0U202 P0U104 P0C501 P0EC302 P0R301 P0R502 P0T102 P0U302 P0U304

SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] Applicant:Sincho Electric Co., Ltd. FCC ID: XE6-XZ-T8-16W0 Cover Sheet Test Report Product Name: LED Day Light Lamp Model No.: XZ-T8-16W FCC ID: XE6-XZ-T8-16W0 Applicant: Sincho Electric Co., Ltd. 104, Sin-Tso Rd, Sin-Yuan Hsiang, Ping-Tung Hsien, 932 Taiwan Date Received: 13/06/2009 Date Tested: 11-12/06/2009 SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] Applicant:Sincho Electric Co., Ltd. FCC ID: XE6-XZ-T8-16W0 TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: Sincho Electric Co., Ltd. FCC ID: XE6-XZ-T8-16W0 TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 3-5.........POWER LINE CONDUCTED INTERFERENC PAGE 6...........RADIATION INTERFERENCE EXHIBIT INCLUDED: PAGE 1...........BLOCK DIAGRAM PAGE 2...........SCHEMATIC PAGE 3...........PART LIST PAGE 4...........USERS MANUAL PAGE 5...........LABEL SAMPLE PAGE 6...........LABEL LOCATION PAGE 7...........EXTERNAL PHOTOGRAPHS PAGE 8...........INTERNAL PHOTOGRAPHS PAGE 9...........OPERATIONAL DESCRIPTION PAGE 10..........TEST SET UP PHOTOGRAPHS SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] Applicant:Sincho Electric Co., Ltd. FCC ID: XE6-XZ-T8-16W0 Page 1 of 6 EMC Equipment List Remark: Test Firm Name: Most Technology Service Co., Ltd. Test Firm Address: No. 5, 2nd Langshan Road, North District, Hi-tech Industrial Park,Nanshan, Shenzhen, Guangdong, China FCC Registered Test Site Number: 490827 Equipment Manufacturer Model No.Serial No.Last Cal. Cal. Interval EMI Test Receiver ROHDE&SCHWARZ ESCI 100492 Mar 10,2009 1 Year LISN ROHDE&SCHWARZ ENV216 100093 Mar 10,2009 1Year EMI Test Receiver ROHDE&SCHWARZ ESCI 101202 Mar 10,2009 1 Year Spectrum Analyzer ANRITSU MS2651B 6200238316 Mar 10,2009 1 Year 50 Coaxial Switch ANRITSU CORP MP59B 6200283933Mar 10,2009 1 Year Bilog Antenna Sunol JB3 A121206 Mar 10,2009 1 Year Horn Antenna EMCO 3115 640201028-0 6 Mar 10,2009 1 Year 50 Coaxial Switch ANRITSU CORP MP59B 6200283933Mar 10,2009 1 Year Cable Resenberger N/A NO.1 Mar 10,2009 1 Year Cable SCHWARZBECK N/A NO.2 Mar 10,2009 1 Year Cable SCHWARZBECK N/A NO.3 Mar 10,2009 1 Year Single Phase Power Line Filter Kikusui LIN40MA-PC R-L LM002352 Mar 10,2009 1Year AC Power Source Kikusui AC40MA LM003232 Mar 10,2009 1Year Test analyzer Kikusui KHA1000 LM003720 Mar 10,2009 1Year ESD Tester Kikusui KES4021 LM003537 Mar 10,2009 1 Year Signal Generator IFR 2032 203002/100 Mar 10,2009 1 Year Amplifier A&R 150W1000 301584 Mar 10,2009 NCR Dual Directional Coupler A&R DC6080 301508 Mar 10,2009 1 Year Power Head A&R PH2000 301193 Mar 10,2009 1 Year Power Meter A&R PM2002 302799 Mar 10,2009 1 Year Field Monitor A&R FM5004 300329 Mar 10,2009 1 Year Field Probe A&R FP5000 300221 Mar 10,2009 1 Year EMCPRO System EM Test UCS-500-M4 V064810202 6 Mar 10,2009 1 Year EMCPRO System EM Test UCS-500-M4 V064810202 6 Mar 10,2009 1 Year SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] Applicant:Sincho Electric Co., Ltd. FCC ID: XE6-XZ-T8-16W0 Page 2 of 6 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of MOST TECHNOLOGY SERVICE CO., LTD. The EUT was transmitting a test signal during the testing. POWER LINE CONDUCTED INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a 50H LISN. Both Lines were observed. The bandwidth of the receiver was 10kHz with an appropriate sweep speed. The ambient temperature of the EUT was 25 with a humidity of 58%. RADIATION INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a ANRITSU spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a micro volt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. The ambient temperature of the EUT was 25 with a humidity of 58%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer and cable loss. The antenna correction factors and cable loss are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF + CABLE = FS 33 20 dBuV + 10.36 dB + 0.9 dB= 31.26 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The EUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The EUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the highest readings were converted to average readings based on the duration of "ON" time. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSI Standard C63.4-2003 10.1.7 with the EUT 40 cm from the vertical ground wall. SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] Applicant:Sincho Electric Co., Ltd. FCC ID: XE6-XZ-T8-16W0 Page 3 of 6 APPLICANT: Sincho Electric Co., Ltd. FCC ID: XE6-XZ-T8-16W0 NAME OF TEST: POWER LINE CONDUCTED INTERFERENCE RULES PART NUMBER: 18.307, 18.311 REQUIREMENTS: Conducted Limit (dBuV) Freq…
