Libra MAX-58 User Guide Version: 1.0.8 Released: January 2010 Item Number: 5722-0048 This guide is used for the following products; Libra MAX-HD Chassis Base Station Libra MAX-LT 5800 – 5.8 GHz ODU Base Station Libra MAX-RBS 5800 – 5.8 GHz Rapid Backhaul System Libra MAX-LT-IND 5800 – 5.8 GHz ODU Base Station, India Only Variant Libra MAX-RBS-IND 5800 – 5.8 GHz Rapid Backhaul System, India Only Variant Powered by Libra MAX User Guide Copyright Notice: Copyright Page 4 of 120 Copyright Notice 1.1 Copyright Copyright © 2009 EION, Inc. All rights reserved. This guide and the application and hardware described herein are furnished under license and are subject to a confidentiality agreement. The software and hardware can be used only in accordance with the terms and conditions of this agreement. No part of this guide may be reproduced or transmitted in any form or by any means – electronic, mechanical, or otherwise, including photocopying and recording – without the express written permission of EION, Inc. While every effort has been made to ensure that the information contained in this guide is correct, EION Inc. does not warrant the information is free of errors or omissions. Information contained in this guide is subject to change without notice. Table of Contents 1 Copyright Notice........................................................................................... 4 1.1 Copyright......................................................................................................4 2 Table of Contents.......................................................................................... 6 3 Preface........................................................................................................ 10 3.1 Regulatory Notice........................................................................................ 10 3.2 Other Notices.............................................................................................. 10 3.3 Warranty and Repair.................................................................................... 11 3.4 Customer Support Contacts.......................................................................... 11 3.4.1 Distributor Technical Support.................................................................. 11 3.4.2 Contacting EION Technical Support......................................................... 12 4 Pre-installation........................................................................................... 14 4.1 Required Tools............................................................................................ 14 4.2 Site Evaluation............................................................................................ 15 4.3 Base Station Site Considerations................................................................... 16 4.3.1 Indoor Unit Site Considerations............................................................... 16 4.3.2 Outdoor Unit Site Considerations............................................................ 16 4.3.3 Subscriber Station Site Considerations..................................................... 17 4.4 Base Station Power Sources......................................................................... 17 4.5 Grounding................................................................................................... 18 4.5.1 ESD Warning......................................................................................... 18 4.5.2 Outdoor Unit Grounding......................................................................... 18 4.5.3 Indoor Unit Chassis Ground.................................................................... 20 4.6 Lightning Protectors..................................................................................... 20 4.6.1 Surge Suppression Unit Location............................................................. 21 4.7 Weatherproofing Connectors........................................................................ 24 4.8 CAT-5 Ethernet Cable Shielding..................................................................... 25 5 Base Station Installation............................................................................ 26 5.1 Installing the Indoor Unit............................................................................. 26 5.2 Installing the BS Outdoor Unit...................................................................... 35 5.3 Connecting the Ethernet Cable...................................................................... 35 5.4 Mounting Conditions.................................................................................... 35 5.5 Pole Mounting............................................................................................. 35 5.6 Pole-mounting the Outdoor Unit................................................................... 36 5.7 Wall-mounting the Outdoor unit.................................................................... 38 5.8 Antenna Mounting Guidelines....................................................................... 39 5.8.1 Mounting the Structure.......................................................................... 39 5.9 Cabling the Base Station.............................................................................. 40 5.10 Weatherproofing Cable Connections............................................................ 44 5.10.1 Cable to Outdoor Unit Connections........................................................ 44 5.10.2 Cable to Cable Connections.................................................................. 44 5.11 Installing a Drip Loop................................................................................. 45 5.12 Cabling the Indoor Unit.............................................................................. 46 5.13 Cabling to the Outdoor Unit........................................................................ 48 5.14 Cabling to the Antenna............................…

Text truncated - open the document above for the full version.

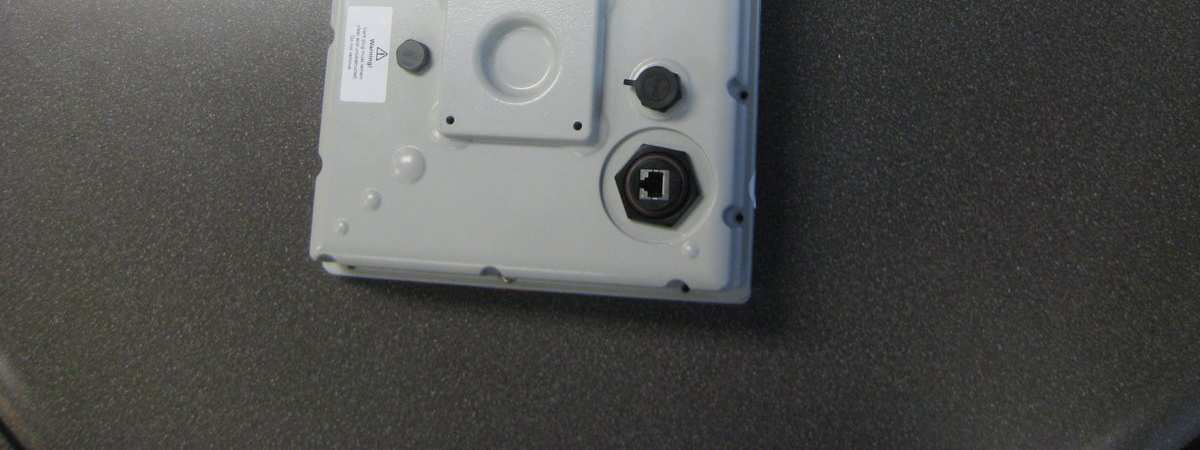

Rear of LM 5800 RJ-45 POE Connection Maintenance Port Air Vent

External-Front of LM-5800 AntennaConnector

Page 1 of 4 Document Item Number: 5722-0042 Document Revision Number:03 Created Date:November 26, 2009 Last modified Date:January 27, 2010 Document Owner:Richard Kelland ([email protected]) 320 March Road, Suite 500, Kanata ON Ph: 613-271-4400 Fax: 613-271-4400 Product Family:Libra MAX-58 Libra Max 5.8 GHz ODU - Product Labeling This document contains the labeling specifications for the 5.8 GHz Libra MAX-ODU Main Label Part Number: 2540-0006 (Blank Label) Dimensions: 1” x 2.5” Product Label Part Number: 2540-0006 (Blank Label) Dimensions: 1” x 2.5” MAC: <mac address> MAC BARCODE Date of Mf g: <mfg_date> Mfg Rls.: <mfg_rls> <product name> SN: <serial> SERIAL BARCODE PN: <part number> FCC ID: XEC-LM5800 IC: 8367A-LM5800 This label must be uniquely printed for each unit. Field Description Notes <serial> Sigmapoint supplied serial number <mac address> IXP0 MAC Address <product name> This is the name of the product from the engineering definition <part number> EION’s 8-digit part number from the engineering definition Format: ####-#### <mfg_rls> Revision level from the engineering definition <mfg_date> Date of manufacture, format is 4 digits, weekyear Logo EION Wireless Logo (use eps version with wireless.) Made in Canada Text “MADE IN CANADA” CE Logo CE Logo FCC Logo FCC Logo Certifications “FCC ID: XEC-LM5800 IC: IC: 8367A-LM5800 RoHs” Warranty Label Part Number: 2542-0001 Dimensions: 0.95” dia (Supplied by Sigmapoint) Details: Warranty Void Label, leaves the word “VOID” or label is destroyed when removed 2x per enclosure Product Logo Decal Part Number: 2542-0026 Details: Kiss-Cut Logo, supplied by GGI Where Used: 1x on front of all enclosures. See placement at the end of this document. Vent Plug Warning Part Number: 2542-0027 Details: Printed by Sigmapoint Where Used: 1x on all enclosures. See placement at the end of this document. Page 2 of 4 Label Placements (Back): 2540-0006 Main Label (place in the centre of free area) 2542-0027 Vent Plug Warning (Centre between vent plug and edge of enclosure) 2540-0006 Product Label (place in indentation) 2542-0001 Warranty Label (place on overlap & wrap around to front) 2542-0001 Warranty Label (place on overlap & wrap around to front) Page 3 of 4 Front: 2542-0026 EION Logo Page 4 of 4

Internal View - LM 5800 Radio MiniPCI Module Single Board Computer Connector BoardSurge Protection Power Supply AntennaConnector

LM5800 Radio Module miniPCI card daughter board Bottom View

LM5800 Radio Module miniPCI card daughter board Top View

LM5800 CPU Board Bottom View

LM5800 CPU Board Top View

Test Report for the Libra MAX –LT/HD 5800 FCC Part 15 & Industry Canada RSS-210 Document Number: K0001570-TR-RAD-01-02 Release Date: 8 December 2009 Prepared for: EION Wireless 320 March Road, Suite 500 Ottawa, Ontario K2K 2E3, Canada Author: Denis Lalonde Radio Compliance Discipline Leader Flextronics Canada Design Services Inc. 21 Richardson Side Road, Kanata, Ontario, K2K 2C1 © Copyright Flextronics Canada Design Services Inc. 8 December 2009 This document shall not be reproduced except in full, without written approval of the Flextronics Canada Design Services Inc. The master of this document is stored on an electronic database and is “write-protected” and may be altered only by authorized persons at Flextronics. Viewing of the master document electronically on the Flextronics electronic database ensures access to the current issue. Any other copies are regarded as uncontrolled copies. K0001570-TR-RAD-01-02 Prepared for: EION Wireless Test Report for the Libra MAX –LT/HD 5800 The master of this document is stored on an electronic database and is “write-protected” and may be altered only by authorized persons at Flextronics. Viewing of the master document electronically on the Flextronics electronic database ensures access to the current issue. Any other copies are regarded as uncontrolled copies. Release date: 8 December 2009 Page 3 of 52 Table of Contents Release Control Record ................................................................................................................ 2 Approvals ....................................................................................................................................... 2 Accreditations ................................................................................................................................ 2 Table of Contents........................................................................................................................... 3 List of Figures ................................................................................................................................ 5 List of Tables.................................................................................................................................. 6 1. Introduction.............................................................................................................................. 7 1.1 Purpose and Scope ...........................................................................................................7 1.2 Executive Summary ......................................................................................................... 7 1.3 Test Lab Information........................................................................................................7 1.4 Customer and Manufacturer Information......................................................................... 7 2. Compliance Summary ............................................................................................................. 8 3. Equipment Under Test (EUT) ................................................................................................ 9 3.1 Product Overview............................................................................................................. 9 3.2 Transmitter Specifications................................................................................................ 9 3.3 System Components ....................................................................................................... 10 3.4 EUT Interfaces and Cables............................................................................................. 10 3.5 Support Equipment......................................................................................................... 10 3.6 System Setup and Test Configurations .......................................................................... 10 3.7 System Modifications..................................................................................................... 11 4. General Test Conditions........................................................................................................ 12 4.1 Test Facility.................................................................................................................... 12 4.2 Measurement Instrumentation........................................................................................ 12 5. Detailed Test Results ............................................................................................................. 13 5.1 RF Power........................................................................................................................ 13 5.1.1 Test Specification ................................................................................................ 13 5.1.1.1 Limits .............................................................................................................. 13 5.1.2 Test Facility Information ..................................................................................... 13 5.1.3 Test Procedure ..................................................................................................... 13 5.1.4 Test Results.......................................................................................................... 14 5.1.5 Test Conclusion ................................................................................................... 14 5.1.6 Test Equipment List ............................................................................................. 14 5.2 6 dB Bandwidth.............................................................................................................. 15 Test Report for the Libra MAX –LT/HD 5800 K0001570-TR-RAD-01-02 Prepared for: EION Wireless The master of this document is stored on an electronic database and is “write-protected” and may be altered only by authorized persons at Flextronics. Viewing of the mast…
