XFW2GOCD26LCLICK 'N DIG ELECTRONIC KEY FINDER

size:297 x 210mm RKF-1004 INSTRUCTION REMOTE FINDER operation: Remote finder can easily find your misplaced items quickly .You can use it to locate keys,TV remote,checkbooks,wallet,purses,toys,even pets or young children. It saves your precious time and annoyance of always looking for misplaced things.You simply press the button the transmitter and the corresponding receiver will beep and flash the red light to guide you to your lost item. Double sided adhesive tape and the key rings are included in the package for attaching the receivers to your commonly misplaced articles. Gently pull out the battery insulating tab from the receivers. Attach the receiver on the articles that you would like to locate such as keys,pets,or TV remotes. When looking for a lost or misplaced item, press and hold the transmitter button for a few seconds (until you hear the beeping). Sometimes receivers can miss just a "pulse" of a signal, so the transmitter button should be held pressed for a 2 - 3 seconds for optimal performance. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. Installation: FCC NOTE： FCC ID: XFWE2F1004 Transmitter: Receicer: We recommend that you test each receiver before starting to use it to make sure that it is properly working. If you find that it is not working, you can try changing the battery OR contact us by visiting our website www.clickndig.com. Battery: A27 12V (for transmitter ), CR2032 (for receiver) Frequency : 433.92MHz Remote distance: 60-80 feet Sound Volume: 90-95 dB Battery life : Can vary by use. Transmitter: approx. 12 months. Receivers: approx. 6 months Specification :

RF Receiver Module (433.92MHz) IF Amplifier IC Detector IC Decoding IC Receiver Block Diagram Buzzer pronounce PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

2Go Products, LLC. FCC ID: XFW2GOCD26L POWER OF ATTORNEY March 14, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, 2Go Products, LLC. hereby authorize Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) located at No.5, Langshan 2nd Rd., North Hi-Tech Industrial Park ,Nanshan, Shenzhen, Guangdong ,China on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on April 30, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, 2Go Products, LLC. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Anjum Gupta Manager 2Go Products, LLC. March 14, 2012

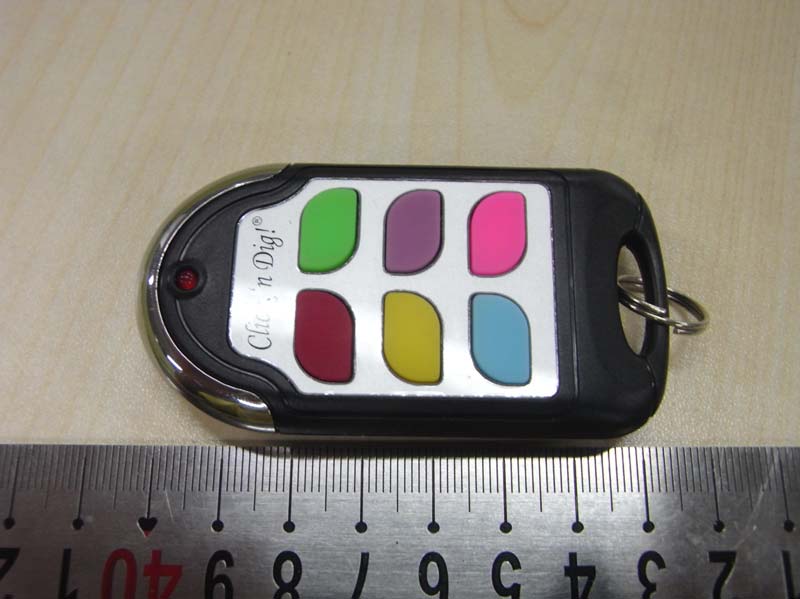

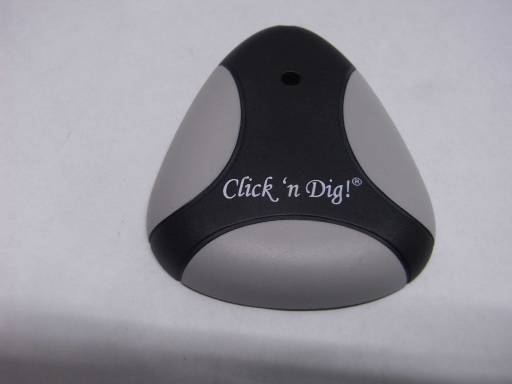

FCC ID: XFW2GOCD26L Report No.: SZSTS120303F1 Page 22 of 24 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: XFW2GOCD26L Report No.: SZSTS120303F1 Page 23 of 24 VIEW OF OTHER MODEL

INTERNAL PHOTO OF SAMPLE – 1 FCC ID: XFW2GOCD26L Report No.: SZSTS120303F1 Page 24 of 24 INTERNAL PHOTO OF SAMPLE -2 ------END OF REPORT------

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

1234 A B C D 4321 D C B A Title NumberRevisionSize B Date:6-Mar-2012 Sheet of File:F:\Kaifa2\2012\PCB\RF074.ddbDrawn By: R5 5.6K R7 9.1M R3 270R R4 2.7K R1 68K R8 180K R12 560K R6 10K R10 2.2R R2 56K C3 NC C4 4P C2 102P C11 105P C5 NC C1 103P L3 10uH L2 10uH BT1 C7 10P Q1 3838 O 1 I 2 G 3 U3 XC61CC2202MR VDD 1 P65 2 P64 3 P63 4 P62 5 P61 6 P60 7 VSS 8 U2 HS108NJ C8 103P C6 102P C9 2P R9 4.7M I 1 O 2 14 7 U1A MC14069UG 34 U1B MC14069UG 56 U1C MC14069UG Q2 8050 D1 LED R13 100R VCC RF-074B KAIN C&D ELECTRONICS CO., LTD C10 22P R11 82K +3.0V +3.0V BZ1 BUZZER L1 ANT_E R14 10K R15 2.2R PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

FCC 47 CFR PART 15 SUBPART B TEST REPORT For Applicant: 2Go Products, LLC Address: 7770 Regents Rd # 113-632 San Diego CA 92122 USA Product Name: Click ‘n Dig Electronic Key Finder Model Numbe r:E4, F6 Brand Name: Click ‘n Dig! FCC ID: XFW2GOCD26L Report No.: SZSTS120303F1 Date of Issue: March. 09, 2012 Issued by:Shenzhen Super Test Service Technology Co., Ltd. Address: No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel: 86-755-2795 8522 Fax : 86-755-2795 8022 The report consists 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by STS. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: XFW2GOCD26L Report No.: SZSTS120303F1 Page 2 of 24 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 3 2. GENERAL INFORMATION ............................................................................................................................ 4 2.1 PRODUCT INFORMATION .......................................................................................................................... 4 2.2 OBJECTIVE ................................................................................................................................................. 4 2.3 TEST STANDARDS AND RESULTS ............................................................................................................ 4 2.4 ENVIRONMENTAL CONDITIONS ............................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 3. TEST METHODOLOGY ................................................................................................................................. 6 3. 1TEST FACILITY ............................................................................................................................................ 6 3.2 GENERAL TEST PROCEDURES ................................................................................................................ 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ..................................................................... 7 4 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................ 8 4.1 SETUP CONFIGURATION OF EUT ............................................................................................................. 8 4.2 SUPPORT EQUIPMENT .............................................................................................................................. 8 4.3 TEST EQUIPMENT LIST ............................................................................................................................. 9 5. 47 CFR PART 15B REQUIREMENTS....................................................................................................... 10 5.1 GENERAL INFORMATION......................................................................................................................... 10 6. LINE CONDUCTED EMISSION TEST(NOT APPLICABLE) .................................................................... 11 6.1. LIMITS OF LINE CONDUCTED EMISSION TEST .................................................................................... 11 6.2. BLOCK DIAGRAM OF TEST SETUP ......................................................................................................... 11 6.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................... 12 6.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................................. 12 6.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................................... 12 7. RADIATED EMISSION TEST .................................................................................................................... 13 7.1. LIMITS OF RADIATED DISTURBANCES AT 3M DISTANCES FOR CLASS B ........................................ 13 7.2 TEST DESCRIPTION ................................................................................................................................. 14 7.3 TEST RESULT ........................................................................................................................................... 15 APPENDIX 1 .................................................................................................................................................... 18 PHOTOGRAPHS OF TEST SETUP ................................................................................................................ 18 APPENDIX 2 .................................................................................................................................................... 21 PHOTOGRAPHS OF EUT ............................................................................................................................... 21 FCC ID: XFW2GOCD26L Report No.: SZSTS120303F1 Page 3 of 24 1．VERIFICATION OF CONFORMITY Equipment Under Test: Click ‘n Dig Electronic Key Finder Brand Name: Click ‘n Dig! Model Number: E4 Series Number: F6 Description of Differences: Only the color and model name are different. FCC ID： XFW2GOCD26L Applicant: 2Go Products, LLC 7770 Regents Rd # 113-632 San Diego CA 92122 USA Manufacturer: 2Go Products, LLC 7770 Regents Rd # 113-632 San Diego CA 92122 USA Technical Standards: FCC Part 15 B File Number: SZSTS120303F1 Date of test: March. 08 - March.…

Text truncated - open the document above for the full version.

FCC ID: XFW2GOCD26L Report No.: SZSTS120303F1 Page 19 of 24 RE TEST SETUP FCC ID: XFW2GOCD26L Report No.: SZSTS120303F1 Page 20 of 24
