XG5OMBLU01Lumen

English OhMiBod is committed to bringing you high quality technology enabled pleasure products and accessories. Before you begin enjoying Lumen, please take a moment to review this manual. Lumen - What’s in the box Bluetooth ® -enabled wearable vibrating plug Power button USB magnetic charging connector • USB charging cable • Privacy pouch LED TIP: You can check your vibe status, e.g., if it is paired, turn off the vibe remotely, and even check your vibe battery level in your app profile! Tap the icon to access your profile. The volume on your phone/tablet controls the vibration intensity. For optimal experience, volume should be set at 50% or higher. Controlling Lumen Via App - OhMiBod Remote To pair with and control by your phone/tablet, within Bluetooth ® range or over wifi, download and launch the OhMiBod Remote App: Additional support can also be found at: www.ohmibod.com/app TURN ON Lumen DOWNLOAD THE OhMiBod ® Remote App PAIR devices. Make sure your mobile device’s Bluetooth ® is turned on. Launch the app, and your Lumen and mobile device will pair automatically. Controlling Lumen Via App - FeelConnect PAIR devices. To connect with a partner’s device within Bluetooth ® range, follow the instructions on the FeelConnect App to pair your device(s). DOWNLOAD THE FeelConnect App -OR- To connect remotely to a partner’s device, follow the instructions on the FeelConnect App to pair to your device. Visit www.kiiroo.com/pages/feelconnect for more information. -OR- To experience interactive content, go to www.FeelMe.com Interactive products TURN ON Lumen BLUETOOTH MODE ® HAS 3 SETTINGS: Bluetooth ® Mode: 1. Press 3-4 seconds to turn on. NOTE: Blinking LED power button indicates vibe is ready to connect via Bluetooth ® . 2. Pair to phone/tablet. Bluetooth ® range up to 26ft (8m). See section “Pairing Your Phone/Tablet.” 3. Launch OhMiBod ® Remote App or FeelConnect App. 4. Press and hold for 3-4 seconds to turn off. Manual Mode: 1. Press 3-4 seconds to turn on. 2. Press 3 times to switch to manual mode. First pulsation is a continuous vibration. This confirms manual mode is active. Press to move to next pulsation pattern. There are a total of 4 pulsations. Pressing the button again will cycle back to Bluetooth ® mode. 3. Press for 3-4 seconds to turn off. 1. Initial mode = 100% power & 100% light 2. 1 click = 50% power & 100% light 3. 2 clicks = 100% power & no light Using Lumen - 2 Modes of Operation Simply plug the USB charging cable provided with Lumen into the USB port on your computer or USB wall charger adapter. Connect the other end of the cable into the charging connector on the end of Lumen (see diagram). The LED on Lumen will blink indicating the massager is charging. Please be sure that the massager is completely dry before charging. LED will glow steady when fully charged. NOTE: The USB port is for charging use only, no data transmission functionality. When product is charging, the product will not be able to vibrate until the USB cable is removed from charging socket. Charging Lumen • Please be sure that the massager is completely dry before charging. • Only use the charging cable provided to charge the massager. • Do not use USB charging hubs to charge the massager. • Only use with UL certified USB wall chargers. ≈ 1.5 HRS TO REACH FULL CHARGE Additional Charging Safeguards NOTICE If the LED does not blink when the product is connected to the USB cable, check to make sure the USB cable is properly connected to the USB port and Lumen. • Lumen contains a rechargeable battery. Please do not dispose of this product with normal household waste. • Please dispose of this product at the appropriate electrical and electronic equipment recycling disposal locations in accordance with government regulations. • The recycling of this product appropriately will help to protect our environment. Troubleshooting Battery Disposal Care & Cleaning Clean after every use with mild soap and water. Dry thoroughly. • Do not use on areas that are swollen, inflamed or have skin lacerations. • Stop using the massager if you experience pain or discomfort. Important Safeguards CAUTION Lumen Materials: Body-safe Silicone, ABS Size: Weight: Battery: Lithium-ion, 3.7V with 220mAH Charging: 1.5 hours User time: Up to 3 hours Specifications WIRELESS SPECIFICATIONS: Bluetooth ® Version 4.1 BLE Frequency: 2.402-2.480GHz Receive sensitivity: Better than -90dBm Range: 26ft (8m), better than 10m in line of sight Data rates: Up to 3Mbps (over the air) UART data transfer rate: 115200bps Warranty OhMiBod warrants this product for a period of one (1) year from the date of original purchase, against defects due to faulty workmanship or materials. In the event that this product fails during the warranty period, simply email us at [email protected] and provide us with a valid proof of the date of original purchase and we will replace the faulty product at no extra charge. This warranty does not cover cosmetic deterioration caused by normal wear and tear or damage caused by accident, misuse, neglect or other use not in accordance with this instruction manual. Any attempt to open or take apart this product or its accessories will void the warranty. For Declaration of Conformity, please go to www.ohmibod.com/certificates. No medical claims are warranted or implied by the use of this product. If you have any questions regarding your new product, please check out additional information at www.ohmibod.com/customercare. You can also reach us via email at [email protected]. Contact Us FCC ID: XG5OMBLU01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s a…

Text truncated - open the document above for the full version.

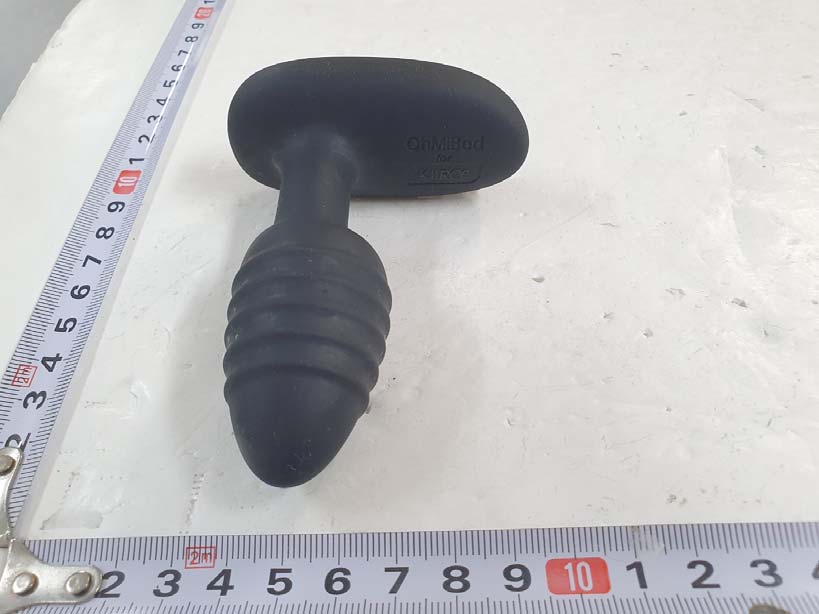

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT External Photographs

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Antenna

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 1 of 4 RF EXPOSURE EVALUATION Applicant : ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. Applicant Address : NO. 35 FIRST ROAD, ZHUHAI BAIJAO NEW TECHNOLOGICAL & INDUSTRIAL PARK ZHUHAI, GUANGDONG, CHINA Kind of Product : Lumen Equipment model name : OMBLU01 FCC ID : XG5OMBLU01 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 2 of 4 Standard Requirement The following RF exposure procedures are applicable : - FCC Rule CFR 47 Part 1.1307 Actions that may have a significant environmental effect, for which Environmental Assessments (EAs) must be prepared. CFR 47 Part 1.1310 Radiofrequency radiation exposure limits SAR Test Exclusion Thresholds for 100 MHz - 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table, The equation and threshold in Note 1 must be applied to determine SAR test exclusion. Note 1: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by : CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 3 of 4 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]* [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where - f(GHz) is the RF channel transmit frequency in GHz - Power and distance are rounded to the nearest mW and mm before calculation - The result is rounded to one decimal place for comparison - 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1f) is applied to determine SAR test exclusion. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]* [√f(GHz)] ≤ 3.0 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 4 of 4 Output Power: Mode Frequency range (MHz) Antenna Gain (dBi) Conducted Output Power (dBm) EIRP (mW) FCC SAR Test Exclusion Threshold (mW) BLE 2 402 -2 480 0.8 -10.922 0.097 10 Base on the maximum conducted power of the antenna to use separation distance, SAR was not required; BLE : [(0.097 / 5) * √2.4] = 0.030 (≤ 3.0) Result : As a result of the calculation above, the SAR test is exempt.

TEST REPORT CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04829 Page (1) / (32) Pages QF-QP15-03 R101 Rev.0 1. Client ◦ Name : ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. ◦ Address : NO. 35 FIRST ROAD, ZHUHAI BAIJAO NEW TECHNOLOGICAL & INDUSTRIAL PARK ZHUHAI, GUANGDONG, CHINA ◦ Date of Receipt : 2020-11-21 2. Manufacturer ◦ Name : ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. ◦ Address : NO. 35 FIRST ROAD, ZHUHAI BAIJAO NEW TECHNOLOGICAL & INDUSTRIAL PARK ZHUHAI, GUANGDONG, CHINA 3. Use of Report : For FCC Conformance 4. Test Sample / Model: Lumen / OMBLU01 5. Date of Test : 2020-12-03 to 2020-12-10 6. Test Standard(method) used : FCC 47 CFR part 15 subpart C 15.247 7. Testing Environment: Temp.: (23 ± 1) °C, Humidity: (49 ± 3) % R.H. 8. Test Results : Compliance The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full. Affirmation Tested by Ji-Hye, Kim: (Signature) Technical Manager Won-Jae, Hwang: (Signature) 2020-12-11 Republic of KOREA CTK Co., Ltd. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04829 Page (2) / (32) Pages QF-QP15-03 R101 Rev.0 REPORT REVISION HISTORY Date Revision Page No 2020-12-11 Issued (CTK-2020-04829) all This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04829 Page (3) / (32) Pages QF-QP15-03 R101 Rev.0 CONTENTS 1. General Product Description ....................................................................................... 4 1.1 Client Information ............................................................................................. 4 1.2 Product Information ........................................................................................... 4 1.3 Peripheral Devices ............................................................................................. 4 1.4 Model Differences .............................................................................................. 4 2. Facility and Accreditations .......................................................................................... 5 2.1 Test Facility ...................................................................................................... 5 2.2 Laboratory Accreditations and Listings .................................................................. 5 2.3 Calibration Details of Equipment Used for Measurement .......................................... 5 3. Test Specifications .................................................................................................... 6 3.1 Standards ........................................................................................................ 6 3.2 Mode of operation during the test ........................................................................ 7 3.3 Device Modifications .......................................................................................... 7 3.4 Maximum Measurement Uncertainty .................................................................... 7 3.5 Test Software ................................................................................................... 7 4. Technical Characteristic Test ....................................................................................... 8 4.1 6dB Bandwidth ................................................................................................. 8 4.2 Maximum peak Conducted Output Power ............................................................ 11 4.3 Transmitter Power Spectral Density .................................................................... 14 4.4 Conducted Spurious emission ............................................................................ 17 4.5 Radiated Emission ........................................................................................... 19 4.6 AC Conducted Emissions .................................................................................. 29 APPENDIX A – Test Equipment Used For Tests ................................................................ 32 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04829 Page (4) / (32) Pages QF-QP15-03 R101 Rev.0 1. General Product Description 1.1 Client Information Company ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. Contact Point NO. 35 FIRST ROAD, ZHUHAI BAIJAO NEW TECHNOLOGICAL & INDUSTRIAL PARK ZHUHAI, GUANGDONG, CHINA Contact Person Name : Wendy E-mail : [email protected] Tel : 13750043327 Fax : 0756-3936802 1.2 Product Information FCC ID XG5OMBLU01 Product Description Lumen Model name OMBLU01 Variant Model name - Operating Frequency 2 402 MHz - 2 480 MHz RF Output Power -10.922 dBm (0.081 mW) Antenna Specification Antenna type : Chip Antenna Peak Gain : 0.8 dBi Number of channels 40 Channel Spacing 1 MHz Type of Modulation GFSK (Bluetooth LE) Power Source DC 3.7 V Hardware Rev V1.0.0 Software Rev V1.0.0 1.3 Peripheral Devices Device Manufacturer Model No. Serial No. Note Computer HP 15-bs563TU CND7253QPR AC/DC Adapter HP HSTNN-LA40 - 1.4 Model Differences Not applicable CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04829 Page (5) / (32) Pages QF-QP15-03 R101 Rev.0 2. Facility and Accreditations 2.1 …

Text truncated - open the document above for the full version.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Setup Photos and Configuration Radiated Electric Field Emissions CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Conducted Voltage Emissions
