XHJHUIDI67515.6� LCD TV with DVD Player

Insert DVDInsert DVDButton DVDButton DVD FCC warning statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance. could void the user's authority to operate the equipment.

Scalar Singal Decode Audio process RF Demodulation Singal input DC to DC AMP HDM1 VGA YPBPR S-video AV KF CRYSTAL 25MHz LVDS Singal to panel

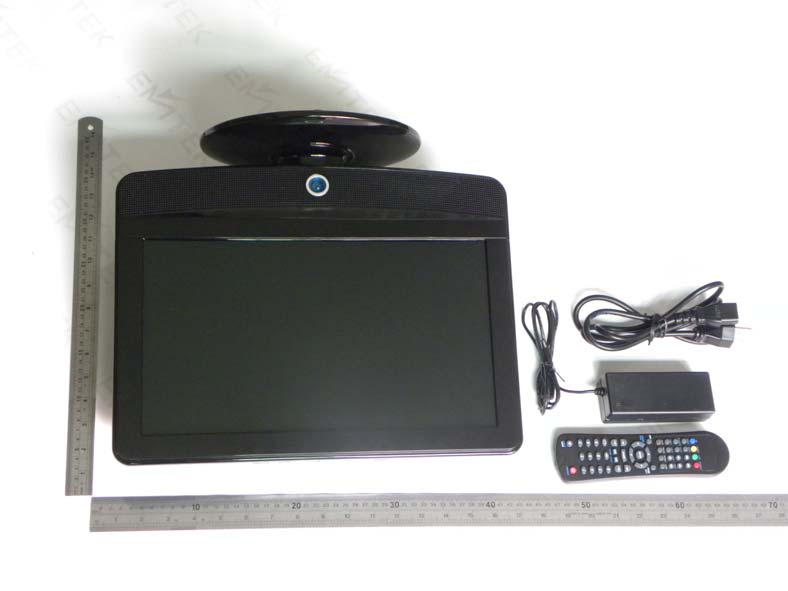

General Appearance of the EUT

FCC ID Lable Location On EUT

Dongguan EMTEK Co., Ltd. Report No.：ED10030010-2 Page 1 of 33 FCC TEST REPORT For 15.6” LCD TV with DVD Player MODEL No.: HLTC15DC, LCD156D1-D, LCD156D2-D, LCD156DF2-D Trademark: HuiDi, HEC FCC ID: XHJHUIDI675 REPORT NO: HD10030010-2 ISSUE DATE: March 23, 2010 Prepared for GUANGZHOU HD ELECTRONICS TECHNOLOGY CO., LTD No. 1, Jiaochanggang, Shiji Town, Panyu District, Guangzhou, China Prepared by DONGGUAN EMTEK CO., LTD No. 281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: +86-769-22807078 FAX: +86-769-22807079 Dongguan EMTEK Co., Ltd. Report No.：ED10030010-2 Page 2 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................... 3 1.1.Description of Device (EUT)........................................................................................................................... 3 1.2. Description of Support Device ....................................................................................................................... 3 1.3 Test Facility ..................................................................................................................................................... 3 1.4 Measurement Uncertainty................................................................................................................................ 3 2. POWER LINE CONDUCTED MEASUREMENT ............................................................................ 3 2.1. Test Equipment ............................................................................................................................................... 3 2.2. Block Diagram of Test Setup.......................................................................................................................... 3 2.3. Power Line Conducted Emission Measurement Limits.................................................................................. 3 2.4. Configuration of EUT on Measurement ......................................................................................................... 3 2.5. Operating Condition of EUT .......................................................................................................................... 3 2.6. Test Procedure ................................................................................................................................................ 3 2.7. Power Line Conducted Emission Measurement Results ................................................................................ 3 3. RADIATED EMISSION MEASUREMENT ...................................................................................... 3 3.1. Test Equipment ............................................................................................................................................... 3 3.2. Block Diagram of Test Setup.......................................................................................................................... 3 3.3. Radiated Emission Limit ................................................................................................................................ 3 3.4. EUT Configuration on Measurement ............................................................................................................. 3 3.5. Operating Condition of EUT .......................................................................................................................... 3 3.6. Test Procedure ................................................................................................................................................ 3 3.7. Radiated Emission Noise Measurement Results............................................................................................. 3 Dongguan EMTEK Co., Ltd. Report No.：ED10030010-2 Page 3 of 33 TEST REPOTR DESCRIPTION Applicant : GUANGZHOU HD ELECTRONICS TECHNOLOGY CO., LTD Manufacturer : GUANGZHOU HD ELECTRONICS TECHNOLOGY CO., LTD EUT : 15.6” LCD TV with DVD Player FCC ID No. : XHJHUIDI675 Test Voltage : 120V/60Hz File Number : ED10030010-2 Date of Test : March 01, 2010 to March 23, 2010 Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart B Class B October 2009 & FCC / ANSI C63.4-2003 The device described above is tested by Dongguan EMTEK Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart Class B limits both radiated and conducted emissions. The measurement results are contained in this test report and Dongguan EMTEK Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Dongguan EMTEK Co., Ltd. Approved By Nicol Lee / Q.A. Manager DONGGUAN EMTEK CO., LTD. Dongguan EMTEK Co., Ltd. Report No.：ED10030010-2 Page 4 of 33 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : 15.6” LCD TV with DVD Player Model Number : HLTC15DC, LCD156D1-D, LCD156D2-D, LCD156DF2-D (Note: Those models are the same except appearance, we prepare LCD156D1-D for EMC test, all models use the same FCC ID Number.) FCC ID Number : XHJHUIDU675 Trade Mark : HuiDi, HEC Power Supply : 100~240V 50/60Hz ADAPTER : M/N: GP008CX Input: AC 100~240V 50/60Hz Output: DC 12V 4A Output line: Unshielded line Applicant : GUANGZHOU HD ELECTRONICS TECHNOLOGY CO. , LTD Address : No.1, Jiaochanggang, Shiji Town, Panyu District, Guangzhou, China Manufacturer : GUANGZHOU HD ELECTRONICS TECHNOLOGY CO., LTD Address : No.1, Jiaochanggang, Shiji Town, Panyu District, Guangzhou, China Date of sample receiver : March 01, 2010 Date of Test : March 01, 2010 to March 23, 2010 Dongguan EMTEK Co., Ltd. Report No.：ED10030010-2 Page 5 of 33 1.2. Description…

Text truncated - open the document above for the full version.

Radiated Emission Setup Photos Conducted Emission Setup Photos
