XHN-SPEAKERSpeaker

SP-88 CASSETTE PLAYER WITH BT TRANSMITTER User Manual Please read this manual carefully before operating the speaker. Please keep this manual with you for further reference. BATTERY SUPPLY AND SAFETY WARNING BATTERY SUPPLY This unit is supplied with a rechargeable battery. Connect the unit by USB cord through the charge port, and plug the adaptor (not included) into the AC wall outlet. While charging, the indicator light will flash red light , once the red light stops flashing, the unit is fully charged. WARNING 1. Do not expose battery to excessive heat, such as strong sunlight or fire. 2. Do not charge the battery with the adaptor for more than 24 hours. 3. When charging the battery for the first time, charge it for at least 30 minutes, but no longer than 24 hours. 4. Use only the supplied rechargeable battery. HEARING SAFETY Caution Top prevent possible hearing damage, do not listen at high volume levels for long periods. Set the volume to a safe level. The louder the volume, the shorter the safe listening time. Be sure to observe the following guidelines when using your earphone: 1. Listen at reasonable volumes for reasonable periods of time. 2. Be careful not to adjust the volume continuously upwards as your hearing can be damaged. 3. Do not turn up the volume so high that you can not hear what is around you. 4. You should temporarily discontinue use in potentially hazardous situations. 5. Excessive sound pressure from earphones and headphone can cause hearing loss. 1 OPERATING INSTRUCTION 12 11 10 9 8 7 6 5 4 3 2 1 1. MlC: For recording from speaking or music to tape. 2. TYPE-C PORT: This is where you will plug in the included Type-C charging cable to keep your cassette player charged. 3. INDICATOR LIGHT: This light provides visual cues about the unit status, such as charging or pairing mode. 4. HEADPHONE JACK: Plug in headphone here. 5. FUNCTION BUTTON: Slide this switch to choose function - TAPE, Bluetooth transmitter (TX) or Bluetooth connect mode (RX). 6. VOLUME: Roll this switch to adjust the volume. 7. STOP: Press to stop the tape. 8. FF/REW: Press to fast forward or rewind the tape. 9.RECORD: Press to start recording on the tape. 10. PLAY MODE: Slide this switch to the left side, the tape will play the opposite side automatically when one side has finished. Slide the switch to right side, the tape will stop when both sides have finished. 11.DlR: Select the direction of tape playback. if you want to play the other side of the tape without ejecting then you can use this button. 12. PLAY: Press to play the tape.In TX&Rx mode, press this button to exit power saving mode. 2 BLUETOOTH PAIRING Slide the switch to RX position(blue lightflashing). On your smartphone search for "SP-88" on the device list and pair.Once connected, the blue light will stopflashing and music will play through the unit. BLUETOOTH TRANSMITTER 1. In TAPE playback mode,slide the switch to TX position(green light flashing), indicating it enters bluetooth out mode. 2. Turn on your device (like a Bluetooth speaker) and select bluetooth mode in yourdevice’ssetting, then the TAPE player will automaticallybe paired with your device, if it is successfully connected, the green light will stopflashing, and the music will be played through your device. SPECIFICATIONS Wireless version: V5.4 Transmisson Distance: 10M Product size(LWH): 120x34x95mm Power Output: 1W S/N ratio: >60dB Charging input: DC 5V,1A Battery Capacity: 3.7V/800mAh Charging time: 3-4 hours Play time: 7 hours Charging Port: USB-C Power Saving mode: 15 minutes ACCESSORIES USB Cable x 1 Manual x 1 Earphone x 1 3 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Amwood (Hong Kong) Ltd. 6/F, Kundamal House, 4 PRAT AVE., Kowloon, Hong Ko P.O. Box P.O. Box 96308, Kowloon, Hong Kong Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/02/03 U.S. Agent Designation Amwood (Hong Kong) Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: XHN-SPEAKER): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Amwood (Hong Kong) Ltd. Amwood (Hong Kong) Ltd. with the FRN [0018866012] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Yuri Fan Marketing Assistant Amwood (Hong Kong) Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

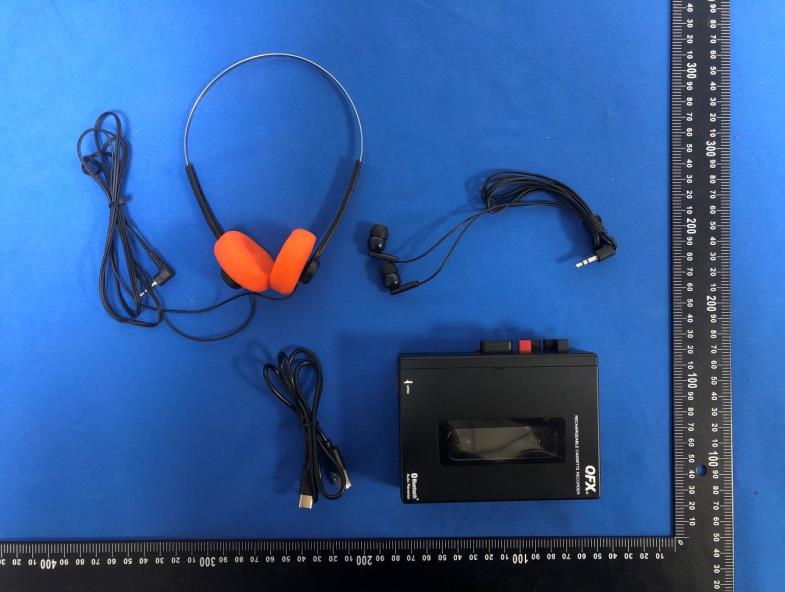

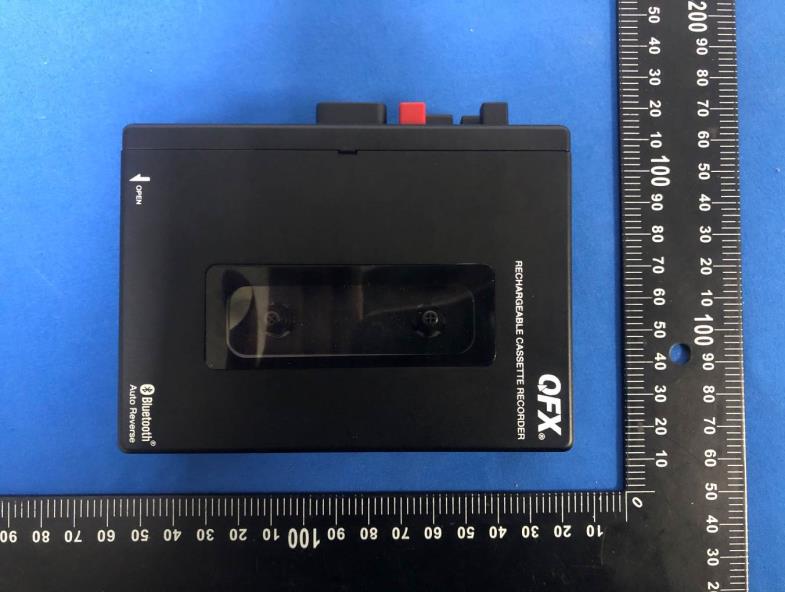

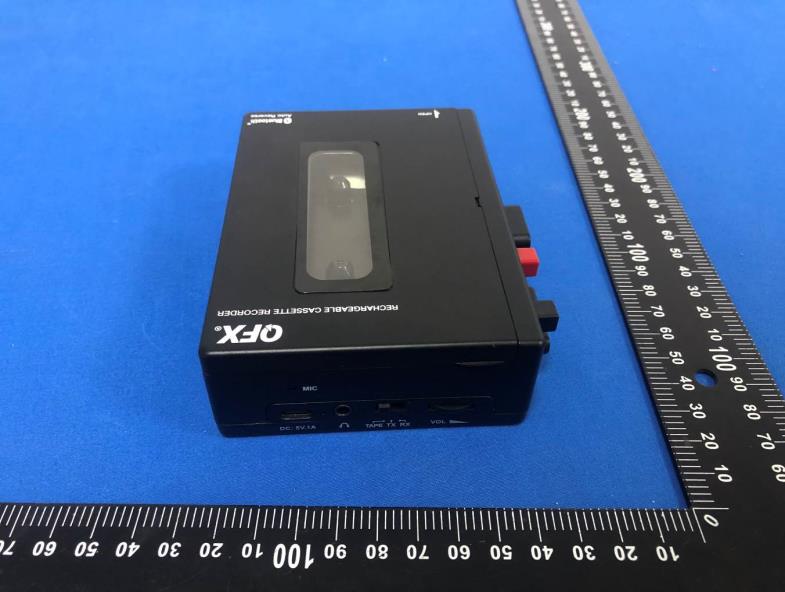

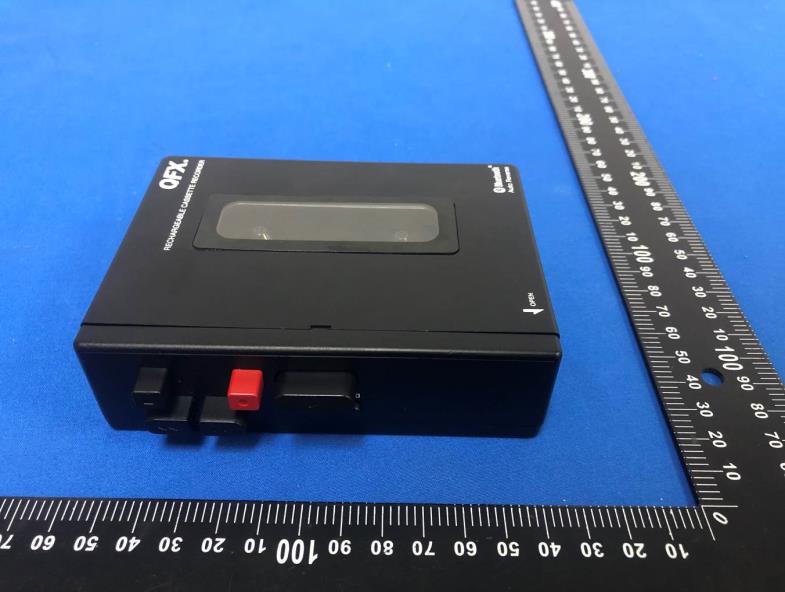

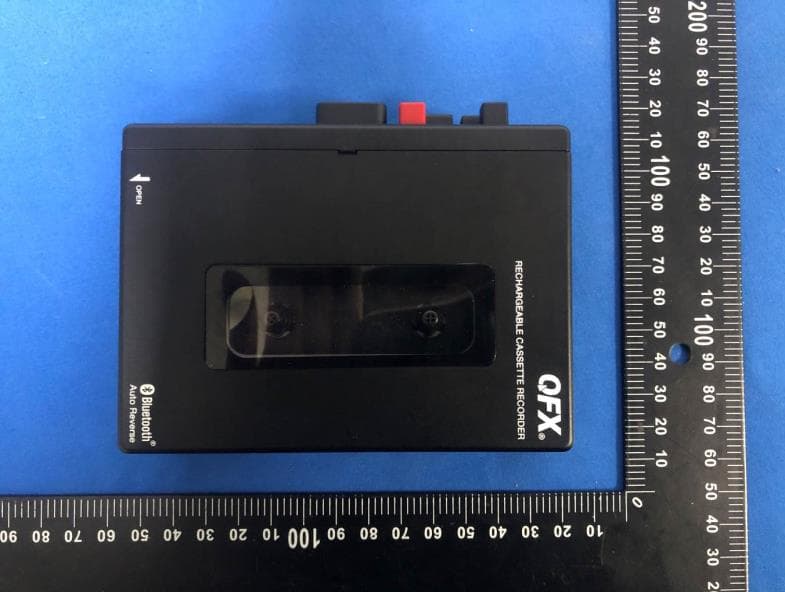

FCC ID:XHN-SPEAKER External Photos of the EUT FCC ID:XHN-SPEAKER FCC ID:XHN-SPEAKER

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : XHN-SPEAKER This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID:XHN-SPEAKER Internal Photos of the EUT FCC ID:XHN-SPEAKER FCC ID:XHN-SPEAKER BT ANT

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. .....................: FCC ID. ........................................... : CTA25121000102 XHN-SPEAKER Compiled by ( position+printed name+signature) ..: File administrators Zoey Cao Supervised by ( position+printed name+signature) ..: Project Engineer Ace Chai Approved by ( position+printed name+signature) ..: RF Manager Eric Wang Date of issue .....................................: Dec. 16, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Amwood (Hong Kong) Ltd. Address ............................................: 6/F, Kundamal House, 4 PRAT AVE., Kowloon, Hong Ko P.O. Box P.O. Box 96308, Kowloon, Hong Kong Standard ...........................................: 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Speaker Trade Mark ....................................... : Amwood, QFX Manufacturer ..................................... : Dongguan City Far east Audio Co.Ltd Model/Type reference ....................... : SP-88 Listed Models .................................... : Refer to page 2 Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ................................................ : PASS Report No.: CTA25121000102 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Speaker Model /Type : SP-88 Listed Models : RETRO-1980, GH-1, SP-16, SP-96, SP-86, SP-90, CD-107, CD-108, CD-101, CD-102, SP-10, SP-9, SP-23, SP-91, CD-103 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Amwood (Hong Kong) Ltd. Address : 6/F, Kundamal House, 4 PRAT AVE., Kowloon, Hong Ko P.O. Box P.O. Box 96308, Kowloon, Hong Kong Manufacturer : Dongguan City Far east Audio Co.Ltd Address : Building 1, beihuan Road in No.49, SHIPAI Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25121000102 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25121000102 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Roo…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : XHN-SPEAKER Company : Amwood (Hong Kong) Ltd. EUT : Speaker Model Number : SP-88 Report No. : CTA25121000101 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.951 2401.547 2402.498 --- --- 2441 0.936 2440.550 2441.486 --- --- 2480 0.954 2479.550 2480.504 --- --- 2DH5 Ant1 2402 1.341 2401.337 2402.678 --- --- 2441 1.305 2440.361 2441.666 --- --- 2480 1.284 2479.379 2480.663 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.87585 2401.5724 2402.4483 --- --- 2441 0.86476 2440.5754 2441.4402 --- --- 2480 0.86540 2479.5721 2480.4375 --- --- 2DH5 Ant1 2402 1.1833 2401.4196 2402.6029 --- --- 2441 1.1859 2440.4177 2441.6036 --- --- 2480 1.1922 2479.4141 2480.6063 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -0.18 ≤20.97 PASS 2441 -0.33 ≤20.97 PASS 2480 -0.32 ≤20.97 PASS 2DH5 Ant1 2402 -1.00 ≤20.97 PASS 2441 -1.09 ≤20.97 PASS 2480 -1.10 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.14 ≥0.954 PASS 2DH5 Ant1 Hop 1.288 ≥0.894 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 316 0.123 ≤0.4 PASS DH3 Ant1 Hop 1.640 172 0.282 ≤0.4 PASS DH5 Ant1 Hop 2.900 106 0.307 ≤0.4 PASS 2DH1 Ant1 Hop 0.390 319 0.124 ≤0.4 PASS 2DH3 Ant1 Hop 1.650 151 0.249 ≤0.4 PASS 2DH5 Ant1 Hop 2.900 111 0.322 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.75 -57.57 ≤-20.75 PASS High 2480 -0.81 -59.93 ≤-20.81 PASS Low Hop_2402 -3.73 -55.92 ≤-23.73 PASS High Hop_2480 -5.95 -64.14 ≤-25.95 PASS 2DH5 Ant1 Low 2402 -4.86 -57.74 ≤-24.86 PASS High 2480 -4.54 -58.39 ≤-24.54 PASS Low Hop_2402 -7.00 -61.88 ≤-27 PASS High Hop_2480 -4.86 -64.18 ≤-24.86 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.82 -0.82 --- PASS 30~1000 -0.82 -59.81 ≤-20.82 PASS 1000~26500 -0.82 -40.78 ≤-20.82 PASS 2441 Reference -0.55 -0.55 --- PASS 30~1000 -0.55 -67.63 ≤-20.55 PASS 1000~26500 -0.55 -43.35 ≤-20.55 PASS 2480 Reference -1.50 -1.50 --- PASS 30~1000 -1.50 -67.95 ≤-21.5 PASS 1000~26500 -1.50 -44.09 ≤-21.5 PASS 2DH5 Ant1 2402 Reference -3.94 -3.94 --- PASS 30~1000 -3.94 -68.04 ≤-23.94 PASS 1000~26500 -3.94 -49.67 ≤-23.94 PASS 2441 Reference -6.03 -6.03 --- PASS 30~1000 -6.03 -66.14 ≤-26.03 PASS 1000~26500 -6.03 -46.93 ≤-26.03 PASS 2480 Reference -5.42 -5.42 --- PASS 30~1000 -5.42 -66.86 ≤-25.42 PASS 1000~26500 -5.42 -45.55 ≤-25.42 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480

Inverted F Antenna Specification Summary ANT SPECITEM 2.4G ANTModel Name VerticalHorizontal 2500MHz2400MHz2500MHz2400MHz Center Frequency -1.86-2.46-5.25-0.58-0.76-1.26 -0.58dBiMAX. Gain Horizontal and VerticalPolarization Azimuth Beam Pattern Omni-directional 50 OhmImpedance 38.20mmAntenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Address No. 333 Kexing Road, Xiangzhou District, Zhuhai City 2450MHz2450MHz Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25121000101 XHN-SPEAKER Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 16, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Amwood (Hong Kong) Ltd. Address ............................................ : 6/F, Kundamal House, 4 PRAT AVE., Kowloon, Hong Ko P.O. Box P.O. Box 96308, Kowloon, Hong Kong Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Speaker Trade Mark ....................................... : Amwood, QFX Manufacturer .................................... : Dongguan City Far east Audio Co.Ltd Model/Type reference ...................... : SP-88 Listed Models ................................... : Refer to page 2 Modulation ....................................... : GFSK, Π/4DQPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25121000101 Page 2 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Speaker Model /Type : SP-88 Listed Models : RETRO-1980, GH-1, SP-16, SP-96, SP-86, SP-90, CD-107, CD-108, CD-101, CD-102, SP-10, SP-9, SP-23, SP-91, CD-103 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Amwood (Hong Kong) Ltd. Address : 6/F, Kundamal House, 4 PRAT AVE., Kowloon, Hong Ko P.O. Box P.O. Box 96308, Kowloon, Hong Kong Manufacturer : Dongguan City Far east Audio Co.Ltd Address : Building 1, beihuan Road in No.49, SHIPAI Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25121000101 Page 3 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility......................................................................................................…

Text truncated - open the document above for the full version.

FCC ID:XHN-SPEAKER Test Setup Photos of the EUT FCC ID:XHN-SPEAKER
