XJ4KB6117F6119FSILICON BLUETOOTH KEYBOARD

KB-6117F Bluetooth Keyboard for iPad Folding Leather protective case Packing Contents: 1.PU Leather Case w/Keyboard 2.USB Power Charging Cable 3.User Guide 1.Built-in wireless Bluetooth 2.0 silicone keyboard. 2.Stylish protective PU leather case de- signed for iPad. 3.iPad display stand for easy viewing. 4.Built-in Rechargeable lithium battery lasts for approximately 45 hours per charge. 5. Special home screen key for one touch access to variety of application. 6.Light weight,quiet keystrokes,water- proof and dust-proof 7.Energy saving keyboard sleep mode. 1.Bluetooth 2.0 interface standard 2.Operating Distance to 10 meters 3.Modulation System:GFSK 4.Operatin Voltage:3.0-5.0V 5.Working Current:<5.0mA 6.Standby Current:2.5mA 7.Sleeping Current:<200μA 8. Charging Current:≥100mA 9.Standby Time:60 days 10.Charging Time:4-5 hours 11.Lithium Battery Capacity:450mA 12.Uninterrupted Working Time: 40 hours 13.Lithium Battery Life:3 years 14.Lithium Battery Specifications: 45 25 47 15.Key Strength:80±10g 16. Key Life:5 million strokes 17.Operating Temperature:-10 - +55°C Step 1:Turn on the power toggle switch.The [power] and [Bluetooth] indicator light will be in 5 seconds,then the light will go off. Step 2:Press on the [connect] button.The [Bluetooth] indicator light will be blinking ,and the [power] indicator will be on.The keyboard is now ready to be connected to iPad. Step 3:Turn on and unlock iPad.Click on the iPad [settings] icon. Step 4:On the settings menu,select item [Ge- neral] to access [Bluetooth] settings. Click on [Bluetooth] to turn on the co- nnection. iPad will automatically sear- ch for a Bluetooth-enabled device. Step 7:Wireless keyboard connected successfully.[power] indicator light will stay on until the key- board is swithed off. The wireless keyboard can be connected to iphone3G,3GS,4G and ipod Touch that had installed iOS 4.0 or later.For other Bluetooth enabled device,please verify the Bluetooth standard &compatibility before attempting to connect to the keyboard. Step 5:Wireless Keyboard found.Click on the device to connect. Step 6:Enter the password code as displayed on screen. Connect Button Power Switch iPad [setting] icon Long press Fn and combination with F1-F12 and insert keys to defalt to the shift multimedia keys, and mainly be used in the operation of iPad multimedia 1.0 Product Features: 4.0 Charging 5.0 Energy Saving Sleep mode9.0 Special keys description 6.0 Safety Caution 7.0 Cleaning 2.0 Keyboard Specification3.0 Bluetooth Keyboard Pairing Bluetooth Keyboard Specification and Pairing Instruction Special Note: - iPad, iPhone, iPod Touch are trademarks of Apple Inc. The keybo ard will kick into slee p mode when it is inactive for 15 minutes, and the keybo ard [po wer] indicator ligh t will go off. To acti- vate from slee p mode, just press any key and wait 3 seconds, the keybo ard will come back on. 1.Kee p the item away from sharp objects. 2.Do not place heavy ob ject on top of the keybo ard. 3.Do not Microwave the item. 4.Do not force or distorted the keybo ard. 5.Kee p away from oil, chemical or any other organic li qu id. C lean the silicone keybo ard with water, alco- hol, or alcohol based disinfectant. 8.0 Trou bleshooting (A) Unable to connect 1.Make sure the power switch is on. 2.Make sure the keyboard is within the operating distance. 3.Make sure the battery is charged. 4.Make sure iPad Bluetooth sett ing is on. 5.Make sure wireless keyboard is con- nected to iPad. 6.Make sure the wireless keyboard has bee n paired with the iPad. (B) Unable to charge keyboard 1.Make sure the US B power cable is con- nected properly to the keyboard and the power source. 2.Make sure the wall charger is plug into the power outlet. Click to turn on Bluetooth setting C lick on the keyboard to connect E nter pass word cod e usin g the wireless keybo ard Keybo ard conn ected succ ess fully When the battary power is low,the [power] indicator light will start blingking,it is time to recharge the keyboard. Step 1:Connect USB-B of the native USB power cable to the keyboard charging interface Step 2:Connect USB-A to the power adaptor or computer's USB interface Step 3:The [charge] red indicator light will stay on when the keyboard is charging.Once it finished charging,the [charge] indicator light will turn off. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not causeharmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

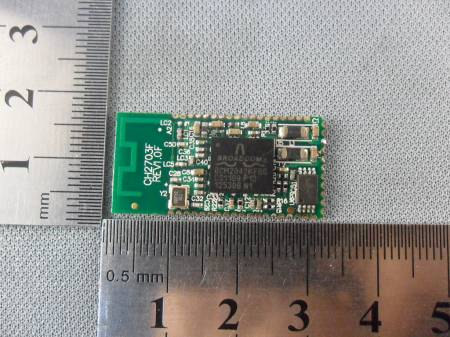

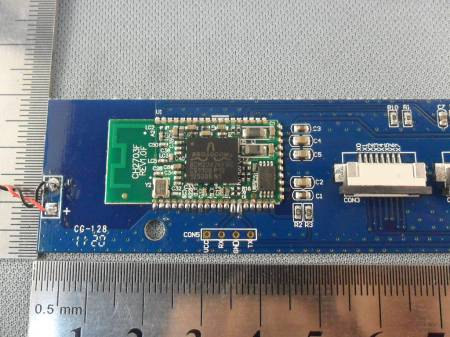

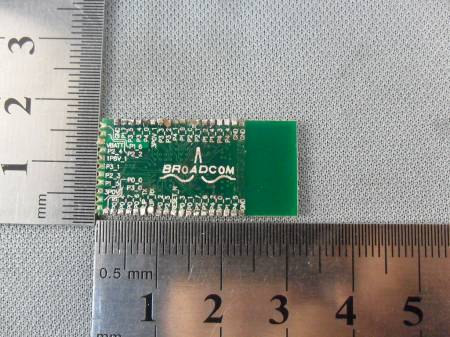

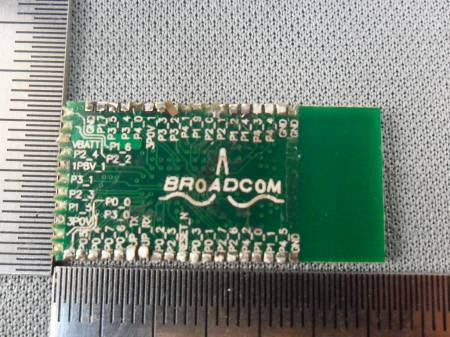

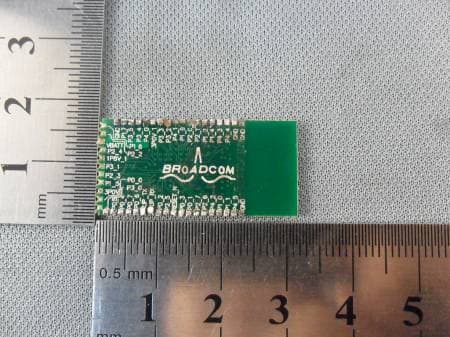

1 Photographs - EUT Constructional Details(Test Model No.: KB-6117F)

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, District Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Page: 1 of 1 FCC ID: XJ4KB6117F6119F “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1.1 RF Exposure Compliance Requirement 1.1.1 Standard requirement 15.247(b)(4) requirement: (4) The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6 dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section. as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 1.1.2 EUT RF Exposure The Max Conducted Peak Output Power is 0.03dBm(1.007mW) in middle channel; The best case gain of the antenna is 2.0dBi. 2.0dB logarithmic terms convert to numeric result is nearly 1.585. According to the formula. calculate the EIRP test result: EIRP= P x G = 1.007mW x 1.585 = 1.596mW ① SAR requirement: S= 60 / f(GHz) = 60/2.480 = 24.19mW ② ; ① < ②. So the SAR report is not required.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM110600099601 Page: 1 of 49 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT Application No: SZEM1106000996RF Applicant: CHIN FAI ELECTRONICS COMPANY Product Name: SILICON BLUETOOTH KEYBOARD Operation Frequency: 2.402GHz to 2.480GHz FCC ID: XJ4KB6117F6119F Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2010 Date of Receipt: 2011-06-02 Date of Test: 2011-06-03 to 2011-06-16 Date of Issue: 2011-06-20 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM110600099601 Page: 2 of 49 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS.............................................................................................................................................................. 2 3 TEST SUMMARY.................................................................................................................................................... 3 4 GENERAL INFORMATION................................................................................................................................... 4 4.1 CLIENT INFORMATION.......................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 4 4.3 E.U.T OPERATION MODE...................................................................................................................................... 6 4.4 DESCRIPTION OF SUPPORT UNITS......................................................................................................................... 6 4.5 TEST FACILITY..................................................................................................................................................... 7 4.6 TEST LOCATION................................................................................................................................................... 7 4.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER........................................................................................ 7 4.8 TEST INSTRUMENTS LI…

Text truncated - open the document above for the full version.

1 Photographs-test setup photo(Test Model No.: KB-6117F) Radiated Spurious Emission Test Setup Conducted Emission Test Setup
