XJ4KB6121CSILICON BLUETOOTH KEYBOARD

KB-6121C Bluetooth Keyboard for Galaxy Tab Folding Leather protective case Packing Contents: 1.PU Leather Case with keyboard 2.USB Power Charging Cable 3.User Guide 1.0 Product Features: 5.0 Energy Saving sleep Mode 9.0 Special keys on the Galaxy Tab 6.0 Safety Caution 7.0 Cleaning 8.0 Trou bleshooting Step2: Connect the charging cable A port into USB power or USB Power Adapter. The “charge” red indicator light will stay on ,when the keyboard is charging. Once it finished charging, the “charge” indicator light will turn off. The keyboard will kick into Sleep mode when it is inactive for 15 minutes, and the keyboard power indicator light will go off, To activate from sleep mode ,just press any key and wait 3 seconds ,the keyboard will come back on. 1.Keep the item away sharp objects 2.Do not place heavy object on top of the keyboard 3.Do not Microwave the item 4.Do not force or distorted the keyboard 5.Keep away form oil, chemical or any other organic liquid. Clean the silicon keyboard with water, alcohol, or alcohol based disinfectant (A) Unable to connect 1.Make Sure the power switch is on 2.Make Sure the keyboard is within the operating distance 3.Make sure the battery is charged 4.Make sure Galaxy Tab Bluetooth is activate 5.Make sure the Wireless Keyboard is connected to Galaxy Tab. 6.Make sure the wireless keyboard has been paired with the Galaxy Tab. (B). Unable to Charge keyboard 1. Make Sure the USB power cable is connected properly to the keyboard and the power source 2. Make sure the wall charger is plug into the power outlet. Federal Communication CommissionInterference Statement This equipment has been tested and found to comply With the limits for a Class B digital device. Pursuant to Part 15 of the FCC Rules, these limits are Designed to provide reasonable protection against Harmful interference in a residential installation. This equipment generates usage and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and(2)This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any change or modifications not expressly Approved by the party responsible for compliance could Void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: 1.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. 2.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. return to the home screen options key lock the touch screen for iPad telephone search key return to the previous adjust the devices volume 1.Bluetooth V2.0 interface Standard 2.Operating Distance : 10meters 3.Modulation System: GFSK 2.4G 4.Transmitting Power : Class 2 5.Operating Voltage:3.0-5.0 6.Working Current : <5.0mA 7.Standby Current :2.5mA 8.Sleeping Current: <200μA 9.Charging Current :>100mA 10.Standby time : 60 days 11.uninterrupted working time:45hours 12.Lithium Battery Life :3 years 13.Lithium Battery Specifications : 45 25 47 14.Charging time :4-4.5hours 15.Lithium Battery Capacity :450mA 16.Key Dynamics : 80±10g 17.Key Life : 5 million strokes 18.Operating Temperature :-10°C－+55°C 19.Humidity :20%-50% Step1: Turn on the power switch. The Power and Bluetooth indicator light will be on for 5 seconds , then the lights will go off. Step2: Press on the “Connect” button, The Bluetooth indicator light will be blinking, and the power indica- tor will be on. The Keyboard is now ready to be conn- ected to Galaxy Tab. Step3: Turn on and unlock Galaxy Tab .In Menu mode, press on the Galaxy Tab “Menu” key, open a list of options. Link Button Power Switch “Menu” key 2.0 Keyboard Specification3.0 Bluetooth Keyboard Pairing Bluetooth Keyboard Specification and Pairing Instruction content in this guide is subject to change without prior notice 1.Built-in Wireless Bluetooth 2.0 Silicone keyboard. 2.Stylish protective PU leather Case designed for Galaxy Tab display stand for easy viewing Rechargeable lithium battery lasts for approximately 45 Hours per charge. 4.Special home screen key for one-touch access to variety of applications. 5.Light weight, quiet keystrokes, dust proof & spill-proof 6.Energy saving keyboard sleep mode Step4: Select the “Settings” icon Wireless and network Bluetooth settings Select Bluetooth to activate the Bluetooth feature, and then scan devices . Step7: Wireless Bluetooth Keyboard connected successfully. The connection indicator light will be off ,But the power indicator light will stay on until the keyboard is switched off. Keyboard Layout: Please note that Android OS has multiple versions and international key layouts – the standard Sam- sung keyboard layout may not match the Merlin Bluetooth Keyboard perfectly. Third party software that may be downloaded for free from the Android Market can allow you to map the keyboard perfectly. Please search and download the program ‘BlueKeyboard JP’ on your Samsung Galaxy Tab for better Bluetooth keybo- ard compatibility. Step5: Wireless keyboard found .click on the device to Pair. Step6: Enter the Password code displayed on screen. And press “Enter” key. 4.0 Charging E nt er password code usin g t he wireless keyboard Keyboard connect ed successf ully When the battery power is low, the “power” indicator light will start blinking . It is time to recharge the keyboard. Step1: Connect the USB power cable to the keyboard charging interface Special application: The wireless keyboard can be connected to Galaxy Tab, ipad, iphone4G, and iPod Touch that is in…

Text truncated - open the document above for the full version.

nife;igiirtrro American Certification gpdy, Inc. 6731 Whittier Avenue Suite Cl l0 Mclean, VA 22101 To Whom It May Conootn: we certify that we ar! not subjecr to denial of lbderal benefits, that incrudes FCc benbfits, pursuant to section 5301 ofthe Anil-D.rug Ab,lqe Act of l98s,2l ujq,c. b6t. i;rtrt;;;io p*y, as defined in 42 cFR I '2002 (b)' to tlg gpplication is subjeot to denial offederarl.".dtr, ,i.ilncludes FCC benefrts. Thank you, ' Agency Agreement Erplf*ion Date: 12 months | - Must be signerJ hy qpflcrlr contacr.giv-enfor applicant ou. the FCC site, or by the autlhorized agent ifan appropriate authorrzed agent letteiinr leen provided. L,eueii shoutdbeplaced on appffirli" tit"i,,i.. 022311 -6 fdhd$,iai:i;l

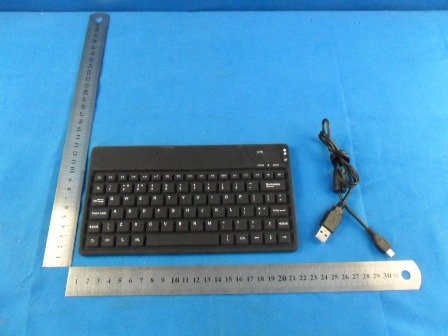

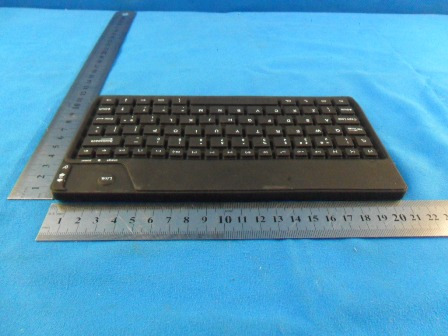

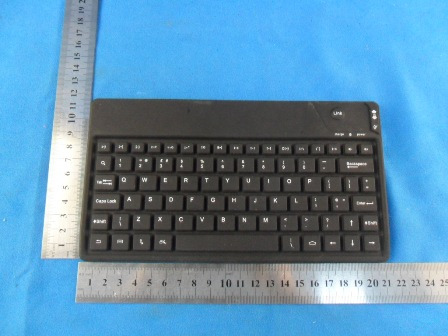

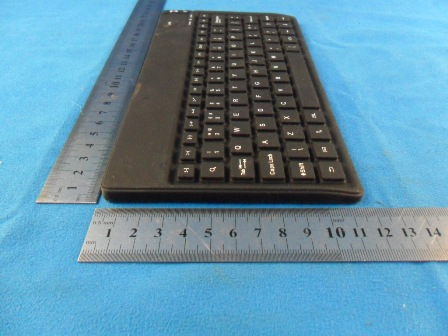

1 Photographs - EUT Constructional Details Test model No.: KB-6121C

KB-6121C CHIN FAI ELECTRONICS COMPANY Made in China This device complies with Part 15 of t he FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation FCC ID:XJ4KB6121C KB-6121C Bluetooth Keyboard CHIN FAI ELECTRONICS COMPANY KB-6121C Bluetooth Keyboard Made in China

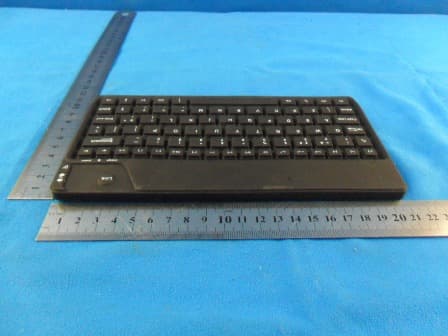

1 Photographs - EUT Constructional Details Test model No.: KB-6121C

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Page: 1 of 1 FCC ID: XJ4KB6121C “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1.1 RF Exposure Compliance Requirement 1.1.1 Standard requirement 15.247(b)(4) requirement: (4) The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6 dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section. as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 1.1.2 EUT RF Exposure The Max Conducted Peak Output Power is 1.19dBm(1.3152mW) in Highest channel; The best case gain of the antenna is 2.0dBi. 2.0dB logarithmic terms convert to numeric result is nearly 1.58 According to the formula. calculate the EIRP test result: EIRP= P x G = 1.3152mW x 1.58 = 2.078mW ① SAR requirement: S= 60 / f(GHz) = 60/2.480 = 24.19mW ② ; ① < ②. So the SAR report is not required.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM110600136901 Page : 1 of 48 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT Application No: SZEM1106001369RF Applicant: CHIN FAI ELECTRONICS COMPANY Manufacturer: CHIN FAI ELECTRONICS COMPANY Factory: CHIN FAI ELECTRONICS COMPANY Product Name: SILICON BLUETOOTH KEYBOARD Operation Frequency: 2402MHz to 2480MHz FCC ID: XJ4KB6121C Standards: FCC CFR Title 47 Part 15 Subpart C Date of Receipt: 2011-06-15 Date of Test: 2011-06-17 to 2011-09-22 Date of Issue: 2011-09-30 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM110600136901 Page : 2 of 48 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS.............................................................................................................................................................. 2 3 TEST SUMMARY.................................................................................................................................................... 3 4 GENERAL INFORMATION................................................................................................................................... 4 4.1 CLIENT INFORMATION.......................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 4 4.3 E.U.T OPERATION MODE...................................................................................................................................... 6 4.4 DESCRIPTION OF SUPPORT UNITS......................................................................................................................... 6 4.5 TEST FACILITY..................................................................................................................................................... 7 4.6 TEST LOCATION................................................................................................................................................... 7 4.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER.............................................................…

Text truncated - open the document above for the full version.

1 Photographs-test setup photo (Test Model No.: KB-6121C) Radiated Emission Conducted Emission
