XJ4KB6137BLUETOOTH KEYBOARD

KB-6137 Bluetooth K eyboard f or Galaxy Tab Folding Leather protective case Packing Contents: 1.PU Leather Case w/Keyboard 2.USB Power Charging Cable 3.User Guide 1.Built-in Wireless Bluetooth 2.0 Plastic keyboard 2.Stylish protective PU leather Case designed for Galaxy Tab display stand for easy viewing 3.Rechargeable lithium battery lasts for approximately 45 Hours per charge 4.Special home screen key for one-touch access to variety of applications 5.Light weight, quiet keystrokes, dust proof & spill-proof 6.Energy saving keyboard sleep mode 1.0 Product Features: The keyboard will kick into Sleep mode when it is inactive for 15 minutes,and the keyboard power indicator light will go off, To activate from sleep mode ,just press any key and wait 3 seconds ,the keyboard will come back on 5.0 Energy Saving sleep Mode8.0 Special keys on the Galaxy Tab 6.0 Safety Caution Federal C ommunicat ion C ommission In t erf erence S t at ement This equipment has been t est ed and found t o comply wit h t he limit s for a Class B digit al device. Pursuant t o Part 15 of t he FC CRules, t hese limit s are designed t o provide reasonable prot ect ion against harmful int erference in a resident ial inst allat ion. This equipment generat es usesage and can radiat e radio frequency energy and, if not inst alled and used in accor- dance wit h t he inst ruct ions, may c ause harmful in t erfer- ence t o radio or t elevision recept ion, which can be de- t ermined by t urning t he equipment off and on. This device complies wit h Part 15 of t he FCCRules. Op- erat ion is subject t o t he following t wo condit ions: (1) t his device may not cause harmf ul int erference, and (2) t his device must accept any int erference received, in- cluding int erference t hat may cause undesired opera- t ion. FC CCaut ion: Any change or modificat ions not expressly approved by t he part y responsible fo r compliance could void t he user’s aut horit y t o operat e t his equipment . IMPORTANT NOTE: FC CR adiat ion Exposure S t at ement : 1. This equipment complies wit h FC Cradiat ion exposure limit s set fort h for an uncont rolled environment . End users must followt he specif ic operat ing inst ruct ions for sat isfying R F exposure compliance. 2. This t ransmit t er must not be col ocat ed or operat ing in conjunct ion wit h any ot her ant enna or t ransmit t er. 1.Keep t he it emaway fromsharp object s. 2.Do not place heavy object on t op of t he keyboard. 3.Do not Microwave t he it em. 4.Do not f orce or dist ort ed t he keyboard. 5.Keep away fromoil, chemical or any ot her organic liquid. 7.0 Trou bleshooting (A)Unable t o connect 1.Make sure t he power swit ch is on. 2.Make sure t he keyboard is wit hin t he operat ing dist ance. 3.Make sure t he bat t ery is charged. 4.Make sure Galaxy Tab Bluet oot h is acti vate. 5.Make sure wireless keyboard is con- nect ed t o Galaxy Tab. 6.Make sure t he wireless keyboard has been paired wit h t he Galaxy Tab. (B) Unable t o charge keyboard 1.Make sure t he US B power cable is con- nect ed properly t o t he keyboard and t he power source. 2.Make sure t he wall charger is plug int o t he power out let . return to the home screen options key lock the touch screen telephone search key return to the previous adjust the devices volume Step4: Select the “Settings” icon-Wireless and network-Bluetooth settings-Select Bluetooth to activate the Bluetooth feature, and then scan devices . Step7: Wireless Bluetooth Keyboard connected successfully .”the connection indicator light will be off ,But the power indicator light will stay on until the keyboard is switched off. Special application: The wireless keyboard can be connected to Galaxy Tab ,iPad, iPhone4G ,and iPod Touch which has installed iOS 4.0 or later. For other Bluetooth enabled device ,please verify the Bluetooth standard & compatibility before attempting to connect to the keyboard. Step5: Wireless keyboard found .click on the device to Pair . Step6: Enter the Password Code displayed on screen. then press “Enter”key. 4.0 Charging E nt er password code usin g t he wireless keyboard Keyboard connect ed successf ully When the battery power is low ,the “power” indicator light will start blinking .it is time to recharge the keyboard. Step1: Connect the USB power cable to the keyboard charging interface Step2: Connect the charging cable A port into USB power or USB Power Adapter. The “charge”red indicator light will stay on ,when the keyboard is charging. Once it finished charging,the “charge”indicator light will turn off. content in this guide is subject to change without prior notice 1.Blu etooth V2.0 in terface Standard 2.Operati ng Distance : 10meters 3.Modulation S ystem: GFSK 2.4G 4.Transmitting Power : Class 2 5.Operati ng Voltage:3.0-5.0 6.Working Current : <5.0mA 7.Standby C urrent :2.5mA 8.Sleepin g Current: <200μA 9.Chargin g Current :>100mA 10.Standby ti me : 60 days 11.uninterrupted working time: 45hours 12.Lit hiu m Battery Life :3 years 13.Lit hiu m Battery Specifications : 45 25 47 14.Charging time :4-4.5hours 15.Lit hiu m Battery Capacity :450mA Step1: Turn on the power switch .the Power and Bluetooth indicator light will be on for 5 seconds ,then the lights will go off Step2: Press on the “Link” button ,The Bluetooth indicator light will be blinking ,and the power indicator will be on.Now the Keyboard is now ready to be connected to Galaxy Tab. Step3: Turn on and unlock Galaxy Tab .In Menu mode, press on the Galaxy Tab “Menu” key, open a list of options. Link Button Power Switch “Menu” key 2.0 Keyboard Specification3.0 Bluetooth Keyboard Pairing Bluetooth Keyboard Specification and Pairing Instruction

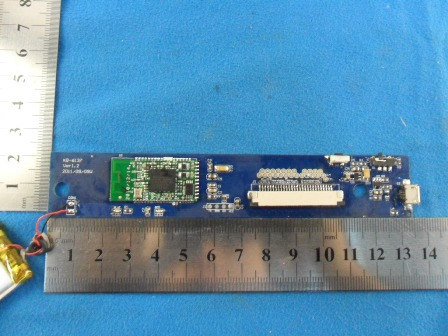

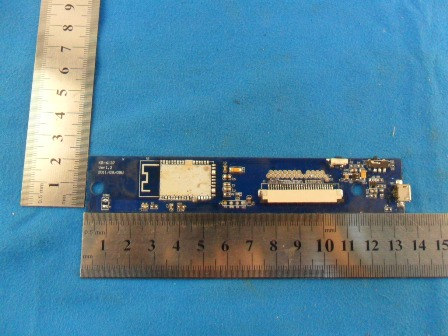

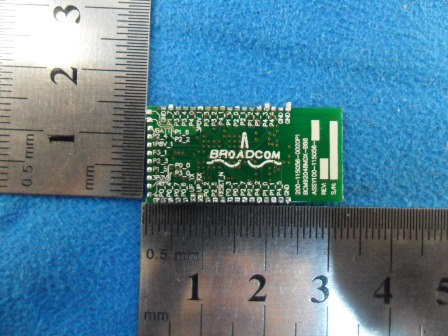

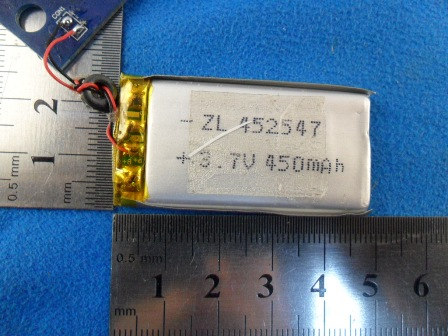

7 Photographs - EUT Constructional Details (Test Model No.: KB-6137)

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Page: 1 of 1 FCC ID: XJ4KB6137 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1.1 RF Exposure Compliance Requirement 1.1.1 Standard requirement 15.247(b)(4) requirement: (4) The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6 dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section. as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 1.1.2 EUT RF Exposure The Max Conducted Peak Output Power is -0.25dBm(0.944mW) in middle channel; The best case gain of the antenna is 2.0dBi. 2.0dB logarithmic terms convert to numeric result is nearly 1.585. According to the formula. calculate the EIRP test result: EIRP= P x G = 0.944mW x 1.585 = 1.496mW ① SAR requirement: S= 60 / f(GHz) = 60/2.441= 24.58mW ② ; ① < ②. So the SAR report is not required.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM110600136801 Page: 1 of 48 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT Application No: SZEM1106001368RF Applicant: CHIN FAI ELECTRONICS COMPANY Product Name: BLUETOOTH KEYBOARD Operation Frequency: 2.402GHz to 2.480GHz FCC ID: XJ4KB6137 Standards: FCC CFR Title 47 Part 15 Subpart C Date of Receipt: 2011-06-15 Date of Test: 2011-06-17 to 2011-09-26 Date of Issue: 2011-10-10 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM110600136801 Page: 2 of 48 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS.............................................................................................................................................................. 2 3 TEST SUMMARY.................................................................................................................................................... 3 4 GENERAL INFORMATION................................................................................................................................... 4 4.1 CLIENT INFORMATION.......................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 4 4.3 E.U.T OPERATION MODE...................................................................................................................................... 6 4.4 DESCRIPTION OF SUPPORT UNITS......................................................................................................................... 6 4.5 TEST FACILITY..................................................................................................................................................... 7 4.6 TEST LOCATION................................................................................................................................................... 7 4.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER........................................................................................ 7 4.8 TEST INSTRUMENTS LIST.................................…

Text truncated - open the document above for the full version.

1 Photographs - Test Setup Photo (Test Model No.: KB-6137) Conducted Emission Test Setup Radiated Emission Test Setup
