XK8-SDUN4RF1Remote control power switch transmitter

Ningbo COMEN Electronics Technology Co.,Ltd ADRESSE: No.599 Jinda Road, Zhenhai Economic Development Zone,NINGBO,CHINA TEL:+86 574 86627878 FAX:+86 574 86627858 E-mail: [email protected] HTTP: www.comen.com.cn Instruction Manual for RF series. Item No. Remote receiver 产品图片 Photo 产品型号 Items 产品描述及技术要求 Technical data PA-US1-01RF With Single Socket; 15A,125V~; With plug 15A 125V~; With remote control Max. 1875W 125V~ PA-US7-01RF With Single Socket; 15A,125V~; With plug 15A 125V~; With remote control Max. 1875W 125V~ PA-US9-01RF With Single Socket; 15A,125V~; With plug 15A 125V~; With remote control Max. 1875W 125V~ PA-US1-01RFP With Single Socket; 15A,125V~; With plug 15A 125V~; With remote control Max. 1875W 125V~ Remote controller Items Photo Technical data SD-UN4-RF Battery:3V CR2032; Battery life: one year; remote control distance: ≥20m； Sending sensitivity ≥8dBm Controls up to 4 channels SD-UN4-RF1 Battery: 3V CR2032; Battery life: one year; remote control distance: ≥20m； Sending sensitivity ≥8dBm Controls up to 5 channels. Ningbo COMEN Electronics Technology Co.,Ltd ADRESSE: No.599 Jinda Road, Zhenhai Economic Development Zone,NINGBO,CHINA TEL:+86 574 86627878 FAX:+86 574 86627858 E-mail: [email protected] HTTP: www.comen.com.cn Features No wiring, easy operation, just plug and use. 67 million codes, self program function. Receiver has 5 memory settings, no memory loss forever. Green LED indicator for POWER ON and PROGRAMMING SETTINGS. Installation Controller (Receiver): Just plug-in receiver into wall outlet, indicator on receiver should light on. Connect lamp or appliance plug (fig 1) into the socket of receiver Remote Control (Transmitter): Remote control up to 30meters in open area (fig. 2) Operation transmitter ON button – control receiver ON OFF button – switches OFF all function GROUP button – ALL ON or ALL OFF at the same time Operation on/off receiver Press transmitter button ON to switch on. Press transmitter button OFF to switch off. How to link a code To start program your transmitter with the receiver Receiver plugged on power (fig. 1). Bring the transmitter near the receiver, push the self-learning code button on receiver Receiver LED will blink slowly, press transmitter selected ON button Receiver connected lamp will blink twice, code is confirmed and LED stops blinking. Receiver has 5 memory settings Self program function receiver has 5 memory settings. It can be programmed as to your requirement for scene setting. It can be programmed to switch on at one time individually or programmed with different combinations switching at same time. This means one receiver can be programmed into max. 5 different combination to the transmitter button. To change or delete code Individual delete: Push the self-learning code button once, LED will blink slowly (fig. 1). Press selected OFF button on transmitter, programmed memory is deleted. Ningbo COMEN Electronics Technology Co.,Ltd ADRESSE: No.599 Jinda Road, Zhenhai Economic Development Zone,NINGBO,CHINA TEL:+86 574 86627878 FAX:+86 574 86627858 E-mail: [email protected] HTTP: www.comen.com.cn Receiver connected lamp will blink twice for confirmation. Repeat step for re-setting. All memory delete: Push the self-learning code button till LED blinks continuously. Release and push once again. Receiver connected lamp will blink twice for confirmation ALL PROGRAMMED MEMORY WILL BE DELETED FROM RECEIVER. Fault finding No activation: Check battery polarity or running out of battery of the remote control Check code program successful Caution Do not place two receivers near each others. The distance should be above 1meter. Caution for ETL requirement: This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Transmitter(SD-UN5-RF1) LED-Indicator KEY Fig 2 Ningbo COMEN Electronics Technology Co.,Ltd ADRESSE: No.599 Jinda Road, Zhenhai Economic Development Zone,NINGBO,CHINA TEL:+86 574 86627878 FAX:+86 574 86627858 E-mail: [email protected] HTTP: www.comen.com.cn Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the tr…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: ___June 9, 2015_____ Subject: Confidentiality Request for: ______XK8-SDUN4RF1______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ____NINGBO COMEN ELECTRONICS TECHNOLOGY CO.,LTD__ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: ______General Manager___ _____Michael Zhu_____ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

NINGBO COMEN ELECTRONICS TECHNOLOGY CO.,LTD Authority to Act as Agent Date: _June 9, 2015_______ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______Intertek Testing Services Shanghai______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ___ June 9, 2016_______ By: ___________________ ______ Michael Zhu _______ (Signature 1 ) (Print name) Title: ___General Manager_______ On behalf of: _ NINGBO COMEN ELECTRONICS TECHNOLOGY CO.,LTD __ (Company Name) Telephone: ___+86 574 86627858____________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

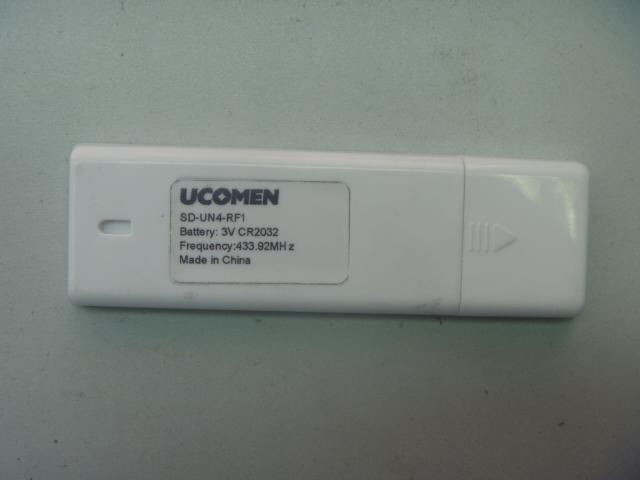

FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 1 of 2 External Picture FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 2 of 2 EUT

FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 1 of 3 Internal Picture FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 2 of 3 FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 3 of 3

Test report no.150500697SHA-001 Page 1 of 19 FCC ID: XK8-SDUN4RF1 FCC TEST REPORT No. 150500697SHA-001 Applicant : NINGBO COMEN ELECTRONICS TECHNOLOGY CO., LTD No.599 Jinda Road, Zhenhai Economic Development Zone, 315221 Ningbo, P.R. China Manufacturer : NINGBO COMEN ELECTRONICS TECHNOLOGY CO., LTD No.599 Jinda Road, Zhenhai Economic Development Zone, 315221 Ningbo, P.R. China Product Name : Remote control power switch transmitter Type/Model : SD-UN4-RF1 TEST RESULT : PASS SUMMARY The equipment complies with the requirements according to the following standard(s) or specification: 47CFR Part 15 (2014): Radio Frequency Devices (Subpart C) ANSI C63.10 (2009): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices Date of issue: July 13, 2015 Prepared by: Reviewed by: Nemo Li (Project Engineer) Daniel Zhao (Reviewer) Test report no.150500697SHA-001 Page 2 of 19 FCC ID: XK8-SDUN4RF1 Description of Test Facility Name: Intertek Testing Service Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2402B-1 Name of contact: Jonny Jing Tel: 86 21 61278271 Fax: 86 21 54262353 Test report no.150500697SHA-001 Page 3 of 19 FCC ID: XK8-SDUN4RF1 Content SUMMARY ............................................................................................................................................. 1 1 GENERAL INFORMATION ...................................................................................................... 4 1.1 Description of Client ...................................................................................... 4 1.2 Identification of the EUT ............................................................................... 4 1.3 Technical Specification .................................................................................. 5 2 TEST SPECIFICATIONS ............................................................................................................ 6 2.1 Standards or specification .............................................................................. 6 2.2 Mode of operation during the test .................................................................. 6 2.3 Test software list ............................................................................................ 6 2.4 Test peripherals list ........................................................................................ 6 2.5 Instrument list ................................................................................................ 7 2.6 Test Summary ................................................................................................ 8 3 FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION ...................... 9 3.1 Test limit ........................................................................................................ 9 3.2 Test Configuration ....................................................................................... 10 3.3 Test procedure and test setup ....................................................................... 10 3.4 Test protocol ................................................................................................ 11 4 DEACTIVATING TIME ................................................................................................................... 13 4.1 Test limit ...................................................................................................... 13 4.2 Test Configuration ....................................................................................... 14 4.3 Test procedure and test setup ....................................................................... 14 4.4 Test protocol ................................................................................................ 14 5 EMISSION BANDWIDTH ................................................................................................................ 15 5.1 Test limit ...................................................................................................... 15 5.2 Test Configuration ....................................................................................... 15 5.3 Test procedure and test setup ....................................................................... 15 5.4 Test protocol ................................................................................................ 16 6 CONDUCTED EMISSION ................................................................................................................. 17 6.1 Limit ............................................................................................................. 17 6.2 Test configuration ........................................................................................ 17 6.3 Test procedure and test set up ...................................................................... 18 6.4 Test protocol ................................................................................................ 19 Test report no.150500697SHA-001 Page 4 of 19 FCC ID: XK8-SDUN4RF1 1 GENERAL INFORMATION 1.1 Description of Client Applicant : NINGBO COMEN ELECTRONICS TECHNOLOGY CO., LTD No.599 Jinda Road, Zhenhai Economic Development Zone, 315221 Ningbo, P.R. China Name of contact : Mark Shi Tel : 86 574 86627858 Fax : 86 574 86627878 Email : [email protected] Manufacturer : NINGBO COMEN ELECTRONICS TECHNOLOGY CO., LTD No.599 Jinda Road, Zhenhai Economic Development Zone, 315221 Ningbo, P.R. China 1.2 Identification of the EUT Product Name : Remote control power switch transmitter Type/model : SD-UN4-RF1 FCC ID : XK8-SDUN4RF1 Test report no.150500697SHA-001 Page 5 of 19 FCC ID: XK8-SDUN4RF1 1.3 Technical Specification Operation Frequency Band : 433.92MHz Modulation : ASK Antenna Designation : Integral antenna, 0 dBi Description of EUT : There is one model only. The EUT is a transmitter to control the working condition…

Text truncated - open the document above for the full version.

FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 1 of 18 Test Data FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 2 of 18 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x x MES NE0603_LH_red MES NE0603_LH_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 3 of 18 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M 402M 404M 406M 408M 410M Frequency [Hz] MES NE0603_LH1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 4 of 18 1000-5000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 2G 3G 4G 5G Frequency [Hz] x x x x x x x x x MES NE0603_HH_red MES NE0603_HH_pre LIM FCC 15 F 3 PK Field Strength QP LIM FCC 15 F 3 AV Field Strength QP FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 5 of 18 Vertical 30-1000MHz 0 20 40 60 80 100 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x x x MES NE0603_LV_red MES NE0603_LV_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 6 of 18 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 322M 324M 326M 328M 330M 332M 335.4M Frequency [Hz] x x MES NE0603_LV1_red MES NE0603_LV1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 7 of 18 0 20 40 60 80 100 Level [dBμV/m] 399.9M 402M 404M 406M 408M 410M Frequency [Hz] MES NE0603_LV1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 8 of 18 1000-5000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 2G 3G 4G 5G Frequency [Hz] x x x x x x x x MES NE0603_HV_red MES NE0603_HV_pre LIM FCC 15 F 3 PK Field Strength QP LIM FCC 15 F 3 AV Field Strength QP FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 9 of 18 2. Deactivating time FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 10 of 18 3. Emission bandwidth FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 11 of 18 4. Occupied bandwidth FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 12 of 18 5. Duty Cycle Dwell time of one pulse FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 13 of 18 FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 14 of 18 FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 15 of 18 FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 16 of 18 FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 17 of 18 FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 18 of 18 Pulse train with the highest duty cycle The highest Duty cycle = (0.260 * 66) / 74.30 = 0.2310

FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 1 of 2 Test Setup FCC ID: XK8-SDUN4RF1 IC: 8476A-SDUN4RF1 Page 2 of 2 1. Radiated Emission 30-1000MHz Above 1GHz
