XLHPS400-1101Mobile Payment Terminal with GSM and RFID

PS400使用说明书 User Manual - 1 - PS400金融支付终端 PS400 EFT-POS 使用说明书 User Manual 上海杉德金卡信息系统科技有限公司 Shanghai SAND Information Technology System Co., Ltd PS400使用说明书 User Manual - 2 - 版权声明 本使用手册受著作权保护，所撰写之内容均为上海杉德公司所有。 本使用手册所提及之产品规格或相关信息，上海杉德保留修改权利。 本使用手册所提及之产品规格或相关信息有任何修改或变更时，恕不另行通知。 未事先经上海杉德公司书面允许，不得以任何形式复制、修改、转载、传送或出版本使用手册 内容。 Copyright statement This User Manual is protected by copyright protection, the contents are written by Shanghai SAND. Amendment rights of the product specification and related information in this document are reserved to SAND. The product specification and related information in this document are subject to change without further notice. This document and contents may not be copied, modified, reprinted, distributed, or published in any forms, without the prior written permission of SAND. PS400使用说明书 User Manual - 3 - 目录 Content 1.PS400外观图 PS400 View............................................................................................................. - 4 - 2.工作环境 Working environment:.................................................................................................... - 5 - 3.性能参数 Specification................................................................................................................... - 7 - 4.接口 Interface.................................................................................................................................. - 7 - 5.SAM和SIM卡接口 SAM&SIM Card interface........................................................................... - 8 - 6.安装打印纸 Printing paper installation.......................................................................................... - 9 - 7.装箱清单 Packing List ........................................................................................................................ - 10 - PS400使用说明书 User Manual - 4 - 产品介绍Product Introduction PS400是一种便携式金融支付终端。它外形小巧美观，便于携带，并可根据客户需求选择电 话线、以太网、GPRS或者CDMA与后台进行通讯。非常适用于餐厅、出租车、快递公司等一 些以流动性和临时性为特点的场合。 PS400 is one kind of portable point of sales terminal. It is portable, compact and exquisite, it can choose the telephone line, Ethernet, GPRS or CDMA communications with the background. It is very suitable for restaurants, taxi, express and other mobile or temporary place. 1. PS400外观图 PS400 View 终端外形尺寸 Terminal Sizes：209mm×89mm×59mm(L×W×H) 重量 Weight：约525g about 525g PS400使用说明书 User Manual - 5 - 2. 工作环境 Working environment: 气压范围：86～106 kPa 工作温度：5-40°C 工作湿度：20～90% 储藏温度：-20～+55°C 储藏湿度：20～93% Atmospheric pressure：86～106 kPa Working temperature：5-40°C Working humidity：20～90% Storage temperature：-20～+55°C Storage humidity：20～93% PS400使用说明书 User Manual - 6 - Warning： This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. PS400使用说明书 User Manual - 7 - 3. 性能参数 Specification *32位RISC ARM CPU 运行频率 60MHz 32bit RISC ARM CPU operating frequency 60MHz *8M bit SRAM（可扩展至16Mbit），带有电池保护 8M bit SRAM (can expand to 16Mbit), with backup battery *32Mbit FLASH存储器 Flash Memory中的程序可保持十年以上 64M bit SDRAM（可扩充至256M bit） 32Mbit FLASH Memory Flash Memory--Procedures can be maintained more than 10 years 64M bit SDRAM (can expand to 256M bit) *有电池保护的日历时钟 The calendar clock with backup battery *19键盘 19 keyboard *2&3磁道读卡器，可选1&2&3磁道或1&2磁道读卡器 ISO1/2or ISO2/3 or ISO 1/2/3 (Optional) *集成电路（IC）卡读卡器，符合GB/T 16649 ISO 7816 EMV2000标准 Integrated Circuit (IC) card reader, accord with the standard of GB/T 16649 ISO 7816 EMV2000 *采用高速热敏打印机，打印纸宽度50毫米，速度50毫米/秒 High-speed thermal printer, print paper width of 57.5mm, speed 50mm/ s *射频卡读卡器符合DB31/239.2-2000 and ISO 14443标准 RF card reader accord with the standard of DB31/239.2-2000 and ISO 14443 (Optional) *GPRS或者CDMA通讯 CDMA/GPRS (Optional) *大容量锂电池2000mAh，充电时间约为3个小时 Lithium battery:2000mAh, charging about 3 hours *具有待机模式，整机待机时间为48小时 Standby mode, stand-by time:48hours 4.接口 Interface PS400使用说明书 User Manual - 8 - 5.SAM和SIM卡接口 SAM&SIM Card interface *通讯SIM卡座（位置1，见上图），此处可插GSM的SIM卡或者CDMA的UIM卡 Telecommunication SIM card socket (site 1 above),GSM SIM card or CDMA UIM card can be inserted here *SAM卡座（位置2，见上图），SAM卡定义可根据用户需要设定 SAM card socket(site 2 above),SAM card can be defined according to the user’s demand PS400使用说明书 User Manual - 9 - 6.安装打印纸 Printing paper installation *开机，进入应用界面 Terminal starts up, and enters into application program interface *打开纸仓 Open the cover of the paper storage. *把打印纸放入纸仓，按走纸键，打印机会自动走纸 Put the paper into the entry of the line feed of printer, press the button of line feed, and then it will feed line automatically. *合上纸仓盖 After line feed, close the paper store. ① ② PS400使用说明书 User Manual - 10 - 7.装箱清单 Packing List 序号 NO. 名称 Co…

Text truncated - open the document above for the full version.

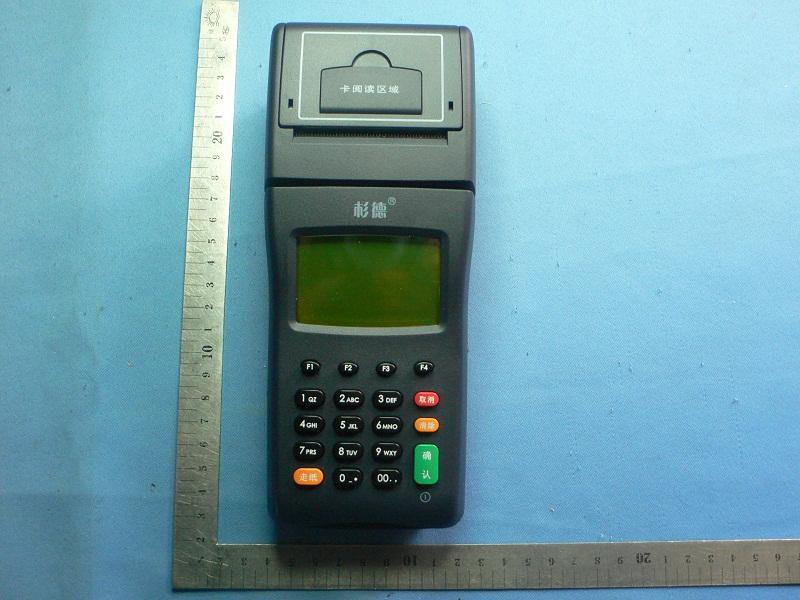

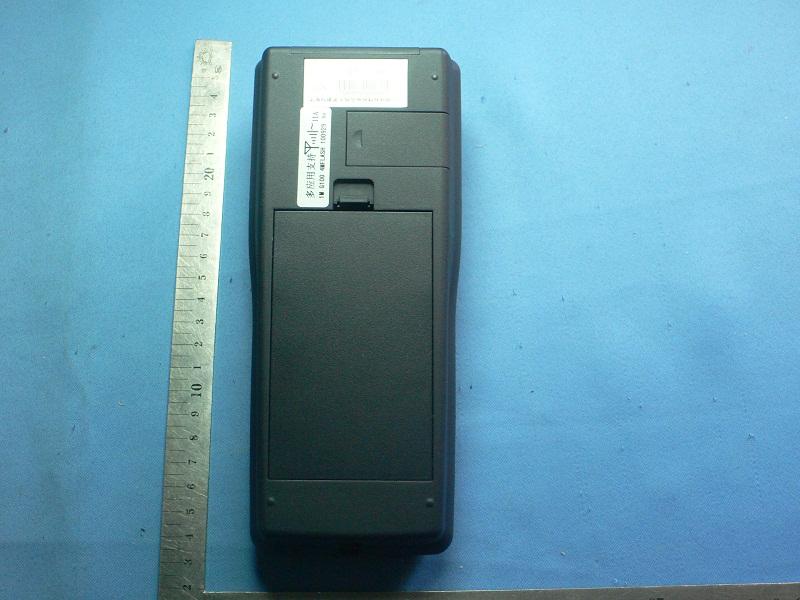

External Photos Battery Charger

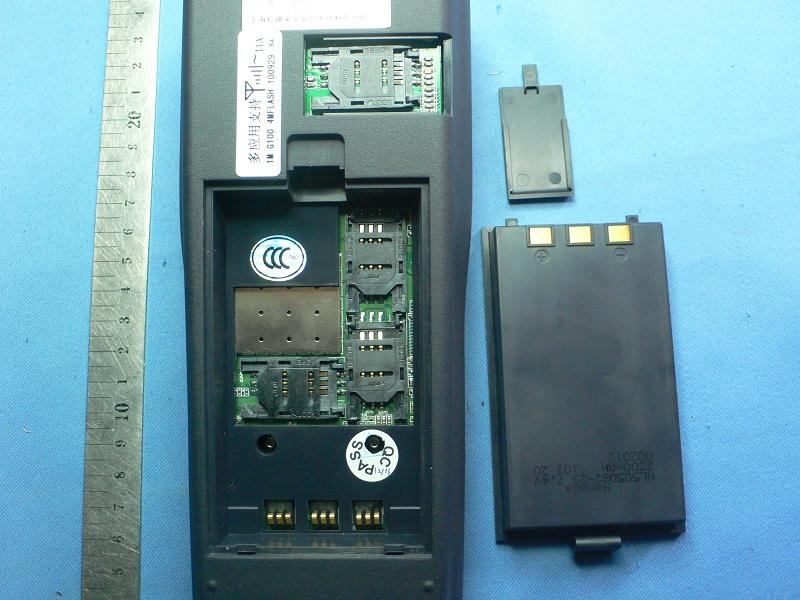

Internal Photos

NCL CALIBRATION LABORATORIES Calibration File No: DC-1198 Project Number: SPTB-ALSAS-5566 C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Validation Dipole 835MHz Head & Body Manufacturer: APREL Laboratories Part number: ALS-D-835-S-2 Frequency: 835MHz Serial No: 180-00565 Customer: SPORTON Calibrated: 18 th February 2011 Released on: 25 h February 2011 NCL CALIBRATION LABORATORIES 303 Terry Fox Drive, Suite 102 Division of APREL Kanata, Ontario TEL: (613) 435-8300 CANADA K2K 3J1 FAX: (613) 435-8306 NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. Conditions Dipole 180-00565 was a new dipole taken from stock. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 21 °C +/- 0.5°C Primary Measurement Standards Instrument Serial Number Cal due date Power meter Anritsu MA2408A 90025437 Nov.4, 2010 Power Sensor Anritsu MA2481D 103555 Nov 4, 2010 Attenuator HP 8495A (70dB) 1944A10711 Sept. 14, 2010 Network Analyzer Anritsu MT8801C MB11855 Feb. 8, 2011 Secondary Measurement Standards Signal Generator Agilent E4438C -506 MY55182336 June 7, 2011 NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 3 Calibration Results Summary The following results relate the Calibrated Dipole and should be used as a quick reference for the user. Mechanical Dimensions Length: 161.0 mm Height: 89.8 mm Electrical Specification 835MHz Tissue Type Return Loss: Impedance: SWR: Head -28.527 50.316 1.087U Body -23.340 56.867 1.157U System Validation Results Tissue Frequency 1 Gram10 Gram Peak Head 835 MHz 9.590 6.003 15.013 Body 835 MHz 9.981 6.006 15.013 835MHz NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 4 Introduction This Calibration Report has been produced in line with the SSI Dipole Calibration Procedure SSI-TP-018-ALSAS. The results contained within this report are for Validation Dipole 180-00565. The calibration routine consisted of a three-step process. Step 1 was a mechanical verification of the dipole to ensure that it meets the mechanical specifications. Step 2 was an Electrical Calibration for the Validation Dipole, where the SWR, Impedance, and the Return loss were assessed. Step 3 involved a System Validation using the ALSAS-10U, along with APREL E-030 130 MHz to 26 GHz E-Field Probe Serial Number 215. References o IEEE Standard 1528 (2003) including Amendment 1 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques o EN 62209-1 (2006) Human Exposure to RF Fields from hand-held and body-mounted wireless communication devices - Human models. instrumentation, and procedures-Part 1: Procedure to measure the Specific Absorption Rate (SAR) for hand-held mobile wireless devices o IEC 62209-2 Ed. 1.0 (2010-03) Human exposure to RF fields from hand-held and body-mounted wireless devices - Human models, instrumentation, and procedures - Part 2: specific absorption rate (SAR) for wireless communication devices (30 MHz - 6 GHz) o TP-D01-032-E020-V2 E-Field probe calibration procedure o D22-012-Tissue dielectric tissue calibration procedure o D28-002-Dipole procedure for validation of SAR system using a dipole o IEEE 1309 Draft Standard for Calibration of Electromagnetic Field Sensors and Probes, Excluding Antennas, from 9kHz to 40GHz Conditions Dipole 180-00565 was a new dipole taken from stock. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 20 °C +/- 0.5°C NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 5 Electrical Calibration Electrical Specification 835MHz Tissue Type Measured Epsilon Measured Sigma Head 41.09 0.89 Body 53.15 0.95 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 6 Electrical Specification 835MHz Impedance Tissue Type Measured Epsilon Measured Sigma Head 41.09 0.89 Body 53.15 0.95 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 7 Electrical Specification 835MHz Standing Wave Ratio Tissue Type Measured Epsilon Measured Sigma Head 41.09 0.89 Body 53.15 0.95 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 8 Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument List May 2010.

NCL CALIBRATION LABORATORIES Calibration File No: DC-1201 Project Number: SPTB-ALSAS-5566 C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Validation Dipole 1900MHz Head & Body Manufacturer: APREL Laboratories Part number: ALS-D-1900-S-2 Frequency: 1900MHz Serial No: 210-00716 Customer: SPORTON Calibrated: 19 th February 2011 Released on: 25 h February 2011 NCL CALIBRATION LABORATORIES 303 Terry Fox Drive, Suite 102 Division of APREL Kanata, Ontario TEL: (613) 435-8300 CANADA K2K 3J1 FAX: (613) 435-8306 NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. Conditions Dipole 210-00716 was a new dipole taken from stock. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 21 °C +/- 0.5°C Primary Measurement Standards Instrument Serial Number Cal due date Power meter Anritsu MA2408A 190025437 Nov.4, 2010 Power Sensor Anritsu MA2481D 103555 Nov 4, 2010 Attenuator HP 8495A (70dB) 1944A10711 Sept. 14, 2010 Network Analyzer Anritsu MT8801C MB11855 Feb. 8, 2011 Secondary Measurement Standards Signal Generator Agilent E4438C -506 MY55182336 June 7, 2011 NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 3 Calibration Results Summary The following results relate the Calibrated Dipole and should be used as a quick reference for the user. Mechanical Dimensions Length: 67.1 mm Height: 38.9 mm Electrical Specification 1900MHz Tissue Type Return Loss: Impedance: SWR: Head -30.471 50.426 1.064U Body -24.274 53.459 1.130U System Validation Results Tissue Frequency 1 Gram10 Gram Peak Head 1900 MHz 39.378 19.668 77.268 Body 1900 MHz 39.654 19.668 77.268 1900MHz NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 4 Introduction This Calibration Report has been produced in line with the SSI Dipole Calibration Procedure SSI-TP-018-ALSAS. The results contained within this report are for Validation Dipole 210-00716. The calibration routine consisted of a three-step process. Step 1 was a mechanical verification of the dipole to ensure that it meets the mechanical specifications. Step 2 was an Electrical Calibration for the Validation Dipole, where the SWR, Impedance, and the Return loss were assessed. Step 3 involved a System Validation using the ALSAS-10U, along with APREL E-030 130 MHz to 26 GHz E-Field Probe Serial Number 215. References o IEEE Standard 1528 (2003) including Amendment 1 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques o EN 62209-1 (2006) Human Exposure to RF Fields from hand-held and body-mounted wireless communication devices - Human models. instrumentation, and procedures-Part 1: Procedure to measure the Specific Absorption Rate (SAR) for hand-held mobile wireless devices o IEC 62209-2 Ed. 1.0 (2010-03) Human exposure to RF fields from hand-held and body-mounted wireless devices - Human models, instrumentation, and procedures - Part 2: specific absorption rate (SAR) for wireless communication devices (30 MHz - 6 GHz) o TP-D01-032-E020-V2 E-Field probe calibration procedure o D22-012-Tissue dielectric tissue calibration procedure o D28-002-Dipole procedure for validation of SAR system using a dipole o IEEE 1309 Draft Standard for Calibration of Electromagnetic Field Sensors and Probes, Excluding Antennas, from 9kHz to 40GHz Conditions Dipole 210-00716 was a new dipole taken from stock. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 20 °C +/- 0.5°C NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 5 Electrical Calibration Electrical Specification 1900MHz Tissue Type Measured Epsilon Measured Sigma Head 38.12 1.41 Body 51.52 1.57 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 6 Electrical Specification 1900MHz Impedance Tissue Type Measured Epsilon Measured Sigma Head 38.12 1.41 Body 51.52 1.57 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 7 Electrical Specification 1900MHz Standing Wave Ratio Tissue Type Measured Epsilon Measured Sigma Head 38.12 1.41 Body 51.52 1.57 Head Tissue Body Tissue NCL Calibration Laboratories Division of APREL Inc. This page has been reviewed for content and attested to by signature within this document. 8 Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument List May 2010.

NCL CALIBRATION LABORATORIES Calibration File No.: CP-1145 Client.: IAC C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe 835 MHz Manufacturer: APREL Laboratories Model No.: E-020 Serial No.: 273-B Body calibration Calibration Procedure: SSI/DRB-TP-D01-032-E020-V2 Project No: SGLB-IAC rep-E020-5538 Calibrated: 13 September 2010 Released on: 17 September 2010 NCL CALIBRATION LABORATORIES 17 Bentley Avenue Division of APREL Lab. NEPEAN, ONTARIO TEL: (613) 820-4988 CANADA K2E 6T7 FAX: (613) 820-4161 NCL Calibration Laboratories Division of APREL Laboratories. Page 2 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Introduction This Calibration Report reproduces the results of the calibration performed in line with the SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure. The results contained within this report are for APREL E-Field Probe E-020 273-B. References SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure IEEE 1528 “Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques” SSI-TP-011 Tissue Calibration Procedure IEC 62209 “Human exposure to radio frequency fields from hand-held and body- mounted wireless communication devices – Human models, instrumentation, and procedures –Part 1 & 2: Procedure to determine the Specific Absorption Rate (SAR) for hand-held devices used in close proximity of the ear (frequency range of 300 MHz to 3 GHz)” IEEE 1309 Draft Standard for Calibration of Electromagnetic Field Sensors and Probes, Excluding Antennas, from 9kHz to 40GHz Conditions Probe 273-B was a new-calibration. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 21 °C +/- 0.5°C NCL Calibration Laboratories Division of APREL Laboratories. Page 3 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Calibration Results Summary Probe Type: E-Field Probe E-020 Serial Number: 273-B Frequency: 835 MHz Sensor Offset: 1.56 mm Sensor Length: 2.5 mm Tip Enclosure: Ertalyte* Tip Diameter: <5 mm Tip Length: 60 mm Total Length: 290 mm *Resistive to recommended tissue recipes per IEEE-1528 Sensitivity in Air Channel X: 1.2 μV/(V/m) 2 Channel Y: 1.2 μV/(V/m) 2 Channel Z: 1.2 μV/(V/m) 2 Diode Compression Point: 95 mV NCL Calibration Laboratories Division of APREL Laboratories. Page 4 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Sensitivity in Body Tissue Measured Frequency: 835 MHz Epsilon: 57.19 (+/-5%) Sigma: 0.94 S/m (+/-5%) ConvF Channel X: 6. Channel Y: 6. Channel Z: 6. Tissue sensitivity values were calculated using the load impedance of the APREL Laboratories Daq-Paq. Boundary Effect: Uncertainty resulting from the boundary effect is less than 2% for the distance between the tip of the probe and the tissue boundary, when less than 2.44mm. Spatial Resolution: The measured probe tip diameter is 5 mm (+/- 0.01 mm) and therefore meets the requirements of SSI/DRB-TP-D01-032 for spatial resolution. NCL Calibration Laboratories Division of APREL Laboratories. Page 5 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Receiving Pattern 835 MHz (Air) 0 0.2 0.4 0.6 0.8 1 1.2 0 10 20 30 40 50 60 70 80 90 10 0 110 120 13 0 140 150 160 17 0 180 190 200 21 0 220 230 24 0 25 0 260 270 280 29 0 30 0 310 320 33 0 340 350 Receiving Pattern Probe s/n 273-B 835MHz Ch1Ch2Ch3Tot NCL Calibration Laboratories Division of APREL Laboratories. Page 6 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Isotropy Error 835 MHz (Air) -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 01 0020 03 00 E r r o r [ d B ] I sotropy Error Probe s/n 273-B 835MHz 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 01002003 00 V o l t a g e ( m V ) D e gree s ( x 10 ) Isotropy Plot Pr obe s/n 273-B 835MHz Ch1Ch2Ch3 Isotropicity in Tissue: 0.10 dB NCL Calibration Laboratories Division of APREL Laboratories. Page 7 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Dynamic Range 0. 01 0. 1 1 10 100 1 000 10 000 1 .0 0 10. 00 1 00. 00 1, 000 .00 1 0, 000. 00 100 ,00 0. 00 1 ,00 0, 000 .00 10, 00 0,0 00. 00 V o l t a g e [ m i c r o V ] Elec tric Fie ld [(V/m)^2 ] Probe 273-B Dynam ic Range Un co mp en sa te d Co m p en sa te d NCL Calibration Laboratories Division of APREL Laboratories. Page 8 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Video Bandwidth -6 -5 -4 -3 -2 -1 0 1 110100100010000 P r o b e o u t p u t l e v e l ( d B ) Frequency (Hz) Probe Frequency Characteristics Video Bandwidth at 500 Hz 1 dB Video Bandwidth at 1.02 KHz: 3 dB NCL Calibration Laboratories Division of APREL Laboratories. Page 9 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Conversion Factor Uncertainty Assessment Frequency: 835MHz Epsilon: 57.19 (+/-5%) Sigma: 0.94 S/m (+/-5%) ConvF Channel X: 6. 7%(K=2) Channel Y: 6. 7%(K=2) Channel Z: 6. 7%(K=2) To minimize the uncertainty calculation all tissue sensitivity values were calculated using a load impedance of 5 MΩ. Boundary Effect: For a distance of 2.4mm the evaluated uncertainty (increase in the probe sensitivity) is less than 2%. NCL Calibration Laboratories Division of APREL Laboratories. Page 10 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument L…

Text truncated - open the document above for the full version.

NCL CALIBRATION LABORATORIES Calibration File No.: CP-1151 Client.: IAC C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe 1900 MHz Manufacturer: APREL Laboratories Model No.: E-020 Serial No.: 273-B Body Calibration Calibration Procedure: SSI/DRB-TP-D01-032-E020-V2 Project No: SGLB-IAC rep-E020-5538 Calibrated: 13 September 2010 Released on: 17 September 2010 NCL CALIBRATION LABORATORIES 17 Bentley Avenue Division of APREL Lab. NEPEAN, ONTARIO TEL: (613) 820-4988 CANADA K2E 6T7 FAX: (613) 820-4161 NCL Calibration Laboratories Division of APREL Laboratories. Page 2 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Introduction This Calibration Report reproduces the results of the calibration performed in line with the SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure. The results contained within this report are for APREL E-Field Probe E-020 278. References SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure IEEE 1528 “Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques” SSI-TP-011 Tissue Calibration Procedure IEC 62209 “Human exposure to radio frequency fields from hand-held and body- mounted wireless communication devices – Human models, instrumentation, and procedures –Part 1 & 2: Procedure to determine the Specific Absorption Rate (SAR) for hand-held devices used in close proximity of the ear (frequency range of 300 MHz to 3 GHz)” IEEE 1309 Draft Standard for Calibration of Electromagnetic Field Sensors and Probes, Excluding Antennas, from 9kHz to 40GHz Conditions Probe 273-B was a new-calibration. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 21 °C +/- 0.5°C NCL Calibration Laboratories Division of APREL Laboratories. Page 3 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Calibration Results Summary Probe Type: E-Field Probe E-020 Serial Number: 273-B Frequency: 1900 MHz Sensor Offset: 1.56 mm Sensor Length: 2.5 mm Tip Enclosure: Ertalyte* Tip Diameter: <5 mm Tip Length: 60 mm Total Length: 290 mm *Resistive to recommended tissue recipes per IEEE-1528 Sensitivity in Air Channel X: 1.2 μV/(V/m) 2 Channel Y: 1.2 μV/(V/m) 2 Channel Z: 1.2 μV/(V/m) 2 Diode Compression Point: 95 mV NCL Calibration Laboratories Division of APREL Laboratories. Page 4 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Sensitivity in Body Tissue Measured Frequency: 1900 MHz Epsilon: 51.9 (+/-5%) Sigma: 1.56 S/m (+/-5%) ConvF Channel X: 4.7 Channel Y: 4.7 Channel Z: 4.7 Tissue sensitivity values were calculated using the load impedance of the APREL Laboratories Daq-Paq. Boundary Effect: Uncertainty resulting from the boundary effect is less than 2% for the distance between the tip of the probe and the tissue boundary, when less than 2.44mm. Spatial Resolution: The measured probe tip diameter is 5 mm (+/- 0.01 mm) and therefore meets the requirements of SSI/DRB-TP-D01-032 for spatial resolution. NCL Calibration Laboratories Division of APREL Laboratories. Page 5 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Receiving Pattern 1900 MHz (Air) 0 0.2 0.4 0.6 0.8 1 1.2 0 10 20 30 40 50 60 70 80 90 10 0 110 120 13 0 140 150 160 17 0 180 190 200 21 0 220 230 24 0 25 0 260 270 280 29 0 30 0 310 320 33 0 340 350 Receiving Pattern Probe s/n 273-B 1900MHz Ch1Ch2Ch3Tot NCL Calibration Laboratories Division of APREL Laboratories. Page 6 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Isotropy Error 1900 MHz (Air) -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 0100200300 E r r o r [ d B ] Isotropy Err or P robe s/n 27 3- B 19 00 M Hz 0 0. 1 0. 2 0. 3 0. 4 0. 5 0. 6 0. 7 0. 8 01 00200300 V o l t a g e ( m V ) D egr ees (x10 ) Isotropy Plot Probe s/n 273-B 1900MHz Ch 1Ch2 Ch 3 Isotropicity in Tissue: 0.10 dB NCL Calibration Laboratories Division of APREL Laboratories. Page 7 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Dynamic Range 0. 01 0. 1 1 10 100 1 000 10 000 1 .0 0 10. 00 1 00. 00 1, 000 .00 1 0, 000. 00 100 ,00 0. 00 1 ,00 0, 000 .00 10, 00 0,0 00. 00 V o l t a g e [ m i c r o V ] Elec tric Fie ld [(V/m)^2 ] Probe 273-B Dynam ic Range Un co mp en sa te d Co m p en sa te d NCL Calibration Laboratories Division of APREL Laboratories. Page 8 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Video Bandwidth -6 -5 -4 -3 -2 -1 0 1 110100100010000 P r o b e o u t p u t l e v e l ( d B ) Frequency (Hz) Probe Frequency Characteristics Video Bandwidth at 500 Hz 1 dB Video Bandwidth at 1.02 KHz: 3 dB NCL Calibration Laboratories Division of APREL Laboratories. Page 9 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Conversion Factor Uncertainty Assessment Frequency: 1900MHz Epsilon: 51.9 (+/-5%) Sigma: 1.56 S/m (+/-5%) ConvF Channel X: 4.7 7%(K=2) Channel Y: 4.7 7%(K=2) Channel Z: 4.7 7%(K=2) To minimize the uncertainty calculation all tissue sensitivity values were calculated using a load impedance of 5 MΩ. Boundary Effect: For a distance of 2.4mm the evaluated uncertainty (increase in the probe sensitivity) is less than 2%. NCL Calibration Laboratories Division of APREL Laboratories. Page 10 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration E…

Text truncated - open the document above for the full version.

Report No: SH10040042S01 Page 3 of 45 TABLE OF CONTENT 1 GENERAL CONDITIONS ........................................................................................................................................ 4 2 ADMINISTRATIVE DATE ....................................................................................................................................... 5 2.1 IDENTIFICATION OF THE RESPONSIBLE TESTING LABORATORY ............................................................................. 5 2.2 IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION(S) .............................................................................. 5 2.3 ORGANIZATION ITEM ............................................................................................................................................ 5 2.4 IDENTIFICATION OF APPLICANT ............................................................................................................................. 5 3 EQUIPMENT UNDER TEST (EUT)........................................................................................................................ 6 4 OPERATIONAL CONDITIONS DURING TEST .................................................................................................. 7 4.1 SCHEMATIC TEST CONFIGURATION ....................................................................................................................... 7 4.2 SAR MEASUREMENT SYSTEM ...........................................…
