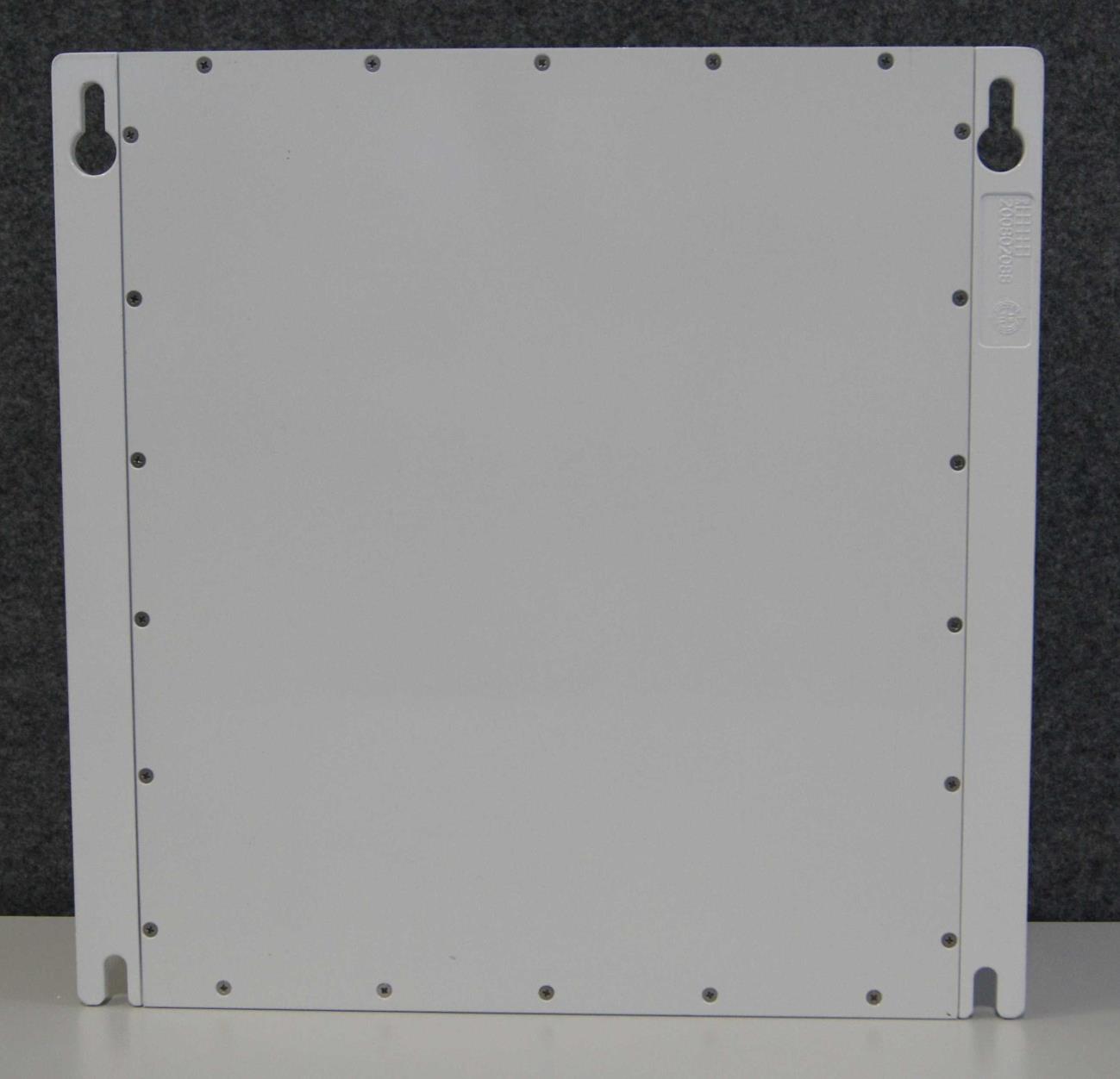

P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 - Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2015, ISO 14001:2015 [email protected] - www.jmawireless.com Soggetta a direzione e coordinamento di JMA Wireless LTD (Irlanda) JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 EXTERNAL PHOTOS P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 - Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2015, ISO 14001:2015 [email protected] - www.jmawireless.com Soggetta a direzione e coordinamento di JMA Wireless LTD (Irlanda) JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 - Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2015, ISO 14001:2015 [email protected] - www.jmawireless.com Soggetta a direzione e coordinamento di JMA Wireless LTD (Irlanda) JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 - Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2015, ISO 14001:2015 [email protected] - www.jmawireless.com Soggetta a direzione e coordinamento di JMA Wireless LTD (Irlanda) JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 CellHub Radio Remote Unit with optional Protection Kit

P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 - Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2015, ISO 14001:2015 [email protected] - www.jmawireless.com Soggetta a direzione e coordinamento di JMA Wireless LTD (Irlanda) JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 LABEL

P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 - Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2015, ISO 14001:2015 [email protected] - www.jmawireless.com Soggetta a direzione e coordinamento di JMA Wireless LTD (Irlanda) JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 LABEL LOCATION P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 - Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2015, ISO 14001:2015 [email protected] - www.jmawireless.com Soggetta a direzione e coordinamento di JMA Wireless LTD (Irlanda) JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 - Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2015, ISO 14001:2015 [email protected] - www.jmawireless.com Soggetta a direzione e coordinamento di JMA Wireless LTD (Irlanda) JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Cellhub Radio Remote Unit with optional Protection Kit

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:40,00(dBm) Maximum peak output power at antenna input terminal:10000(mW) Antenna gain(maximum):11(dBi) Maximum antenna gain:12,58925412(numeric) Time Averaging:100(%) Prediction distance:100(cm) Prediction frequency:2690(MHz) MPE limit for uncontrolled exposure at prediction frequency:1,000(mW/cm^2) Power density at prediction frequency:1,001821(mW/cm^2) Margin of compliance:0,0(dB) This equates to:10,01821011W/m^2 2 4 R PG S  =

Report Reference ID: 468302-1TRFWL Test specification: Title 47 – Telecommunication Chapter I – Federal Communications Commission Subchapter B – Common carrier services Part 27 – Miscellaneous wireless communications services Applicant: TEKO Telecom Srl. Via Meucci, 24/a I-40024 Castel S. Pietro Terme (BO) (Italy) Apparatus: Cell Hub High-Power Radio Remote Unit Model: XR25WH2/ACY-C FCC ID: XM2-X25H2 Testing laboratory: Nemko Italy Sp a Via del Carroccio, 4 20853 Biassono (MB) – Italy Telephone: +39 039 2201201 Facsimile: +39 039 2201221 Name and title Date Tested by: P. Barbieri (project handler) 07/01/2022 Reviewed by: D. Guarnone (verifier) 07/01/2022 Product: XR25WH2/ACY-C Specification: FCC 27 Report reference 468302-1TRFWL Page 2 of 114 Table of contents Section 1: Report summary ......................................................................................................... 3 1.1 Test specification ......................................................................................................... 3 1.2 Statement of compliance ............................................................................................. 3 1.3 Exclusions ................................................................................................................... 3 1.4 Registration number .................................................................................................... 3 1.5 Test report revision history .......................................................................................... 3 1.6 Limits of responsibility ................................................................................................. 3 Section 2: Summary of test results ............................................................................................. 4 2.1 FCC Part 27, test results ............................................................................................. 4 Section 3: Equipment under test (EUT) and application details ................................................ 5 3.1 Applicant details .......................................................................................................... 5 3.2 Modular equipment ...................................................................................................... 5 3.3 Product details ............................................................................................................. 5 3.4 Application purpose ..................................................................................................... 5 3.5 Composite/related equipment ...................................................................................... 6 3.6 Sample information ...................................................................................................... 6 3.7 EUT technical specifications ........................................................................................ 6 3.8 Accessories and support equipment ............................................................................ 7 The following information identifies accessories used to exercise the EUT during testing: .............. 7 3.9 Operation of the EUT during testing ............................................................................ 8 3.10 EUT setup diagram ...................................................................................................... 8 Section 4: Engineering considerations ....................................................................................... 9 4.1 Modifications incorporated in the EUT ......................................................................... 9 4.2 Deviations from laboratory tests procedures ................................................................ 9 4.3 Technical judgment ..................................................................................................... 9 Section 5: Test conditions ......................................................................................................... 10 5.1 Deviations from laboratory tests procedures .............................................................. 10 5.2 Test conditions, power source and ambient temperatures ......................................... 10 5.3 Measurement uncertainty .......................................................................................... 10 5.4 Test equipment .......................................................................................................... 12 Appendix A: Test results ............................................................................................................ 13 Clause 27.53(m)(6) Occupied bandwidth ...................................................................................... 13 Clause 27.50(h) Peak output power at RF antenna connector ...................................................... 25 Clause 27.53(m) Spurious emissions at RF antenna connector .................................................... 38 Clause 27.53(m) Radiated Spurious emissions ............................................................................ 53 Clause 27.54 Frequency stability .................................................................................................. 91 Appendix B: Block diagrams of test set-ups .......................................................................... 110 Appendix C: EUT Photos ......................................................................................................... 111 Section 1: Report summary Product: XR25WH2/ACY-C Specification: FCC 27 Report reference 468302-1TRFWL Page 3 of 114 Section 1: Report summary 1.1 Test specification Specifications Part 27 – Miscellaneous wireless communications services 1.2 Statement of compliance Compliance In the configuration tested the EUT was found compliant Yes No Test method: ANSI C63.26-2015, 662911 D01 Multiple Transmitter Output v02r01, 662911 D02 MIMO with Cross-Polarized Antennas v01 1.3 Exclusions Exclusio…
