XM7-SD-E0002eqo Arch system for Body Scanner

eqo Millimetre-Wave People Screening System Operating Instructions All rights reserved! The reproduction, transmission or use of this document or its contents is not permitted without express written authority. Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model or design, are reserved. Technical modifications re- served. 95591706 11/02/2010 © smiths detection proprietary information SMITHS DETECTION www.smithsdetection.com This document contains the following modules: 95592593Declaration of Conformity – CE 1595 95591608Eizo FlexScan MX190 - User's Manual 95592663User's Manual – FlexScan S1932 Color LCD Monitor - Eizo 95591849Plantronics Savi Office W0100 – Professional Wireless Headset System (W01 Base + WH100 Headset) with Optional HL10 Lifter – User Guide 95591706 11/02/2010 © smiths detection proprietary information0 Table of contents Table of contents General information..............................................................................................................................................1 FCC / IC Statement............................................................................................................................................1 Declaration of Conformity ................................................................................................................................1 Preface..............................................................................................................................................................2 About these operating instructions..................................................................................................................3 Place to keep the documentation................................................................................................................3 Classification of the safety instructions......................................................................................................3 Classification of the indications...................................................................................................................4 Warning signs used......................................................................................................................................4 How to read this documentation – Guide for different system configurations...........................................5 System configurations for the eqo system.............................................................................................5 Product description...............................................................................................................................................7 Referenced product documents........................................................................................................................9 Legal requirements...........................................................................................................................................9 Proper use of the system..................................................................................................................................9 Use as agreed..............................................................................................................................................9 Obvious misuse............................................................................................................................................9 Operating conditions.......................................................................................................................................10 User group.................................................................................................................................................10 Climatic conditions ...................................................................................................................................10 Controls and indicators of the eqo system.....................................................................................................11 Description of the keyboards.....................................................................................................................12 Navigator ..........................................................................................................................................13 Control key panel .............................................................................................................................13 Priority key panel .............................................................................................................................14 Key switch ........................................................................................................................................15 Image enhancement key panel ........................................................................................................15 Indicator panel .................................................................................................................................16 Function key panel ...........................................................................................................................16 Emergency stop switch ....................................................................................................................17 Monitors.....................................................................................................................................................17 Local station monitor A........................................................................................................................17 Local station monitor B........................................................................................................ ................17 Remote station monitor..............................................................…

Text truncated - open the document above for the full version.

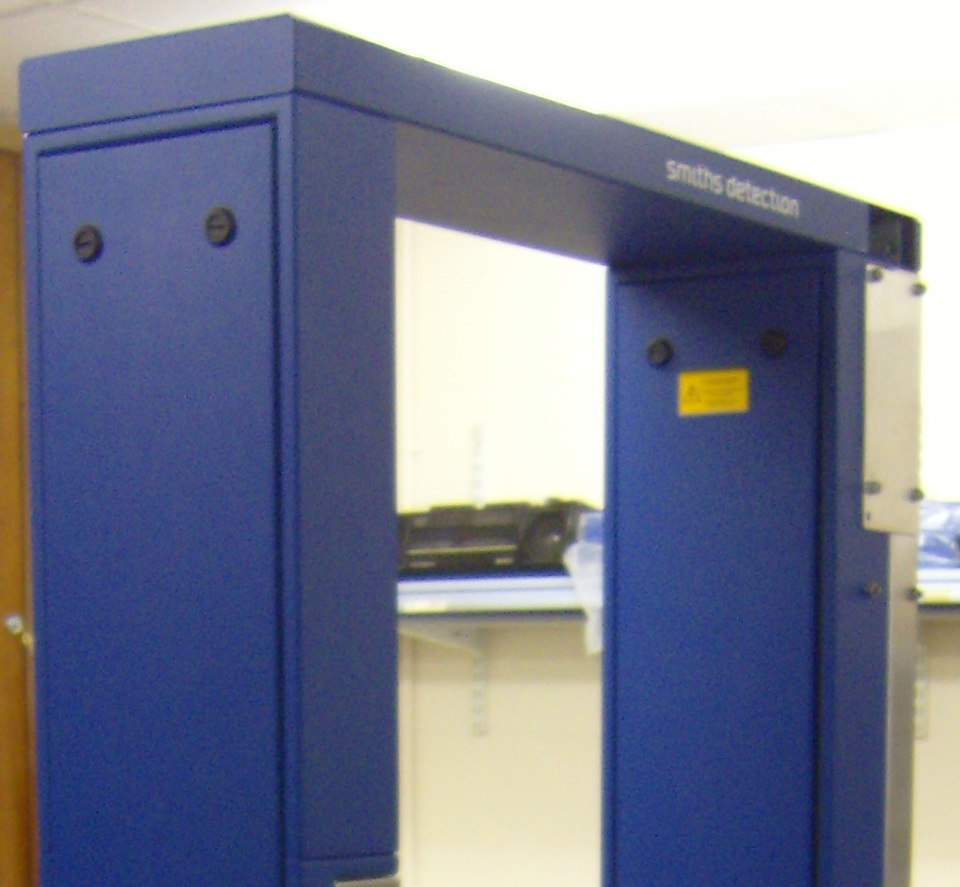

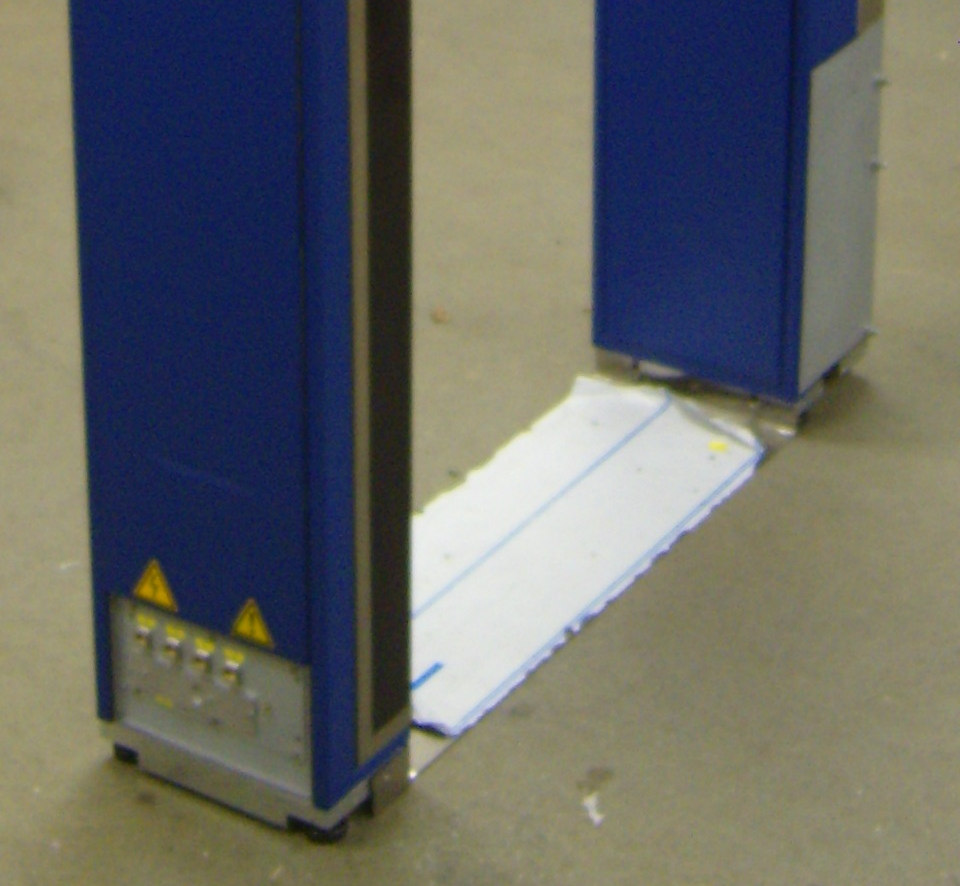

1 eqo™ Arch – External Product Photographs Fig.1: eqo Arch Rear View 2 Fig.2: eqo Arch Front View

eqo™ Arch – FCC Label Location FCC THE INFORMATION ON THIS DRAWING IS COPYRIGHT AND MUST NOT BE COMMUNICATED TO ANY THIRD PARTY WITHOUT PRIOR PERMISSION TITLE DRAWING NO. SCALE SHEET NO. MATERIALSURFACE FINISH UNLESS OTHERWISE SPECIFIED, ALL DIMENSIONS ARE IN MILLIMETERS. OF 1 : 1 1 A4 N/A N/A 1 SPECIFICATIONS ARE SUBJECT TO MODIFICATION AND REVISION WITHOUT NOTICE PART NO. 70501015 eqo ARCH FCC/IC LABEL (INTEGRATED TRX) REV # DESCRIPTION DATE CHKD DRN ECN NO. Z7104018-P SHEETSIZE TOLERANCES: DEFAULT TO MEET ISO 2768-m UNLESS OTHERWISE SPECIFIED FCC ID: XM7-SD-E0002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condition s: (1) This device may not cause harmful interference, and (2) this device must accept any interference receiv ed, including interference that may cause undesired ope ration. Canada 310 1 ORIGINAL ISSUE 12/05/2010 AJS N/A 45 2 5 R2

eqo™ Arch – Internal Product Photographs Transceiver – Internal Construction 1 There are six different printed circuit boards for the transceiver namely: 1) Z7110108-P 2) Z7110112-P 3) Z7110116-P 4) Z7110120-P 5) Z7110124-P 6) Z7110132-P Z7110116-P is only PCB which has components on top and bottom sides. Both sides are pictured below. All other PCBs are single sided. • Z7110108-P • Z7110112-P • Z7110116-P (TOP) 3 • Z7110116-P (Bottom) • Z7110120-P 4 • Z7110124-P • Z7110132-P 5

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: eqo To: FCC Part 15.249: 2009 Subpart C Test Report Serial No: RFI-RPT-RP77750JD01B V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Brian Watson, Operations Director: Checked By: Nigel Davison Signature: Date of Issue: 20 May 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP77750JD01B VERSION 2.0 ISSUE DATE: 20 MAY 2010 Page 2 of 34 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP77750JD01B VERSION 2.0 ISSUE DATE: 20 MAY 2010 RFI Global Services Ltd Page 3 of 34 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 4. Operation and Monitoring of the EUT during Testing ............................................................... 8 5. Measurements, Examinations and Derived Results .................................................................. 9 6. Measurement Uncertainty .......................................................................................................... 33 Appendix 1. Test Equipment Used ................................................................................................34 TEST REPORT SERIAL NO: RFI-RPT-RP77750JD01B VERSION 2.0 ISSUE DATE: 20 MAY 2010 Page 4 of 34 RFI Global Services Ltd 1. Customer Information Company Name: Smiths Detection Ireland Ltd Address: Link Road Ballincollig Co. Cork Ireland TEST REPORT SERIAL NO: RFI-RPT-RP77750JD01B VERSION 2.0 ISSUE DATE: 20 MAY 2010 RFI Global Services Ltd Page 5 of 34 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.249 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 15 Subpart C (Radio Frequency Devices) - Section 15.249 Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 06 May 2010 to 07 May 2010 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result FCC 15.107 Idle Mode AC Conducted Emissions FCC 15.109 Idle Mode Radiated Spurious Emissions FCC 15.207 Transmitter Mode AC Conducted Emissions FCC 15.249(a) Transmitter Fundamental Field Strength FCC 2.1049 Transmitter 20 dB Bandwidth FCC 15.249(a)(d)(e) & 15.209 Transmitter Radiated Spurious Emissions FCC 15.249(d) & 15.209 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.4 (2003) Title: American National Standard Methods of Measurement of Electromagnetic Emissions from Low Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP77750JD01B VERSION 2.0 ISSUE DATE: 20 MAY 2010 Page 6 of 34 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: eqo Model Name or Number: eqo Serial Number: 82471 Hardware Version Number: None Stated Software Version Number: None Stated FCC ID Number: XM7-SD-E0002 3.2. Description of EUT The equipment under test was a full body scanner used for security screening to detect weapons, explosive, or contraband hidden under clothing using millimetre-wave technology. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. TEST REPORT SERIAL NO: RFI-RPT-RP77750JD01B VERSION 2.0 ISSUE DATE: 20 MAY 2010 RFI Global Services Ltd Page 7 of 34 3.4. Additional Information Related to Testing Category of Equipment: Short Range Device (SRD) Type of Equipment Transceiver Intended Operating Environment: Commercial Modulation Type: Continuous Wave (CW) Duty Cycle 100% Channel Spacing: 40 MHz Antenna Connection Type: Integral Power Supply Requirement: 120VAC Nominal Transmit Frequency Range: 24.00 GHz to 24.25 GHz Channel ID Channel Number Channel Frequency (GHz) Bottom 1 24.080 Middle 3 24.160 Transmit Channels Tested: Top 5 24.240 Receive Frequency Range: 24.00 GHz to 24.25 GHz Channel ID Channel Number Channel Frequency (GHz) Bottom 1 24.080 Middle 3 24.160 Receive Channels Tested: Top 5 24.240 TEST REPORT SERIAL NO: RFI-RPT-RP77750JD01B VERSION 2.0 ISSUE DATE: 20 MAY 2010 Page 8 of 34 RFI Global Services Ltd 4. Operation and Monitoring of the EUT during Testing 4.1. Operating Modes The EUT was tested in the following operating mode(s): • Continuous transmit at maximum output power at bottom, middle, top as required. • Idle mode 4.2. Configuration and Peripherals The EUT was tested in the following configuration(s): • For all tests, the EUT was tested standalone. A test mode was enabled on the EUT to allow continuous transmissions or continuous idle mode. TEST REPORT SERIAL NO: RFI-RPT-RP77750JD01B VERSION 2.0 ISSUE DATE: 20 MAY 2010 RFI Global Services Ltd Page 9 of 34 5. Measurements, Examinations and Derived Results 5.1. General Comments Measurement uncertainties are evaluated in accordance with current best practice. Our reported expanded uncertaint…
