XNHCT-4545 Watt FM Broadcast Transmitter

Galcom International Inc.

Application Details

Equipment Class
TBC - Licensed Broadcast Station Transmitter
Date of Grant
Dec 03, 2009
Application Purpose
Original Equipment
Date of Application
Aug 02, 2009
Equipment Note
45 Watt FM Broadcast Transmitter
Frequency Range
88.00000000 - 108.00000000
Company
Galcom International Inc.
Country
Canada

Documents & Files

Select a file to view

Users Manual

โ†—

External Photos

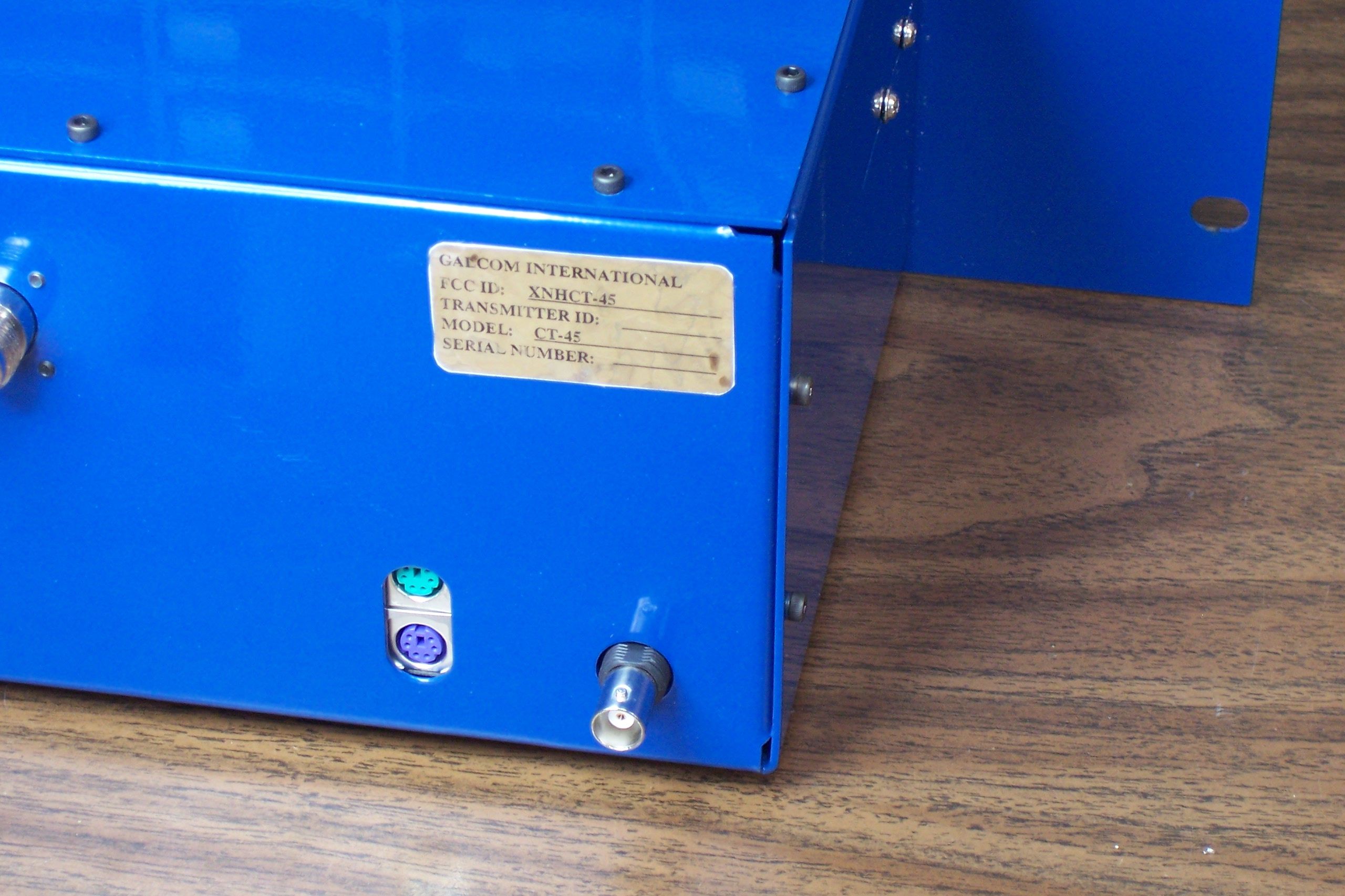

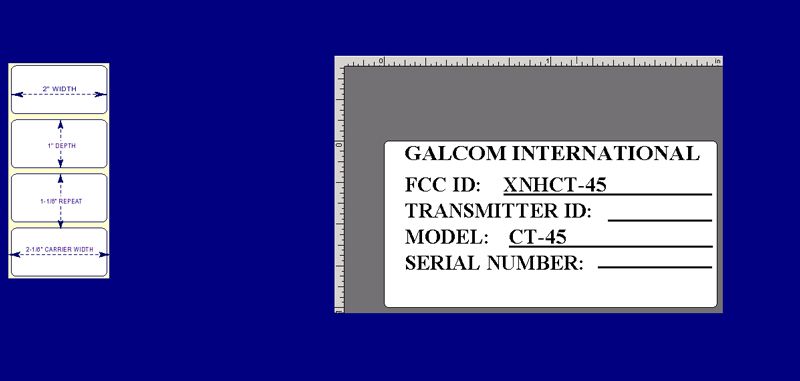

ID Label/Location Info

โ†—
โ†—
โ†—

Internal Photos

Operational Description

Parts List/Tune Up Info

โ†—

Schematics

Test Report

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 GALCOM INTERNATIONAL 115 Nebo Rd., Hamilton, Ontario, Canada, L8W 2E1 Phone: (905) 574-4626 - Fax: (905) 574-4633 - www.galcom.org Providing durable technical equipment for communicating the Gospel worldwide ________________________________________________ Preliminary USER MANUAL FOR THE CORNERSTONE TRANSMITTER Model: CT-X and the CORNERSTONE 45 WATT AMPLIFIER Model: CT-45 September 30, 2009 ________________________________________________ 2 TABLE OF CONTENTS TABLE OF CONTENTS .................................................................................................... 2 Section 1 โ€“ General Description ......................................................................................... 4 Section 2 โ€“ CT-X Transmitter Hardware ............................................................................ 5 2.1 Front Audio Inputs ............................................................................................... 5 2.2 Rear Audio Inputs ................................................................................................ 5 2.3 Contrast Adjustment ............................................................................................. 6 2.4 RF Output Connector ........................................................................................... 6 2.5 CT-X Digital IO Connector .................................................................................. 6 2.6 Power Socket and Switch ..................................................................................... 6 2.7 Ethernet Connection ............................................................................................. 7 2.8 Case Configuration ............................................................................................... 7 2.8.1 Rack Mount Configuration ........................................................................... 7 2.8.2 45 Degree Desktop Configuration ................................................................ 7 2.9 Cleaning the Transmitter ...................................................................................... 7 2.10 Touchscreen Display ........................................................................................ 8 Section 3 - CT-45 Hardware ............................................................................................... 8 3.1 RF Input Connector .............................................................................................. 8 3.2 RF Output Connector ........................................................................................... 8 3.3 Power Connector .................................................................................................. 8 3.4 CT-45 Digital IO Connector ................................................................................ 9 3.5 Main Power Toggle Switch .................................................................................. 9 3.6 Power Switch........................................................................................................ 9 3.7 Power LED ......................................................................................................... 10 3.8 Amplifier LED ................................................................................................... 10 Section 4 - Step by Step Installation and Setup ................................................................ 11 4.1 Installing the CT-X Transmitter ......................................................................... 11 4.1.1 Unpacking the CT-X ................................................................................... 11 4.1.2 Installing in a 19โ€ Rack ............................................................................... 11 4.1.3 Installing the 45 Degree Wings ....................................................................... 11 4.1.4 Connecting the cables to the CT-X Transmitter ......................................... 12 4.1.5 Unpacking the CT-45 Amplifier ..................................................................... 12 4.1.6 Installing the CT-45 into a 19โ€ Rack .......................................................... 12 4.1.7 Connecting the CT-X Transmitter to the CT-45 Amplifier ........................ 13 4.1.8 Verify the hardware installation .................................................................. 13 Section 5 โ€“ Software Operation (CT-X & CT-45) ........................................................... 14 5.1 Quick setup ......................................................................................................... 14 5.2 Views Menu ....................................................................................................... 15 5.2.1 Views / Frequency ...................................................................................... 15 5.2.2 Views / All ....................................................................................................... 15 5.2.3 Views / Temperature ....................................................................................... 16 5.2.4 Views / Levels.................................................................................................. 16 5.3 Settings Menu ..................................................................................................... 16 5.3.1 Settings / Frequency .................................................................................... 16 3 5.3.2 Settings/Input .............................................................................................. 17 5.3.3 Settings/Audio............................................................................................. 17 5.3.4 Settings/Mix ................................................................................................ 18 5.3.5 Settings/Password ....................................................................................... 18 5.3.6 Settings/Temperature ..............................................โ€ฆ

Text truncated - open the document above for the full version.

Parts List/Tune Up Info

FM parts To : FCC and ICInstructions : Purpose : Cornerstone CT- X Range : Transmitter Date : May 20/09 From : Neil Woods P.O. : Ship : 1 List #RequiredLocationPart #PackagingValueTypeComponent# SentFindingsShortage 11C813, SCC-010N-010805-T&R10 nF CapSMCap. 265 C211, C254, C308 C310, C313, C315, C317 C500-C510, C512, C515, C600- C610, C700-C710, C800-C812, C814, SCC-0U10-0603-T&R100 nF CapSMCap. 38 C200-C203, C300- C303SCC-010U-010805-T&R10uF CapSMCap. 41C833SCC-012P-010805-T&R12 pF CapSMCap. 51C513SCC-018P-010805-T&R18 pFSMCap. 61C831SCC-002P-010805-T&R2 pFSMCap. 71C8140805-T&R100 nF CapSMCap. 83C212, C309, C311,SCC-02U2-3216-T&R2.2 uFSMCap. 91C836SCC-022P-010805-T&R22 pFSMCap. 102C830, C837SCC-027P-010805-T&R27 pFSMCap. 111C834,SCC-039P-010805-T&R39 pFSMCap. 1222 C208, C209, C252, C304-C307, C312, C314, C410-C412, C420, C422, C511, C517, C611, C612, C711, C712, SCC-04U7-043216-T&R4.7 uFSMCap. 132C514, C832, SCC-047P-010805-T&R47 pFSMCap. 141C825,SCC-08P2-010805-T&R8.2 pFSMCap. 154C400-C403TCE-0F10-015 x 11 MM1000 uFTHCap. 162R821, R831,SRM-ZERO-010805-T&R0 OhmSMResistor 172R803, R909,SRM-027R-010805-T&R27 OhmSMResistor 184 R802, R820, R830, R912SRM-075R-010805-T&R75 OhmSMResistor 192R804, R805,SRM-0K10-010805-T&R100 OhmSMResistor 201R400,SRM-K237-010805-T&R237 Ohm 1%SMResistor 214R227-R230,SRM-0K30-010805-T&R300 OhmSMResistor 221R401SRM-K422-010805-T&R422 Ohm 1%SMResistor 231R226SRM-0K50-010805-T&R500 OhmSMResistor 2438 R213, R222-R225, R300, R302, R304, R306, R309-R313, R500-R506, R509, R600, R602-R605, R700-R705, R707, R708, R833, R900, R911, SRM-010K-010805-T&R10K OhmSMResistor 254 R202, R205, R208, R211,SRM-018K-010805-T&R18K OhmSMResistor 264 R200, R203, R206, R209,SRM-0M10-010805-T&R100K OhmSMResistor 271R910,SRM-01K0-010805-T&R1K OhmSMResistor 281R507,SRM-01M0-010805-T&R1M OhmSMResistor 2910 R212, R214-R221, R308, SRM-020K-010805-T&R20K OhmSMResistor 301R800,SRM-01K3-010805-T&R1.3K OhmSMResistor 315 R301, R303, R305, R307, R801, SRM-02K2-010805-T&R2.2K Ohm 321R908, SRM-050K-010805-T&R50K OhmSMResistor 334 R201, R204, R207, R210,SRM-0M75-010805-T&R750K OhmSMResistor 345 JP1, JP2, JP3, JP5, JP6,TJM-0014-01Bulk2x7 14 Pin HeaderTHHeader 351JP3Galtronics Bulk1x1 Pin HeaderTHHeader 361D1SDD-BA54-01TapeBAT54SMDiode 371T2STT-3904-01Tape3904SMTransistor 381BATT1TJT-2032-01TrayCR2032THBatt. Holder 393U1, U2, U3,SIM-5637-01Tray374 DSP ICSMIC 401U4,SIM-9852-01TrayAD9854 (9852)SMIC 412U14, U15SIR-7414-01TrayAD7414ARTSMIC W hen you do you inventory check on this shipment, could you please fill in your "Findings" of items sent from Galcom in order to verify everything arrived safely. If you find any in "Shortage" please enter the amount in the appropriate box. If you have any questions please feel free to contact me. Thank-You. Neil W oods Galcom International Phone: (905)574-4626 Fax: (905)574-4633 FM parts 421U12SIR-7843-01AD7843SMIC 433U19, U21, U23SIR-5381-01IC AK5381VTPSMIC 441Q4SFC-3276-01SMD8.0X3.2 Resonator-32.768 KHzSMResonator 451F1SWF-02P6-01SMD FUSE FSMD250-2920FuzetecSMFuse 464T3-T6STF-J177-01TapeTransistor MMBFJ177LT1 SMTransistor 471Q1TFC-2457-01BulkCrystal 24.576THCrystal 481Q7TubeFOX924B-16 SMCrystal 493L7, L8, L9, SLA-010U-01TapeInductor 10uHSMCoil 5022, 3, SLA-068N-01TapeInductor 68nHSMCoil 5111, SLA-082N-01TapeInductor 82nHSMCoil 521IC8,TJI-0008-01BulkMemory (Socket)THIC 53 542U8, U9TIR-1117-01BulkIC LM1117MP-ADJTHTransistor 552U6, U7IRU101533TO220RegulatorTHTransistor 565IC1, IC3, IC5, IC6, IC7 IC LM358AMXTubeLM358 (258)SMIC 571SG2GAS-1470-01TrayBuzzer HST1470ATHBuzzer 581J3TJM-0BNC-01TrayBNC-JR15X-50THConnector 591U13SIR-1340-01TubeDS1340Z-33+SMIC 601SW1TSP-2P2T-01BulkPush SwitchTHSwitch 611RV1TRV-010K-01Bulk10 K Ohm Variable Res.THResistor 621J2TJM-0088-01BulkEthernet JackTHJack 631J7TJM-0020-01BulkZIF CONNECTOR 20THZIF Jack 641J9TJM-0008-01BulkZIF CONNECTOR 8THZIF Jack 651J8TJM-0004-01BulkZIF CONNECTOR 4THZIF Jack 661J5TJM-0006-01BulkMDJ-F-06 MorethanallThPS2 Jack 671J1TJP-0055-01Bulk2.1 mm Power JackTHGalcom 681J6TJM-0RCA-01BulkRCA x 4 MorethanallTHJack 693T1, T7, T8,ZXM61P02FTA P MfetSMTransistor 701B1GET-CORN-01BulkPCB Cornerstone CT-XPC Board 259Total Pieces Note:

Contact Information

Applicant

Allan McGuirl
[email protected]905-574-4626Fax: 905-574-4633

Technical Contact

Greg Best Consulting Inc.Greg L. Best
[email protected]816-792-2913

9223 N. Manning Avenue ยท Kansas City, Missouri ยท United States

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
17388 MHz - 108 MHz45 W300KF8E2000.0000000000 Hz
