Notebook USER MANUAL * Please read this manual before using your computer. Put it at hand for future reference. Welcome! Thank you for purchasing our products! Please read this manual carefully before using for your safe and interest. Declaration: Please be noted that we won’t charge any loss, damage or wound caused by misuse or any incorrect operation which is not allowed by this manual. About the (user) manual: All Rights Reserved. Trademarks and brands mentioned in this manual are owned by their original owners. Your products may not be just the same with what we defined in this manual. Annex: Technology Information Parts Specification Note CPU Intel Atom N270 1.6GHz 533MHz * Chipset Mobile Intel ® i945GME+82801GHM(ICH7-M) * Memory DDRII 1GB PC2-5300 * HDD SATA 160GB 5400 * Optical Driver none Graphic Intel ® GMA 950 Audio Realtek HD Audio LAN Adapter Realtek RTL8139/810x Family Fast Ethernet Wireless LAN adapter RTL8187SE * LCD TFT LCD WXGA 1024x600 Camera Digital Camera MegaPix * Battery LI-iON 2200 * Power Adapter Input:100-240V 1.8A/Output:19V 3.42A Ports/Sockets USBx2/D-sub(VGA)/RJ-45/EarPhone&MIC *Parts may change according to different models. Contents 1 FOR YOUR SAFETY .........................................................................................................4 1.1 SPECIAL TIPS...................................................................................................................4 1.2 PLEASE READ THE IMPORTANT SAFETY CLUE ON NOTEBOOK!..........................................4 1.3 NOTES.............................................................................................................................5 1.4 BATTERY INFO (IMPORTANT) ...........................................................................................6 1.5 POWER ADAPTER.............................................................................................................7 1.6 ERGONOMICS..................................................................................................................7 1.7 SAFETY INSTRUCTIONS...................................................................................................8 1.8 OPERATE SYSTEM...........................................................................................................8 2 PRODUCT OVERVIEW....................................................................................................9 2.1 INSTRUCTION..................................................................................................................9 2.2 OVERVIEW......................................................................................................................9 2.3 OPEN PACKAGE.............................................................................................................10 3 HOW TO USE ...................................................................................................................10 3.1 LED INDICATORS..........................................................................................................10 3.2 KEY-COMBINATION.......................................................................................................10 3.3 HOW TO USE.................................................................................................................10 3.4 TOUCH-PAD...................................................................................................................11 3.5 DISPLAY SCREEN...........................................................................................................11 3.6 LAN..............................................................................................................................11 4 BIOS ...................................................................................................................................12 4.1 BIOS.............................................................................................................................12 4.2 HOW TO MODIFY BIOS SETTINGS..................................................................................12 4.3 MAIN.............................................................................................................................12 4.4 ADVANCED....................................................................................................................13 4.5 SECURITY......................................................................................................................13 4.6 BOOT.............................................................................................................................13 4.7 EXIT.............................................................................................................................13 5 INSTALL HARDWARE DRIVERS ................................................................................13 6 TROUBLE SHOOTING...................................................................................................14 6.1 SOUND ADAPTER...........................................................................................................14 6.2 HARD DISK...................................................................................................................14 6.3 DISPLAY SCREEN...........................................................................................................15 6.4 MAIN MEMORY.............................................................................................................15 7 COMPATIBILITY ............................................................................................................15 7.1 HARD WARE COMPATIBILITY........................................................................................15 7.2 SOFTWARE COMPATIBILITY...........................................................................................15 ANNEX: TECHNOLOGY INFORMATION ......................................................................2 1 …

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of RSP_T20-RS01 A0.0 BlockRSPTEK B 242 Tuesday, April 07, 2009 TitleSize Document Number Rev Date: Sheet of RSP_T20-RS01 A0.0 BlockRSPTEK B 242 Tuesday, April 07, 2009 TitleSize Document Number Rev Date: Sheet of RSP_T20-RS01 A0.0 BlockRSPTEK B 242 Tuesday, April 07, 2009 DDR2(400/533) N270 HDA FSB/533 CK505M LCD/LVDS BGA65231x31mm22x22mm LVDS HD AUDIO ALC268Q SMC/KBC LPC(33MHz) Port 80 MINI SLOT PCIE PORT2 BGA437 SODIMM USB1.1/2.0 SD/MMC/MS MINI SLOT PORT3PORT4 USB PORTUSB PORT PORT0PORT1 CAMERA PORT2PORT7 FWH Debug board SPI SCT KB/JTAG RJ45 CPU THMSENSOR VGA x2 DMI SATA HDD(2.5) SATAO(R1.0) ICH7M FCBGA99827x27mm 82801E10M/100M LAN PCIE PORT1 USB PORT 945GSE CRT PG6-7 PG20 PG8 PG9-13PG15-19 PG14 PG28 PG24PG25 PG25 PG23 PG29-30 PG30 PG30 PG30 PG28PG28PG28PG24PG28PG26 PG22PG21 FAB AREV 0.0RSP T20-RS01 OZ815System VROZ8602GNCharger PG37PG36 DC RAIL PG34PG35PG33 OZ8138LN PG32 Chipset VR APL5315 ISL6262ACRZ PG31 2.5V VRCPU VROZ812LNDDR2 VR

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 SHENZHEN CHUANGDELI ELECTRONIC FACTORY August 17, 2009 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SHENZHEN CHUANGDELI ELECTRONIC FACTORY hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product: Netbook , model name: S10A,S10B,S12A,S12B) We affirm that between SIEMIC and SHENZHEN CHUANGDELI ELECTRONIC FACTORY any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Hui li / Sales Contact information / address: SHENZHEN CHUANGDELI ELECTRONIC FACTORY 2-4/F Hongchangyuan Ind. Bldg.,Yintian Ind. Zone, Xixiang Street, Bao'an, Shenzhen, Guangdong China

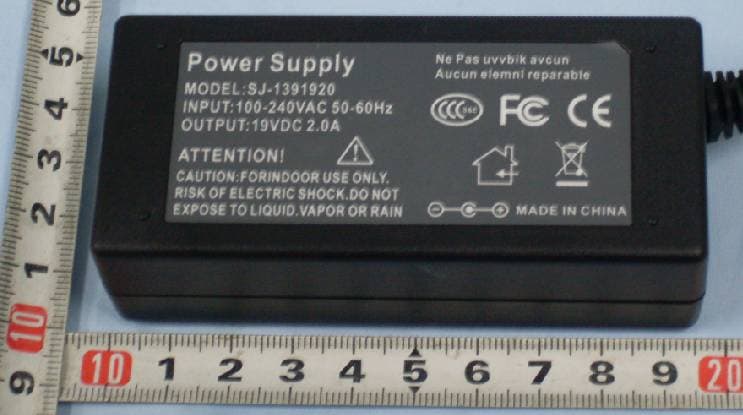

External Photographs EUT - Combined View EUT - Front View EUT - Rear View EUT –Open View EUT – Port View EUT –Adapter View

FCC ID Label Sample for FCC ID: XNV-S1 XX FCC ID: XNV-S1 XX Contains WIFI Module with FCC ID:TX2-RTL8187SE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID Location

Internal Photographs EUT - Uncovered View EUT - PCB View EUT – Disk Drive View EUT - Antenna View

Operation Description 1．Netbook Configure Specification Netbook Configure: Specification CPU Intel Atom N270 1.6GHz 533MHz Chipset Mobile Intel ® i945GME+82801GHM(ICH7-M) Memory DDRII 1GB PC2-5300 HDD SATA 160GB 5400 Optical Driver none Graphic Intel ® GMA 950 Audio Realtek HD Audio LAN Adapter Realtek RTL8139/810x Family Fast Ethernet LCD TFT LCD WXGA 1024x600 Camera Digital Camera MegaPix Rechargeable Battery LI-iON 2200 Power Adapter Input:100-240V 1.8A/Output:19V 3.42A Ports/Sockets USBx2/D-sub(VGA)/RJ-45/EarPhone&MIC *Parts may change according to different models. 2．Technology Information Parts Specification Note CPU Intel Atom N270 1.6GHz 533MHz * Chipset Mobile Intel ® i945GME+82801GHM(ICH7-M) * Memory DDRII 1GB PC2-5300 * HDD SATA 160GB 5400 * Optical Driver none Graphic Intel ® GMA 950 Audio Realtek HD Audio LAN Adapter Realtek RTL8139/810x Family Fast Ethernet Wireless LAN adapter RTL8187SE * LCD TFT LCD WXGA 1024x600 Camera Digital Camera MegaPix * Battery LI-iON 2200 * Power Adapter Input:100-240V 1.8A/Output:19V 3.42A Ports/Sockets USBx2/D-sub(VGA)/RJ-45/EarPhone&MIC 3．BIOS Introduction 3.1 BIOS BIOS: Basic Input & Output System. We will tell you how to access BIOS and edit its values. This will help you to use your computer more free and easy. Also we will tell you how to edit the security settings. Power on your computer. Press Del at first when the computer says: Press DEL to run setup! You will enter the BIOS ULTILITY interface. We have made the default settings on BIOS in our factory. These settings match all the hardware device and confirm that the computer works well. But sometimes you need to edit some items in BIOS when you want to change or update some hardware devices. We recommend you to set the password for security. This may stop a non-illegal user. If you have stored much important documents on the computer, a password will be very important. 【Note】The BIOS may be different according to different models. 3.2 How to modify BIOS settings (1)You will change some BIOS setting value. You may be asked to enter BIOS and make changes when you power on your computer. The changes may be: Loading default settings.① Changing an item setting value.② Changing some settings value to get fast.③ If you want to access BIOS, please press DEL at the first display when it says: Press DEL to run setup! (2)BIOS Options: you may enter Main Menus>Sub Menus>Options and get to an item/option. Press Up or Down to select an option. Press Enter and find the Sub Menus. Select an item/option and press Enter again to confirm. Press Esc to return. Press F10 to save and exit. 3.3 Main System Overview System Time 【18:11:33】(Please input the current time if it is wrong time.) System Date【Web 02/25/2009】(Input current date) Primary IDE Master: Hard Disk Primary IDE Slave: Not Detected Secondary IDE Master: Not Detected Secondary IDE Slave: Not Detected Size: 1016MB Genuine Intel® CPU N270 @1.6GHz Speed: 1600MHz Build Date:01/15/09 ID: T20RS102 【Note】Your computer system information may be different. 3.4 Advanced Advanced Settings WARNING：Setting wrong values in below sections may cause system to malfunction. Quick Boot: Enable/Disable Quiet Boot: Enable/Disable Onboard LAN BOOT ROM: Enable/Disable DVMT Mode Select: Fixed Mode/DVMT Mode/Combo Mode DVMT/Fixed Memory: 64M/128M/Maxium DVMT Boot Display Device: LFP on Port 2 Flat Panel Type: Type1-16 3.5 Security Security Settings Supervisor Password: Not Installed (We recommend you to enter and save a password for your computer. Do Not forget this password if you have made one.) User Password: Not Installed (We recommend you to enter and save a password for your computer. This will help to block any illegal user.) Change Supervisor Password (Input or edit supervisor password.) Change User Password (Input or edit user password.) Boot Sector Virus Protection: Enable/Disable (You may Enable this feature for more security.) 【Note】Do Not forget your supervisor password! 3.6 Boot Boot Settings Configuration ◆Hard Disk Drive (Press Enter to see the options.) ◆Removable Drive (Press Enter to see the options.) 1st Boot Device SATA:PM-ST9160310AJ/USB Multi Flash Reader/Disabled 2nd Boot Device SATA:PM-ST9160310AJ/USB Multi Flash Reader/Disabled you will modify these settings if you have installed other devices, such as USB CD-ROM Driver, and you want to boot on from it, you may change the options.) 3.7 EXIT EXIT Options Save Changes and Exit (You will save the changes and return.) Discard Changes and Exit (You will return without saving any changes.) Discard Changes (Cancel any changes you have made on BIOS.) Load Options Defaults (Load the defaults settings.) Load Failsafe Defaults (This selection helps you to discard any changes and configure all hard wares with minimums speed/value.) 4. Install Hardware Drivers Please install operation system, Windows XP, and then install hard ware drivers. Input the CD-ROM in your CD driver. You will find the folders, such as Audio. Double-click this folder and open it. Find the auto-run programs, setup.exe, run it. Follow the indication to finish. The computer will ask to reboot. Click Yes to reboot. FOLDERS CONTENTS Audio Sound adapter drivers VGA Graphic adapter drivers Bluetooth Bluetooth adapter drivers Chipset Chipset drivers and utility programs GPS GPS adapter drivers and utility Intel WLAN Intel Wireless Pro LAN adapter drivers and utility LAN Network adapter drivers Realink-WLAN Realink ® Wireless LAN adapter drivers Touch-Screen Touch screen drivers VIA-WLAN VIA wireless LAN adapter drivers 【Note】Folders may be different according to the models. And not all the folders is needed for your computer. Please contact your seller for details if necessary.

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 140 Wednesday, February 18, 2009 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 140 Wednesday, February 18, 2009 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 140 Wednesday, February 18, 2009 1 6 . VGA 0 7. GMCH-4 1 7 . LVDS 1 5 . CLOCK GEN 0 9. SO-DIMM 14 . ICH7M-5 1 0 . ICH7M-1 13 . ICH7M-4 11 . ICH7M-2 0 6. GMCH-3 0 4. GMCH-1 01. Index Page0 2. CPU-1 0 5. GMCH-2 Page Index 0 3. CPU-2 3 4 . MODIFY HISTORY . 12 . ICH7M-3 3 1 . DDR VR 2 7 . DC RAIL 28 . SYSTEM CHARGE 3 0 . CHIP VR 29 . SYSTEM VR 26 . EC-2 3 2 . CPU VR 2 1. AUDIO 25 . EC-1 24 . CARD READER 23 . USB 22 . MODEM 3 3 . OTHER VR 0 8. GMCH-5 1 8 . SSD 1 9 . MINI PCIE 20 . LAN 55 44 33 22 11 D D C C B B A A SMIJ INITJHAJ30HAJ28HAJ24HAJ27HAJ23HAJ29HAJ25HAJ26HAJ21HAJ22HAJ17HAJ19HAJ20HAJ31HAJ18 HAJ[31..3] HDPRSTPJ HDPSLPJ HGTLREF IGNNEJSTPCLKJ FSBSEL0_CPUFSBSEL2_CPUFSBSEL1_CPU HDBIJ2 HCMREFJ INTR HDCLKPH HACLKPH HDBIJ1 A20MJ HEXTBGREF CPU_PWRG FERRJ CPU_PWRGHDPRSTPJ HIERRJ HBPM5JHBPM4J HDPWRJ THERMDATHERMDC HACLKPH HCOMP3HCOMP0HCOMP2HCOMP1 HGTLREF HAJ11HAJ14HAJ16HAJ15HAJ13HAJ12 HAJ7HAJ6HAJ8 HAJ10 HAJ4HAJ9HAJ5HAJ3 HAJ[31..3] IGNNEJA20MJ HDBIJ3 HBR0J NMI HIERRJ HBPM0JHBPM3JHBPM2JHBPM1J HDPSLPJ STPCLKJHDCLKPH HDBIJ0 PROCHOTJ INITJ HSLPJ NMIINTR HCMREFJ HDPWRJ SMIJ HTCKHTRSTJ HTCKHTDOHTDIHTMSHTRSTJ HDJ16HDJ17HDJ18HDJ21HDJ23HDJ20HDJ19 HEXTBGREF HDJ24HDJ27HDJ26HDJ25HDJ28HDJ22HDJ29HDJ31HDJ30 HDJ[63..0] HDJ32HDJ46HDJ35HDJ47HDJ39HDJ38HDJ33HDJ44HDJ37HDJ42HDJ41HDJ34HDJ43HDJ36HDJ45HDJ40HDJ53 HREQJ0 HDJ55HDJ52HDJ51HDJ61HDJ56 HREQJ1HREQJ2HREQJ4HREQJ3 HDJ60HDJ48HDJ54 HDJ10HDJ11HDJ12 HDJ57HDJ59HDJ62HDJ58HDJ49 HDJ14HDJ15HDJ1HDJ13HDJ0 HDJ50HDJ63 HDJ2HDJ8HDJ4HDJ5HDJ3HDJ7HDJ6HDJ9 PROCHOTJHTMSHTDIHTDOHBPM5J testpin2 testpin3 testpin4 testpin5 testpin6 testpin7testpin8 testpin9testpin10 PM_THRMJ THERMDC THERMDA EC_SMB_DATA1EC_SMB_CLK1 +V1.05S_CPU +V1.05S_CPU +V1.05S_CPU +V1.05S_CPU +V1.05S_CPU +V1.05S_CPU +V1.05S_CPU +V1.05S_CPU +V1.05S +V3.3S PM_SYSRSTJ 17,20,37 HAJ[31..3] 9 HITJ 9 IGNNEJ 15 STPCLKJ 15 HDEFERJ 9 FSBSEL0_CPU 20 FSBSEL1_CPU 20 FSBSEL2_CPU 20 HDBIJ2 9 HDSTBNJ3 9 HDSTBPJ3 9 HRSJ0 9 HRSJ1 9 HRSJ2 9 HBNRJ 9 THERMTRIPJ 10,15 HADSTBJ1 9 HDBIJ1 9 A20MJ 15 CPU_PWRG 15 FERRJ 15 HDSTBNJ0 9 HDSTBPJ0 9 HADSTBJ0 9 HITMJ 9 HDPWRJ 9 CK_200M_P_CPU 20 CK_200M_N_CPU 20 HAJ[31..3] 9 HTRDYJ 9 HDBIJ3 9 HBR0J 9 HBPRIJ 9 HDSTBNJ2 9 HDSTBPJ2 9 HDPSLPJ 15 H_DPRSTPJ 15,35 INITJ 15 HLOCKJ 9 HADSJ 9 HDBIJ0 9 HCPURSTJ 9HDRDYJ 9 HDSTBNJ1 9 HDSTBPJ1 9 HDBSYJ 9 HSLPJ 9 INTR 15 NMI 15 SMIJ 15 HREQJ[4..0] 9 HDJ[63..0] 9 PROCHOTJ 35 PM_THRMJ 17 EC_SMB_DATA1 28 EC_SMB_CLK1 28 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 740 Thursday, April 09, 2009 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 740 Thursday, April 09, 2009 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 740 Thursday, April 09, 2009 COMP0, COMP2: Resistor placedwithin 0.5" of processor pin.Trace should be 27.4- Ω ±15%. 18-mil COMP1, COMP3: Resistor placedwithin 0.5" of processor pin.Trace should be 55- Ω ±15%. 5-mil Voltage dividershould be placedwithin 0.5" ofprocessor pin. 1-k Ω ±5% serial resister closeto processor Zo = 55- Ω trace shorter than 0.5inches,25 mil spacing no decoupling * R361 54.9 +/-1% * R361 54.9 +/-1% TP32TP32 DATA GRP 0DATA GRP 1 DATA GRP 2DATA GRP 3 MISC U33BAU80586GE025D <NO_STUFF>. DATA GRP 0DATA GRP 1 DATA GRP 2DATA GRP 3 MISC U33BAU80586GE025D <NO_STUFF>. COMP[0] T1 COMP[1] T2 COMP[2] F20 COMP[3] F21 D[0]# Y11 D[1]# W10 D[10]# W15 D[11]# AA13 D[12]# Y16 D[13]# W13 D[14]# AA9 D[15]# W9 D[16]# AA5 D[17]# Y8 D[18]# W3 D[19]# U1 D[2]# Y12 D[20]# W7 D[21]# W6 D[22]# Y7 D[23]# AA6 D[24]# Y3 D[25]# W2 D[26]# V3 D[27]# U2 D[28]# T3 D[29]# AA8 D[3]# AA14 D[30]# V2 D[31]# W4 D[32]# R3 D[33]# R2 D[34]# P1 D[35]# N1 D[36]# M2 D[37]# P2 D[38]# J3 D[39]# N3 D[4]# AA11 D[40]# G3 D[41]# H2 D[42]# N2 D[43]# L2 D[44]# M3 D[45]# J2 D[46]# H1 D[47]# J1 D[48]# C2 D[49]# G2 D[5]# W12 D[50]# F1 D[51]# D3 D[52]# B4 D[53]# E1 D[54]# A5 D[55]# C3 D[56]# A6 D[57]# F2 D[58]# C6 D[59]# B6 D[6]# AA16 D[60]# B3 D[61]# C4 D[62]# C7 D[63]# D2 D[7]# Y10 D[8]# Y9 D[9]# Y13 DINV[0]# W16 DINV[1]# Y6 DINV[2]# L1 DINV[3]# C5 DPRSTP# R18 DPSLP# R17 DPWR# U4 DSTBN[0]# Y14 DSTBN[1]# Y4 DSTBN[2]# K2 DSTBN[3]# E2 DSTBP[0]# Y15 DSTBP[1]# Y5 DSTBP[2]# K3 DSTBP[3]# F3 GTLREF A7 PWRGOOD V17 SLP# N18 BSEL[0] J6 BSEL[1] H5 BSEL[2] G5 ACLKPH U5 BINIT# T17 DCLKPH V5 DP#0 V9 DP#1 R4 DP#2 M4 DP#3 D4 EDM R6 CORE_DET A13 CMREF[1] B7 EXTBGREF M6 FORCEPR# N15 HFPLL N6 MCERR# P17 RSP# T6 * R127 1K +/-5% Dummy * R127 1K +/-5% Dummy * R1161K+/-1% * R1161K+/-1% * R78 1K +/-5% Dummy * R78 1K +/-5% Dummy TP36TP36 * R1262KOhm+/-1% * R1262KOhm+/-1% * C1081uF+/-10% * C1081uF+/-10% * R1251K+/-1% * R1251K+/-1% * R401 54.9 +/-1% * R401 54.9 +/-1% * R80 1K +/-5% Dummy * R80 1K +/-5% Dummy R104 330Ohm R104 330Ohm * R112 1K +/-5% Dummy * R112 1K +/-5% Dummy R90 68 Ohm R90 68 Ohm VTP12VTP12 1 * C3360.1uF Dummy * C3360.1uF Dummy * R89 22 Ohm * R89 22 Ohm * R3751K+/-1% * R3751K+/-1% * R400 27.4 +/-1% * R400 27.4 +/-1% * R97 1K +/-5% Dummy * R97 1K +/-5% Dummy * R76 56 * R76 56 * R3872KOhm+/-1% * R3872KOhm+/-1% * R91 1K +/-5% Dummy * R91 1K +/-5% Dummy * R99 1K+/-1% * R99 1K+/-1% TP2TP2 * R110 0 * R110 0 TP34TP34 * RN156+/-5% * RN156+/-5% 1357 8642 ADDR GROUP 0 ADDR GROUP 1 CONTROLXDP/ITP SIGNALS H CLK THERM NC U33AAU80586GE025D . ADDR GROUP 0 ADDR GROUP 1 CONTROLXDP/ITP SIGNALS H CLK THERM NC U33AAU80586GE025D . A[10]# M19 A[11]# H21 A[12]# L20 A[13]# M20 A[14]# K19 A[15]# J20 A[16]# L21 A[17]# C19 A[18]# F19 A[19]# E21 A[20]# A16 A[21]# D19 A[22]# C14 A[23]# C18 A[24]# C20 A[25]# E20 A[26]# D20 A[27]# B18 A[28]# C15 A[29]# B16 A[3]# P21 A[30]# B17 A[31]# C16 RSVD1 A3 RSVD2 C1 RSVD3 C21 A[4]# H20 A[5]# N20 A[6]# R20 A[7]# J19 A[8]# N19 A[9]# G20 A20M# U18 ADS# V19 ADSTB[0]# K20 ADSTB[1]# B19 BCLK[0] V11 BCLK[1] V12 BNR# Y19 BPM[0]# K17 …

Text truncated - open the document above for the full version.

Test Report of FCC Part 15 B for FCC Certificate On Behalf of SHENZHEN CHUANGDELI ELECTRONIC FACTORY Product Description: Netbook Model No.: S10A, S10B, S12A, S12B FCC ID: XNV-S1XX Prepared for: SHENZHEN CHUANGDELI ELECTRONIC FACTORY 2-4/F Hongchangyuan Ind. Bldg.,Yintian Ind. Zone, Xixiang Street, Bao'an, Shenzhen, Guangdong Prepared by: Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT09GR-657E Issue Date: August 21, 2009 Test Date: July 26~August 21, 2009 Test by: Reviewed By: Kendy Wang Tony Wu TABLE OF CONTENTS 1 - GENERAL INFORMATION.............................................................................................................. 3 1.1 Product Description for Equipment Under Test (EUT) ............................................................ 3 1.2 Related Submittal(s) / Grant (s) .............................................................................................. 4 1.3 Test Methodology................................................................................................................... 4 1.4 Test Facility............................................................................................................................. 5 2. SYSTEM TEST CONFIGURATION.................................................................................................. 6 2.1 EUT Configuration.................................................................................................................. 6 2.2 EUT Exercise.......................................................................................................................... 6 2.3 General Test Procedures........................................................................................................ 6 2.4 List of Measuring Equipments Used....................................................................................... 7 3. SUMMARY OF TEST RESULTS...................................................................................................... 8 4 - DISTURBANCE VOLTAGE AT THE MAINS TERMINALS............................................................. 9 4.1 Limit of Disturbance Voltage at The Mains Terminals (Class B)............................................. 9 4.2 EUT Setup.............................................................................................................................. 9 4.3 Test Setup Diagram................................................................................................................ 9 4.4 Instrument Setup................................................................................................................... 10 4.5 Test Procedure..................................................................................................................... 10 4.6 Disturbance Voltage Test Data............................................................................................. 10 5 - RADIATED DISTURBANCES....................................................................................................... 15 5.1 Limit of Radiated Disturbances (Class B)............................................................................. 15 5.2 EUT Setup............................................................................................................................ 15 5.3 EUT Setup............................................................................................................................ 15 5.4 Test Receiver Setup ............................................................................................................. 16 5.5 Test Procedure..................................................................................................................... 16 5.6 Corrected Amplitude & Margin Calculation ........................................................................... 16 5.7 Radiated Emissions Test Result........................................................................................... 16 Report No.：BCT09GR-657E Page 2 of 22 FCC ID: XNV-S1XX 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: SHENZHEN CHUANGDELI ELECTRONIC FACTORY Address of applicant: 2-4/F Hongchangyuan Ind. Bldg.,Yintian Ind. Zone, Xixiang Street, Bao'an, Shenzhen, Guangdong Manufacturer: SHENZHEN CHUANGDELI ELECTRONIC FACTORY Address of manufacturer: 2-4/F Hongchangyuan Ind. Bldg.,Yintian Ind. Zone, Xixiang Street, Bao'an, Shenzhen, Guangdong General Description of E.U.T Items Description EUT Description: Netbook Trade Name: N.A. Model No.: S10A Supplementary Model No.: S10B, S12A,S12B Note: S10B, S12A,S12B are different with S10A in some Parts such as HDD, Memory and color of the Netbook encloser. Built-in WIFI Module Type: 802.11b/g RTL8187SE miniCard Brand Name Realtek Model Name RTL8187SE FCC ID TX2-RTL8187SE Netbook Configure: Specification CPU Intel Atom N270 1.6GHz 533MHz Chipset Mobile Intel ® i945GME+82801GHM(ICH7-M) Memory DDRII 1GB PC2-5300 HDD SATA 160GB 5400 Optical Driver none Graphic Intel ® GMA 950 Audio Realtek HD Audio LAN Adapter Realtek RTL8139/810x Family Fast Ethernet LCD TFT LCD WXGA 1024x600 Camera Digital Camera MegaPix Rechargeable Battery LI-iON 2200 Power Adapter Input:100-240V 1.8A/Output:19V 3.42A Ports/Sockets USBx2/D-sub(VGA)/RJ-45/EarPhone&MIC Report No.：BCT09GR-657E Page 3 of 22 FCC ID: XNV-S1XX Adaptor Specification: AC/DC Adapter: Model No.: SJ-1391920 Input: AC 100-240V 50/60Hz,Output: DC 19V 2A Length of AC Cable:1.5M, Unshielded, Without Core Length of DC Cable:1.5M, Unshielded, With Core * The test data gathered are from the production sample provided by the manufacturer. 1.2 Related Submittal(s) / Grant (s) This submittal(s) is a test report based on the Electromagnetic Interference (EMI) tests performed on the EUT. The EMI measurements were performed according to the measure…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Conducted Emission Radiated Emission
