Fall Sensor β FS906ANEL-IC This Fall Sensor is designed for a user to push the button for help at any time. It can also automatically 1 activate an emergency alarm if it detects a fall in the event that the user is unable to trigger an alarm by pressing the button. A. Usage Recommendation 1. For best results, the Fall Sensor should rest at the center of the userβs breastbone 2. Wear the Fall Sensor on the outside of all articles of clothing. 3. Carefully place the Fall Sensor on a table or nightstand when you are not using it in order to avoid activating an alarm. B. Identifying the Parts 1. Emergency Button Pressing the Emergency Button for 0.5 sec will activate the Control Panel, causing it to dial an emergency call or alarm (CID event code: 101). 2. LED 3. Lanyard The lanyard length is adjustable by holding this piece and pulling the loop to increase or decrease the lanyard length. 4. Battery Compartment Cover 1. When replacing the battery, ensure that the positive side (+) of the battery is facing outward. 2. After replacing the battery, press and hold the Emergency Button until you see the LED flash RED then GREEN. 1 Note: Fall Sensors do not detect 100% of falls. If you are able to do so, you should always press the button if you need help. LED Off Standby Mode 1 Red Flash Replacement Battery Inserted 1 Red, then 1 Green Flash First button press after replacing battery 1 Green Flash Transmitting with Good Battery 1 Red Flash Transmitting with Low Battery FCC ID: XO8-FS906ANEL-1 rev. A01 C. Low Battery Detection and Supervision Fall Sensor features Auto Low Battery detection and Supervision. When a battery is below the low battery threshold, the Fall Sensor will automatically send a low battery supervisory message every two hours. D. Testing When testing, do not activate the Fall Sensor twice within a 10-second interval. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

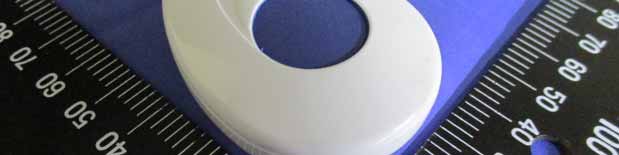

Page 1 / 5 Report No.: T191225N02 Ref. No.: Rev. 00 External Photo (Model: FS906ANEL-IC)
FS906ANEL-IC D iagram Label location Label location Model: FS906ANEL-IC FCC ID οΌXO8-FS906ANEL-1
Page 2 / 5 Report No.: T191225N02 Ref. No.: Rev. 00 Internal Photo (Model: FS906ANEL-IC) Page 3 / 5 Report No.: T191225N02 Ref. No.: Rev. 00 Page 4 / 5 Report No.: T191225N02 Ref. No.: Rev. 00 Page 5 / 5 Report No.: T191225N02 Ref. No.: Rev. 00 ANT
FCC ID: XO8-FS906ANEL-1 Page: 1 / 33 Re port No.: T191225N02-RP1 Rev.: 01 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 ε°εεΈζ°εεη€ειδΉε±€εΆΊ8θ t:(886 -6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com FCC 47 CFR PART 15 SUBPART C ANSI C63.10: 2013 TEST REPORT For Fall Sensor Model: FS906ANEL-IC Data Applies To: N/A Brand: Test Report Number: T191225N02-RP1 Issued to Instant Care, Inc. 2080 Wineridge Pl.Suite A,Escondido,California,United States, 92029 Issued by Compliance Certification Services Inc. T ainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: January 07, 2020 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Page: 2 / 33 Report No.: T191225N02-RP1 Ref. No.: Rev.: 01 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 January 07, 2020 Initial Issue ALL Gina Lin 01 January 14, 2020 See the following note rev.01 Page 6~7 Gina Lin Note: β» Rev.00 Issue Date: Januar y 07, 2020 Original Report β» Rev.01 Issue Date: January 14, 2020 Update EUT description & EUT exercise. Page: 3 / 33 Report No.: T191225N02-RP1 Ref. No.: Rev.: 01 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ........................................................................ 4 2. EUT DESCRIPTION ............................................................................................. 6 3. TEST METHODOLOGY ....................................................................................... 7 3.1 EUT CONFIGURATION .................................................................................. 7 3.2 EUT EXERCISE .............................................................................................. 7 3.3 GENERAL TEST PROCEDURES ................................................................... 7 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ....................... 8 3.5 DESCRIPTION OF TEST MODES .................................................................. 8 4. INSTRUMENT CALIBRATION ............................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION .................................................. 9 4.2 MEASUREMENT EQUIPMENT USED ........................................................... 9 4.3 MEASUREMENT UNCERTAINTY ................................................................ 10 5. FACILITIES AND ACCREDITATIONS .............................................................. 11 5.1 FACILITIES ................................................................................................... 11 5.2 EQUIPMENT ................................................................................................. 11 5.3 LABORATORY ACCREDITATIONS LISTING ............................................... 11 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ........................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ........................................................... 13 6.1 SETUP CONFIGURATION OF EUT ............................................................. 13 6.2 SUPPORT EQUIPMENT ............................................................................... 13 6.3 CONFIGURATION OF SYSTEM UNDER TEST ........................................... 14 6.4 EUT OPERATING CONDITION .................................................................... 14 7. FCC PART 15.249 REQUIREMENTS ................................................................ 15 7.1 20 dB BANDWIDTH ...................................................................................... 15 7.2 DUTY CYCLE ................................................................................................ 18 7.3 SPURIOUS EMISSION ................................................................................. 21 7.4 POWERLINE CONDUCTED EMISSIONS .................................................... 29 APPENDIX I - PHOTOGRAPHS OF TEST SETUP ................................................. 30 Page: 4 / 33 Report No.: T191225N02-RP1 Ref. No.: Rev.: 01 1. TEST RESULT CERTIFICATION Product: Fall Sensor Model: FS906ANEL-IC Data Applies To: N/A Brand Name: Applicant: Instant Care, Inc. 2080 Wineridge Pl.Suite A,Escondido,California,United States, 92029 Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No.78, Gongye 3rd Rd., Technology Industrial Park, Tainan , Taiwan , 70955 Tested: December 26, 2019 ~ December 27, 2019 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C ANSI C63.10: 2013 No non-compliance noted Statements of Conformity Determining compliance shall be based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. FCC Standard Section Report Section Test Item Result 15.215(c) 7.1 20dB BANDWIDTH Pass - 7.3 DUTY CYCLE - 15.249(a) 7.4 SPURIOUS EMISSION Pass 15.207(a) 7.5 POWERLINE CONDUCTED EMISSIONS N/A Page: 5 / 33 Report No.: T191225N02-RP1 Ref. No.: Rev.: 01 We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Section Manager Page: 6 / 33 Report No.: T191225N02-RP1 Ref. No.: Rev.: 01 2. EUT DESCRIPTION Product Fall Sensor Model Number FS906ANEL-IC Data Applies To N/A Brand Name Rβ¦
Text truncated - open the document above for the full version.
Page: 30 / 33 Report No.: T191225N02-RP1 Ref. No.: Rev.: 00 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION MEASUREMENT SETUP(Below 1G) Page: 31 / 33 Report No.: T191225N02-RP1 Ref. No.: Rev.: 00 Page: 32 / 33 Report No.: T191225N02-RP1 Ref. No.: Rev.: 00 RADIATED RF MEASUREMENT SETUP(Above 1G) Page: 33 / 33 Report No.: T191225N02-RP1 Ref. No.: Rev.: 00
No.8, Jiucengling, Xinhua Dist. Β· Tainan Β· Taiwan
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 906 MHz - 906 MHz | - |

Fall Sensor
Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Halo Transmitter
Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Fall Sensor
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Halo Transmitter
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Fall Sensor
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
