XO8-HALO906ANEL-1HALO906TX

FCC ID: XO8-HALO915TX rev: A01 Instant Care Halo Transmitter Model #: HALO906TX • Identifying the Parts 1 1. Emergency Button/ LED  Learning-in the Halo Transmitter Please refer to your base station’s user guide for instructions on learning-in your Halo transmitter.  Operation  To dial Emergency Line: Press and release the Emergency button, the GREEN LED will illuminate for .5 seconds and transmit the message to the Control Panel.  Sleep Mode: -The Halo Transmitter ships in “Sleep Mode” to conserve battery life during initial shipment -To exit sleep mode, press and release the emergency button  LEDs: -Blue LED = good pendant battery -Red LED = low pendant battery  Battery & Electrical Specifications  Frequency: 906MHz  Battery: CR2032, 3V 230mAh  Battery life: ~3yrs  Open Field Range: ~500ft  Low battery status: when the battery voltage is below the threshold, the Halo Transmitter will indicate a low battery by illuminating the RED LED for .5 seconds when the Emergency button is pressed. A low battery notification will be sent to the base station with each button press. Low battery supervisory will occur once every 24 hours thereafter. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution To assure continued compliance, any changes or notifications not expressly approved by the party responsible for compliance may void the user’s authority to operate his equipment. (Example – use only shielded interface cables when connecting to computer or peripheral devices) FCC Section 15.105 Information to the user NOTE: This equipment has been tested and found to comply with the limits for a lass B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

RF_160, Issue 04 (On manufacturer’s company letter heading) Declaration of Authorization We Name: Instant Care, Inc. Address: 2080 Wineridge Pl.Suite A City: Escondido California 92029 Country: United States Declare that: Name Representative of agent: Chieh Tseng Agent Company name: Worldwide Testing Services (Taiwan) Co., Ltd. Address: 6F., No. 58, Lane 188, Ruey Kuang Road, Neihu Dist., City: Taipei 114, Country Taiwan is authorized to apply for Certification of the following product(s): Product description: HALO906TX Type designation: HALO906TX Trademark: N/A Validity/ expiry date on our behalf. Date: City: Name: Function: 2022-11-25 Escondido California 92029 Richard Darling CEO Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Instant Care, Inc. Address: 2080 Wineridge Pl.Suite A City: Escondido California 92029 Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: XO8-HALO906ANEL-1 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 2022-11-25 Name and signature of applicant: Richard Darling Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

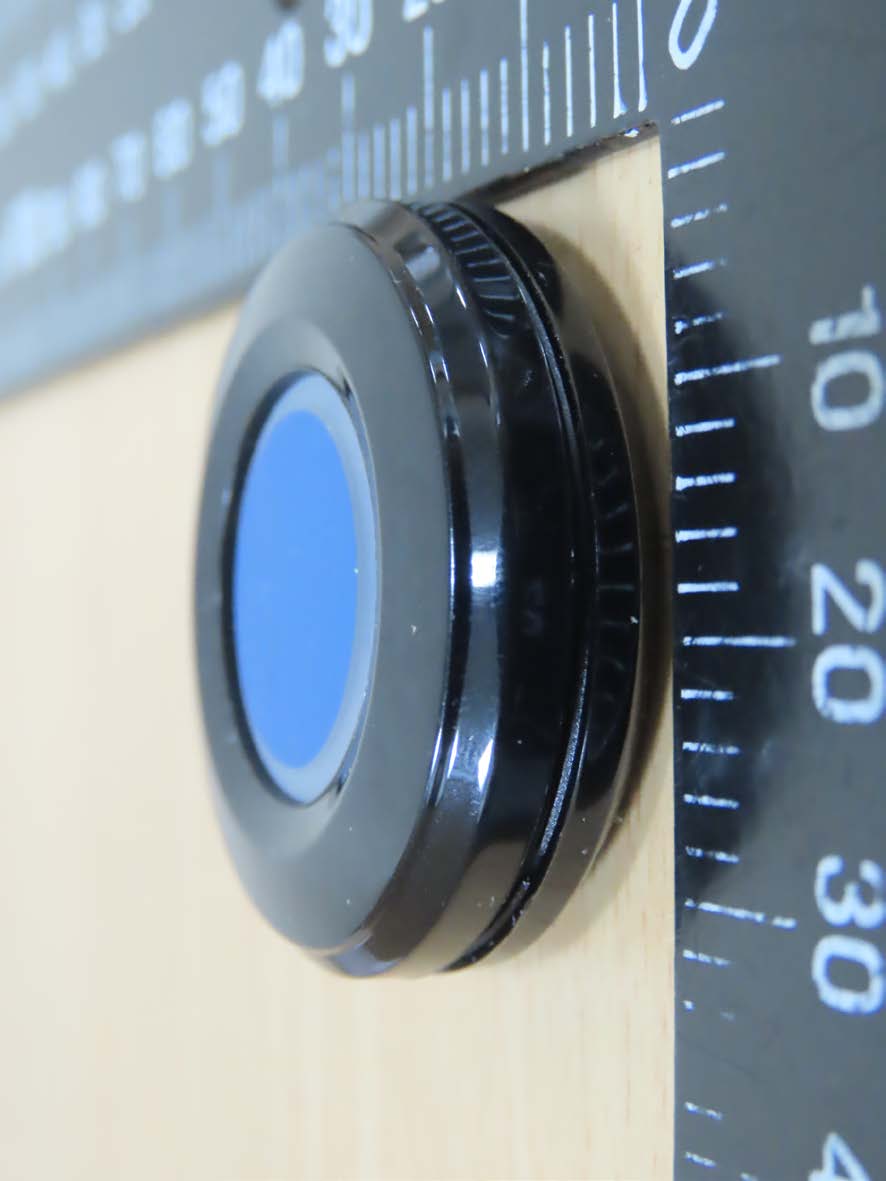

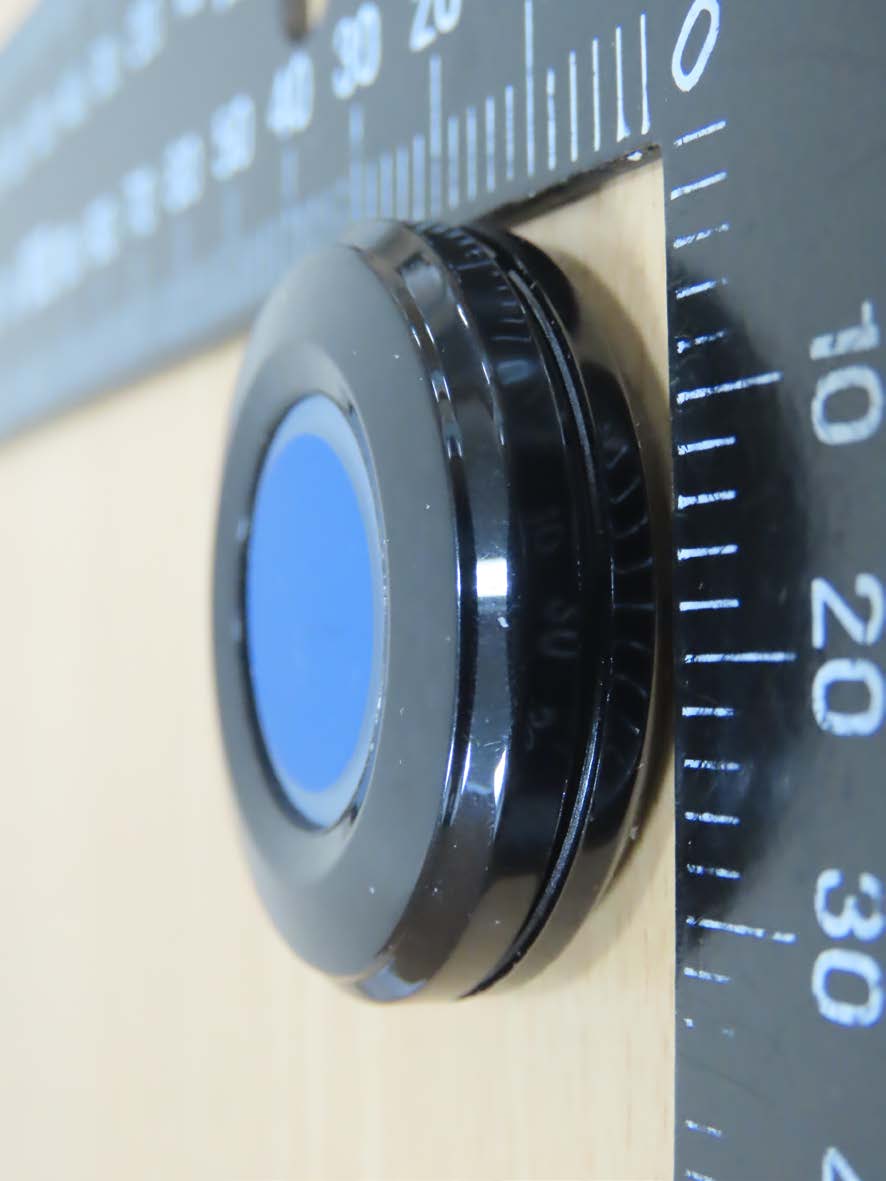

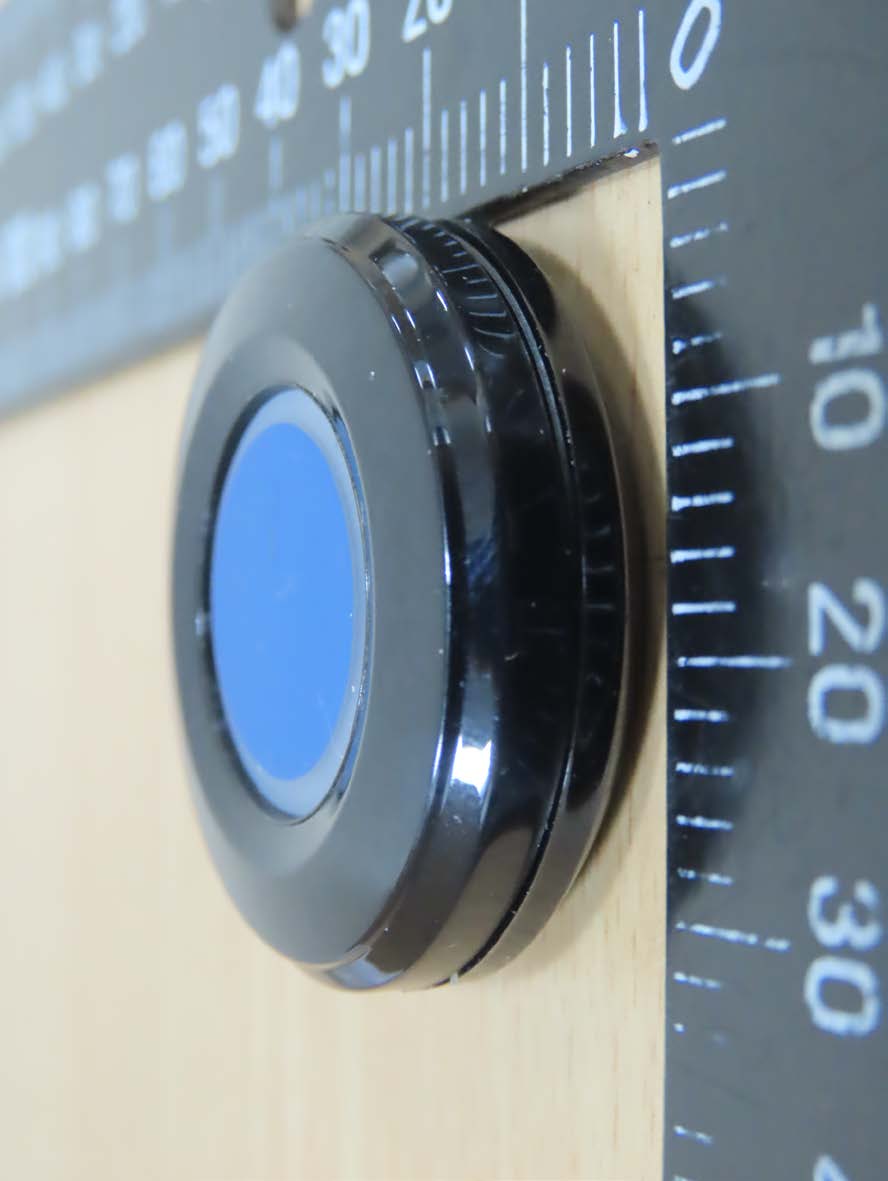

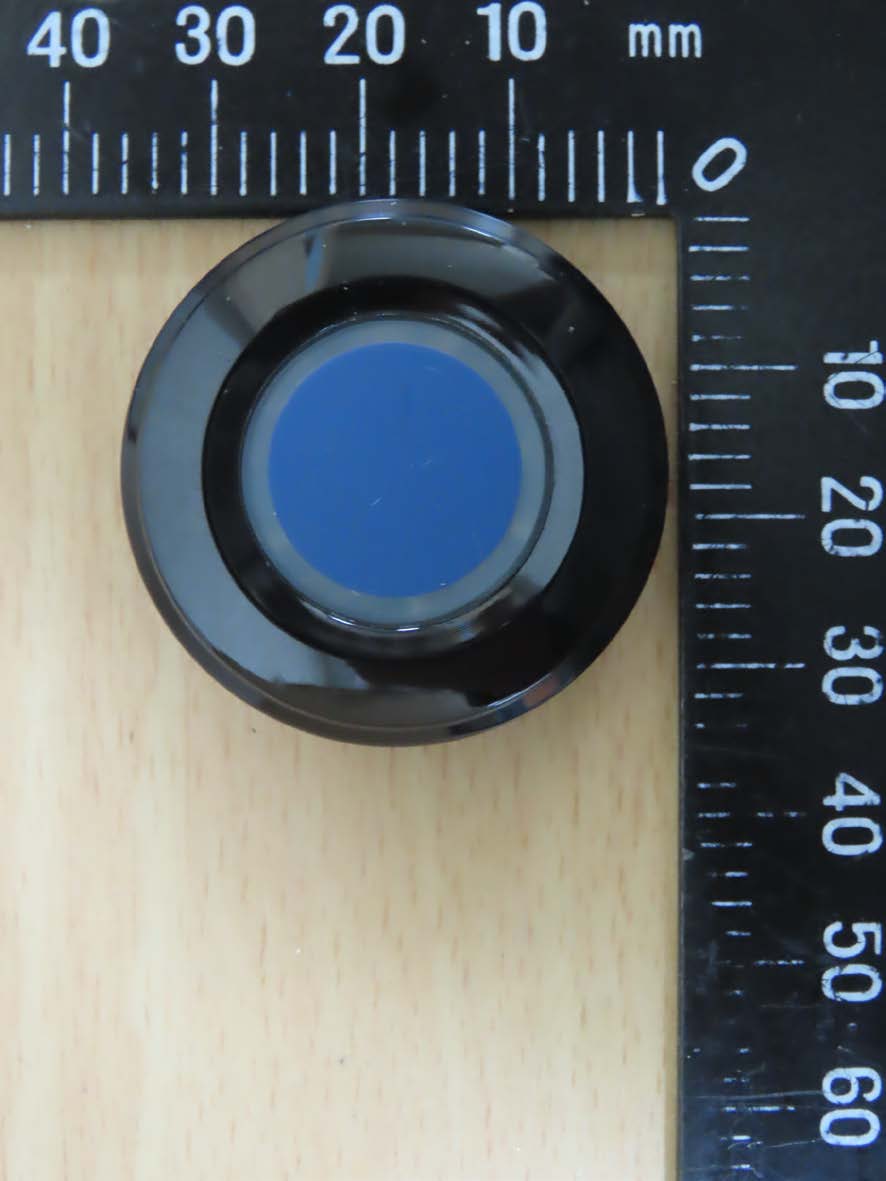

Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 1 of 14 External Photos Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 14 Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 14 Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 14 Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 14 Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 14

Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 14 Internal Photos Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 14 Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 14 Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 14 Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 14

of Applicant: Instant Care, Inc. Address: 2080 Wineridge Pl.Suite A Escondido California 92029 United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW1072 Industry Canada filed test laboratory Reg. No.: 20037, 5107A Report No.: W6M22211-22286-EE 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E- mail: [email protected] FCC RF Exposure Exemption report for HALO906TX Model No.: HALO906TX FCC ID: XO8-HALO906ANEL-1 Registration number: W6M22211-22286-EE FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 8 TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 NOTES .......................................................................................................................................... 2 1.2 TESTING LABORATORY ................................................................................................................ 3 1.2.1 Location .............................................................................................................................. 3 1.2.2 Details of accreditation status ............................................................................................ 3 1.3 D ETAILS OF APPROVAL HOLDER ................................................................................................... 4 1.4 APPLICATION DETAILS ................................................................................................................. 4 1.5 G ENERAL INFORMATION OF TEST ITEM ........................................................................................ 4 1.6 T EST STANDARDS ......................................................................................................................... 4 2 TECHNICAL TEST ......................................................................................................................... 5 2.1 SUMMARY OF TEST RESULTS ........................................................................................................ 5 2.2 TEST ENVIRONMENT .................................................................................................................... 5 2.3 TEST EQUIPMENT LIST ................................................................................................................. 6 2.4 G ENERAL TEST PROCEDURE ........................................................................................................ 7 3 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP)....................................................... 8 3.1 EXEMPTION LIMITS FOR ROUTINE EVALUATION ACCORDING TO FCC KDB PUBLICATION ......... 8 Registration number: W6M22211-22286-EE FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 8 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. Laboratory disclaimer- 1. The test results of this test report relate exclusively to the item tested as specified in 1.5. 2. The test report may only be reproduced or published in full. 3. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: November 29, 2022 Sora Kuo Date WTS-Lab. Name Signature Technical responsibility for area of testing: November 29, 2022 Kevin Wang Date WTS Name Signature Registration number: W6M22211-22286-EE FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 8 1.2 Testing laboratory 1.2.1 Location 10m OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No.35, Aly. 21, Ln. 228, Ankang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Tel: 886-2-6613-0228 Worldwide Testing Services (Taiwan) Co., Ltd. 6F., No. 58, Ln. 188, Ruiguang Rd., Neihu Dist., Taipei City 114 , Taiwan (R.O.C.) Tel: 886-2-6606-8877 1.2.2 Details of accreditation status Accredited testing laboratory FCC filed test laboratory Reg. No.: TW1477, TW1072 Industry Canada filed test laboratory Reg. No.: 20037, 5107A Test location, where different from Worldwide Testing Services (Taiwan) Co., Ltd. : Name: ./. Accredited number: ./. Street: ./. Town: ./. Country: ./. Registration number: W6M22211-22286-EE FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 4 of 8 1.3 Details of approval holder Name: Instant Care, Inc. Street: 2080 Wineridge Pl.Suite A City: Escondido California 92029 Country: United States 1.4 Application details Date of receipt of test item: November 14, 2022 Date of test: From November 15, 2022 to November 23, 2022 1.5 General information of Test item Type of test item: HALO906TX Model number: HALO906TX Multi-listing model number: ./. Sample no.: #01 Classification: Fixed Device Mobile Device (Human Body distance ＞ 20cm) Portable Device (Human Body distance ＜ 20cm) Technical data Frequency band: 906 MHz Operation frequency: 906 MHz Operation modes: Simplex Modulation type: FSK Antenna type: PCB Antenna Power supply: Battery 3Vd.c. (CR 2032) Manufacturer: ( if different from applicant) Name: CLIMAX TECHNOLOGY CO., LTD. Street: No. 25…

Text truncated - open the document above for the full version.

Antenna OTA 3D Antenna Pattern Infomation Date44846 Start Time44846.39653 Finish Time44846.40069 Lab NameMax860 OperatorATEN Project NumHALO-TXC-HOPE ManufacturPASSIVE V2.0 Model Nam F1906-3 Hardware V1 Software V3.6.1 Beta Test ConditFree Space TempuraturN/A HumidityN/A NoteN/A Test List 800MHz 804MHz 808MHz 812MHz 816MHz 820MHz 824MHz 828MHz 832MHz 836MHz 840MHz 844MHz 848MHz 852MHz 856MHz 860MHz 864MHz 868MHz 872MHz 876MHz 880MHz 884MHz 888MHz 892MHz 896MHz 900MHz 904MHz 908MHz 912MHz 916MHz 920MHz 924MHz 928MHz 932MHz 936MHz 940MHz 944MHz 948MHz 952MHz 956MHz 960MHz 964MHz 968MHz 972MHz 976MHz 980MHz 984MHz 988MHz 992MHz 996MHz 1GHz Frequency800MHz804MHz808MHz812MHz816MHz820MHz824MHz828MHz832MHz836MHz840MHz844MHz848MHz 852MHz 856MHz860MHz 864MHz868MHz 872MHz 876MHz880MHz884MHz888MHz892MHz896MHz900MHz904MHz908MHz912MHz916MHz920MHz924MHz928MHz932MHz936MHz940MHz944MHz948MHz952MHz956MHz960MHz964MHz968MHz972MHz976MHz980MHz984MHz988MHz992MHz996MHz1GHz Ant. Port Inp. Pow. (dBi)000000000000000000000000000000000000000000000000000 Rad. Pow. (dBi)-13.94-13.86-13.91-13.55-13.68-13.96-13.39-12.94-12.78-12.26-11.79-11.76-11.31-10.78-10.19-9.73-9.01-8.58-8.65-7.97-7.86-7.61-7.06-6.86-6.73-6.68-6.48-6.42-6.48-6.37-6.4-6.36-6.37-6.36-6.44-6.65-7.15-7.38-7.81-8.26-8.23-8.76-9.36-9.76-10.48-11.22-11.8-11.95-12.28-12.43-12.4 Rad. Pow. 0-90 (dBi)-20.54-20.43-20.43-20.03-20.14-20.42-19.86-19.37-19.17-18.49-17.89-17.68-17.05-16.36-15.61-15.02-14.22-13.73-13.75-13.04-12.88-12.6-12.03-11.82-11.71-11.65-11.47-11.41-11.46-11.33-11.38-11.38-11.44-11.49-11.64-11.95-12.54-12.87-13.41-13.99-14.12-14.77-15.45-15.95-16.75-17.52-18.15-18.37-18.75-18.94-18.98 Rad. Pow. 90-180 (dBi)-15.01-14.94-15.01-14.65-14.79-15.08-14.51-14.06-13.91-13.44-13.01-13.04-12.66-12.19-11.66-11.26-10.56-10.16-10.26-9.59-9.5-9.26-8.73-8.53-8.39-8.34-8.13-8.08-8.13-8.04-8.07-8.01-7.99-7.94-8-8.17-8.62-8.82-9.21-9.6-9.52-10.01-10.59-10.96-11.65-12.38-12.95-13.08-13.39-13.53-13.48 Peak EIRP (dBi)-8.72-8.56-8.63-8.15-8.24-8.45-7.8-7.35-7.24-6.75-6.3-6.31-5.91-5.52-5.11-4.73-4.09-3.66-3.68-3.08-2.85-2.78-2.23-2.07-1.89-1.84-1.61-1.58-1.64-1.52-1.59-1.54-1.5-1.48-1.52-1.68-2.11-2.28-2.61-3-2.76-3.17-3.67-3.88-4.54-5.27-5.76-5.94-6.13-6.31-6.21 Directivity (dBi)5.225.35.285.45.445.515.595.595.545.515.495.455.45.265.0854.924.924.974.895.014.834.834.794.844.844.874.844.844.854.814.824.874.884.924.975.045.15.25.265.475.595.695.885.945.956.046.016.156.126.19 Efficiency (dB)-13.94-13.86-13.91-13.55-13.68-13.96-13.39-12.94-12.78-12.26-11.79-11.76-11.31-10.78-10.19-9.73-9.01-8.58-8.65-7.97-7.86-7.61-7.06-6.86-6.73-6.68-6.48-6.42-6.48-6.37-6.4-6.36-6.37-6.36-6.44-6.65-7.15-7.38-7.81-8.26-8.23-8.76-9.36-9.76-10.48-11.22-11.8-11.95-12.28-12.43-12.4 Efficiency (%)4.044.114.064.424.294.024.585.085.275.946.626.677.48.369.5710.6412.5613.8713.6515.9616.3717.3419.6820.6121.2321.4822.4922.822.4923.0722.9123.1223.0723.1222.721.6319.2818.2816.5614.9315.0313.311.5910.578.957.556.616.385.925.715.75 Gain (dBi)-8.72-8.56-8.63-8.15-8.24-8.45-7.8-7.35-7.24-6.75-6.3-6.31-5.91-5.52-5.11-4.73-4.09-3.66-3.68-3.08-2.85-2.78-2.23-2.07-1.89-1.84-1.61-1.58-1.64-1.52-1.59-1.54-1.5-1.48-1.52-1.68-2.11-2.28-2.61-3-2.76-3.17-3.67-3.88-4.54-5.27-5.76-5.94-6.13-6.31-6.21 NHPRP +/-30 (dBi) -19.61-19.54-19.63-19.29-19.45-19.77-19.26-18.83-18.66-18.02-17.47-17.29-16.67-16-15.25-14.66-13.85-13.32-13.31-12.57-12.37-12.04-11.44-11.19-11.04-10.94-10.71-10.6-10.6-10.41-10.4-10.33-10.31-10.29-10.36-10.61-11.14-11.43-11.94-12.5-12.59-13.24-13.93-14.41-15.21-16-16.62-16.81-17.16-17.31-17.32 NHPRP +/-45 (dBi)-17.55-17.47-17.55-17.19-17.35-17.65-17.12-16.7-16.53-15.97-15.45-15.33-14.77-14.14-13.45-12.9-12.11-11.63-11.64-10.93-10.76-10.45-9.87-9.63-9.5-9.42-9.2-9.12-9.15-8.99-8.98-8.94-8.93-8.91-8.98-9.22-9.73-9.99-10.47-10.99-11.04-11.64-12.3-12.76-13.52-14.28-14.87-15.03-15.34-15.48-15.46 Maximum H+V Value (dBi)-8.72-8.56-8.63-8.15-8.24-8.45-7.8-7.35-7.24-6.75-6.3-6.31-5.91-5.52-5.11-4.73-4.09-3.66-3.68-3.08-2.85-2.78-2.23-2.07-1.89-1.84-1.61-1.58-1.64-1.52-1.59-1.54-1.5-1.48-1.52-1.68-2.11-2.28-2.61-3-2.76-3.17-3.67-3.88-4.54-5.27-5.76-5.94-6.13-6.31-6.21 Maximum H+V @ Theta (deg.)150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150150 Maximum H+V @ Phi (deg.) 150165180180195180180180180180195165165165165165180165165180165180165150165180165165180180165165165165150150165165150165150165165150165165165165165165165 Minimum H+V Value (dBi)-27.8-27.97-28.18-28.3-28.89-29.34-28.65-28.32-28.36-27.61-27.07-26.75-26.1-25.68-25.3-24.82-24.44-24.37-25.05-24.42-24.08-24.36-23.79-23.31-23.39-22.92-22.55-22.12-22.93-23.16-22.92-23.96-23.86-23.96-24.46-23.22-22.73-23.52-24.34-25.1-25.48-25.41-24.7-24.03-24.08-24.24-24.98-26.81-28.67-30.66-32.5 Minimum H+V @ Theta (deg.)151515151515151515151515151515151515151515151515151515153030303030303030304545454545454545456060606060 Minimum H+V @ Phi (deg.)135135135150135150150135135135135135135120120120120105105105909090757575606090907575756060604510510590909090757575120120120120120 Horizontal () Ant. Port Inp. Pow. (dBi)000000000000000000000000000000000000000000000000000 H Rad. Pow. (dBi)-14.71-14.64-14.7-14.35-14.5-14.8-14.25-13.8-13.64-13.15-12.67-12.67-12.24-11.74-11.14-10.7-9.97-9.55-9.6-8.91-8.83-8.56-8.01-7.81-7.68-7.62-7.43-7.38-7.44-7.33-7.4-7.32-7.32-7.3-7.38-7.59-8.13-8.39-8.83-9.28-9.25-9.78-10.38-10.81-11.52-12.27-12.86-13-13.33-13.46-13.42 H Rad. Pow. 0-90 (dBi)-21.68-21.59-21.59-21.18-21.3-21.6-21.07-20.56-20.34-19.68-19.03-18.82-18.19-17.5-16.72-16.12-15.3-14.81-14.79-14.07-13.93-13.63-13.06-12.88-12.78-12.73-12.57-12.51-12.57-12.44-12.52-12.49-12.55-12.61-12.76-13.09-13.75-14.12-14.71-15.31-15.48-16.14-16.85-17.43-18.22-19.02-19.66-19.88-20.25-20.41-20.42 H Rad. Pow. 90-180 (dBi)-15.69-15.62-15.7-15.36-15.51-15.81-15.27-14.83-14.68-14.24-13.81-13.87-13.52-13.08-12.55-12.17-11.47-11.09-11.16-10.49-10.43-10.17-9.63-9.43-9.28-9.22-9.02-8.97-9.04-8.93-9-8.9-8.86-8.…

Text truncated - open the document above for the full version.

of Applicant: Instant Care, Inc. Address: 2080 Wineridge Pl.Suite A Escondido California 92029 United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW1072 Industry Canada filed test laboratory Reg. No.: 20037, 5107A Report No.: W6M22211-22286-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E- mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for HALO906TX Model No.: HALO906TX FCC ID: XO8-HALO906ANEL-1 Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 19 TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 NOTES .......................................................................................................................................... 2 1.2 TESTING LABORATORY ................................................................................................................ 3 1.2.1 Location .............................................................................................................................. 3 1.2.2 Details of accreditation status ............................................................................................ 3 1.3 D ETAILS OF APPROVAL HOLDER ................................................................................................... 4 1.4 APPLICATION DETAILS ................................................................................................................. 4 1.5 G ENERAL INFORMATION OF TEST ITEM ........................................................................................ 4 1.6 T EST STANDARDS ......................................................................................................................... 4 2 TECHNICAL TEST ......................................................................................................................... 5 2.1 SUMMARY OF TEST RESULTS ........................................................................................................ 5 2.2 TEST ENVIRONMENT .................................................................................................................... 5 2.3 TEST EQUIPMENT LIST ................................................................................................................. 6 2.4 G ENERAL TEST PROCEDURE ........................................................................................................ 9 3 TEST RESULTS (ENCLOSURE) ................................................................................................ 10 3.1 PEAK OUTPUT POWER (TRANSMITTER) ...................................................................................... 11 3.2 EQUIVALENT ISOTROPIC RADIATED POWER ................................................................................ 13 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS ............................................................................ 13 3.4 O UT OF BAND RADIATED EMISSIONS ......................................................................................... 13 3.5 SPURIOUS EMISSION (TX) ........................................................................................................... 14 3.6 RADIATED EMISSIONS FROM RECEIVER PART ............................................................................ 15 3.7 R ADIATED EMISSION ON THE BAND EDGE .................................................................................. 16 3.8 P OWER LINE CONDUCTED EMISSION ......................................................................................... 18 A PPENDIX .............................................................................................................................................. 19 Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 19 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. Laboratory disclaimer- 1. The test results of this test report relate exclusively to the item tested as specified in 1.5. 2. The test report may only be reproduced or published in full. 3. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: November 29, 2022 Sora Kuo Date WTS-Lab. Name Signature Technical responsibility for area of testing: November 29, 2022 Kevin Wang Date WTS Name Signature Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 19 1.2 Testing laboratory 1.2.1 Location 10m OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No.35, Aly. 21, Ln. 228, Ankang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Tel: 886-2-6613-0228 Worldwide Testing Services (Taiwan) Co., Ltd. 6F., No. 58, Ln. 188, Ruiguang Rd., Neihu Dist., Taipei City 114 , Taiwan (R.O.C.) Tel: 886-2-6606-8877 1.2.2 Details of accreditation status Accredited testing laboratory FCC filed test laboratory Reg. No.: TW1477, TW1072 Industry Canada filed …

Text truncated - open the document above for the full version.

Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 14 Set Up Photo of Radiated Emission Below 1 GHz Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 14 Above 1 GHz Registration number: W6M22211-22286-C-1 FCC ID: XO8-HALO906ANEL-1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 14
