XO8-HALOM418Mini Halo Transmitter

FCC ID: XO8-HALOM418 rev. 001 Instant Care Halo Transmitter Model #: HaloM418TX-1 • Identifying the Parts 1. Emergency Button • Learning-in the Halo Transmitter Press the Emergency button, a radio signal will be transmitted to the Control Panel. Please refer to the learn-in procedure of your PERS Console for further instruction. • Operation  To Trigger an Emergency, Call on your PERS Console: Press and hold the Emergency button for 1 second and release. The device will transmit the message to the PERS Console.  Sleep Mode: -The Halo Transmitter ships in “Sleep Mode” to conserve battery life -Pressing the Emergency Button once will cause the Transmitter to exit Sleep Mode • Battery & Electrical Specifications  Frequency: 418MHz  Battery: CR2032, 3V 230mAh  Battery life: Approximately 3 years  Open Field Range: Approximately 250+ ft  Low battery status: when the device battery is detected to be below the threshold, a low battery signal is transmitted to the PERS console every 6 hours. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority to operate his equipment. (Example – use only shielded interface cables when connecting to computer or peripheral devices) FCC Section 15.105 Information to the user. NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. 1 FCC ID: XO8-HALOM418 rev. 001 Instant Care Halo Transmitter Model #: HaloM418TX-2 • Identifying the Parts 1. Emergency Button • Learning-in the Halo Transmitter Press the Emergency button, a radio signal will be transmitted to the Control Panel. Please refer to the learn-in procedure of your PERS Console for further instruction. • Operation  To Trigger an Emergency, Call on your PERS Console: Press and hold the Emergency button for 1 second and release. The device will transmit the message to the PERS Console.  Sleep Mode: -The Halo Transmitter ships in “Sleep Mode” to conserve battery life -Pressing the Emergency Button once will cause the Transmitter to exit Sleep Mode • Battery & Electrical Specifications  Frequency: 418MHz  Battery: CR2032, 3V 230mAh  Battery life: Approximately 3 years  Open Field Range: Approximately 250+ ft  Low battery status: when the device battery is detected to be below the threshold, a low battery signal is transmitted to the PERS console every 6 hours. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority to operate his equipment. (Example – use only shielded interface cables when connecting to computer or peripheral devices) FCC Section 15.105 Information to the user. NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. 1

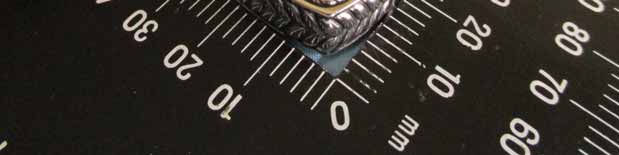

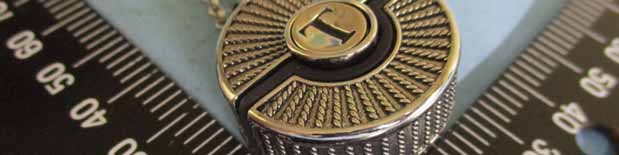

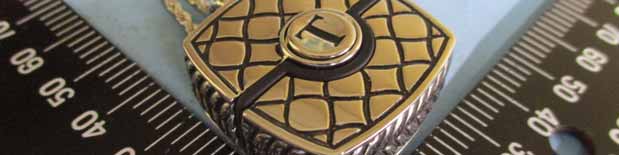

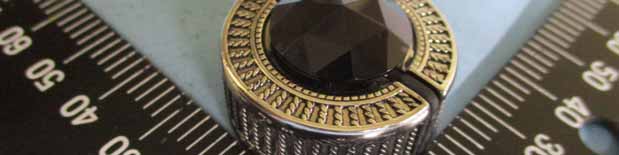

Page 1 / 10 Report No.: T191202N03 Ref. No.: Rev. 00 External Photo (Model: HaloM418TX-1) Page 2 / 10 Report No.: T191202N03 Ref. No.: Rev. 00 External Photo (Model: HaloM418TX-2)

HaloM418TX-1 Diagram Label location Label location Model: HaloM418TX-1 FCC ID ：XO8-HALOM418 HaloM418TX-2 Diagram Label location Label location Model: HaloM418TX-2 FCC ID ：XO8-HALOM418

Page 3 / 10 Report No.: T191202N03 Ref. No.: Rev. 00 Internal Photo (Model: HaloM418TX-1) Page 4 / 10 Report No.: T191202N03 Ref. No.: Rev. 00 Page 5 / 10 Report No.: T191202N03 Ref. No.: Rev. 00 Page 6 / 10 Report No.: T191202N03 Ref. No.: Rev. 00 Page 7 / 10 Report No.: T191202N03 Ref. No.: Rev. 00 Internal Photo (Model: HaloM418TX-2) Page 8 / 10 Report No.: T191202N03 Ref. No.: Rev. 00 Page 9 / 10 Report No.: T191202N03 Ref. No.: Rev. 00 Page 10 / 10 Report No.: T191202N03 Ref. No.: Rev. 00

FCC ID: XO8-HALOM418 Page: 1 / 38 Report No.: T191202N03-RP1 Rev.: 01 No.8, Jiucengling, Xinhua District, Tainan City 712, Taiwan / 71249 台南市新化區礁坑里九層嶺8號 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.tw www.ccsrf.com FCC 47 CFR PART 15 SUBPART C ANSI C63.10: 2013 TEST REPORT For Mini Halo Transmitter Model: HaloM418TX-1 Data Applies To: HaloM418TX-2 Brand: Test Report Number: T191202N03-RP1 Issued to Instant Care, Inc. 2080 Wineridge Pl.Suite A, Escondido, California, United States, 92029 Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: December 25, 2019 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page: 2 / 38 Report No.: T191202N03-RP1 Ref. No.: Rev.: 01 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 December 18, 2019 Initial Issue ALL Gina Lin 01 December 25, 2019 See the following note rev.01 Page21 Gina Lin 02 September10, 2018 See the following note rev.02 ALL Gina Lin Note: ※ Rev.01 Issue Date： December 25, 2019 Update test data of DUTY CYCLE on page21 & revise typo. ※ Rev.02 Issue Date： September 10, 2018 Update test result summary. Page: 3 / 38 Report No.: T191202N03-RP1 Ref. No.: Rev.: 01 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ........................................................................ 4 2. TEST RESULT SUMMARY ................................................................................. 5 3. EUT DESCRIPTION ............................................................................................. 6 4. TEST METHODOLOGY ....................................................................................... 7 4.1 EUT CONFIGURATION ............................................................................... 7 4.2 EUT EXERCISE ........................................................................................... 7 4.3 GENERAL TEST PROCEDURES ................................................................ 7 4.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .................... 8 4.5 DESCRIPTION OF TEST MODES ............................................................... 8 5. INSTRUMENT CALIBRATION ............................................................................ 9 5.1 MEASURING INSTRUMENT CALIBRATION ............................................... 9 5.2 MEASUREMENT EQUIPMENT USED ......................................................... 9 5.3 MEASUREMENT UNCERTAINTY ............................................................. 10 6. FACILITIES AND ACCREDITATIONS .............................................................. 11 6.1 FACILITIES................................................................................................. 11 6.2 EQUIPMENT .............................................................................................. 11 6.3 TABLE OF ACCREDITATIONS AND LISTINGS ........................................ 11 6.4 TABLE OF ACCREDITATIONS AND LISTINGS ........................................ 12 7. SETUP OF EQUIPMENT UNDER TEST ........................................................... 13 7.1 SETUP CONFIGURATION OF EUT ........................................................... 13 7.2 SUPPORT EQUIPMENT ............................................................................ 13 7.3 EUT OPERATING CONDITION ................................................................. 13 8. FCC PART 15.231 REQUIREMENTS ................................................................ 14 8.1 99% BANDWIDTH ...................................................................................... 14 8.2 20dB BANDWIDTH ..................................................................................... 16 8.3 LIMIT OF TRANSMISSION TIME ............................................................... 18 8.4 DUTY CYCLE ............................................................................................. 20 8.5 RADIATED EMISSIONS ............................................................................. 23 8.6 POWERLINE CONDUCTED EMISSIONS ................................................. 34 9. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ............................................ 35 Page: 4 / 38 Report No.: T191202N03-RP1 Ref. No.: Rev.: 01 1. TEST RESULT CERTIFICATION Product: Mini Halo Transmitter Model: HaloM418TX-1 Data Applies To: HaloM418TX-2 Brand Name: Applicant: Instant Care, Inc. 2080 Wineridge Pl.Suite A, Escondido, California, United States, 92029 Manufacturer: Vision Automobile Electronics Industrial Co Ltd. No.78, Gongye 3rd Rd., Technology Industrial Park, Tainan , Taiwan , 70955 Tested: December 06, 2019 ~ September 27, 2018 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C ANSI C63.10: 2013 No non-compliance noted Statements of Conformity Determining compliance shall be based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Section Manager Page: 5 / 38 Report No.: T191202N03-RP1 Ref. No.: Rev.: 01 2. TEST RESULT SUMMARY FCC Standard Section Report Sec…

Text truncated - open the document above for the full version.

Page: 35 / 38 Report No.: T191202N03-RP1 Ref. No.: Rev.: 00 9. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION MEASUREMENT SETUP Below 1GHz Page: 36 / 38 Report No.: T191202N03-RP1 Ref. No.: Rev.: 00 Page: 37 / 38 Report No.: T191202N03-RP1 Ref. No.: Rev.: 00 RADIATED RF MEASUREMENT SETUP Above 1GHz Page: 38 / 38 Report No.: T191202N03-RP1 Ref. No.: Rev.: 00
