XO8-ICHW345FSHoneywell / 2Gig Compatible Fall Sensor

1 Fall Sensor (ICHW345-FS) This fall sensor is designed to activate the Control Panel by manual button press or auto fall detection to summon help in emergency condition. A. Identifying the Parts 1 1 . . A A c c t t i i v v e e / / P P e e n n d d a a n n t t B B u u t t t t o o n n  Press the Active Button to transmit signal 2 2 . . R R e e d d L L E E D D  LED OFF: In Standby Mode  LED ON: Transmitting signal  LED flashes: Transmitting signal when under low battery  Quick flash for 5 seconds: Power on  3 flash: Low battery when powering on 3 3 . . L L a a n n y y a a r r d d L L o o o o p p 4 4 . . B B a a t t t t e e r r y y C C o o m m p p a a r r t t m m e e n n t t C C o o v v e e r r B. Low Battery Detection and Superivison  After the battery is inserted, Fall Sensor will automatically transmit a supervision signal every 70 minutes. If the Main Unit has not received the signal, it will then notify the user accordingly (depend on the Main Unit setting). C. Learn In Fall Sensor Step 1. Put the Main unit into Learning Mode. Please refer to the manual of the Main unit. Step 2. Press the Pendant Button on Fall Sensor, a radio signal will be transmitted to the main unit. Step 3. Please refer to the operation manual of your main unit to complete learning. D. Battery The Fall Sensor uses one coin type CR2477 3V lithium battery as its power source. If the battery voltage is low, a Low Battery signal will be sent to the Main unit to notify the user. Moreover, when the battery is low, the LED will flash during signal transmissions instead of turning on to remind the user to replace the battery. < < N N O O T T E E > >  It is prohibited to learn-in Fall Sensor to the Main unit when Fall Sensor is in low battery status. 2 E. Fall Detection and Sleep Mode  If a fall is detected, the sensor will activate the Main Unit (transmitting the same code as pressing the Active Button).  If the fall sensor remains staionlary for more than 3 hours, it will enter Sleep Mode. During Sleep Mode, fall sensor cannot be triggered from movement. If movement is detected during sleep mode, the fall sensor will start a 1-minute countdown to return to normal operation mode. The fall sensor will only activate the Main Unit from movement detection while in normal operation mode. F. Usage Recommendation  Please do not cover the fall sensor with clothes (wear it so it is visible to the eye)  Carefully place the fall sensor on a desk while not in use to avoid accidental alarm trigger. G. Changing the Battery  Remove the battery compartment cover by unscrewing the screw using a Philips screwdriver.  Carefully remove the coin battery using a Philips screwdriver.  Press the Active Button twice to fully discharge.  Insert the coin battery taking care of polarity.  Replace the battery compartment cover and tighten the screw lightly. F F C C C C S S t t a a t t e e m m e e n n t t This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. F F C C C C C C a a u u t t i i o o n n : : To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).

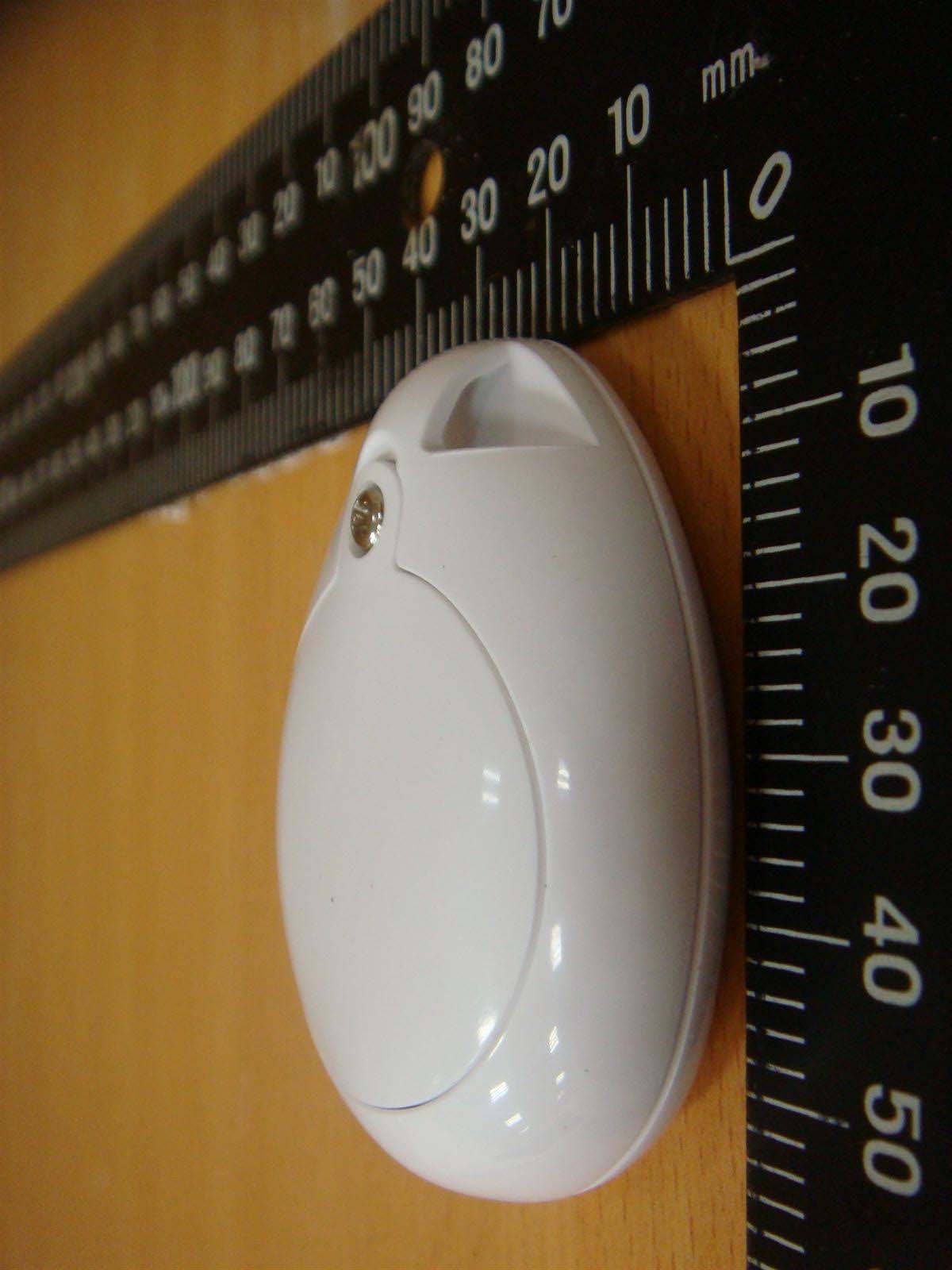

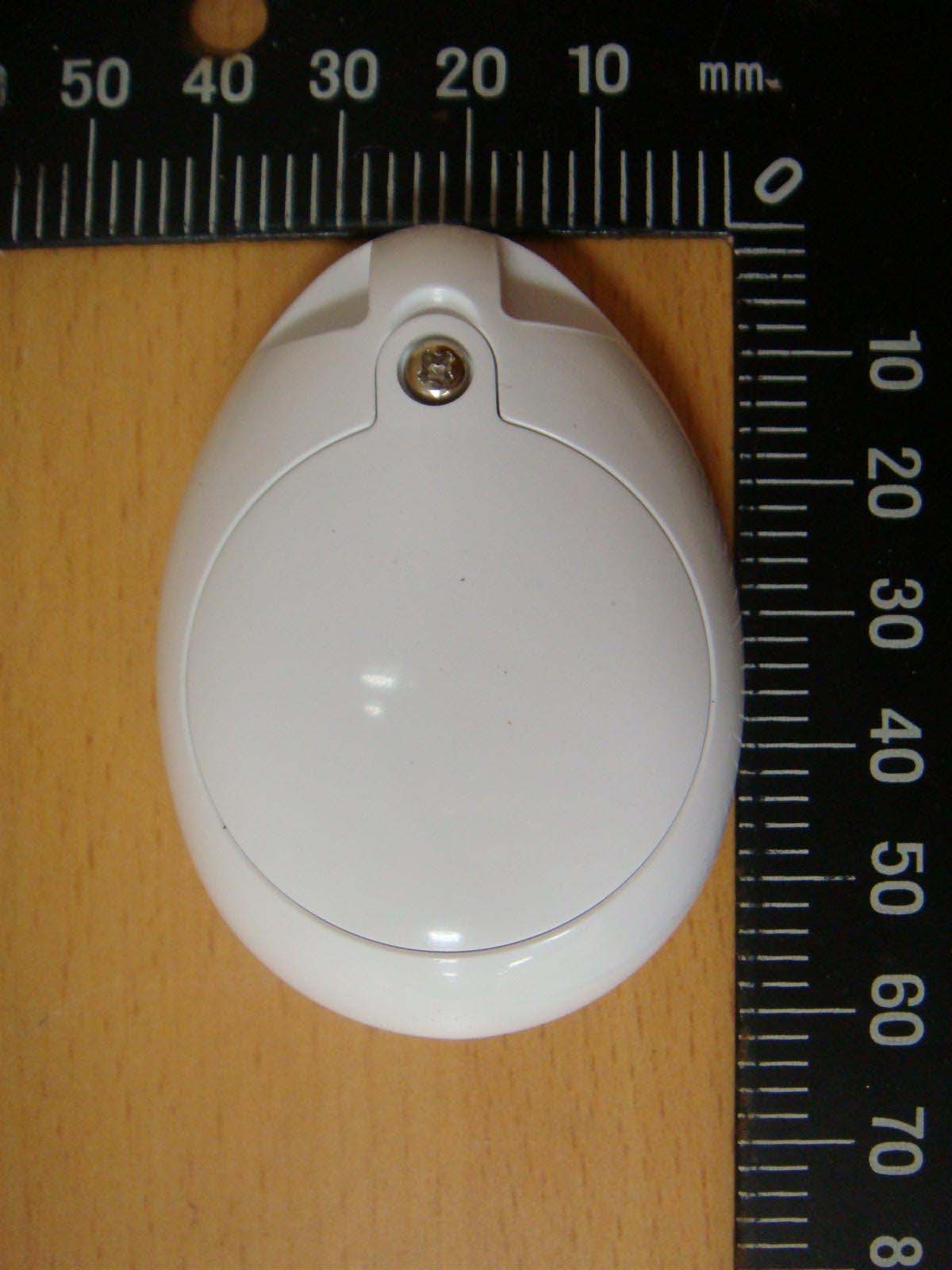

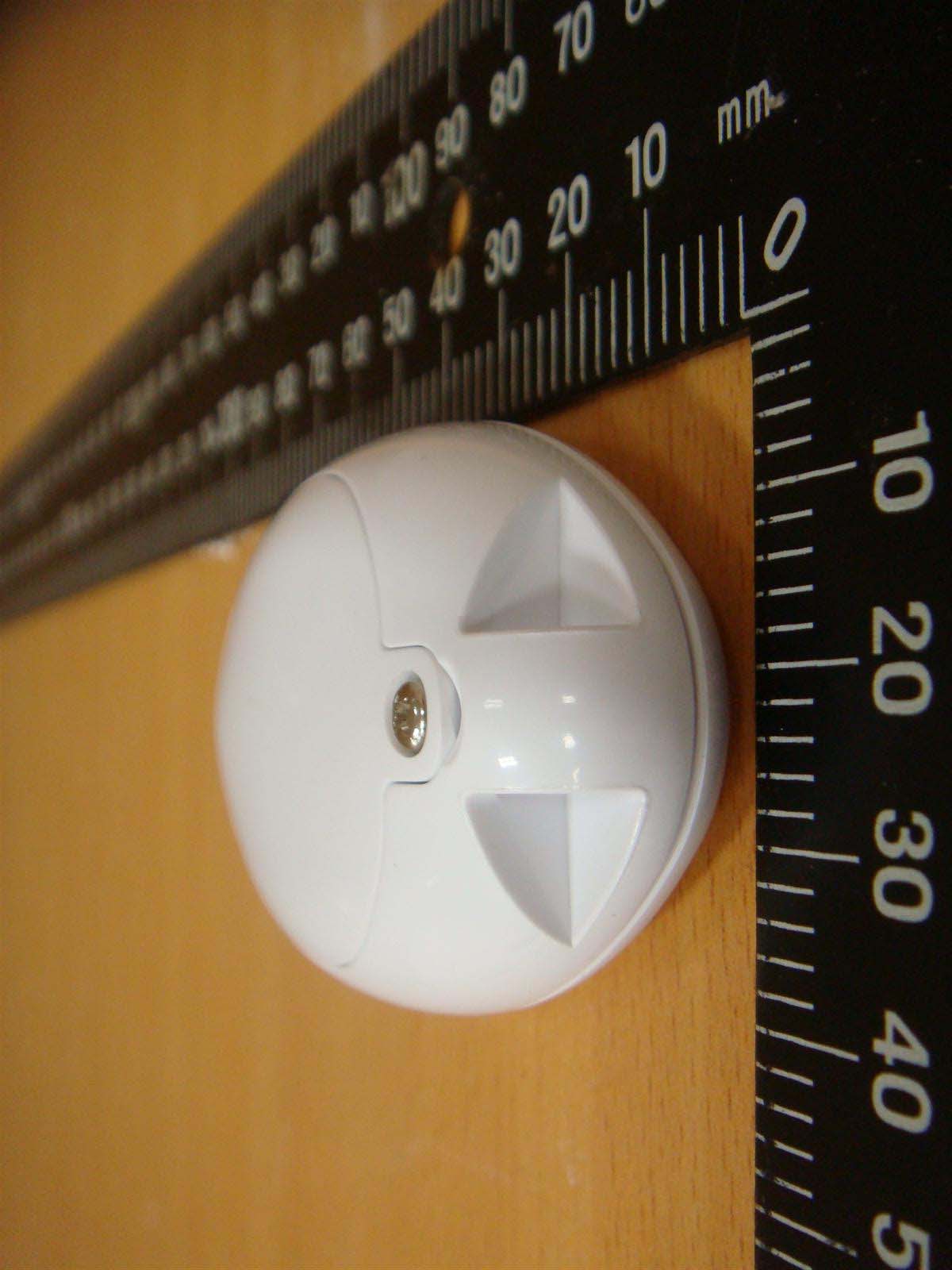

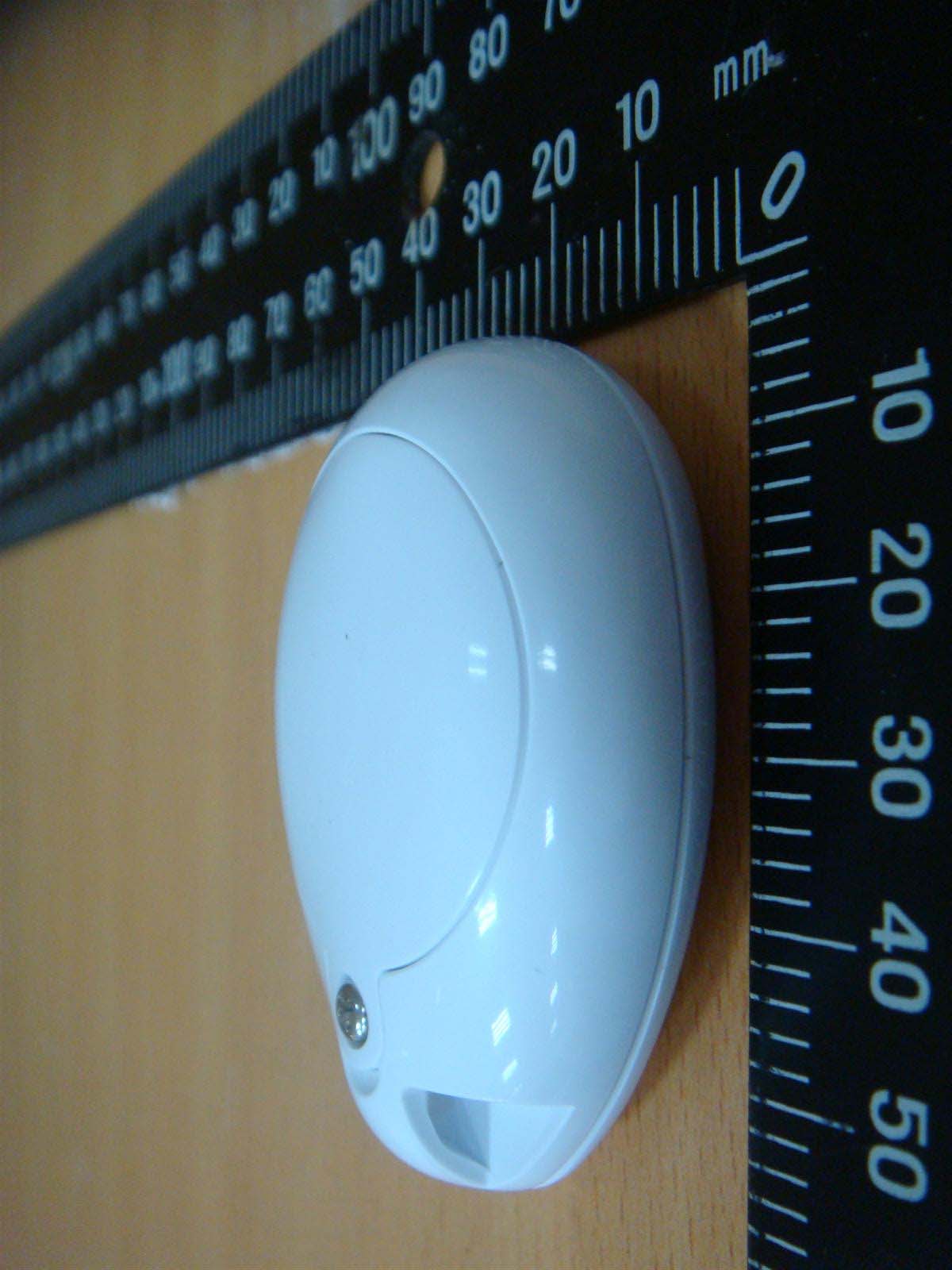

Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd Appendix page 9 of 20 External Photos Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd Appendix page 10 of 20 Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd Appendix page 11 of 20 Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd Appendix page 12 of 20 Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd Appendix page 13 of 20 Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd Appendix page 14 of 20 Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd Appendix page 15 of 20

Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd Appendix page 16 of 20 Internal Photos Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd Appendix page 17 of 20 Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd Appendix page 18 of 20 Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd Appendix page 19 of 20

of Applicant: Instant Care, Inc. Address: 2080 Wineridge Pl.Suite A Escondido, CA 92029, USA Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1, IC 5107A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21510-15361-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Honeywell / 2Gig Compatible Fall Sensor Model No.: FS345HW FCC ID: XO8-ICHW345FS Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd page 1 of 20 TABLE OF CONTENTS 1 General Information........................................................................................................................2 1.1 Notes ...........................................................................................................................................2 1.2 Testing laboratory .......................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 Details of approval holder...........................................................................................................3 1.4 Application details ......................................................................................................................3 1.5 Test item .....................................................................................................................................4 1.6 Test standards .............................................................................................................................4 2 Technical test ..................................................................................................................................5 2.1 Summary of test results...............................................................................................................5 2.2 Test environment ........................................................................................................................5 2.3 Test equipment utilized...............................................................................................................6 2.4 General Test Procedure...............................................................................................................8 3 Test results (enclosure) ...................................................................................................................9 3.1 Transmission Requirements......................................................................................................10 3.1.1 Limit of Transmission Time ..................................................................................................10 3.1.2 Active Time ...........................................................................................................................10 3.2 Output Power (Field Strength)..................................................................................................11 3.3 Out of Band Radiated Emissions ..............................................................................................12 3.4 Transmitter Radiated Emissions in restricted Bands ................................................................13 3.5 Spurious Emission radiated, Transmitter ..................................................................................14 3.6 Channel Bandwidth...................................................................................................................16 3.7 Antenna requirement.................................................................................................................17 3.8 Duty Cycle ................................................................................................................................18 3.9 Conducted Measurement at (AC) Power Line..........................................................................19 Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd page 2 of 20 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: October 28, 2015 Leon Chueh Date WTS-Lab. Name Signature Technical responsibility for area of testing: October 28, 2015 Kevin Wang Date WTS Name Signature Registration number: W6M21510-15361-C-1 FCC ID: XO8-ICHW345FS Worldwide Testing Services(Taiwan) Co., Ltd page 3 of 20 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No.35, Aly. 21,…
