XOASRC-LPFM1Source LPFM Transmitter 1.2 W

1. FM transmitter is a professional grade low power FM transmitter operating in the commercial FM band (76 - 108MHz). 2. Create an organization/government radio station. 3. Listen to audio from your computer speakers and transmit audio at the same time using included port splitter cable adapter. 4. Works with standard FM receivers 5. Input option: Stereo 1/4-F audio input connector Hi-Fi Stereo audio quality 6. Adjustable input level with over modulation indicator Harmonic radiation: <-60dB Pre-emphasis: 75us; Degrees of separation: 40dB; Input level: -13dBV; Applied microphone: electrets microphone operating in the commercial FM band (88.1 - 107.9MHz). RF Output:1.2W Working temperature:0~55 Operating instructions 1) Connect supplied coax cable/antenna to the antenna Socket (DO NOT operate transmitter without antenna connected, otherwise there will be damage to the transmitter) 2) Connect the12V power supply to When the power supply is connected, the screen will show “OFF”. Press power button to turn on the Digital Transmitter. The screen will show the default radio frequency channel (For example, 100.0MHz). 3) Connect audio source using supplied 3.5mm audio cable. Connect one end to audio input jack 4) You may transmit audio from a microphone by connecting a stereo plug-type microphone to the microphone input jack 5) Open the power 6) Adjust the volume in (left/right) until you feel satisfied with the output effect.(NOTE: If volume level from the source device is too high, the output from radio will sound distorted) 7) Set transmitting frequency (Radio frequency channels adjustment range is 76.1MHz -107.9MHz), use the frequency setting buttons to adjust the frequency by 0.1MHz step. When interference occurs, the music from radio will sound unclear. In this case, please switch to different channels by adjusting frequency again until to range is( 88.1MHz -107.9MHz), use the frequency setting buttons satisfactory channel.

Tune up Procedure/Parts List--- (Long term)

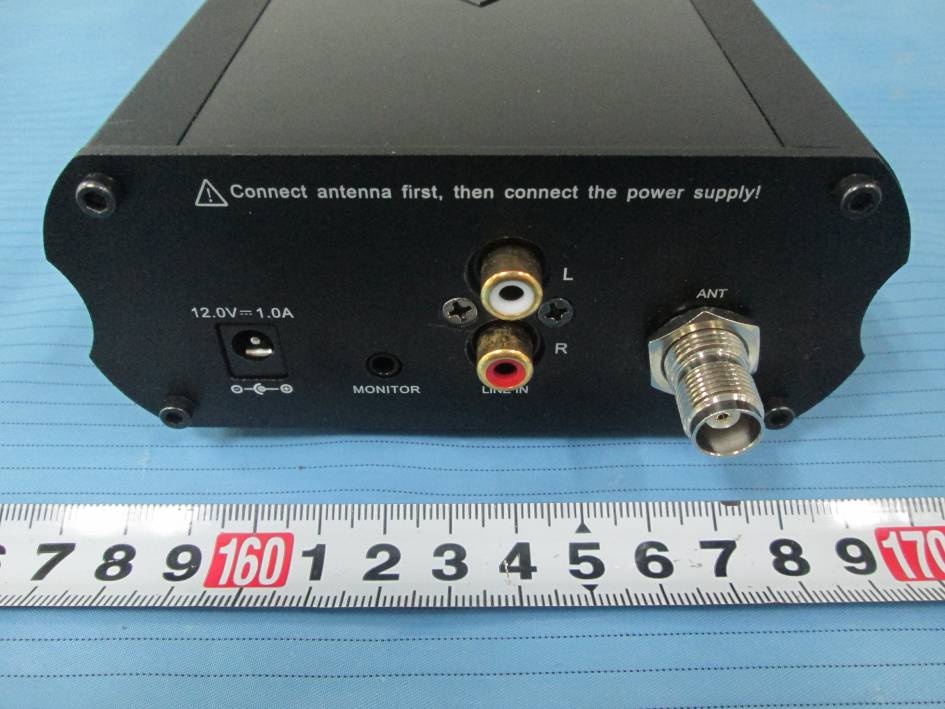

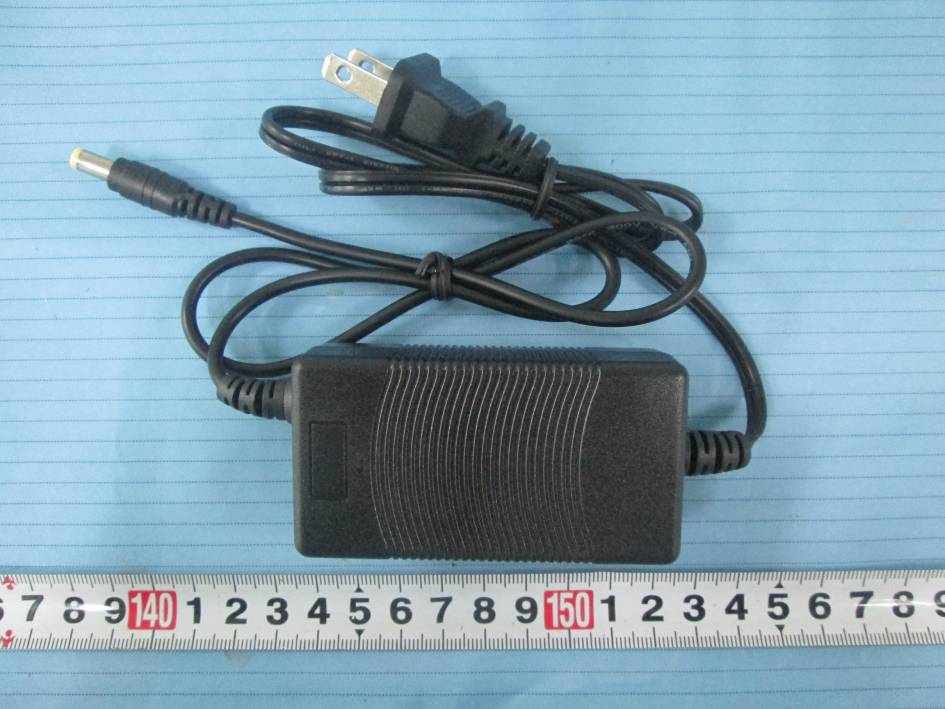

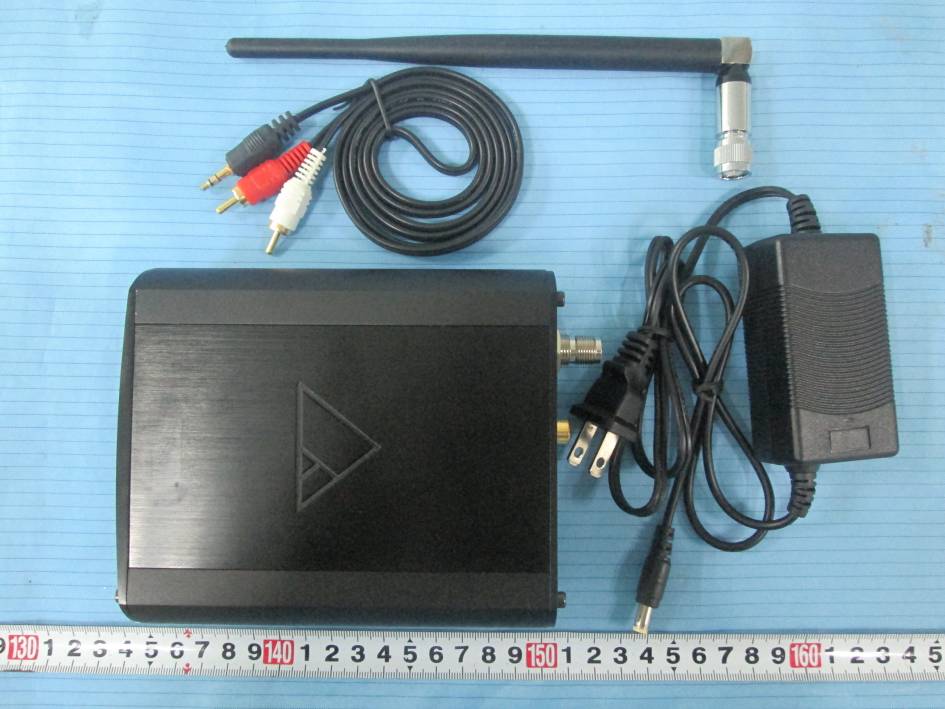

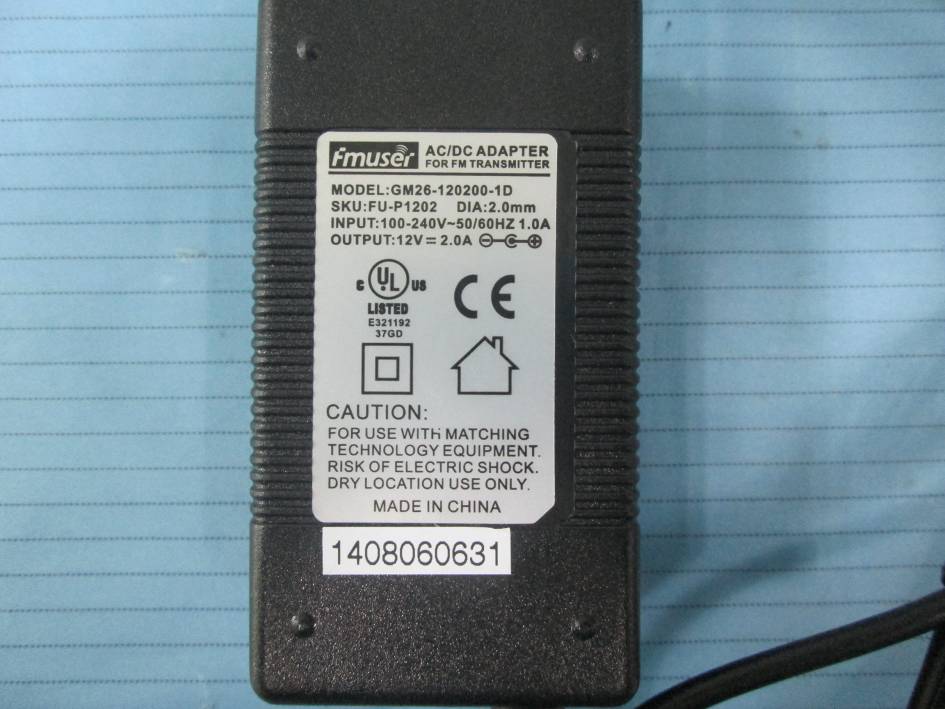

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View EUT – Antenna View 1 EUT – Antenna View 2 EUT –Cable View EUT – Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – The All Board Top View EUT – Main Board Cover off View EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View EUT – LCD Board Top View 1 EUT – LCD Board Top View 2 EUT – LCD Board Top View 3 EUT – LCD Board Bottom View

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 73 TEST REPORT For TAW~Global, LLC 8135 COX'S DR, SUITE 211. PORTAGE, Michigan, United States, 49002. FCC ID:XOASRC-LPFM1 Report Type: Original Report Product Type: Source LPFM Transmitter 1.2W Test En gineer: Candy Li Re port Number: RSZ150106015-00 Re port Date: 2015-08-27 Reviewed B y: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150106015-00 FCC Part 73 Page 2 of 24 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCC§1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) .................................................... 7 APPLICABLE STANDARD .............................................................................................................................................. 7 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ...................................................................................... 7 RESULT ........................................................................................................................................................................ 7 FCC §2.1046 & §73.211 & §73.267 and §73.840 - OPERATING POWER .............................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST PROCEDURE ........................................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 8 TEST DATA .................................................................................................................................................................. 9 FCC §2.1047 & §73.801 & §73.1570- MODULATION CHARACTERISTICS .................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC §2.1049 & §73.317 – OCCUPIED BANDWIDTH EMISSIONS .................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 TEST PROCEDURE ...................................................................................................................................................... 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 14 FCC §2.1051 & §73.317 (d) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ...................................... 18 APPLICABLE STANDARD ................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Transmitting Radiated Emissions (Below 1 GHz) Transmitting Radiated Emissions (Above 1 GHz)
