XOMCETV65UQW1F2US65 INCH LED UHD TV

Reference No.: WTH23X05094416W001/002/003/004 Page 1 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: XOMCETV65UQW1F2US This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

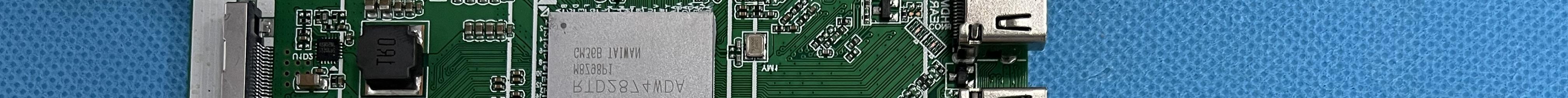

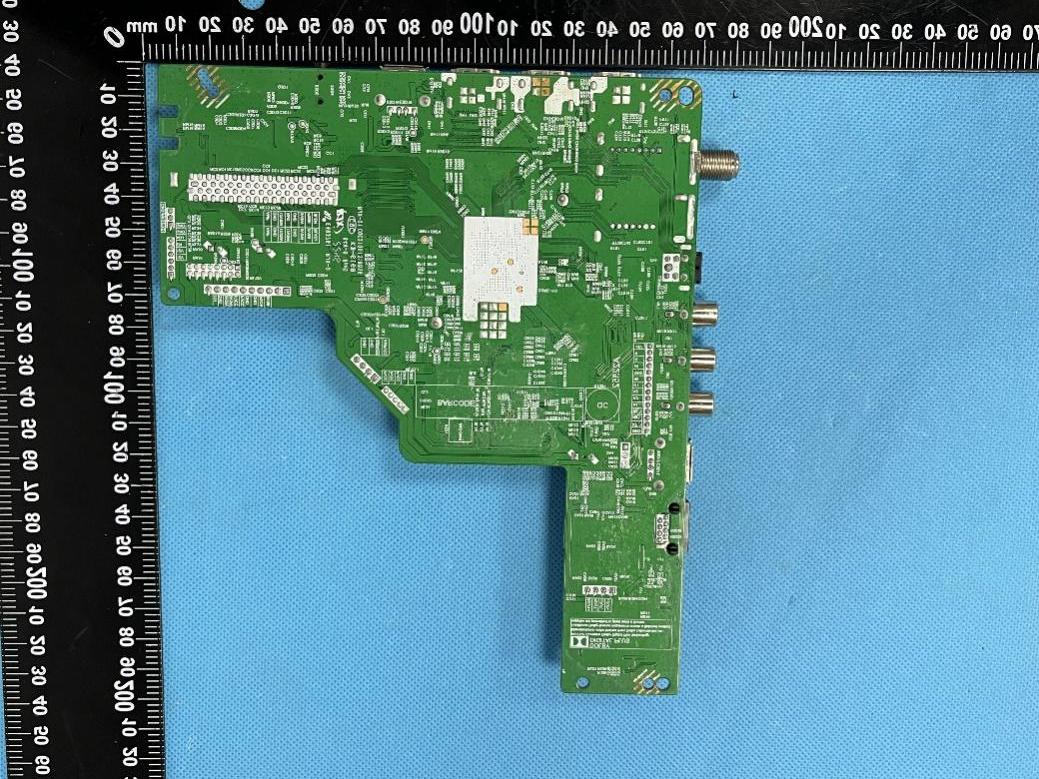

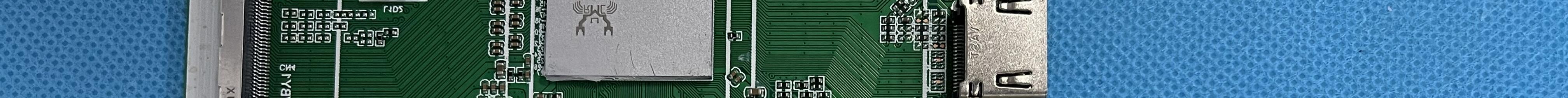

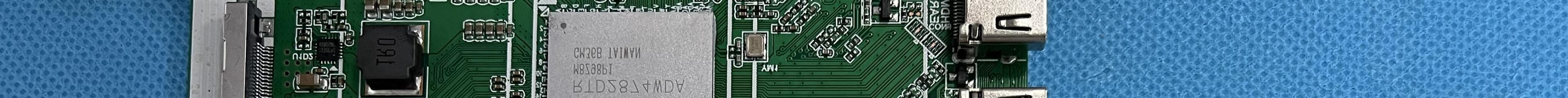

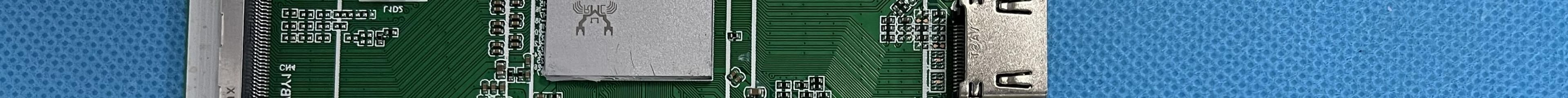

Reference No.: WTH23X05094416W001/002/003/004 Page 7 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTH23X05094416W001/002/003/004 Page 8 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTH23X05094416W001/002/003/004 Page 9 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Solder Board-Component View 5 Reference No.: WTH23X05094416W001/002/003/004 Page 10 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 6 Solder Board-Component View 7

Reference No.: WTH23X05094416W001/002/003/004 Page 11 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 8 Solder Board-Component View 9 Reference No.: WTH23X05094416W001/002/003/004 Page 12 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 10 Solder Board-Component View 11

Reference No.: WTH23X05094416W001/002/003/004 Page 13 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 12 Antenna View

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Shenzhen Qiyue Optronics Company Limited Address of applicant: Flat3,Tower 3, Excellence Meilin Center Plaza, Zhongkang Road 128, Shangmeilin, Futian District, Shenzhen , China Manufacturer: SHENZHEN QIYUE OPTRONICS COMPANY LIMITED BRANCH Address of manufacturer: A/B/C/D Building, Xitian Industrial Park, Dashuikeng Community,Guanlan Street, Longhua New District, Shenzhen City, China General Description of EUT: Product Name: 65” LED UHD TV Trade Name: Continental Model No.: CE-TV65UQW1F2US Adding Model(s): D65N218-U-A-I, XXXXXXXX65XXXXXXXX(Where “X”can be any alphanumeric of A-Z or 0-9 or blank or -, indicates different client) Rated Voltage: AC120V/60Hz Battery Capacity: / Power Adapter: / FCC ID: XOMCETV65UQW1F2US Equipment Type: Fixed device Technical Characteristics of EUT: Bluetooth(BLE mode) Bluetooth Version: V5.0 (BLE mode) Frequency Range: 2402-2480MHz RF Output Power: 2.30dBm (Conducted) Data Rate: 1Mbps Modulation: GFSK Quantity of Channels: 40 Channel Separation: 2MHz Type of Antenna: Integral Antenna Antenna Gain: 2dBi Bluetooth (BR/EDR mode) Bluetooth Version: V5.0 (BR/EDR mode) Frequency Range: 2402-2480MHz RF Output Power: 6.36dBm (Conducted) Data Rate: 1Mbps, 2Mbps, 3Mbps Modulation: GFSK, π/4 DQPSK, 8DPSK Quantity of Channels: 79 Channel Separation: 1MHz Type of Antenna: Integral Antenna Antenna Gain: 2dBi Wi-Fi (2.4G) Support Standards: 802.11b, 802.11g, 802.11n Frequency Range: 2412-2462MHz for 802.11b/g/n(HT20) 2422-2452MHz for 802.11n(HT40) RF Output Power: Antenna 0: 17.03dBm (Conducted) Antenna 1: 16.19dBm (Conducted) Type of Modulation: CCK, OFDM, QPSK, BPSK, 16QAM, 64QAM Quantity of Channels: 11 for 802.11b/g/n(HT20); 7 for 802.11n(HT40) Channel Separation: 5MHz Type of Antenna: Integral Antenna Antenna Gain: 2dBi Wi-Fi (5G) Support Standards: 802.11a, 802.11n(HT20) , 802.11n-HT40, 802.11ac-VHT80 Frequency Range: 5150-5250MHz, 5725-5850MHz RF Output Power: 5150-5250MHz: Antenna 0: 14.41dBm (Conducted), Antenna 1: 14.45dBm (Conducted) 5725-5850MHz: Antenna 0: 13.33dBm (Conducted), Antenna 1: 12.57dBm (Conducted) Type of Modulation: QPSK, 16QAM, 64QAM,256QAM Type of Antenna: Integral Antenna Antenna Gain: 5150-5250MHz Antenna 0 & 1: 1.93dBi 5725-5850MHz Antenna 0 & 1: 1.73dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-Averaged Power ERP (MHz) (dBm) (dBi) (%) (dBm) (dBm) Bluetooth 2402 6.36 2.0 100 7.00 6.85 Wi-Fi (2.4GHz) Ant 0 2412 17.03 2.0 100 18.00 17.85 Wi-Fi (2.4GHz) Ant 1 2412 16.19 2.0 100 17.00 16.85 Wi-Fi (5GHz) Ant 0 5150 14.41 1.93 100 15.00 14.78 Wi-Fi (5GHz) Ant 1 5150 14.45 1.93 100 15.00 14.78 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 2402 C 20.00 6.85 4.84 768.00 0.01 Pass 2412 C 20.00 17.85 60.95 768.00 0.08 Pass 2412 C 20.00 16.85 48.42 768.00 0.06 Pass 5150 C 20.00 14.78 30.06 768.00 0.04 Pass 5150 C 20.00 14.78 30.06 768.00 0.04 Pass Note: 1. Time-Averaged Power=Output Power * Duty Cycle; ERP= Time-Averaged Power+ Antenna gain-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Ratio 3 Simultaneous Ratio Limit Result Pass/Fail Bluetooth + Wi-Fi Ant 0 + Wi-Fi Ant 1 0.01 0.08 0.06 0.15 1 Pass Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 63 TEST REPORT Reference No. .................... : WTH23X05094416W003 FCC ID ................................ : XOMCETV65UQW1F2US Applicant ........................... : Shenzhen Qiyue Optronics Company Limited Address.............................. : Flat3,Tower 3, Excellence Meilin Center Plaza, Zhongkang Road 128, Shangmeilin, Futian District, Shenzhen , China Manufacturer ..................... : SHENZHEN QIYUE OPTRONICS COMPANY LIMITED BRANCH Address.............................. : A/B/C/D Building, Xitian Industrial Park, Dashuikeng Community,Guanlan Street, Longhua New District, Shenzhen City, China Product Name ................... : 65” LED UHD TV Model No... ......................... : CE-TV65UQW1F2US Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : 2023-05-04 Date of Test........................ : 2023-05-04 to 2023-05-29 Date of Issue ..................... : 2023-05-29 Test Report Form No. ....... : WTX_Part 15_247W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Mike Shi Silin Chen Reference No.: WTH23X05094416W003 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 63 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .........................................................................5 1.2 TEST STANDARDS .................................................................................................................................................6 1.3 TEST METHODOLOGY ...........................................................................................................................................6 1.4 TEST FACILITY ......................................................................................................................................................6 1.5 EUT SETUP AND TEST MODE ..............................................................................................................................7 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................9 1.7 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 10 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 12 3. ANTENNA REQUIREMENT ................................................................................................................................. 13 3.1 STANDARD APPLICABLE ..................................................................................................................................... 13 3.2 EVALUATION INFORMATION ................................................................................................................................ 13 4. FREQUENCY HOPPING SYSTEM REQUIREMENTS .................................................................................... 14 4.1 STANDARD APPLICABLE ..................................................................................................................................... 14 4.2 FREQUENCY HOPPING SYSTEM ......................................................................................................................... 14 4.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................................................... 15 5. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION .................................................... 16 5.1 STANDARD APPLICABLE ..................................................................................................................................... 16 5.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 16 5.3 TEST PROCEDURE .............................................................................................................................................. 16 5.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 17 6. DWELL TIME OF HOPPING CHANNEL ........................................................................................................... 18 6.1 STANDARD APPLICABLE ..................................................................................................................................... 18 6.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 18 6.3 TEST PROCEDURE .............................................................................................................................................. 18 6.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 19 7. 20DB BANDWIDTH ............................................................................................................................................... 20 7.1 STANDARD APPLICABLE .................…

Text truncated - open the document above for the full version.

KESHARE ELCTRON LTD SAMPLE SPECIFICATION （Revision：R：A1） CUSTOMER(客户名称) CS P/N(客户机种) HQ252-COPPER PIPE ANTENNA PART NAME(品名) WIFI ANTENNA L=252MM FREQUENCY(频率) 2.4G~2.5G/5G~5.8G NO.(物料编号) DATE(日期) 2020-4-14 Remark(备注)： Sign(客户确认签字盖章)： KESHARE ELECTRON LTD ： ADD：RD 2 XINYUAN DG CITY GD PROVINCE CHINA TEL：0769-81195027 FAX：0769-81193935 MAIL: [email protected] MANAGER CHECKED MANAGER CHECKED ME CHECKED RF CHECKED LISTER Wu Yu Zhong Zhi CUSTOMER QA CHECKED ME CHECKED RF CHECKED MANAGER CHECKED Revision history VERSION DATE STATE A1 2020-04-14 A1 SPECIFICATION Index Revision history 1 lndex 2 1 Mechanical Specification 3 1-1 Mechanical Specification（VO-铜管 WIFI 天线） 3 2 Test equipment 4 3 Antenna test data 5 3-1 VSWR 5 3-2 Return loss plot 5 3-3 Smith chart 6 3-4 No-source test data 6 3-5 Directional drawing of horizontal plane of 7 3-6 3D radiation drawing 7 4 Environment Characteristic 8 5 The packing way 9 1. Mechanical Specification 1-1 Mechanical Configuration(天线组件) 2. Test equipment 3. Antenna test data 3-1 VSWR 3-2 Return loss plot 3-3 Smith chart 3-4 ( XY Z=0) (XZ Y=0) (YZ X=0) 5.8G (XY Z=0) (XZ Y=0) (YZ X=0) 5.8G 3-5 Frequenc y X-Z plane Y-Z plane X-Y plane E-total Efficiency % Phi=0 Phi=90 theta=90 (MHz) Peak Gain Averag e Gain Peak Gain Averag e Gain Peak Gain Averag e Gain (dBi) (%) 2410 1.11 -1.54 1.40 -2.05 0.62 0.45 1.63 60 2420 1.20 -1.21 1.13 -2.19 0.70 0.36 1.76 59 2430 1.32 -1.91 1.30 -1.88 0.63 0.56 2.00 55 2440 1.31 -1.35 1.21 -1.98 0.81 0.55 1.86 66 2450 1.28 -1.81 1.31 -2.01 0.62 0.55 1.68 62 2460 1.31 -1.72 1.28 -2.05 0.75 0.52 1.84 59 2470 1.25 -1.55 1.19 -1.98 0.68 0.53 1.68 63 2480 1.24 -1.65 1.32 -1.95 0.61 0.54 1.75 61 2490 1.31 -1.63 1.26 -1.89 0.71 0.53 1.72 68 2500 1.33 -1.64 1.28 -2.03 0.69 0.55 1.73 65 5000 1.18 -1.58 1.27 -2.05 0.68 0.56 1.82 66 5050 1.24 -1.64 1.19 -2.01 0.81 0.71 1.92 56 5100 1.33 -1.38 1.31 -2.03 0.78 0.68 1.88 62 5150 1.28 -1.49 1.35 -1.98 0.68 0.59 1.93 63 5200 1.24 -1.64 1.38 -1.89 0.71 0.62 1.68 67 5250 1.28 -1.56 1.35 -1.88 0.68 0.65 1.69 68 5300 1.19 -1.88 1.36 -1.85 0.69 0.66 1.70 65 5350 1.32 -1.76 1.29 -1.79 0.72 0.75 1.68 66 5400 1.35 -1.81 1.24 -1.82 0.77 0.71 1.70 71 5450 1.32 -1.65 1.28 -1.76 0.70 0.69 1.69 66 5500 1.28 -1.68 1.31 -1.83 0.69 0.71 1.75 62 5550 1.29 -1.69 1.26 -1.88 0.68 0.72 1.72 59 5600 1.34 -1.59 1.29 -1.79 0.67 0.68 1.73 63 5650 1.29 -1.66 1.30 -1.91 0.67 0.69 1.69 58 5700 1.33 -1.59 1.28 -1.83 0.76 0.70 1.72 67 5750 1.34 -1.71 1.27 -1.90 0.75 0.69 1.73 69 5800 1.18 -1.73 1.28 -1.82 0.78 0.68 1.66 63 4. Environment Characteristic NO. ITEM TEST CONDITION SPECIFICATION 4-1 High Temperature/Humidity Storage Test(non operating) 1.Temperature: +80 ±2°C 2.Humidity: 90~95%RH 3.Time: 48hrs No material deformation is allowed. The VSWR, Gain, Radiation Pattern must be met specifications after these test. 4-2 Low Temperature/Humidity Storage Test(non operating) 1.Temperature: -30±2°C 2.Humidity: 0%RH 3.Time:48hrs

Reference No.: WTH23X05094416W001/002/003/004 Page 14 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTH23X05094416W001/002/003/004 Page 15 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTH23X05094416W001/002/003/004 Page 16 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
