XOX-Z300Ziosk

Z-300 Product Manual Rev C. 01006-1105 Compliance Statements Legal 2 ©2011 TableTop Media, LLC All rights reserved. All rights reserved worldwide. No part of this documentation may be copied, distributed, transmitted, stored in a retrieval system, or translated into any human or computer language, in any form, or by any means: electronic; mechanical; magnetic; or otherwise without permission in writing from TableTop Media. Ziosk® is a registered trademark of TableTop Media, Inc. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow- ing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from the circuit to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. PCI Statement Ziosk® is fully compliant with all Payment Card Industry Payment Application Data Security Standards (PCI PA-DSS) 1.1 and Payment Application Best Practices (PABP) 1.4 requirements. Table of Contents Legal 2 Compliance Statements 2 Table of Contents 3 Warnings 4 Shock Hazards 4 Health and Product Safety 4 Ziosk® 5 Maintenance 6 Cleaning Ziosk 6 Daily Maintenance 7 Ziosk Inspection 7 Battery Maintenance 8 Printer Maintenance 9 Troubleshooting 10 Additional Information 11 Product Specifications 11 Third Party Applications and Trademark Information 11 Table of Contents3 Warnings 4 Proper Usage For your protection, we advise you to read all the safety instructions before operating the device. • Ziosk is a mobile device intended for table top use. A distance of 20cm (approximately 8 inches) or more should be maintained between the device and user’s body during operation. • Do not install Ziosk near a source of heat. • Do not place battery and charging station near a source of heat. • Do not install Ziosk near a source of water. • Do not place battery charging station near a source of water. • Do not disassemble Ziosk or battery. • Only use attachments specified by the manufacturer. • Only use replacement parts and supplies specified by the manufacturer. • Only use batteries and charger approved by the manufacturer. Evidence of Tampering It is recommended to periodically monitor Ziosk for any changes to the external housing. This may indicate that the device has somehow been tampered with by an attacker and placed back in service. See the Maintenance section on Ziosk Inspection for more details. WARNINGS It is the user’s responsibility to use Ziosk in a manner in which it was intended. Read the following warnings before using Ziosk. Shock Hazards To prevent fire or shock hazard, do not do the following: • Do not immerse unit or battery in water. • Do not disassemble unit or battery. • Do not use an AC adapter if it has damaged cords or wires. • Do not insert foreign objects into the slots, connectors, or ac- cessories of the device. Health and Product Safety Seizures Any device showing flashes or patterns of light, like movies or games, has the potential to trigger seizures or blackouts in people, even if they have never had a seizure before. Stop using this device if any of the following symptoms occur: • Altered vision • Eye twitching • Involuntary movements • Loss of awareness • Disorientation Repetitive Motion and Eye Strain To prevent injuries, avoid prolonged use and take frequent breaks. It is recommended that parents monitor their children for appropriate play. Ziosk®5 ZIOSK® Ziosk, an interactive tabletop experience, provides next generation pay-at-the-table functionality designed in a user-engaging, intuitive touch-screen device. With three distinct payment features: split check, touch tip and e-mail or print receipt capabilities, the device places control in the guests’ hands to pay at their convenience. En- gaging and entertaining, Ziosk enhances the overall dining experience with games, information, movie trailers, and ticket purchasing. Ziosk features include: Payment On-Demand • Credit, Gift Card, and Cash • Split check • E-mail or print receipt Digital Promotions • Menus, specials, events • Nutritional information • Loyalty and gift programs Order-Entry • Get items to kitchen faster • Increase up selling • Enter repeat orders Real-time Surveys • Increase response rates • Market research • Alert manager Infotainment • Engaging information • Entertainment • Trivia and games Maintenance 6 MAINTENANCE Cleaning Ziosk To clean the touch panel you will need a soft, lint-free cloth and a mild glass cleaner (such as Windex®.) A microfiber cloth works well. See Cleaning Guidelines for more tips. Steps to clean the touch panel 1. Spray cleaner or water directly onto a soft cloth. 2. Wipe the surface of the screen gently with dampened cloth. 3. Press gently on the screen in order to clean more dif- ficult dirt or oil. Cleaning Guidelines • Do not use abrasive materials or utensils for cleaning. • Do not use phosphates, Ethylene Glycol, or lubricants. • Never use acidic or alkaline cleaners. Use of incorrect cleaners could damage the touch panel and plastic shell. •…

Text truncated - open the document above for the full version.

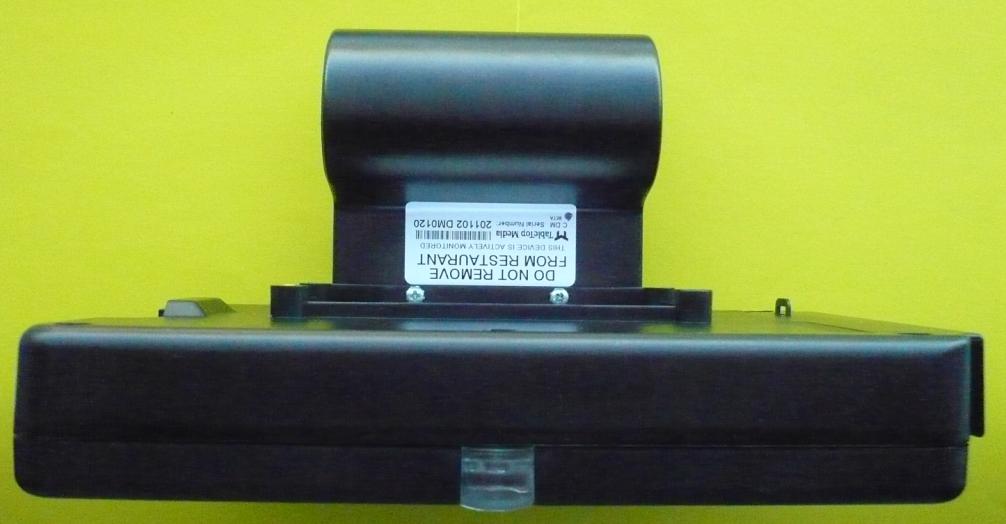

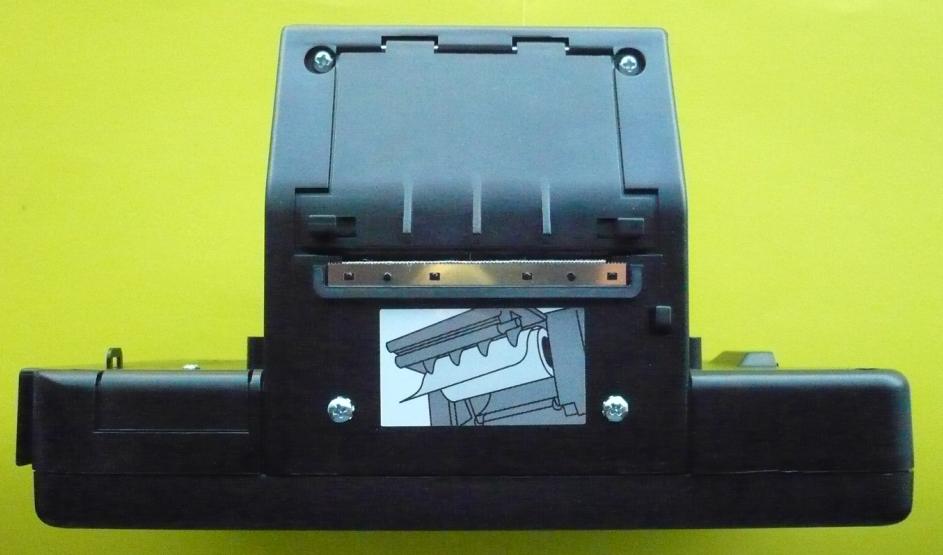

TableTop Media Proprietary Confidential Information – Available under NDA EUT Photos - External Ziosk Barracuda Platform Revision: 1.0 Date: 27th May, 2011 EUT photos - external Revision: 1.0 Chapter: Introduction 2 Table of Contents 1 Introduction ...................................................................................................................3 2 Definitions, Acronyms & Abbreviations .........................................................................3 3 References .....................................................................................................................3 4 External Photos .............................................................................................................4 EUT photos - external Revision: 1.0 Chapter: Introduction 3 1 Introduction The TTM Z iosk is a battery operated device that allows guests to pay at the table and enables digital promotions, reporting, real time feedback and infotainment. This document will provide external photographs of the test device – Ziosk Barracuda platform. 2 Definitions, Acronyms & Abbreviations TTM – TableTop Media 3 References EUT photos - external Revision: 1.0 Chapter: External Photos 4 4 External Photos Front V iew EUT photos - external Revision: 1.0 Chapter: External Photos 5 Back View EUT photos - external Revision: 1.0 Chapter: External Photos 6 Left Side V iew EUT photos - external Revision: 1.0 Chapter: External Photos 7 Right Side V iew EUT photos - external Revision: 1.0 Chapter: External Photos 8 Top V iew Bottom View

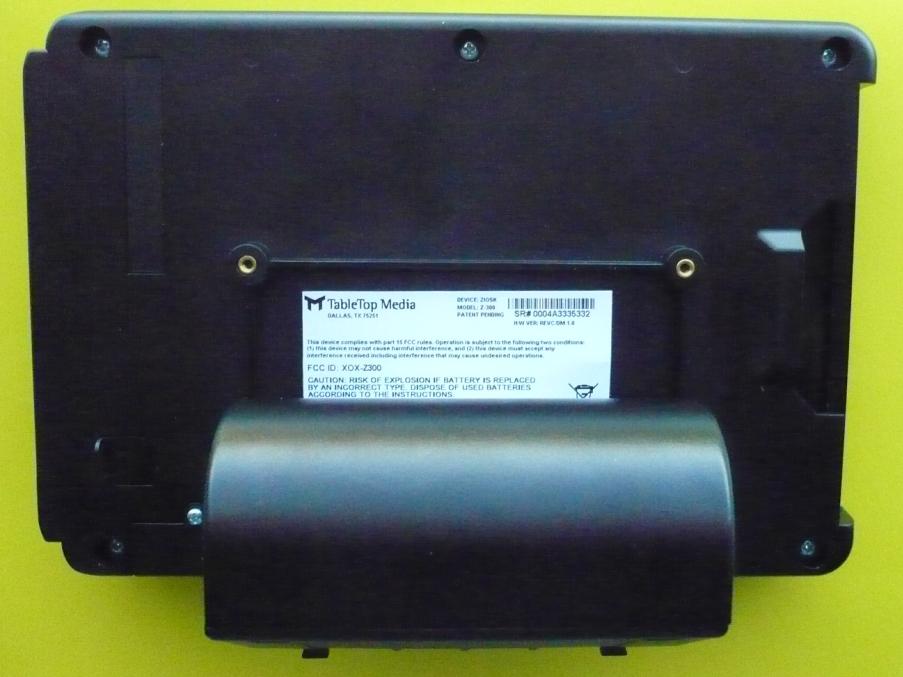

EUT photos - external Revision: 1.0 Chapter: External Photos 5 Back View

TableTop Media Proprietary Confidential Information – Available under NDA EUT Photos - Internal Ziosk Barracuda Platform Revision: 1.0 Date: 27th May, 2011 EUT photos - internal Revision: 1.0 Chapter: Introduction 2 Table of Contents 1 Introduction ...................................................................................................................3 2 Definitions, Acronyms & Abbreviations .........................................................................3 3 References .....................................................................................................................3 4 Internal Photos ..............................................................................................................4 EUT photos - internal Revision: 1.0 Chapter: Introduction 3 1 Introduction The TTM Z iosk is a battery operated device that allows guests to pay at the table and enables digital promotions, reporting, real time feedback and infotainment. This document will provide internal photographs of the test device – Ziosk Barracuda Platform. 2 Definitions, Acronyms & Abbreviations TTM – TableTop Media 3 References EUT photos - internal Revision: 1.0 Chapter: Internal Photos 4 4 Internal Photos PCB Top in Chassis EUT photos - internal Revision: 1.0 Chapter: Internal Photos 5 PCB Bottom

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:18.40(dBm)* Maximum peak output power at antenna input terminal:69.18309709(mW) Antenna gain(maximum):5.3(dBi)* Maximum antenna gain:3.388441561(numeric) Time Averaging:100(%)* Prediction distance:20(cm)* Prediction frequency:2450(MHz)* MPE limit for uncontrolled exposure at prediction frequency:1.000(mW/cm^2) Power density at prediction frequency:0.046637 (mW/cm^2) This equates to:0.466369505 W/m^2 2 4R PG S  

Nemko Test Report: 1026888RUS1 Applicant: TableTop Media 12404 Park Central Dallas, TX 75251 USA Equipment Under Test: Ziosk (E.U.T.) In Accordance With: FCC Part 15, Subpart C, 15.247 Digital Transmission System Transmitter Tested By: Nemko USA, Inc. 802 N. Kealy Lewisville, Texas 75057-3136 TESTED BY: DATE: 29 April 2011 David Light, Senior Wireless Engineer APPROVED BY: DATE: 26 May 2011 Tom Tidwell, Director Nemko Direct for Telecom Number of Pages: 55 Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 2 of 55 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. EQUIPMENT UNDER TEST (E.U.T.) 5 SECTION 3. OCCUPIED BANDWIDTH 7 SECTION 4. MAXIMUM PEAK OUTPUT POWER 17 SECTION 5 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 19 SECTION 6. RADIATED EMISSIONS 32 SECTION 7. PEAK POWER SPECTRAL DENSITY 34 SECTION 8. TEST EQUIPMENT LIST 44 ANNEX A - TEST DETAILS 45 ANNEX B - TEST DIAGRAMS 53 Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 3 of 55 Section 1. Summary of Test Results Manufacturer: TableTop Media Model No.: Ziosk Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.247 for Digital Transmission Systems. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety, for use by the company’s employees only. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 4 of 55 Summary Of Test Data NAME OF TEST PARA. NO. RESULT Powerline Conducted Emissions 15.207(a) NA Minimum 6 dB Bandwidth 15.247(a)(2) Complies Maximum Peak Power Output 15.247(b)(3) Complies Spurious Emissions (Antenna Conducted) 15.247(d) Complies Spurious Emissions (Restricted Bands) 15.247(d)/15.209(a) Complies Peak Power Spectral Density 15.247(e) Complies Footnotes: The device is battery powered. Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 5 of 55 Section 2. Equipment Under Test (E.U.T.) General Equipment Information Frequency Band (MHz): 902-928 2400-2483.5 5725-5850 Operating Frequency of Test Sample: 2412 to 2462 MHz Input Power: 7.4 Vdc lithium battery User Frequency Adjustment: Software controlled Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 6 of 55 Description of EUT The Ziosk is a wireless, battery operated touch screen device with a 7" LCD display, used for pay-at-the-table applications in casual dining restaurants. The device can display menu items, specials, entertainment and local area information; it can also process credit card payments and print receipts. System Diagram Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 7 of 55 Section 3. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 15.247(a)(2) TESTED BY: David Light DATE: 28 April 2011 Test Results: Complies. Measurement Data: See 6 dB BW plot Measured 6 dB bandwidth: 802.11b 10.9 MHz 802.11g 16.4 MHz 802.11n 17.6 MHz Test Conditions: 48 %RH 23 °C Measurement Uncertainty: +/-1x10 -7 ppm Test Equipment Used: 1767-1482-1472 Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 8 of 55 Test Data – Occupied Bandwidth- 802.11b Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 9 of 55 Test Data – Occupied Bandwidth – 802.11b Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 10 of 55 Test Data – Occupied Bandwidth – 802.11b Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 11 of 55 Test Data – Occupied Bandwidth – 802.11g Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 12 of 55 Test Data – Occupied Bandwidth – 802.11g Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 13 of 55 Test Data – Occupied Bandwidth – 802.11g Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 14 of 55 Test Data – Occupied Bandwidth – 802.11n Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 15 of 55 Test Data – Occupied Bandwidth – 802.11n Nemko USA, Inc. FCC PART 15, SUBPART C Digital Transmission Systems EQUIPMENT: Ziosk Test Report No.: 1026888RUS1 Page 16 of 55 Test Data – Occupied Bandwidth – 802.11n Nemko USA, Inc. FCC…
