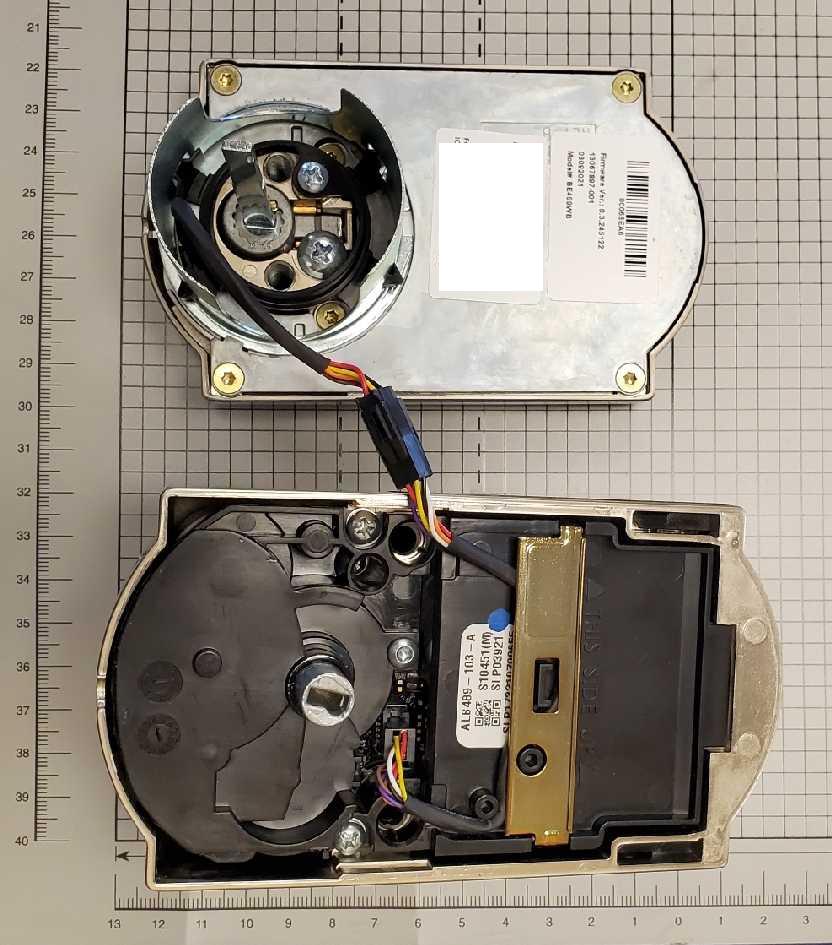

XPB-JACKALOPEElectronic Deadbolt

Backup Key Touchscreen Assembly Battery Cover Inside Assembly Backplate Bolt Reinforcement Screws Inside Assembly Screws Backplate Screws Bolt/Strike Screws Parts Strike and Reinforcement Plate Reinforcement Strike OR Visit alle.co/encodeplus for an improved installation experience. Access online interactive instructions, warranty, and reference information. Start here! alle.co/encodeplus Communication Icon •Flashes when lock is connecting to WiFi to check for updates. Low Battery Icon •Flashes after code is entered when battery is low. •Solid when battery is critical. The lock will not work without new batteries. Programming and Input LED •Amber when using manual programming mode. Home Button and Checkmark Icon •Turns on keypad backlight. •Checkmark flashes when code entry is correct. •Checkmark flashes when manual programming is successful. Lock Button and “X” Icon •Locks the lock. •“X” flashes for a wrong user code. Touchscreen 1 step Remove existing lock. Remove the entire deadbolt, including the bolt. You may also want to remove the strike. A standard Schlage deadbolt is shown. Check with your specific deadbolt manufacturer if you need help. Tools Don’t use a power drill! Phillips screwdriver 1 2 3 4 5 Need Help? Visit alle.co/encodeplus 2 step Actual Size Make sure the word “TOP” is facing up. Install the bolt. You may have to adjust your bolt length. Make sure the slot in the bolt is centered in the hole. Slot is centered in the hole. No change needed. Twist the faceplate to extend. Keep twisting until 2 ¾”. 3 step Need Help? Trouble installing the strike reinforcer? Visit alle.co/encodeplus Install the strike into the door frame. Actual Size Actual Size Install this strike reinforcer for enhanced security. Reinforcement strike. Optional If you have a window next to your door, you may not be able to use the longer wood screws to install the strike. Do not reuse existing strike for proper operation. OR 4 step Install the touchscreen. Route the cable through the door BELOW the bolt. Align the tailpiece as shown and push the touchscreen onto the door. Is it hard to install the touchscreen? Is the tailpiece not installing correctly? If your through hole seems too small, you may need to remove the spacer. Visit alle.co/encodeplus. The bump on the tailpiece aligns with the slot in the bolt. 5 step Install the backplate. Route the cable under the bolt and through the hole on the bottom of the backplate. Secure the backplate with screws. Make sure the outside touchscreen is straight before tightening screws all the way. Don’t use a power drill! You may damage your lock! Phillips screwdriver 1 2 3 4 5 6 step Connect the cable. Tuck the cable and connector in the space above the spindle. Secure the lock to the door. 7 step The bump on the tailpiece aligns with the slot in the back of the inside assembly. If the bump on the tailpiece doesn’t align with the slot in the back of the inside assembly, make sure your thumbturn is vertical (up and down). Don’t use a power drill! You may damage your lock! Phillips screwdriver 1 2 3 4 5 Install batteries and slide the cover on. 8 step Pull out battery holder. Install batteries. Reinstall battery holder. Turn the battery holder around so the batteries face the door. Set up your lock. Final test! 1. Open your door! 2. Enter one of the two default user codes. 3. Your lock will enter a setup routine. When the bolt stops moving, setup is complete. 1. Close your door. 2. Extend and retract the bolt using the inside thumbturn. 3. Make sure the bolt retracts smoothly. 4. Open your door. 5. Extend the bolt using the inside thumbturn. 6. Now enter a user code at the touchscreen. 9 step If the bolt doesn’t extend or retract during testing,visit alle.co/ encodeplus. Need Help? That wasn’t so bad, was it? Your lock is now installed! Remember, you still have to set up your lock to use it. Now that your lock is installed you can use the Schlage Home app to lock and unlock your door from anywhere and add codes for guests and household members. Or set it up using the Apple Home app For iPhone XS and newer, simply press the button on the lock, then tap your phone to the label. For older models, turn the page. 12 1 2 Press the button on your lock Remove battery cover and press the button. Your lock will be in pairing mode for 5 minutes. Open the Apple Home app Press “+” and Add Accessory. Follow directions on your phone. Older than iPhone XS Note: Your lock must be fully installed on door with batteries before pairing with an app. Tap your iPhone to the HomeKit label Tap the top of your phone to the label. Follow directions on your phone. OR For iPhone 7 - iPhone X Scan the label Scan the HomeKit QR code label on the back of this Quick Start guide. For older than iPhone 7 or iPad © Allegion 2021 Printed in U.S.A. 47360452 Rev. 01/21-a  47360452 PLACE LABEL HERE These are your backup codes. You will need these codes if you ever factory default reset your lock. Keep these safe! Questions about your new BE499 Deadbolt? Please don’t r eturn it to the store! alle.co/encode 1234 5678 1234 5678 1234 5678 Lorem ipsum Lock and unlock To lock your door just tap the lock icon. You can also lock your door from inside by turning the thumbturn toward the door edge. To unlock your door enter a user code. Once paired with a smart home system, the default codes will not work. You can also unlock your door from inside by turning the thumbturn away from the door edge. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Apple, App Store, Apple Home, iPhone, iPad, Apple Watch, HomePod, Mac, and Siri are trademarks of Apple Inc. registered in the U.S. and other countries. Google Play and the Google Play lo…

Text truncated - open the document above for the full version.

FCC/IC Statement © Allegion 2020 Schlage FCC/IC Supplement Rev. 06/21-c FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Exposure To comply with FCC/IC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20 cm separation distance between the antenna and all persons. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device. Conformément aux normes d’Industrie Canada, ce transmetteur radio ne peut fonctionner qu’avec une antenne dont le type et le gain maxiumum sont approuvés par Industrie Canada. Pour réduire les risques d’inteférences radio encourus par d’autres utilisateurs, le type et le gain de l’antenne doivent être choisis de façon à ce que la puissance rayonnée isotrope équivalente (PIRE) ne soit pas supérieure à celle nécessaire pour établir une bonne communication. Cet appareil est conforme norme Industrie Canada RSS exempts de licence (s). Son fonctionnement est soumis aux deux conditions suivantes: 1) cet appareil ne doit pas provoquer d’interférences, et 2) cet appareil doit accepter toute interférence, y compris les interférences pouvant provoquer un fonctionnement indésirable de l’appareil. For Encode Plus models Radiation Exposure Statement Radiation Exposure Statement: This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Declaración de FCC/Interferencia Declaración de interferencia de la FCC Este equipo ha sido evaluado, y se determinó que cumple con los límites para los dispositivos digitales de clase B, de conformidad con la Sección 15 de las Normas de la FCC. Estos límites están diseñados para brindar una protección razonable contra interferencia dañina en una instalación residencial. Este equipo genera, usa y puede radiar energía de radiofrecuencia y, si no se instala y utiliza siguiendo las instrucciones, puede causar interferencia dañina en las comunicaciones por radio. Sin embargo, no puede garantizarse que no se producirá una interferencia en una instalación específica. Si este equipo causa interferencia dañina en la recepción de radio o televisión, que puede determinarse al encender y apagar el equipo, el usuario deberá intentar corregir la interferencia mediante una de las siguientes medidas: - Reorientar o reubicar la antena receptora. - Separar más el equipo del receptor. - Conectar el equipo en una toma de un circuito diferente del que está conectado el receptor. - Consultar al distribuidor o a un técnico que tenga experiencia en radio/TV para obtener ayuda. Este dispositivo cumple con la Sección 15 de las Normas de la FCC. Su funcionamiento está sujeto a las siguientes dos condiciones: 1. Este dispositivo no debe causar una interferencia dañina. 2. Este dispositivo debe aceptar cualquier interferencia que se reciba, incluida la interferencia que pueda ocasionar un funcionamiento no deseado. Cualquier cambio o modificación que no haya sido expresamente aprobado por la parte responsable del cumplimiento puede anular la autoridad del usuario para operar este equipo. Exposición a radiofrecuencia Para cumplir con los requisitos de exposición a radiofrecuencia de la FCC/IC para los dispositivos móviles de transmisión, este transmisor se debe utilizar o instalar solament…

Text truncated - open the document above for the full version.

Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Dr., Brighton, Michigan 48116 USA Tel: (734) 252-9785, Fax: (734) 926-9785, e-mail: [email protected] Re: Certification for Allegion, PLC FCC ID: XPB-JACKALOPE IC: 8053B-JACKALOPE REQUEST FOR CONFIDENTIALITY Pursuant to USA FCC 47 CFR 0.457(d) and 0.459 and Canada IC RSP-100, Section 10, Allegion, PLC requests that a part of the subject application be held confidential. Allegion, PLC has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to ”competition” would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. ExhibitConf. TypeRational Exh 04 - Block DiagramPermanentIncludes proprietary internal oscillator frequency information. Exh 05 - SchematicsPermanentIncludes proprietary design information Exh 10 - BOM + PlacementPermanentIncludes proprietary design information Long Term Confidentiality (Permanent):Allegion, PLC requests that any exhibits listed above as permanently confidential be permanently withheld from public review. Wherein Long Term Confidentiality is not an option for specific exhibits with ISED, this request applies only to the FCC application for those exhibits. Short-Term Confidentiality (FCC Only):Allegion, PLC requests that any exhibits selected above as short term confidential be withheld from public view for a period of days (noted above) from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run (WR) Test Labs, Inc.

Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Dr., Brighton, Michigan 48116 USA Tel: (734) 252-9785, Fax: (734) 926-9785, e-mail: [email protected] Attn.:Certification and Engineering Bureau, Innovation, Science and Economic Development Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Allegion, PLC BE499WB IC: 8053B-JACKALOPE If necessary, we have enclosed application materials for certification of Allegion, PLC BE499WB. It has been verified to comply with IC RSS-247/GENe. Current Variants: There is only a single version of the EUT. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run (WR) Test Labs, Inc. 11 Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Dr., Brighton, Michigan 48116 USA Tel: (734) 252-9785, Fax: (734) 926-9785, e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Allegion, PLC BE499WB FCC ID: XPB-JACKALOPE If necessary, we have enclosed application materials for certification of Allegion, PLC BE499WB. It has been verified to comply with CFR Title 47, Part 15.247. Current Variants: There is only a single version of the EUT. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run (WR) Test Labs, Inc. 10

Title Number Revision Created By Creation Date EC Number Revision Description: Schlage Lock Company Copyright © 2021 Material Edited ByApproved ByRelease Date Revision History A BCDEF Notes Software: Illustrator CC Activity 3899 Hancock Expwy Security, CO 80911 086711090996EC #EC #EC #EC # See material on drawing 23539778 B> Updated FCC and IC identiers ECN-090996 07-16-21 D Salvetti J Kauman Label, BE499 Outside FCC Info D Salvetti 08-15-20 47314955 B = Die Line 1. Tolerance: ±0.03 2. Style: Pressure Sensitive 3. Finshed Label Size: 1.00” H x 1.50” W Printing: Thermal Transfer Actual Size: 1.50” x 1.00” • Font used is Myriad Pro - Regular 7 pt Bold 5 pt Semibold 4 pt Regular 5 pt Semibold Shown at 2:1 scale Schlage Lock Company Model # BE499WB FCC ID: XPB-JACKALOPE IC: 8053B-JACKALOPE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept and interference received, including interference that may cause undesired operation. R-NZ Only Contains FCC ID: QOQMGM12P3 Contains IC: 5123A-MGM12P3 Schlage Lock Company Model # BE499WB FCC ID: XPB-JACKALOPE IC: 8053B-JACKALOPE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept and interference received, including interference that may cause undesired operation. R-NZ Only Contains FCC ID: QOQMGM12P3 Contains IC: 5123A-MGM12P3 = Print Area (does not print)

commissioned to a THREAD boarder router, such as Apple’s Homepod Mini. The BLE/THREAD radio uses 1-Mbps 2GFSK modulation and 40 channels from 2400 MHz to 2483.5 MHz spaced every 2 MHz. The NFC reader is located on the outside touchpad of the lock and transmits at 13.56MHz. It operates as a near field multi-protocol NFC front-end device and is able to communicate with ISO/IEC 14443A and MIFARE cards and transponders. If enabled on the lock, users may present their NFC-enabled devices or cards to the face of the touchpad and gain entry. NFC Reader – NXP CLRC66303 (CHIP DOWN WITH COIL ANTENNA ON KEYPAD PCB) WiFi - TI CC3120 (CHIP-DOWN RADTION MODULE WITH TRACE ANTENNA - MAIN PCB) The WiFi radio is a client that normally will be connected to a home network router. If the user selects to use the WiFi in a persistent connection mode they will have real time access to the lock functionality via an internet connection. The user can also use the WiFi in Eco Mode where a network connection is only established when there is activity at the lock, and periodically when the lock will connect to the network and check the cloud for commands. The WiFi radio supports 802.11 b/g/n SISO in the following modes 802.11b (1 Mbps up to 11 Mbps), Channels 1 through 11 (USA+CAN) 802.11g (6 Mbps up to 54 Mbps), Channels 1 through 11 (USA+CAN) 802.11n (MCS0 through MCS7), Channels 1 through 11 (USA+CAN) Operational Description This wireless electronic door lock contains the following radio components. BLE/THREAD – Silicon Labs MGM12P32F1024GA (PRE-CERTIFIED MODULE - MAIN PCB) The BLE radio is the peripheral and is normally in advertising mode. The user can make a connection to the BLE radio with a third-party device, such as a mobile phone. While connected the user can access the lock functionality. In most use cases the BLE radio is used to commission the lock to WiFi network. The user also has the option to use BLE only mode where the lock functionality is accessed via a BLE connection. THREAD protocol is used when the lock is

Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Drive Brighton, MI 48116 Phone: (734) 252-9785,e-mail:[email protected] RF EXPOSURE CALCULATIONS Requirement: According to USA CFR 15 §1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures thepublic is not exposed to radio frequency energy level in excess of the Commission’s guidelines. For Canada, RSS-102 sets out the requirements and measurement techniques used to evaluate radio frequency (RF) exposure compliance of radiocommunication apparatus designed to be used within the vicinity of the human body. Maximum Permissible Exposure Calculations: Summary: The EUT with all transmitters is compliant with both the FCC power density limit and the ISED ExposureEvaluation limits. USA REF: 1.1310, 2.1091/1093, 447498 D01 General RF Exposure Guidance v06 Test Date: 13-Jul-21 IC REF: RSS-102 Issue 5, Safety Code 6 Test Engineer: Min. Sep. Distance: 20 cm (Mobile) EUT: EUT Mode: Worst Case Meas. Distance: 3 meters Canada ISED RSS-102 MPEUSA FCC 1.1310 MPE ModeFreq.Worst Case E3(Avg)*E20cm(Avg)H20cm(Avg)SC6 Limit (E20cm)SC6 Limit (H20cm)Worst Case MPE RatioE20cm Limit***H20cm Limit***Worst Case MPE Ratio MHz LF Entry13.56000 69.2116.264.9148.897.20.0006 175.8124.20.0000 ModeFreq.Worst Case EIRP(Avg)**E20cm(Avg)S20cm(Avg)****SC6 Limit (S20cm)MPE RatioS LimitMPE Ratio MHz 2400-2483.5 18.6137.35510.0145 5.47 0.0027 1.00000 0.0145 WLAN2400-2483.5 20.4139.12180.0218 5.47 0.0040 1.00000 0.0218 MPE Total (<1): .003 MPE Total (<1): .015 Complies? Yes Complies? Yes *As Measured / Computed from highest fundamental emission, see fundamental emission section of the NFC report. **EIRP, as computed from either measured data reported in this application or the Modular Device RF Exposure Exhibits. Joseph Brunett Allegion BE499WB dBuV/mdBuV/mdBuA/mdBuV/mdBuA/mdBuV/mdBuA/m dBmdBuV/mmW/cm2mW/cm2mW/cm2 ZigBee/BLE (module) *** For FCC MPE,use of 300 kHz limit at 125 kHz as previously allowed by FCC. **** EIRP (mW) = S (mW/cm^2) x 4 x PI x 20cm^2
