XPF-REG05-UTTWireless Router

DATA SHEET 1 www.uttglobal.com AC750GW750Mbps Dual-band Business Wi-Fi Gigabit Router Highlights -802.11ac/a/b/g/n, 750Mbps Wireless Speed, dual band (2.4GHz and 5GHz) -3 x 7dBi fixed antennas, 100 Meters Wireless Coverage -Local&Remote User Authentication -Business WiFi System: Facebook/SMS/WeChat Authentication -Flexible bandwidth management to improve network performance -IPSec/PPTP VPN -Extremely friendly and straightforward Web UI Overview AC750GW Dual-band Business Wi-Fi Gigabit Router is a purpose-built solution designed for SOHO enterprises, offices, restaurants and coffee shops. AC750GW adopts 580MHz CPU and equips 3 fixed 7dBi omni-antennas. It supports 802.11ac WiFi standard and is compatible with 802.11a/b/g/n. Moreover, it works on 2.4GHz band and 5 GHz band, minimizing interference among wireless networks. It supports MIMO technology, which enables its wireless transmission rate up to 750Mbps. With a self-developed operating system, AC750GW supports CCA, extended for clear channel assessment, which can automatically adjust channels to avoid signal interference. It supports WDS to extend the coverage of wireless network. It supports smart QoS, which automatically allocates reasonable bandwidth forwireless stations, making sure users can download movies and play video games at the same time. It also supports files sharing by one USB port. AC750GW also offers an interface with Business WiFi System, which can be configured online and offer a user-defined captive portal when WiFi users joining the WLANs. Features Wireless Speed The maximum wireless transmission speed can be up to 750 Mbps. Large-scale of wireless coverage and steady wireless data transmission will DATA SHEET 2 www.uttglobal.com meet user’s high bandwidth demands for HDTV, streaming media, games, video chat, wireless monitoring and high-speed data transmission. Compatibility Support IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. The multi-protocol compatibility promotes the capability for connecting to other wireless products. Wireless Mode Offer multiple wireless operating modes: AP, Wireless Repeater, Bridge and AP Client, which can meet the demands of different network to expand the wireless network to a certain extent. Business WiFi System Offers an interface with Business WiFi System. Business WiFi System can be configured online and offers user-defined landing page for WLANs. Facebook, SMS, WeChat Authentication are available to configure. It also offersstatistics to monitor WiFi user’s behaviors. Wireless Security Offer multiple wireless securities: WEP, WPA-Enterprise, WPA2-Enterprise, WPA-PSK and WPA2-PSK. Wireless MAC address filtering provides customers with comprehensive protection for wireless transmission to keep your network far away from intrusions and attacks. Flexible Bandwidth This very unique function named Flexible Bandwidth will largely optimize the bandwidth utilization. And it only needs 2 steps: enable this function and set the bandwidth for each Internet connection. Flexible Bandwidth will guarantee the webpage browse and essential network applications. 1. Adjust the bandwidth for users and applications flexibly, improve the real-time network performance, and recognize different application accurately. 2. Supports priority queues to ensure smooth transmission of applications which require large bandwidth. 3. Improved network performance will solve network congestion and unreasonable bandwidth allocation. Reasonable network traffic distribution, optimized bandwidth utilization, stable, fast, safe and efficient network environment Internet Access Control Provide personalized Internet access control, which can meet all the needs of users. Each host can take a different access policy, including blocking IM software (Yahoo messenger, MSN etc.), blocking P2P software (Bit commit, Bit torrent, etc.), blocking online games (WOW.), blocking Face book and Twitter, blocking online videos (YouTube) and other abundant functions. Support Domain name Filtering. Users can either block websites or only allow websites. Domain name filtering will make the network management easy and convenient. Support IP/MAC address binding, invalid IP address or MAC address filtering and DATA SHEET 3 www.uttglobal.com easy blacklist and Whitelist setting. It supports binding all the dynamic IP/MAC entries with only one-click operation. VPN Support various VPN functions such as IPSec and PPTP, which can be used alone or combined; Support dynamic IP address VPN connections; Support Site-to-site VPN, remote access VPN (client-to-site and mobile user); PPT/IPSec VPN can be set up to 8 tunnels. Configuration and Management Offer user-friendly Web interface which delivers an easy-to-use platform with rich functions. It supports easy management, which will guide users to finish the initial configuration one step by one step automatically. Even users without network knowledge can get connected to Internet easily. Offer System Status, Wireless Host List and Flow Statistics, which deliver a convenient platform to trap and remove network faults. Key Features ◆Support static IP, DHCP and PPPoE connection ◆Support DSL, FTTX+LAN and Cable Modem Internet access ◆3 10M/100M/1000M LAN ports, 2 10M/100M/1000M WAN ports ◆1 USB 2.0 port, 1 TF port to share files ◆Three 7 dBi Antennas support MIMO ◆Support IEEE 802.11ac, IEEE 802.11a,IEEE 802.11b, IEEE 802.11g and IEEE 802.11n wireless speed up to 750Mbps ◆Work on 2.4GHz band and 5GHz band ◆Support multiple wireless operating modes:Access Point, Wireless Repeater, Bridge and AP Client ◆Support channel 1-11, 149,153, 157, 161,165 ◆WEP, WPA-Enterprise, WPA2-Enterprise, WPA-PSK and WPA2-PSK ◆Support SSID Broadcast Control and hiding ◆Support WMM (Wi-Fi Multimedia, Wireless Multimedia) function ◆Wireless MAC address filter, Whitelist, blacklist, one-click filtering of wireless address ◆Support NAT, NAPT,DMZ ◆Support DDNS(No-IP,DYNDNS) ◆Support UPnP ◆Support DHCP Server, D…

Text truncated - open the document above for the full version.

Test Reports Electrical Properties Frequency 2.4~2.5GHz Impedance 50 0hm Nominal V.S.W.R ≤1.92 Return Loss -10 dB Max Radiation Omni-directional Gain (Peak) 7 dBi Polarization Linear, Vertical Admitted Power 2 W Connector SMA Physical Properties Antenna Material ABS/PBT/POM Antenna Color . Black Cable Type RG-178 Transparency Brown 50Ω Operating Temp -10 ~ +60 ̊C Storage Temp -20 ~ +80 ̊C

RF_160, Issue 03 Declaration of Authorization We Name: < Shanghai UTT Technologies Co., Ltd > Address: Room 301, Building 9, No.518 Xinzhuan Road, Caohejing Songjiang Hi-Tech Park, Shanghai, P. R. China City: Shanghai. Country: China Declare that: Name Representative of agent: Lily Wan Agent Company name: Compliance Certification Services（Kunshan）Inc. Address: No. 10, Weiye Rd, Innovation Park, Eco&Tec Development Zone, Kunshan, Jiangsu, China 215300 City: Kunshan Country: China is authorized to apply for Certification of the following product(s): Product description: AC750WG is an Enterprise-lever Dual-band Wireless Router，it works on 2.4GHz band and 5 GHz band，and supports MIMO technology, which enables its wireless transmission rate up to 750Mbps Type designation: AC750WG Serial model: AC751GW Trademark: on our behalf. Date: March 18, 2015 City: Shang hai Name: wangcheng.Fan Function: Marketing manager Signature: Notes: (1): Required for FCC application RF_160, Issue 03 (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

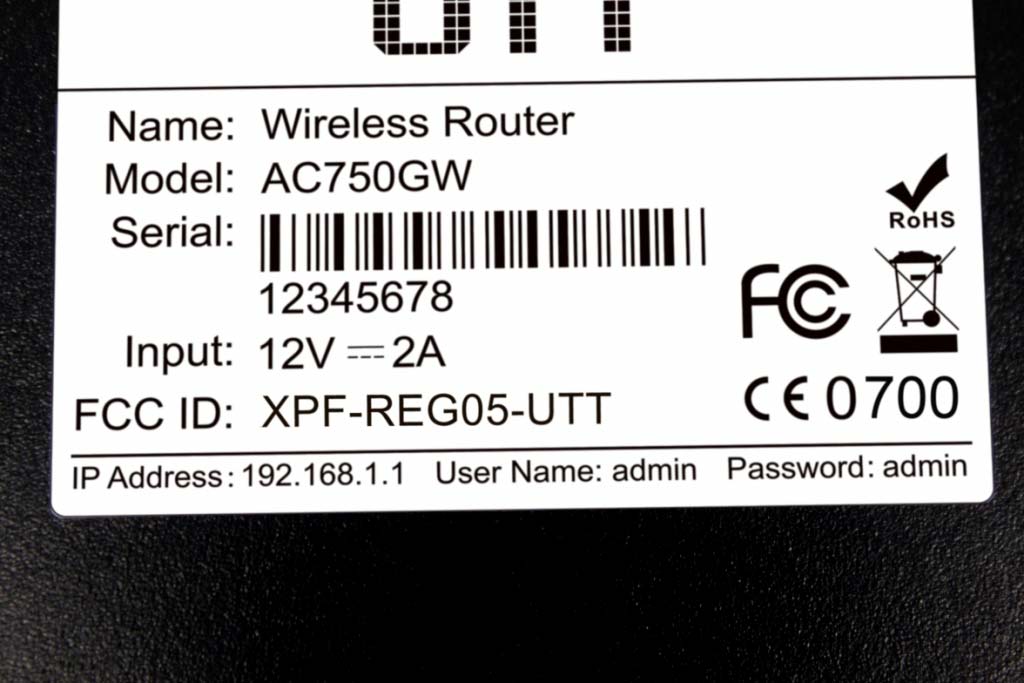

DECLARATION OF CONFORMITY (DoC) Equipment: Wireless Router Trademark(s) and Model(s):UTT and AC750GW, AC751GW Manufacturer: Shanghai UTT Technologies Co., Ltd FCC ID in case other parts of this equipment are subject to certification: XPF-REG05-UTT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:Issue date: T150205L24-EFFebruary 6,2015 Company name: Shanghai UTT Technologies Co., Ltd Name/Title (legal representative): Wangcheng.Fan / Product manager Address: Room 301, Building 9, No.518 Xinzhuan Road, Caohejing Songjiang Hi-Tech Park, Shanghai, P. R. China Phone: 021-67766500 Fax: 021-67766518 E-mail: [email protected] Date: March 18, 2015 Signature:

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Shanghai UTT Technologies Co., Ltd Address : Room 301, Building 9, No.518 Xinzhuan Road, Caohejing Songjiang Hi-Tech Park, Shanghai, P. R. China City: Shanghai Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: XPF-REG05-UTT Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2014-07-11 Name and signature of applicant: Wangcheng.fan Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March19,2015 Report No: C150127R02-RPW Page 1 of 7 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March19,2015 Report No: C150127R02-RPW Page 2 of 7 Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March19,2015 Report No: C150127R02-RPW Page 3 of 7 Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March19,2015 Report No: C150127R02-RPW Page 4 of 7 Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March19,2015 Report No: C150127R02-RPW Page 5 of 7 Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March19,2015 Report No: C150127R02-RPW Page 6 of 7 Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March19,2015 Report No: C150127R02-RPW Page 7 of 7

Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March 10,2015 Report No: C150127R02-RPW Page 1 of 7 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March 10,2015 Report No: C150127R02-RPW Page 2 of 7 Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March 10,2015 Report No: C150127R02-RPW Page 3 of 7 Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March 10,2015 Report No: C150127R02-RPW Page 4 of 7 Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March 10,2015 Report No: C150127R02-RPW Page 5 of 7 Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March 10,2015 Report No: C150127R02-RPW Page 6 of 7 Compliance Certification Services Inc. FCC ID: XPF-REG05-UTT Date of Issue :March 10,2015 Report No: C150127R02-RPW Page 7 of 7

Compliance Certification Services Inc. Report No: C150127R02-RPB FCC ID: XPF-REG05-UTTDate of Issue : March 11, 2015 Page 1 / 3 RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i) and §15.407(f), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b) of this chapter. EUT Specification EUT AC750GW Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.15GHz ~ 5.25GHz WLAN: 5.25GHz ~ 5.35GHz WLAN: 5.47GHz ~ 5.725GHz WLAN: 5.725GHz ~ 5.85GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 2.412-2.462GHz IEEE 802.11b mode: 21.79 dBm IEEE 802.11g mode: 22.46 dBm draft 802.11n Standard-20 MHz Channel mode: 23.12 dBm draft 802.11n Wide-40 MHz Channel mode: 20.19 dBm IEEE 802.11a mode: 21.56 dBm draft 802.11an 20 MHz Channel mode:21.96dBm draft 802.11an 40 MHz Channel mode: 21.45 dBm draft 802.11ac 20 MHz Channel mode:20.66 dBm draft 802.11ac 40 MHz Channel mode: 21.06 dBm draft 802.11ac 80 MHz Channel mode: 18.65 dBm Antenna gain (Max) Dipole antennas for 2.4GHz Gain 7 dBi and Dipole antennas for 5 GHz Gain 7 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 23.12dBm (205.1mW) at 2462MHz (with 5.012 numeric antenna gain.); 21.96dBm (157.0mW) at 5745MHz (with 5.012 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. 4. All three antennas are completely uncorrelated with each other. Compliance Certification Services Inc. Report No: C150127R02-RPB FCC ID: XPF-REG05-UTTDate of Issue : March 11, 2015 Page 2 / 3 TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No: C150127R02-RPB FCC ID: XPF-REG05-UTTDate of Issue : March 11, 2015 Page 3 / 3 Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 21.79 7.0 20 0.1506 1 802.11g 22.46 7.0 20 0.1757 1 802.11 n(20MHz) 23.12 7.0 20 0.2046 1 802.11 n(40MHz) 2412-2462 20.19 7.0 20 0.1042 1 802.11a 21.56 7.0 20 0.1428 1 802.11 an(20MHz) 21.96 7.0 20 0.1566 1 802.11 an(40MHz) 21.45 7.0 20 0.1393 1 802.11 ac(20MHz) 20.66 7.0 20 0.1161 1 802.11 ac(40MHz) 21.06 7.0 20 0.1273 1 802.11 ac(80MHz) 5725-5850 18.65 7.0 20 0.0731 1 Note: Both of the WLAN 2.4G&5.0G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density WLAN 2.4G+ WLAN 5G=0.2046+0.1566=0.3612 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No: C150127R02-RPW FCC ID: XPF-REG05-UTTDate of Issue :March 10, 2015 Page 1 of 108 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C TEST REPORT For Product Name: Wireless Router Brand Name: UTT Model No.: AC750GW Series Model: AC751GW FCC ID: XPF-REG05-UTT Test Report Number: C150127R02-RPW Issued for Shanghai UTT Technologies Co.,Ltd Room 301,No.9 Building,No.518,Xinzhuan Rd,Songjiang District,Shanghai,China Issued by Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No: C150127R02-RPW FCC ID: XPF-REG05-UTTDate of Issue :March 10, 2015 Page 2 of 108 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................ 3 2. EUT DESCRIPTION.................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................ 5 3.1. EUT CONFIGURATION............................................................................................................ 5 3.2. EUT EXERCISE....................................................................................................................... 5 3.3. GENERAL TEST PROCEDURES................................................................................................. 5 3.4. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................ 6 3.5. DESCRIPTION OF TEST MODES................................................................................................ 7 3.6. ANTENNA DESCRIPTION....................................................................................................... 8 4. INSTRUMENT CALIBRATION ................................................................................ 8 4.1. MEASURING INSTRUMENT CALIBRATION.......................................................................... 8 5. FACILITIES AND ACCREDITATIONS ................................................................ 10 5.1. FACILITIES.......................................................................................................................... 10 5.2. EQUIPMENT......................................................................................................................... 10 5.3. LABORATORY ACCREDITATIONS AND LISTING.................................................................... 10 5.4. TABLE OF ACCREDITATIONS AND LISTINGS......................................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................... 12 6.1. SETUP CONFIGURATION OF EUT........................................................................................... 12 6.2. SUPPORT EQUIPMENT.................................................................................................. 12 4. FCC PART 15.247 REQUIREMENTS..................................................................... 13 4.1. 6DB BANDWIDTH................................................................................................................ 13 4.2. PEAK POWER....................................................................................................................... 27 4.3. PEAK POWER SPECTRAL DENSITY........................................................................................ 29 4.4. SPURIOUS EMISSIONS ................................................................................................... 43 4.5. RADIATED EMISSIONS................................................................................................. 88 4.6. POWERLINE CONDUCTED EMISSIONS................................................................................. 106 Compliance Certification Services Inc. Report No: C150127R02-RPW FCC ID: XPF-REG05-UTTDate of Issue :March 10, 2015 Page 3 of 108 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product Name: Wireless Router Trade Name: UTT Model Name.: AC750GW Series Model: AC751GW Applicant Discrepancy: Initial Device Category: Mobile Device Date of Test: January 28,2014 ~ March 2, 2015 Applicant: Shanghai UTT Technologies Co.,Ltd Room 301,No.9 Building,No.518,Xinzhuan Rd,Songjiang District,Shanghai,China Manufacturer: Shanghai UTT Technologies Co.,Ltd Room 301,No.9 Building,No.518,Xinzhuan Rd,Songjiang District,Shanghai,China Application Type: Certification APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identifi…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: C150127R02-RPW FCC ID: XPF-REG05-UTTDate of Issue :March 10, 2015 Page 1 / 2 TEST SETUP PHOTOGRAPHS OF EUT RADIATED Compliance Certification Services Inc. Report No: C150127R02-RPW FCC ID: XPF-REG05-UTTDate of Issue :March 2, 2015 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. CONDUCTIED
