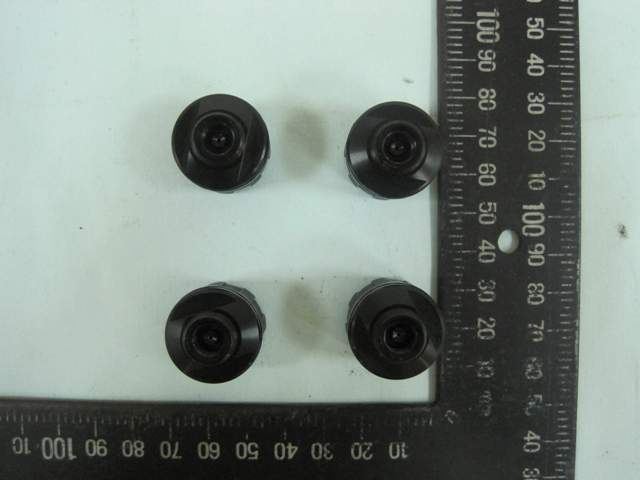

XPQ-ADST001-TTire Pressure Monitoring System

1. Open the battery cap and insert battery. Then, close the battery cap. 2. Repeat the first step to complete 4 transmitters battery installation Install transmitters by 1: Front-Left tire. 2: Front-Right tire. 3: Rear-Left tire. 4: Rear-Right tire. APTOS DESIGN LAB TPMS External Tire Pressure Monitoring System ADST002-R/ADST001-T TPMS is composed of one receiver and 4 transmitters. Receiver receives information from transmitters and update status to user. Transmitters integrated with sensors measure tire pressure, temperature, and so on in real-time. Transmitters also transfer the information through the 434MHz ISM band to the receiver Description ► 433.92 MHz ISM band wireless communication. ► Real-Time pressure and temperature measurement. ► Real-Time update in the Receiver. ► Abnormal alarm to users. ► Voice reminder as well as LED indicators. ► Fully integrated car charger power I/F Feature Specification Safety Precautions Product Overview Getting Started TransmitterReceiver Operating Temperature Storage Temperture Humidity Carrier Frequency Pressure Range Temperature Range Temperature Accuracy Sampling Rate Data Transfer Rate Power Power Comsuption Battery Life Weight Dimension LED Pressure Indicator LED Status Indicator Speech I/F Centric Frequency Storage Temperature Operating Temperature Power Dimension -30°C ~ +85°C -30°C ~ +85°C 95% 433.92 MHz 100 ~ 900 Kpa -30°C ~ +125°C 3°C 4 s 30 s 3.0 V Lithium Max 13.5mA 1.5 years 14 g 22.5x22.5x25 (mm) Red - Low Pressure Indicator Blue - RX Indicator Preload Coices for Pressure Information 433.92 MHz -30°C ~ +85°C -30°C ~ +85°C 12V DC 74x30x22 (mm) Transmitter Setup Light Truck/LSUV/Sedan Speaker Low Pressure Indicator(Red) Status Indicator(Blue) Angle Adjustment Extra Car Lighter Power Plug Reset Button Receiver Transmitter Number for Tire Setup Battery Cap Jack for Air Gate Receiver First Time Usage 1. Please follow the step of transmitter setup to install 4 transmitter batteries. While installation is completed, please keep transmitters close to the receiver. 2. Please follow the step of receiver setup to power on Receiver. 3. After powering on the receiver and 4 transmitters, the receiver will automatically search 4 transmitters. (Each transmitter is given a unique ID.) 4. If transmitter is searched, the corresponding LEDs will be turned on. 5. While 4 transmitters are recognized, the receiver will turn on all LEDs, including 4 RED LED for each transmitter alarm as well as 1 BLUE LED for receiving indication. 6. Install transmitters to each tire by following the step of transmitter setup. Then, remove the receiver from car lighter hole and re-plug in the receiver to the car lighter hole to reset the receiver. After plug in the car lighter, the receiver automatically start gathering the information from four transmitters. Plug the receiver into car lighter. Lighter Jack TPMS Usage 1. Please follow the step of thansmitter setup to install the four tansmitter on the tire. 2. No need to remove the transmitters if there is no abrupt situation. Note: Please take off the battery while tansmitter is removed from tire. Or, the tansmitter would keep consuming the power from battery. Transmitter Power On Receiver Normal Situation Abnormal Situation 1. Power on the receiver by the step of transmitter setup. Then 4 RED LED will be blinking for a while. 2. While the 4 RED LED is turned off, the receiver starts to receive the real-time information from transmitters. 3. If there is any received information from transmitters, then the BLUE LED of the receiver is blinking. ● Light Truck/LSUV - The abnormal situation means the tire pressure is less than 48 PSI. And, RED LED on the receiver will be turned on. Meanwhile, the receiver will speak out the tire position as well as its pressure. ● Sedan - The abnormal situation means the tire pressure is less than 26 PSI. And, RED LED on the receiver will be turned on. Meanwhile, the receiver will speak out the tire position as well as its pressure. ● Light Truck/LSUV - If tire pressure is between 54 ~ 48 PSI, RED LED is blinking. ● Sedan - If tire pressure is between 30 – 26 PSI, RED LED is blinking. ● Light Truck/LSUV - The normal situation means the tire pressure is greater than 54 PSI. ● Sedan - The normal situation means the tire pressure is greater than 30 PSI. Front-Right TireFront-Left Tire Status Rear-Right TireRear-Left Tire Remove valve cap of tire Package List 1. Receiver x 1 2. Transmitter x 4 3. User manual x 1 Please follow the safety precautions carefully before you use the product. Make sure that you use the product correctly according to the procedures described in the guide. 1. Never place the product close to equipment generating strong electromagnetic fields. * Exposure to strong magnetic fields may cause malfunctions. 2. Never plug or unplug the product if your hands are wet, otherwise it will may cause electrical shock. 3. Do not drop the product to the ground to avoid malfunction. 4. Do not attempt to disassemble or alter any part of the product that is not described in this guide. 5. Do not put heavy material on the product. 6. Do not use the product in a wet location. * In the event that water or other liquids enter the interior, immediately unplug the product from the computer. * When continuing usage of the product under above situation may cause fire or electric shock. 7. Do not place the product near a heat source or expose them to direct flame or heat. 8. Do not place the product in damp or dusty places. Description Front-Left Front-Right Rear-Left Rear-Right Indication on Receiver FL FR RL RR This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, …
