XQW-TELPR6211WIRELESS SYSTEM

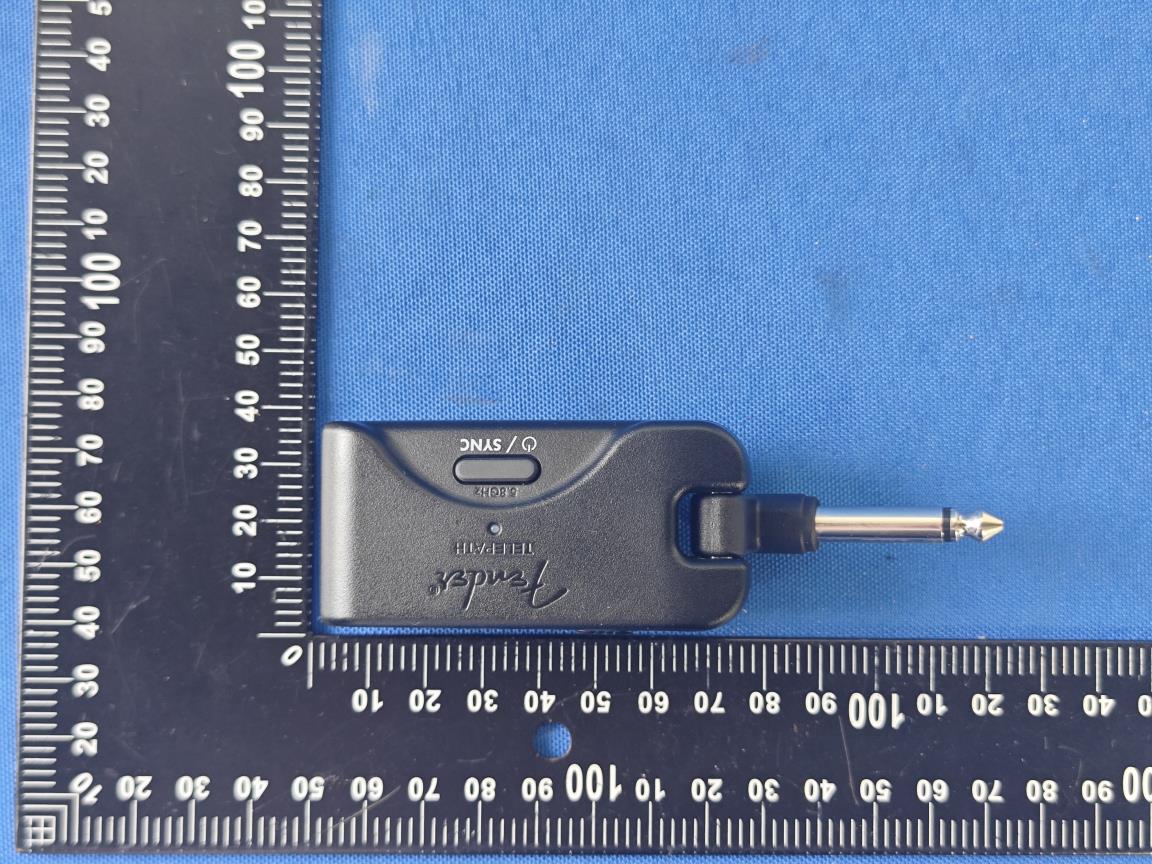

5.8Ghz Guitar Wireless System BASIC OPERATION Transmitter  USC-C charging port  Power / sync button  1/4” Input jack  Active / Passive mode switch Active mode for active guitar pickup Passive mode for Passive guitar pickup Receiver  USC-C charging port  Power / sync button  1/4” output jack Transmitter and Receiver logo 1/4” adapter USE WITH MULTIPLE INSTRUMENT TYPES Acoustic guitar, Electric guitar, Electric bass guitar. Status Led How to charging Charging time: 2.5 hours How to use 1.Turn on the Transmitter and Receiver power, hold on the Power button 3 sec. 2.Transmitter connect to Guitar 3.Receiver connect to the guitar pedal or guitar amp How to pair Hold on the Power / sync button 5sec. The Status Led will flash red and blue led. After successful pairing the Status Led will be green. 5.8Ghz Frequency Tables 1 Frequency point 5730MHZ 9 Frequency point 5789MHZ 2 Frequency point 5735MHZ 10 Frequency point 5799MHZ 3 Frequency point 5743MHZ 11 Frequency point 5804MHZ 4 Frequency point 5753MHZ 12 Frequency point 5811MHZ 5 Frequency point 5758MHZ 13 Frequency point 5820MHZ 6 Frequency point 5764MHZ 14 Frequency point 5830MHZ 7 Frequency point 5774MHZ 15 Frequency point 5836MHZ 8 Frequency point 5781MHZ 16 Frequency point 5844MHZ Specifications 5.8Ghz bandwidth 5725 - 5850MHz Working Range Up to70ft actual range; depends on RF signal absorption, reection and interference. Audio Frequency Response 20Hz – 20KHz(-2dB) Dynamic Range & Signal-To-Noise Ratio 110dB Battery Life 8 Hours RF Sensitivity -90dBm Total Harmonic Distortion <0.1%, 100mVrms 1Khz RF Output Power <25 mW E.I.R.P. max Latency Less than 5ms High Resolution audio 24-bit/48kHz Charging current and voltage 5V, 0.6A IC warning statements: -English Warning Statement: RSS-GEN ISSUE 5, 8.4 User manual notice This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B). -French Warning Statement: RSS - Gen version 5, 8.4 avis du manuel de l'utilisateur Cet appareil contient un émetteur / récepteur sans licence conforme au RSS sans licence d'innovation, science et développement économique Canada.L'opération doit satisfaire aux deux conditions suivantes: Cet équipement peut ne pas causer d'interférence. L'équipement doit accepter toute interférence, y compris toute interférence qui pourrait entraîner un fonctionnement indésirable de l'équipement. Specific Absorption Rate (SAR) information: This device meets the government's requirements for exposure to radio waves. The guide lines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. The SAR limit of ISED (Canada) is 1.6 W/kg averaged over one gram of tissue. Device types: Portable _PMN NAME_WIRELESS SYSTEM (IC: 8690A-TELPR6211) has also been tested against this SAR limit. according to this standard is less than 1.6W/kg w. Informations sur le débit d'absorption spécifique (DAS) : cet appareil est conforme aux exigences gouvernementales en matière d'exposition aux ondes radio. Les lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques indépendantes grâce à une évaluation périodique et approfondie d'études scientifiques. Les normes comprennent une marge de sécurité substantielle conçue pour assurer la sécurité de toutes les personnes, quel que soit leur âge ou leur état de santé. La limite SAR d'ISED (Canada) est de 1,6 W/kg en moyenne sur un gramme de tissu. Types d'appareil : __ Portable __PMN NAME__ WIRELESS SYSTEM __ (IC : 8690A-TELPR6211) a également été testé par rapport à cette limite SAR. selon cette norme est inférieure à 1,6 W/kg w.

Fender Musical Instruments Covered Equipment Certification Attestation Letter 9/14/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: XQW-TELPR6211 Fender Musical Instruments certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Fender Musical Instruments certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Larry Clauss Title: Principal Engineer-Compliance Company Name: Fender Musical Instruments Date: 9/14/2024

Fender Musical Instruments 17600 N. Perimeter Drive, Suite 100 Scottsdale, Arizona, 85255, United States Date: June 19, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XQW-TELPR6211 FRN: 0002963429 US Agent – Attestation Statement / Part 2.911(d)(7) Fender Musical Instruments certifies, that as of June 19, 2024, we have designated Fender Musical Instruments to accept service of process on our behalf for FCC ID: XQW-TELPR6211 Fender Musical Instruments, accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has p ermanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. Fender Musical Instruments, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Fender Musical Instruments for FCC ID: XQW-TELPR6211 Designated Agent Information: Company Name: Fender Musical Instruments FRN: 0002963429 Address: 17600 N. Perimeter Drive, Suite 100 Scottsdale, Arizona, 85255, United States Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Fender Musical Instruments Designated Agent: Fender Musical Instruments Company Representative: Larry Clauss Designated Agent Representative: Larry Clauss Signature: Signature:

September 14, 2024 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Alpha Product Testing Co., Ltd. Address: Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Person: Mark Zhu (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Fender Musical Instruments Address: 17600 N. Perimeter Drive, Suite 100 Scottsdale, Arizona, 85255, United States ( applicant name and address). Signature: Name Larry Clauss Company Name Fender Musical Instruments Address 17600 N. Perimeter Drive, Suite 100 Scottsdale, Arizona, 85255, United States Tel 480-845-5203 Fax 480-948-9155 Email [email protected]

September 14, 2024 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XQW-TELPR6211 Product Name: WIRELESS SYSTEM Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Larry Clauss Company Name Fender Musical Instruments Address 17600 N. Perimeter Drive, Suite 100 Scottsdale, Arizona, 85255, United States Tel 480-845-5203 Fax 480-948-9155 Email [email protected]

3.5cm 2cm Label Location FCC ID: XQW-TELPR6211 Fender Musical Instruments Product name: WIRELESS SYSTEM Model No.: FENDER TELEPATH TYPE: PR 6211 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RX ANT TX ANT

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SAR TEST REPORT FCC ID. ............................ : XQW-TELPR6211 Test Report No. ............... : TCT240515E026 Date of issue ................... : Jun. 11, 2024 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Fender Musical Instruments Corp. Address ........................... : 17600 North Perimeter Drive, Suite 100 Scottsdale, AZ, 85255, USA Manufacturer's name ... : Fender Musical Instruments Corp. Address ........................... : 17600 North Perimeter Drive, Suite 100 Scottsdale, AZ, 85255, USA Product Name ................. : WIRELESS SYSTEM Trade Mark ...................... : Model/Type reference..... : FENDER TELEPATH TYPE: PR 6211 SAR Max. Values..............: 0.20 W/Kg (1g) for Body-worn Date of receipt of test item ......................................... : May 15, 2024 Date (s) of performance of test ................................... : May 15, 2024- Jun. 11, 2024 Tested by (+signature) ... : Karl WANG Check by (+signature) .... : Beryl Zhao Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT240515E026 Page 2 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. General Product Information .................................................................................................. 3 1.1. EUT description .................................................................................................................................................................... 3 1.2. Model(s) list .......................................................................................................................................................................... 3 2. Test standard ........................................................................................................................... 4 3. Facilities and Accreditations .................................................................................................. 4 3.1. Facilities ................................................................................................................................................................................ 4 3.2. Location ................................................................................................................................................................................ 4 4. Test Result Summary .............................................................................................................. 5 5. RF Exposure Limit................................................................................................................... 6 6. SAR Measurement System Configuration ............................................................................. 7 6.1. SAR Measurement Set-up .................................................................................................................................................... 7 6.2. E-field Probe ......................................................................................................................................................................... 8 6.3. Phantom ................................................................................................................................................................................ 8 6.4. Device Holder ....................................................................................................................................................................... 9 6.5. Data Storage and Evaluation ............................................................................................................................................. 10 6.6. Position of the wireless device in relation to the phantom ............................................................................................. 11 6.7. Tissue Dielectric Parameters ............................................................................................................................................. 14 6.8. Tissue-equivalent Liquid Properties ................................................................................................................................. 15 6.9. System Check ..................................................................................................................................................................... 16 7. Measurement Procedure....................................................................................................... 17 8. Conducted Output Power ..................................................................................................... 20 9. Exposure Position Consideration ........................................................................................ 21 9.1. EUT Antenna Location ....................................................................................................................................................... 21 9.2. Test Position Consideration .............................................................................................................................................. 21 10. SAR Test Results Summary ................................................................................................. 22 10.1. Body-Worn 1g SAR Data ....................................................................................…
