XRAFB512Smartwatch

CMYK PREFLIGHT REPORT QC COMPLETE: FORM-SEA-0332-08740 REV 6 FILE INFO FILENAME COLORS USED FILE TYPE PLEASE REVIEW: NO ACTIONS NEEDED FROM YOUR TEAM PLEASE ANNOTATE RESPONSES TO THESE ACTION ITEMS – PRIOR TO THE NEXT ROUND – TO AVOID DELAY PART NUMBER PART TYPE DATE ROUND # # OF PAGES COMMENTS ACTION ITEMS Black K75%50%25% Dieline 5601 6th Ave S Suite 278 Seattle, WA 98108 206.587.0800 Need help? For product and troubleshooting information, visit help.fitbit.com If you’re experiencing an issue with your Fitbit device, please don’t return it to the retailer. Instead, visit help.fitbit.com, where you can find: • Set-up instructions • Product manual (including country-specific regulatory information) • Help and troubleshooting information • Community forums • Warranty information Product Information 127-1057-01 126-0271-01 Tied to 660-1682-01 B Vulcan Regulatory Guide Updated the “Frequency Band and Max radio frequency power” on all Languages K A. PAWAR 1 B07.28.2020 110 5050 127-1057-01_VULCAN_Regulatory_Guide.indd 1127-1057-01_VULCAN_Regulatory_Guide.indd 130/07/20 2:10 PM30/07/20 2:10 PM SAFETY AND PRODUCT INFORMATION SUMMARY Please visit www.fitbit.com/legal/safety-instructions for our full safety and product information. Wear and Care Some users may experience skin irritation when using this product. To reduce the potential for irritation, please follow four simple wear and care tips: (1) keep it clean; (2) keep it dry; (3) don’t wear it too tight; and (4) give your wrist a rest by removing the band for an hour after extended wear. For more wear and care tips visit www.fitbit.com/productcare. Remove the product if you notice any skin irritation or feel any discomfort in your hands or wrists. Battery Charge the battery in accordance with the safety and product information. Never charge the battery if your product is wet or while wearing the product. The battery should only be serviced by Fitbit or an authorised service provider, do not attempt to repair or replace the battery yourself. Substances in this product and its battery may harm the environment or cause injury if handled or disposed of improperly. Medical Device Interference This product and its charging cable may include magnets that may interfere with certain electronic medical devices such as pacemakers or defibrillators. If you use any such medical device you should consult with your doctor prior to using the product. Exposure to Radio Frequency Fitbit smartwatches and fitness trackers are intended to be worn on the wrist or clipped on to your clothing. Failure to use our products as intended may result in RF exposure exceeding recommended limits. Avoid Hearing Damage To prevent possible hearing damage, do not use our products with audio playback at high volume levels for long periods. LIMITED PRODUCT WARRANTY SUMMARY Please visit www.fitbit.com/legal/returns-and-warranty for more information on our full Limited Product Warranty information. If anything in this summary conflicts with the terms of the Limited Product Warranty, the Limited Product Warranty will control. Fitbit warrants to the original purchaser that the included Fitbit-branded hardware product and/ or accessories, if new, shall be free from defects in materials and workmanship under normal use for a period of one year from the date of purchase, except that the warranty period is two years from the date of purchase by the original purchaser anywhere in the European Economic Area and Switzerland. If the included Fitbit-branded hardware product and/or accessories are certified refurbished, by or on behalf of Fitbit, the applicable warranty period may be shorter. Fitbit does not warrant against normal wear and tear nor damage caused by accident or misuse. To obtain warranty service, please contact Fitbit customer support via www.help.fitbit.com. Subject to the full terms and detailed warranty information on www.fitbit.com/legal/returns-and-warranty, if you submit a valid claim under this warranty, Fitbit will, at its option and to the extent permitted by law, either repair or replace the defective hardware product or accessory. This warranty is valid only in the jurisdictions where the product is sold by Fitbit or its authorised resellers. Fitbit may require you to furnish proof of purchase details and/or comply with 2 3 110 5050 127-1057-01_VULCAN_Regulatory_Guide.indd 2-3127-1057-01_VULCAN_Regulatory_Guide.indd 2-330/07/20 2:10 PM30/07/20 2:10 PM other requirements before receiving warranty service. The benefits provided for by this warranty are in addition to the rights provided under your statutory warranty rights. For Australian Consumers: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. There is a Limited Product Warranty in Australia which is given by Fitbit (Australia) Pty Ltd, Level 33, 101 Collins Street, Melbourne, VIC 3000, Australia. Tel: +1 (877) 623-4997. Please visit www.fitbit.com/au/ legal/returns-and-warranty for the full Limited Product Warranty information for Australian consumers. Availability of Repair Facilities/Spare Parts: Repair facilities or spare parts may not be available for your product or in your region, and goods presented for repair may be replaced by refurbished goods of equivalent type rather than being repaired. In the event that repairs are available, refurbished parts may be used to repair the goods. Repair of goods may result in the loss of any user-generated data, please back-up your data. Please review our full Limited Product Warranty page identified above for further information. INTELLECTUAL PROPERTY NOTICES ©Fitbit, Inc. All rights reserved. Fitbit and the Fitbit logo are trademarks or reg…

Text truncated - open the document above for the full version.

1 Model FB512 User Manual 2 Table of Contents Get started 4 Set up Model FB512 5 Unlock Fitbit Premium 7 Wear Model FB512 8 Change the wristband 9 Basics 10 Apps and Clock Faces 16 Voice Assistant 18 Lifestyle 19 Notifications 20 Timekeeping 23 Activity, Sleep & Other Stats 24 Fitness and Exercise 28 Music and Podcasts 33 Fitbit Pay 36 Update, Restart, and Erase 39 Troubleshooting 41 General Info and Specifications 43 Regulatory & Safety Notices 46 USA: Federal Communications Commission (FCC) statement 46 Canada: Industry Canada (IC) statement 47 European Union (EU) 48 IP Rating 49 Argentina 49 Belarus 49 Customs Union 49 China 50 3 India 51 Indonesia 51 Israel 51 Japan 51 Mexico 52 Oman 52 Philippines 52 South Korea 53 Taiwan 54 United Arab Emirates 57 Safety Statement 57 4 Get started Elevate your day with Fitbit Model FB512, the premium health and fitness watch with Amazon Alexa Built-in, fitness features, apps, and more. Take a moment to review our complete safety information at fitbit.com/safety. What's in the box Your Model FB512 box includes: Watch with small wristband (color and material varies) Charging cable Additional large wristband The detachable wristbands on Model FB512 come in a variety of colors and materials, sold separately. 5 Set up Model FB512 For the best experience, use the Fitbit app for iPhones and iPads or Android phones. To create a Fitbit account, you're prompted to enter your birthdate, height, weight, and sex to calculate your stride length and to estimate distance, basal metabolic rate, and calorie burn. After you set up your account, your first name, last initial, and profile picture are visible to all other Fitbit users. You have the option to share other information, but most of the information you provide to create an account is private by default. Charge your watch A fully-charged Model FB512 has a battery life of 5+ days. Battery life and charge cycles vary with use and other factors; actual results will vary. To charge Model FB512: 1. Plug the charging cable into the USB port on your computer, or a UL-certified USB wall charger, or another low-energy charging device. 2. Attach Model FB512 to the charging cradle. The cable comes out the opposite side of the button. The percent charged appears on screen. While the watch charges, tap the screen twice to turn the screen on and check the battery level. Tap again to use Model FB512. Set up with your phone or tablet Set up Model FB512 with the Fitbit app for iPhones and iPads or Android phones. The Fitbit app is compatible with most popular phones and tablets. For more information, see fitbit.com/devices. To get started: 1. Download the Fitbit app: ● Apple App Store for iPhones and iPads ● Google Play Store for Android phones 2. Install the app, and open it. ● If you already have a Fitbit account, log in to your account > tap the Today tab > your profile picture > Set Up a Device. 6 ● If you don't have a Fitbit account, tap Join Fitbit to be guided through a series of questions to create a Fitbit account. 3. Continue to follow the on-screen instructions to connect Model FB512 to your account. When you're done with setup, read through the guide to learn more about your new watch and then explore the Fitbit app. Connect to Wi-Fi During setup, you're prompted to connect Model FB512 to your Wi-Fi network. Model FB512 uses Wi-Fi to more quickly download playlists and apps from the Fitbit App Gallery, and for faster, more reliable OS updates. Model FB512 can connect to open, WEP, WPA personal, and WPA2 personal Wi-Fi networks. Your watch won't connect to 5GHz, WPA enterprise, or public Wi-Fi networks that require more than a password to connect⁠—for example, logins, subscriptions, or profiles. If you see fields for a username or domain when connecting to the Wi-Fi network on a computer, the network isn't supported. For best results, connect Model FB512 to your home Wi-Fi network. Make sure you know the network password before connecting. For more information, see help.fitbit.com. See your data in the Fitbit app Sync Model FB512 to transfer your data to the Fitbit app, where you can view your activity and sleep data, log food and water, participate in challenges, and more. For best results, keep all-day sync turned on, so that Model FB512 syncs periodically with the app. All-day sync is required for certain features on Model FB512, such as voice assistant support. 7 Unlock Fitbit Premium Fitbit Premium helps you build healthy habits by offering tailored workouts, insights into how your behavior impacts your health, and personalized plans to help you reach your goals. Fitbit Premium includes: ● Detailed programs tailored to your health and fitness goals ● Insights on your activity and progress throughout programs ● Step-by-step workouts with Fitbit Coach For more information, see help.fitbit.com. 8 Wear Model FB512 Place Model FB512 around your wrist. If you need to attach a different size wristband, or if you purchased another wristband, see the instructions in "Change the wristband". Placement for all-day wear vs. exercise When you're not exercising, wear Model FB512 a finger's width above your wrist bone. For optimized heart-rate tracking while exercising: ● During a workout, experiment with wearing the device higher on your wrist (2 finger widths) for an improved fit. Many exercises such as bike riding or weightlifting cause you to bend your wrist frequently, which could interfere with the heart-rate signal if the watch is lower on your wrist. ● Wear your Fitbit device on top of your wrist, and make sure the back of the device is in contact with your skin. ● Consider tightening your wristband before a workout and loosening it when you’re done. The wristband should be snug but not constricting (a tight wristband restricts blood flow, potentially affecting the heart-rate signal). Handedness For greater accuracy, you must specify whether you wear Model FB512 on your dominant or non- dominant hand. Your dominant ha…

Text truncated - open the document above for the full version.

Fitbit, Inc. 199 Fremont Street, 14 th Floor San Francisco, CA 94105 Date: August 14, 2020 To Whom It May Concern, Please be notified that I, Adam Vasquez, have designated Jones Tsai of Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the following product: FCC ID: XRAFB512 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Sincerely yours, Adam Vasquez [email protected]

Fitbit, Inc. 199 Fremont Street, 14 th Floor San Francisco, CA 94105 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: XRAFB512 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Antenna Specification Above mentioned document contains detailed system and equipment description that are considered as proprietary information in operation of the equipment. The public disclosure of the above documents might be harmful to our company and would give competitors an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality requests on the following attachments until 180 days from our grant date. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and that information will be available for public review once the grant of equipment authorization is issued. Best Regards, Adam Vasquez Director, Regulatory Compliance Fitbit, Inc. April 1, 2020

Fitbit, Inc. 199 Fremont Street, 14 th Floor San Francisco, CA 94105 FCC Supplier Declaration of Conformity Applicant : Fitbit, Inc. Equipment : Smartwatch Brand Name : Fitbit Model Name : FB512 For products subject to authorization under Supplier’s Declaration of Conformity, Fitbit, Inc. shall be the responsible party, as designated in §2.909. The responsible party warrants that each unit of equipment marketed under Supplier’s Declaration of Conformity will be identical to the unit tested and found acceptable with the standards and that the records maintained by the responsible party continue to reflect the equipment being produced under such Supplier’s Declaration of Conformity within the variation that can be expected due to quantity production and testing on a statistical basis. For equipment subject to Supplier’s Declaration of Conformity, the responsible party must reevaluate the equipment if any modification or change adversely affects the emanation characteristics of the modified equipment. The responsible party bears responsibility for continued compliance of subsequently produced equipment. Responsible party: Responsible party (name): Adam Vasquez Director, Regulatory Compliance

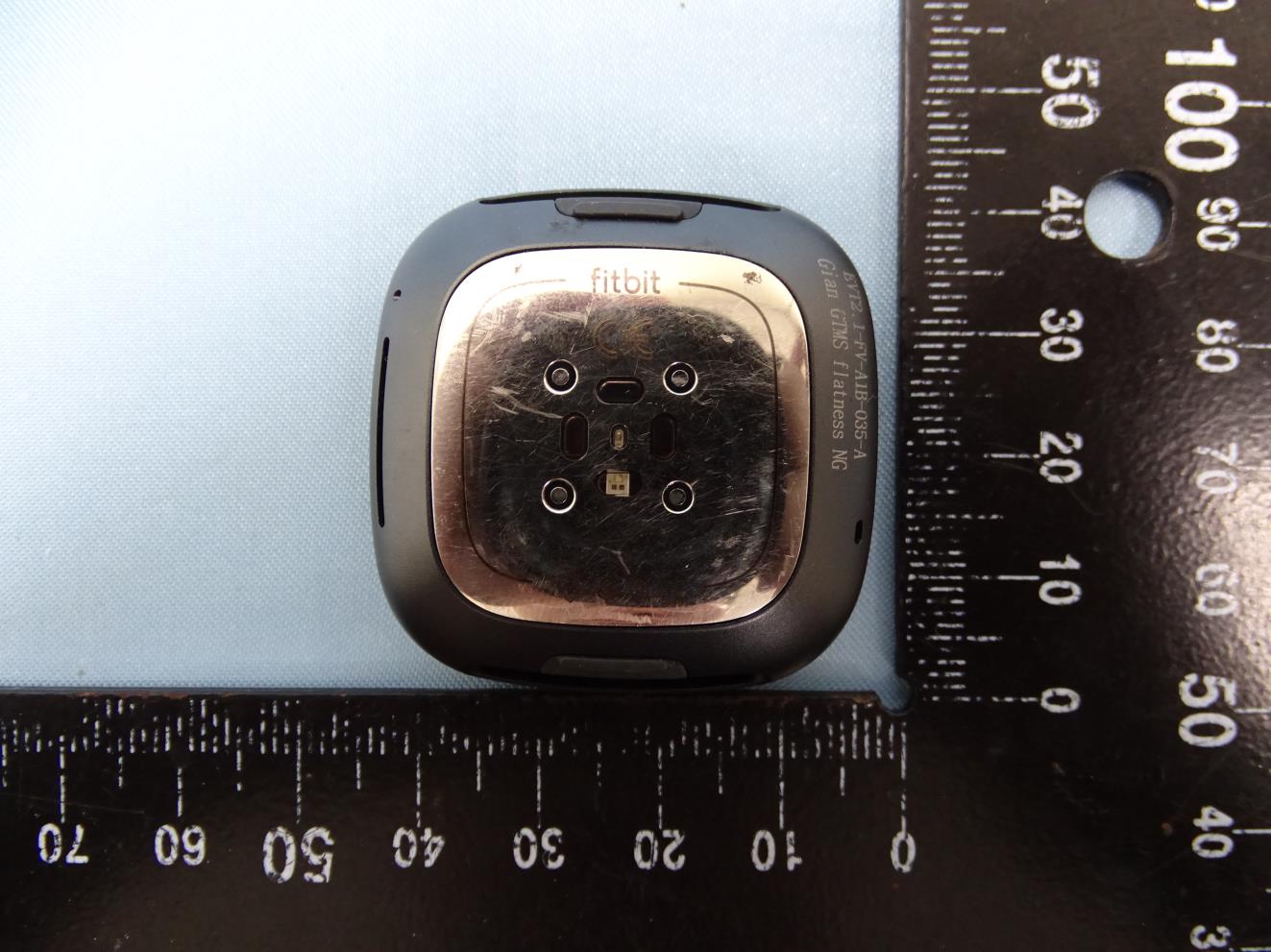

PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 1 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 1. External Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 2 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 3 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 4 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 5 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 6 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 7 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 Specification of Accessory Battery Brand Name ATL (Atlas) Model Name 332327-Atlas Canvas Strap Brand Name Fitbit Model Name N/A Plastic Strap Brand Name Fitbit Model Name N/A USB Cable Brand Name N/A Model Name N/A Signal Line 0.46 meter, non-shielded cable, with w/o ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 8 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 9 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 Battery

Fitbit, Inc. 199 Fremont Street, 14 th Floor San Francisco, CA 94105 Model FB512: E-Labeling Screenshots Users are able to access the information in 3 steps: 1) Click Settings 2) Click About 3) Scroll to the Regulatory Info Upon successful completion of software update when pairing, the Regulatory Info menu option will display the additional regulatory information. The information is stored on the device, no special accessories or supplemental plug-ins (e.g. a SIM/USIM card) are required to access the information. This E-Label is pre-programmed by the applicant. The user cannot modify the E-Label information. An image of the E-Label screen is shown below. Fitbit, Inc. 199 Fremont Street, 14 th Floor San Francisco, CA 94105

UPC Label and Placement on Retail Packaging Below picture for reference only to show placement of UPC Label

PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 10 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 720510 3. Internal Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 11 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 12 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 13 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 14 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 15 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 16 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 17 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 18 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 19 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 20 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 21 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 22 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 23 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 24 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 WLAN & Bluetooth & GPS Antenna PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 25 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 NFC Antenna PHOTOGRAPHS OF EUT Report No.: EP052653 Brand Name: Fitbit / Model Name: FB512 TEL : 886-3-327-3456 Page Number : 26 of 26 FAX : 886-3-328-4978 Issued Date : Aug. 12, 2020 Report Version : 01 ─────THE END────

TEL : 886-3-327-3456 Page 1 of 23 FAX : 886-3-328-4978 Issued Date : Aug. 06, 2020 Template version: 200414 FCC SAR TEST REPORT Report No. : FA052653 FCC SAR TEST REPORT FCC ID : XRAFB512 Equipment : Smartwatch Brand Name : Fitbit Model Name : FB512 Applicant : Fitbit, Inc. 199 Fremont Street, 14th Floor, San Francisco, CA 94105 USA Manufacturer : Fitbit, Inc. 199 Fremont Street, 14th Floor, San Francisco, CA 94105 USA Standard : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Jun. 08, 2020 and testing was started from Jul. 11, 2020 and completed on Jul. 11, 2020. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 23 FAX : 886-3-328-4978 Issued Date : Aug. 06, 2020 Template version: 200414 FCC SAR TEST REPORT Report No. : FA052653 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 4. RF Exposure Limits....................................................................................................................................................... 6 4.1 Uncontrolled Environment ...................................................................................................................................... 6 4.2 Controlled Environment .......................................................................................................................................... 6 5. Specific Absorption Rate (SAR) ................................................................................................................................... 7 5.1 Introduction ............................................................................................................................................................ 7 5.2 SAR Definition ........................................................................................................................................................ 7 6. System Description and Setup .................................................................................................................................... 8 6.1 Test Side Location .................................................................................................................................................. 8 6.2 E-Field Probe ......................................................................................................................................................... 9 6.3 Data Acquisition Electronics (DAE) ........................................................................................................................ 9 6.4 Phantom ................................................................................................................................................................10 6.5 Device Holder........................................................................................................................................................ 11 7. Measurement Procedures ...........................................................................................................................................12 7.1 Spatial Peak SAR Evaluation ................................................................................................................................12 7.2 Power Reference Measurement............................................................................................................................13 7.3 Area Scan .............................................................................................................................................................13 7.4 Zoom Scan ............................................................................................................................................................14 7.5 Volume Scan Procedures ......................................................................................................................................14 7.6 Power Drift Monitoring ...........................................................................................................................................14 8. Test Equipment List .....................................................................................................................................................15 9. System Verification ......................................................................................................................................................16 9.1 Tissue Simulating Liquids ......................................................................................................................................16 9.2 Tissue Verification .................................................................................................................................................17 9.3 System Perform…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/7/11 System Check_Head_2450MHz DUT: D2450V2-929 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used : f = 2450 MHz; σ = 1.804 S/m; ε r = 37.924; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: ES3DV3 - SN3124;ConvF(4.64, 4.64, 4.64) @ 2450 MHz;Calibrated: 2019/12/18 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn316; Calibrated: 2019/12/20 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1815 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 15.6 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.93 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 22.1 W/kg SAR(1 g) = 12.9 W/kg; SAR(10 g) = 5.96 W/kg Maximum value of SAR (measured) = 15.1 W/kg 0 dB = 15.1 W/kg = 11.79 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/7/11 #01_WLAN2.4GHz_802.11b 1Mbps_Front_10mm_Ch1 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 .013 Medium: HSL_2450_200711 Medium parameters used: f = 2412 MHz; σ = 1.761 S/m; ε r = 38.053; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3124;ConvF(4.64, 4.64, 4.64) @ 2412 MHz;Calibrated: 2019/12/18 - Sensor-Surface: 3mm (Mechanical Surface Detec…
