XRB6379RE49TX1Atomic Racer

fold 27 fold 38 fold 49 5 10 fold 6 1 XC6379 IS01EXC.ai 3 x 3 05/09/11; REVISED 5/26/11 EB Excalibur, Inc., Miami, [email protected]© 2011 EB Excalibur, Inc.Distributed in the United Kingdom by:EB Brands UK, Worcester WR4 9FAMade in ChinaActual product may differ slightly from photograph. XC6379IS01EXC Atomic Racer Layout Atomic Racer Radio Control CarXC6379 ©2011 EB Excalibur Use a screwdriver to detach the car from thebattery cover and pedestal.Note: To open atomic case, simply press release button and liftdome cover off. Insert two AA batteries (not included) and replace door.[NOTE: Battery + / - orientation indicated on controller.]Twist dome cover counterclockwise to open.Slide battery cover/attached car off of controller. Place antenna into hole at the top of controller. Turn clockwise to secure the antenna to controller. DO NOT OVER-TIGHTEN. Pull tip of antenna to extend. To charge the car, open the cover at the bottom of the controller. Align metal nodes on controller with the nodeson the car and place car onto the controller. The chargingindicator light will come on when the car is charging. After a full charge (approximately 2-3 minutes) the light willturn off. ChargingNodes To drive the car, push and hold the forward or reversebutton on the remote. Use the left and right arrows for steering. The operating light will come on when the car is in use. When the operating ligh t becomes faint, it is time to change the controller batteries. Make sure the antenna is fully extended while in use. If the car begins to veer right or left when moving forwardor reverse, the alignment can be adjusted using the directional guide located on the bottom of the car.For best results, only operate the car on smooth, dry surfaces. Radio waves control this toy and can easily be interrupted. Avoid using near phones, electrical lines, radios, or other wireless devices. Battery Cautions• Do not mix old and new batteries.• Do not mix alkaline & standard or rechargeable batteries.• Install batteries so that the polarity (+ and -) matches the diagrams in the battery compartment.• Use only batteries of the same type and equivalency.• Remove exhausted batteries from the unit.• Do not short circuit battery terminals.• Non-rechargeable batteries are not to be recharged• Rechargeable batteries must be removed before recharging and only under adult supervision• Do not dispose of batteries in fire; or product may explode or leak• If this product will not be used for an extended period of time, remove the batteries from the product• Clean the battery contacts and also those of the product prior to battery installation• As always, dispose of batteries in an eco-friendly manner The device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions: (1) this device may notcause harmful interference, and (2) this device must accept anyinterference received, including interference that may causeundesired operation.Changes or modifications not expressly approved by the partyresponsible for compliance could void the user’s authority to operatethe product.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communica-tions. However, there is no guarantee that interference will not occurin a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the transmitting equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio technician for help. WARNINGCHOKING HAZARD - Small Parts.Not for children under 3 years.

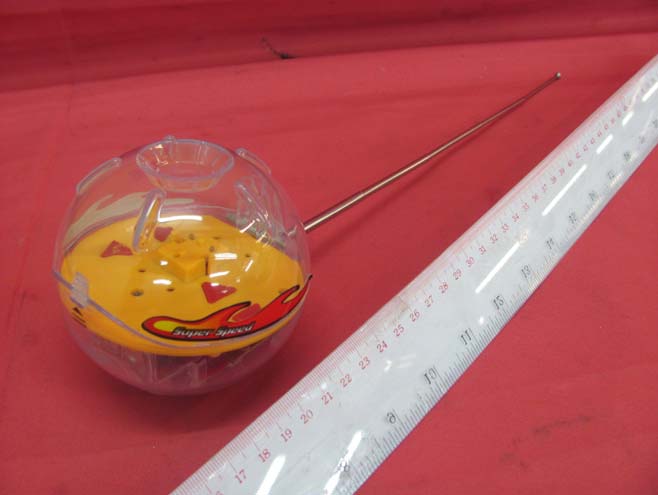

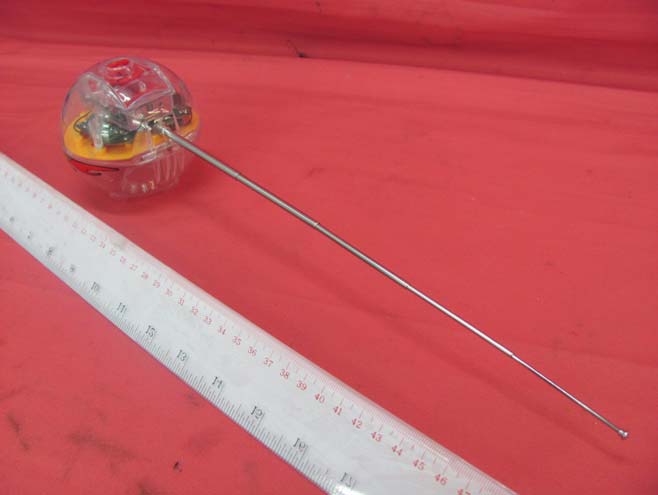

INTERTEK TESTING SERVICE Report No.: HK12080630-1 FCC ID: XRB6379RE49TX1 Equipment Photographs Model : 6379 (External) INTERTEK TESTING SERVICE Report No.: HK12080630-1 FCC ID: XRB6379RE49TX1 Equipment Photographs Model : 6379 (External)

23mm 20mm 4.6mm

INTERTEK TESTING SERVICE Report No.: HK12080630-1 FCC ID: XRB6379RE49TX1 Equipment Photographs Model : 6379 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080630-1 FCC ID: XRB6379RE49TX1 Equipment Photographs Model : 6379 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080630-1 FCC ID: XRB6379RE49TX1 Equipment Photographs Model : 6379 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080630-1 FCC ID: XRB6379RE49TX1 Equipment Photographs Model : 6379 (Internal)

FCC ID: XRB6379RE49TX1 Model: 6379 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls the corresponding receiver to charging, move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: S1, S2, S3, S4, U1 2. A RF Oscillator (27.145MHz) consisting: X1 3. A Filter Network consisting: C1, C11, C10, L1 4. A RF Modulator and Amplifier consisting: Q1, Q2 5. A Power Supply consisting: 2 x AA size batteries The transmitter uses an external, integral and Telescope-type antenna .

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12080630-1 EB Brands (HK) Application For Certification (Original Grant) (FCC ID: XRB6379RE49TX1) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: Sep 07, 2012 INTERTEK TESTING SERVICES Report No.: HK12080630-1 FCC ID: XRB6379RE49TX1 i GENERAL INFORMATION EB Brands (HK) BRAND NAME: EB Excalibur, MODEL: 6379 FCC ID: XRB6379RE49TX1 Grantee: EB Brands (HK) Grantee Address: Unit 705&706 Enterprise Square, Phase 1, Tower III, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong. Contact Person: Alpha Ip Tel: (852) 2318 3989 Fax: (852) 2758 8052 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: EB Excalibur Model: 6379 Type of EUT: Transmitter Description of EUT: Atomic Racer Serial Number: N/A FCC ID : XRB6379RE49TX1 Date of Sample Submitted: 14 Aug 2012 Date of Test: 14 Aug 2012 to 21 Aug 2012 Report No.: HK12080630-1 Report Date: Sep 07, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12080630-1 FCC ID: XRB6379RE49TX1 ii SUMMARY OF TEST RESULT EB Brands (HK) BRAND NAME: EB Excalibur, MODEL: 6379 FCC ID: XRB6379RE49TX1 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12080630-1 FCC ID: XRB6379RE49TX1 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ................................................................ 3 3.0 Emission Results .....................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.:HK12080630-1 Sample No.:1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) INTERTEK TESTING SERVICES Report No.:HK12080630-1 Sample No.:1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of )

INTERTEK TESTING SERVICES Report No.:HK12080630-1 Sample No.:1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) A PS AC * 3DB RBW 1 kHz VBW 3 kHz SWT 100 ms Att 25 dB * Ref 110 dBμV Start 49.81 MHzStop 49.91 MHz10 kHz/ 1 PK VIEW 10 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 99.14 dBμ V 49.859600000 MHz 1 Delta 1 [T1 ] -43.56 dB -49.600000000 kHz X2 Date: 15.AUG.2012 20:47:51 Bandwidth / Bandedge Plot – Pursuant to FCC-15C 235 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK12080630-1 FCC ID: XRB6379RE49TX1 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 6379 INTERTEK TESTING SERVICE Report No: HK12080630-1 FCC ID: XRB6379RE49TX1 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 6379
