XUJGOLOG1002golo Automotive Diagnosis Terminal

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0 LAUNCH TECH CO., LTD. 2014-08-04 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _ LAUNCH TECH CO., LTD._ hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: XUJGOLOG1002 golo Automotive Diagnosis Terminal MODEL No.: G1002 Sincerely, signature Yibing Xue / Manager E-mail: [email protected] Phone: (86) 755-84528031 Fax: (86) 755-84528889 Address Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China. SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 4.0 LAUNCH TECH CO., LTD. 2014-08-04 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, LAUNCH TECH CO., LTD. _ hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): FCC ID: XUJGOLOG1002 golo Automotive Diagnosis Terminal MODEL No.: G1002 We affirm that between SIEMIC, Inc. and _ LAUNCH TECH CO., LTD. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, signature Yibing Xue/ Manager E-mail: [email protected] Phone: (86) 755-84528031 Fax: (86) 755-84528889 Address Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 LAUNCH TECH CO., LTD. 2014-08-04 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XUJGOLOG1002 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Yibing Xue / Manager E-mail: [email protected] Phone: (86) 755-84528031 Fax: (86) 755-84528889 Address Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China.

Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World

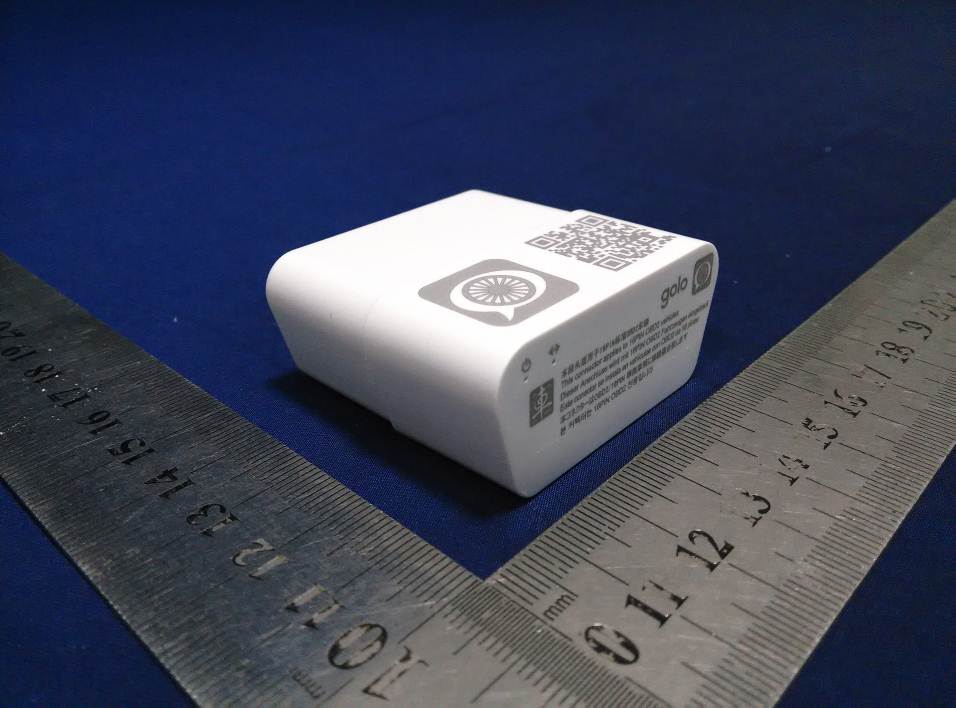

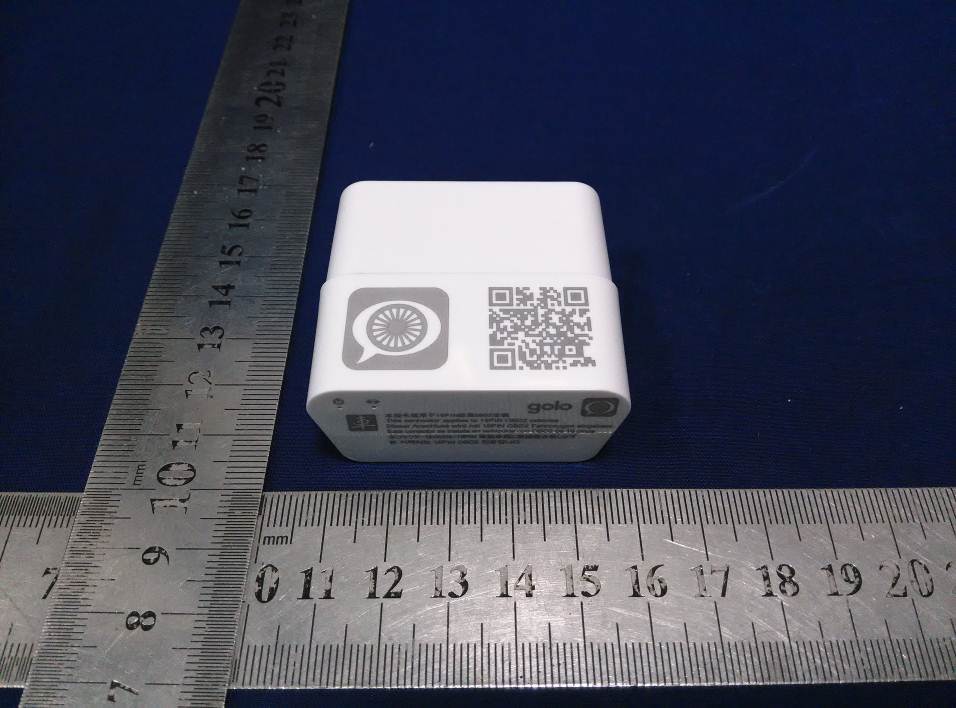

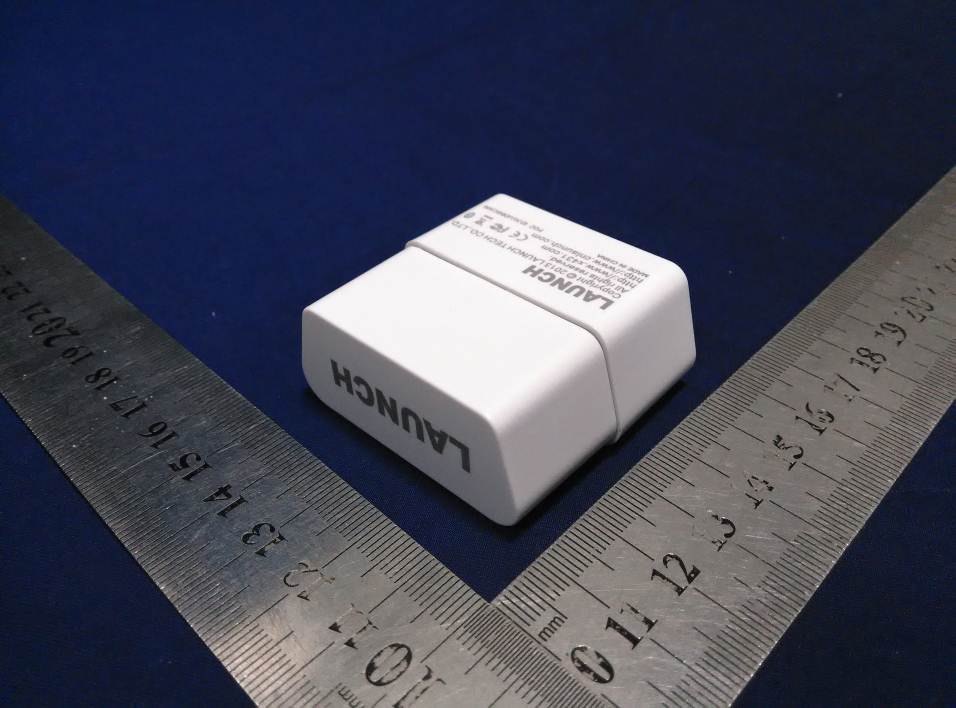

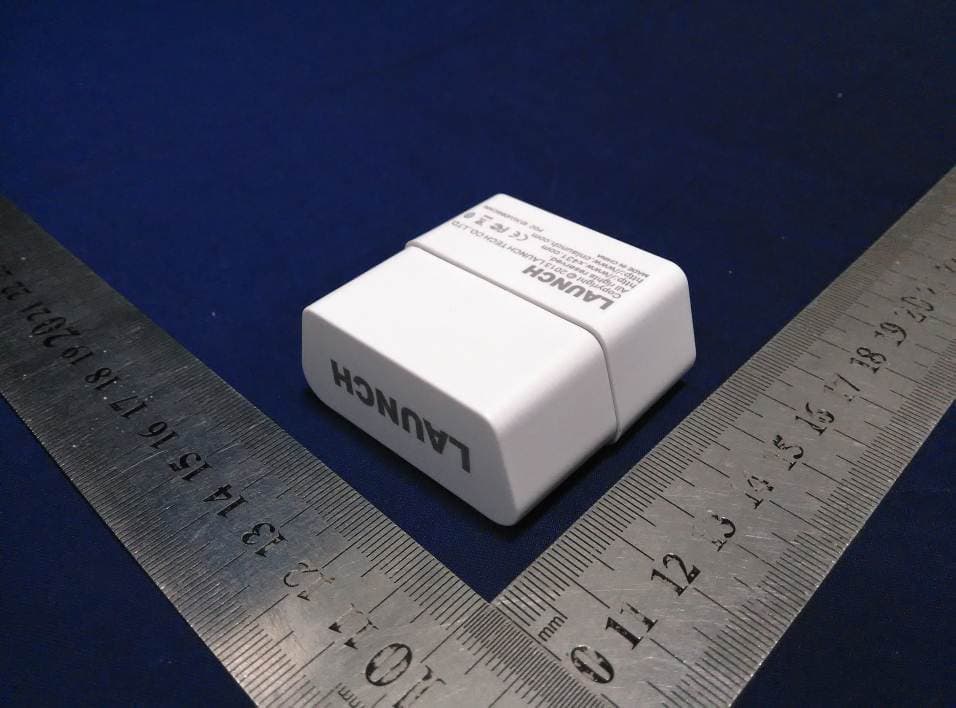

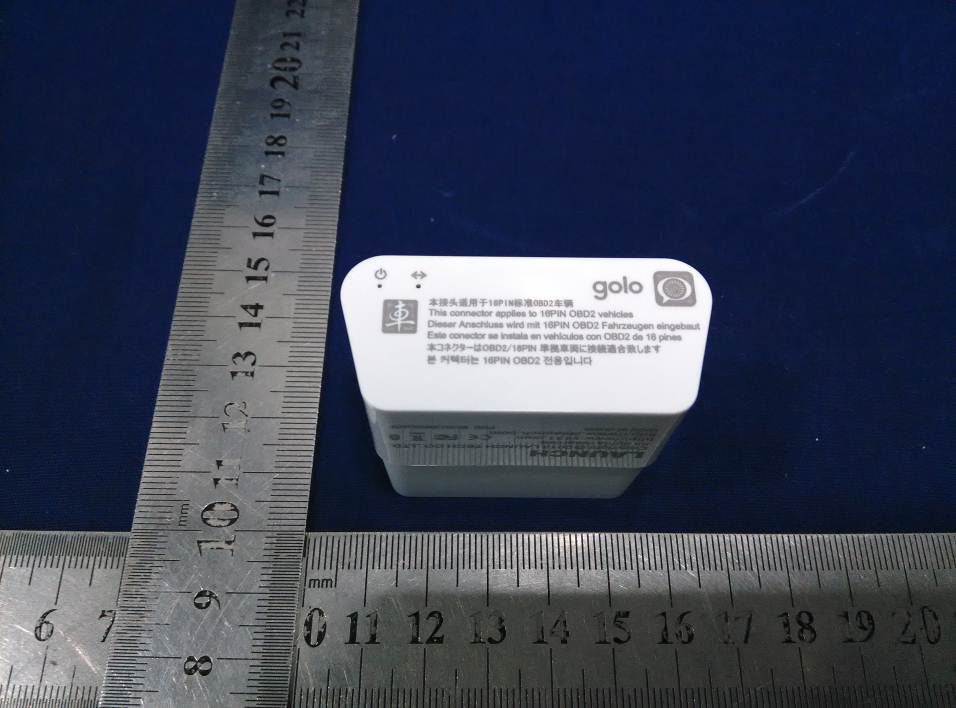

Label & Location FCC ID: XUJGOLOG1002 Label Size: L35mm*W12mm

Label Location Proposed Label Location on EUT

Internal Photos Bluetooth Module Bluetooth Module

FCC ID : XUJGOLOG1002 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Antenna gain:2.1dB Mode Channel Frequency (MHz) Max Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Numeric Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) GFSK 2402.00 1.428 1.3893 1.6218 0.0005 1 GFSK 2441.00 1.834 1.5255 1.6218 0.0005 1 GFSK 2480.00 1.515 1.4174 1.6218 0.0005 1 1/4Π-DPSK 2402.00 1.371 1.3712 1.6218 0.0004 1 1/4Π-DPSK 2441.00 1.770 1.5031 1.6218 0.0005 1 1/4Π-DPSK 2480.00 1.508 1.4151 1.6218 0.0005 1 8DPSK 2402.00 1.382 1.3747 1.6218 0.0004 1 8DPSK 2441.00 1.757 1.4986 1.6218 0.0005 1 8DPSK 2480.00 1.520 1.4191 1.6218 0.0005 1

TRF No.: FCC 15.247/A Page 1 of 53 Report No.: ES140717179E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPARTC REQUIREMENT OF golo Automotive Diagnosis Terminal MODEL No.: G1002 FCC ID: XUJGOLOG1002 Trademark: golo, LAUNCH REPORT NO.: ES140717179E ISSUE DATE: August 01, 2014 Prepared for LAUNCH TECH CO., LTD. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China. Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.: FCC 15.247/A Page 2 of 53 Report No.: ES140717179E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World VERIFICATION OF COMPLIANCE Applicant: LAUNCH TECH CO., LTD. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China. Manufacturer: LAUNCH TECH CO., LTD. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China. Product Description: golo Automotive Diagnosis Terminal Model Number: G1002 File Number: ES140717179E Date of Test: July 17, 2014 to August 01, 2014 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : July 17, 2014 to August 01, 2014 Prepared by : Yaping Shen/Editor Reviewer : Jack Li/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No.: FCC 15.247/A Page 3 of 53 Report No.: ES140717179E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World Ta b l e o f C o n t e n t s 1 GENERAL INFORMATION ......................................................................................................... 5 1.1 PRODUCT DESCRIPTION ........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 5 1.3 TEST METHODOLOGY .............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES ............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS .................................................................................................................. 5 1.6 TEST FACILITY ........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .............................................................................................. 7 2.1 EUT CONFIGURATION ............................................................................................................................. 7 2.2 EUT EXERCISE ........................................................................................................................................ 7 2.3 TEST PROCEDURE .................................................................................................................................... 7 2.4 LIMITATION ............................................................................................................................................. 7 2.5 CONFIGURATION OF TESTED SYSTEM ................................................................................................... 11 2.6 DESCRIPTION OF TEST MODES .................................................................................................................... 11 3. SUMMARY OF TEST RESULTS ....................................................................................... 12 4. RADIATED EMISSION TEST ............................................................................................ 13 4.1 MEASUREMENT PROCEDURE ................................................................................................................. 13 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 14 4.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 15 5.4 MEASUREMENT RESULT ........................................................................................................................ 16 5. CHANNEL SEPARATION TEST ....................................................................................... 22 5.1 MEASUREMENT PROCEDURE ................................................................................................................. 22 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 22 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 22 5.4 MEASUREMENT RESULTS: .......................................................................................................................... 22 6. 20DB BANDWIDTH TEST ......................................…

Text truncated - open the document above for the full version.

Setup photos
