XUJRCULgolo3

golo3 User Manual LAUNCH golo3 User Manual ii All rights reserved! No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means of electronic, mechanical, photocopying and recording or otherwise, without the prior written permission of LAUNCH. This manual is designed only for the use of this unit. LAUNCH is not responsible for any use of this manual on the other units. The manual and all the samples herein can be changed without prior notice. Neither LAUNCH nor its affiliates shall be liable to the purchaser of this unit or third parties for damages, losses, costs or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this unit, or unauthorized modifications, repairs, or alterations to this unit, or failure to strictly comply with LAUNCH operating and maintenance instructions. LAUNCH shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original LAUNCH Products or LAUNCH Approved Products by LAUNCH. Notice: other product names used herein are for identification purposes only and may be trademarks of their respective owners. LAUNCH disclaims any and all rights in those marks. This device is only for professional technicians and maintenance personnel. LAUNCH golo3 User Manual iii Precautions: z The socket-outlet shall be installed near the equipment and shall be easily accessible. z The golo3 is a precision electronic instrument. Observe caution when handing the module. Dropping the module can cause damage. z Make sure that the connection between the golo3 module and DLC socket is secure and reliable when in use, z GPRS transmission speed depends on mobile network, communication timeout failure would be occurred when network is busy (such as major festivals), and it also prone to happen in remote areas, Launch would not responsible for any consequences occurred by this failure. z ODB program is pre-installed in the factory; please go into http://mycar.x431.com/ to download the diagnostic software corresponding with your vehicle. z Turn off the ignition switch when connecting or disconnecting the golo3 module to the vehicle’s OBD II Diagnostic Linking Connector (DLC). LAUNCH golo3 User Manual iv CONTENT 1. Overview........................................................................................................................................... 1 1.1 knowledge ................................................................................................................................... 1 1.2 Features ....................................................................................................................................... 1 1.3 Parameters ................................................................................................................................... 1 1.4 Accessories .................................................................................................................................. 1 1.5 Structure ...................................................................................................................................... 2 2. Connection and installation ............................................................................................................ 2 2.1 Download The golo3 App............................................................................................................ 2 2.2 golo3 Connection......................................................................................................................... 3 2.3 Install the SIM card ..................................................................................................................... 3 LAUNCH golo3 User Manual 1 1. Overview 1.1 knowledge Based on the full vehicle system data collection, Launch-developed golo product is a telematics product integrated GPS/GPRS/3G/G-Sensor and other modules in the industry. After being connected with the smart device through the internal Bluetooth (or WIFI, 3G), it can achieves the powerful functions such as Remote Diagnosis, Vehicle Running Data Collection, Receive the diagnostic report, Vehicle Location, meanwhile, making full use of the enormous advantage of mobile network environment, is integrated in the golo3 App a IM tool that build an social circle between the car owner, the repair technician and maintenance companies, share reports, maintenance experiences, and so on. 1.2 Features z The full vehicle system diagnosis z GPRS/GSM/3G communication，real-time data upload z GPS/GPRS base station location z Track playback z G-sensor z IM z Statistics analysis z Abnormal alarm z Support local and remote upgrade 1.3 Parameters z Working voltage: DC9-18V z Working current: 120mA（DC12V下） z Standby current: <10mA z Protection class: IP33 z Working temperature: -20°C~70°C z Storage temperature: -30°C~85°C z Net weight: 50g 1.4 Accessories z golo z Quick start Guide z Password Envelope LAUNCH golo3 User Manual 2 1.5 Structure 序号 功能 1 Power indicator: When turn on, it will flash alternately three times between the red light and the green, then the green light flashes regularly 2 Communication indicator: It will flash when the golo3 module is communicating with your smart device or the golo3 module is resetting. 3 WIFI switch 4 SIM card location 5 16 pin OBD II connector: To connect to vehicle’s OBD II diagnostic socket. 2. Connection and installation 2.1 Download The golo3 App You can download the golo App free in Google play or scan the QR code on the product body, or go into http://mycar.cnlaunch.com:8080/downloadCenter , to download the golo3 App as well. Scan the QR barcode 1) Before scanning, please make sure that your Android device has already installed the QR barcode reading application, if not, install it first. 2) Scan the QR barcode on the product package, then you will see a link to download the golo3 App. 3) O…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Revised wording (obsolete)1.02.0Sept–25-2007 Updated company template (current)2.03.0Jan-31-2012 4.jpg (1200x1600x24b jpeg)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Launch Tech Co., Ltd. 2013-12-24 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XUJRCUL We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - BOM - Turn up The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Contact information / address: Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China

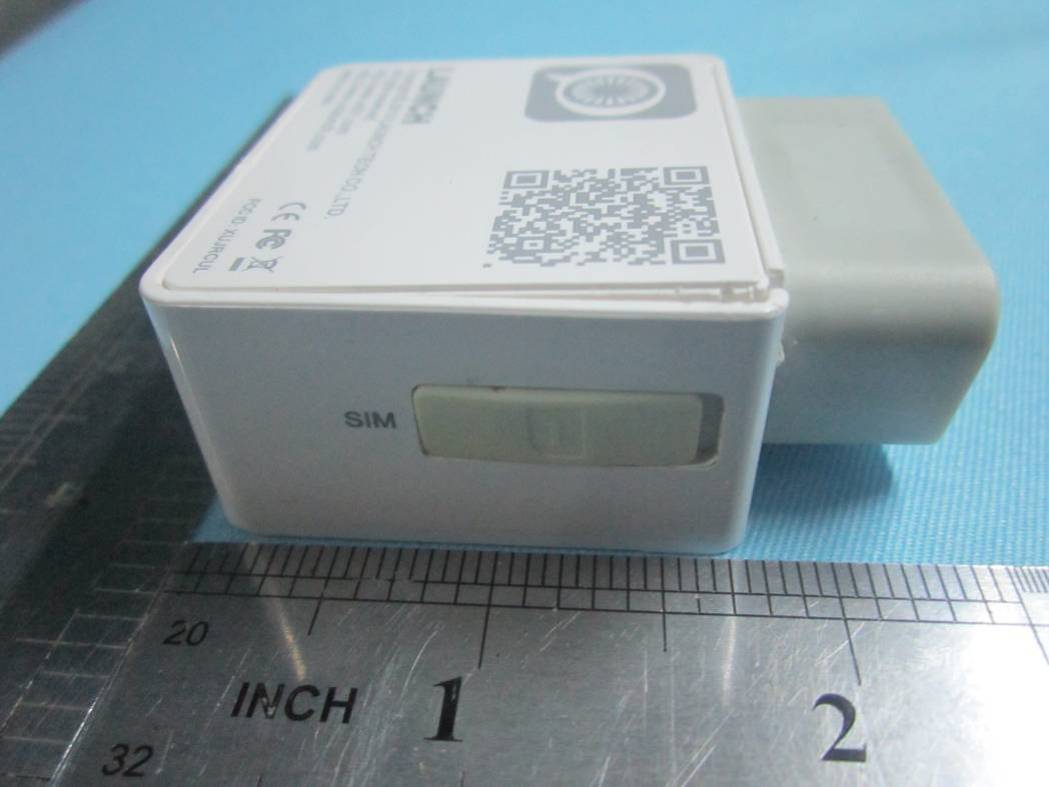

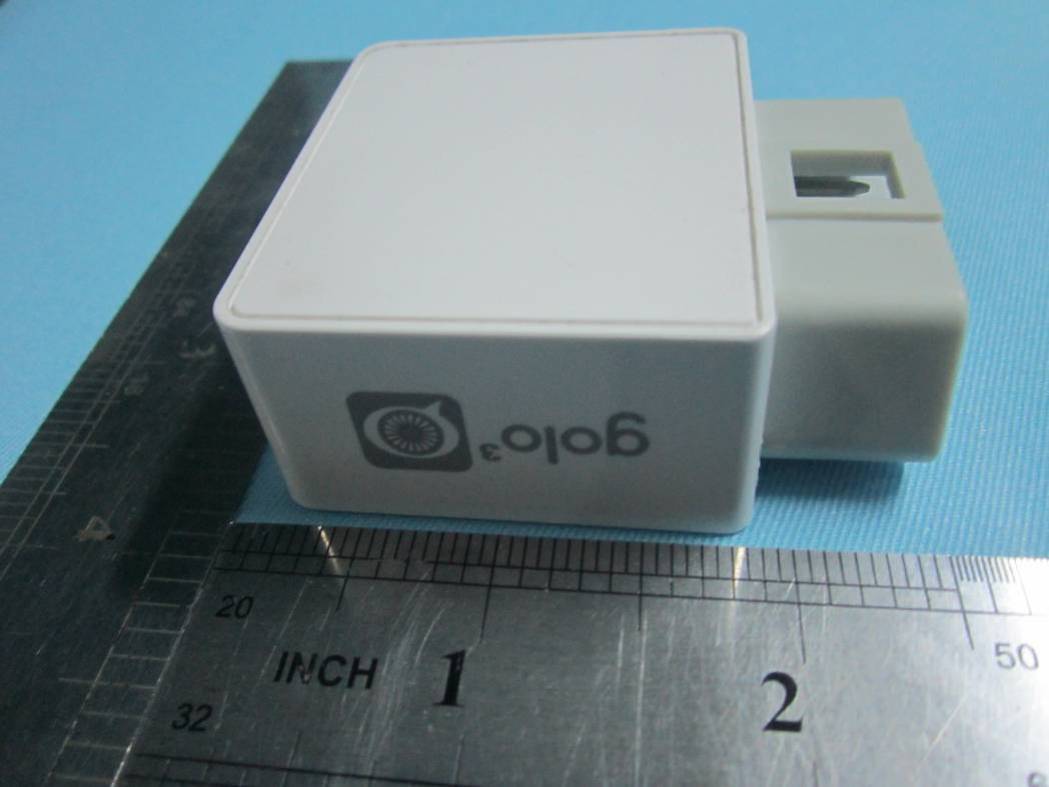

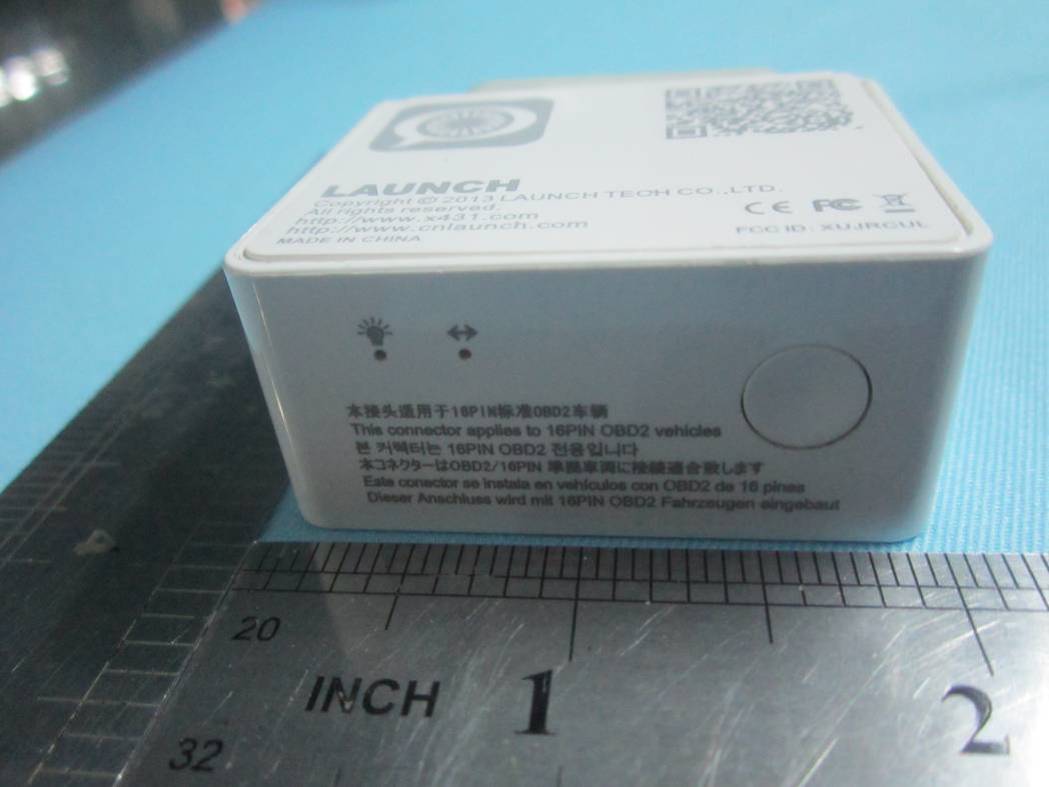

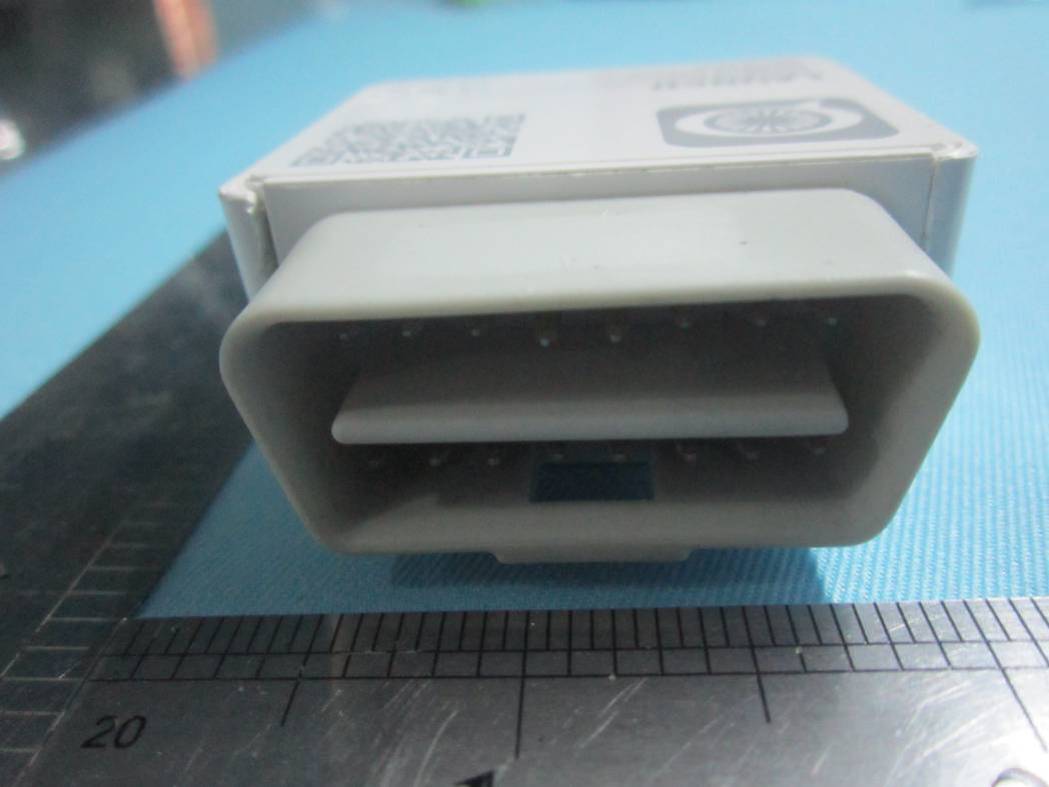

Title: RF Test Report for golo 3 Main Model: golo 3 Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 13070593-FCC-R2 Issue Date: December 24, 2013 Page: 61 of 74 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo EUT - Front View EUT - Rear View Title: RF Test Report for golo 3 Main Model: golo 3 Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 13070593-FCC-R2 Issue Date: December 24, 2013 Page: 62 of 74 www.siemic.com.cn EUT - Top View EUT - Bottom View Title: RF Test Report for golo 3 Main Model: golo 3 Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 13070593-FCC-R2 Issue Date: December 24, 2013 Page: 63 of 74 www.siemic.com.cn EUT - Left View EUT - Right View

Label Location

Title: RF Test Report for golo 3 Main Model: golo 3 Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 13070593-FCC-R2 Issue Date: December 24, 2013 Page: 64 of 74 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Front View Main board With Shielding - Top View Title: RF Test Report for golo 3 Main Model: golo 3 Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 13070593-FCC-R2 Issue Date: December 24, 2013 Page: 65 of 74 www.siemic.com.cn Main board With Shielding - Bottom View Main board Without Shielding - Top View Title: RF Test Report for golo 3 Main Model: golo 3 Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 13070593-FCC-R2 Issue Date: December 24, 2013 Page: 66 of 74 www.siemic.com.cn Main board Without Shielding - Bottom View Data Collection board With Shielding – Top View Title: RF Test Report for golo 3 Main Model: golo 3 Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 13070593-FCC-R2 Issue Date: December 24, 2013 Page: 67 of 74 www.siemic.com.cn Data Collection board With Shielding – Bottom View Data Collection board Without Shielding – Top View Title: RF Test Report for golo 3 Main Model: golo 3 Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 13070593-FCC-R2 Issue Date: December 24, 2013 Page: 68 of 74 www.siemic.com.cn Data Collection board Without Shielding – Bottom View Antenna View GSM / PCS/ UMTS Antenna Bluetooth / WIFI Antenna

Launch Tech Co., Ltd. golo 3 Main Model: golo 3 Serial Model: N/A December 24, 2013 Report No.: 13070593-FCC-H2 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Herith Shi Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC 2.1091 Report No.: 13070593-FCC-H2 Issue Date: December 24, 2013 Page: 2 of 9 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen-China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: EMC Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC 2.1091 Report No.: 13070593-FCC-H2 Issue Date: December 24, 2013 Page: 3 of 9 www.siemic.com.cn This page has been left blank intentionally. Title: EMC Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC 2.1091 Report No.: 13070593-FCC-H2 Issue Date: December 24, 2013 Page: 4 of 9 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS.......................................................................................................................................... 6 3 FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ...................................................................... 7 Title: EMC Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC 2.1091 Report No.: 13070593-FCC-H2 Issue Date: December 24, 2013 Page: 5 of 9 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programmers was to demonstrate compliance of the Launch Tech Co., Ltd., golo 3 and Model: golo 3 against the current Stipulated Standards. The golo 3 has demonstrated compliance with the FCC 2.1091. EUT Information EUT Description : golo 3 Main Model : golo 3 Serial Model N/A Antenna Gain : UMTS-FDD Band V/GPRS850: -4.95dBi UMTS-FDD Band II/GPRS1900: 2.15dBi Bluetooth: -1.2dBi WIFI: -1.2dBi Input Power : Input: DC 12V Classification Per Stipulated Test Standard : Class B Emission Product Per FCC 2.1091 Title: EMC Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC 2.1091 Report No.: 13070593-FCC-H2 Issue Date: December 24, 2013 Page: 6 of 9 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of golo 3 with stipulated standards Applicant / Client Launch Tech Co., Ltd. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China Manufacturer Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China Laboratory performing the tests SIEMIC (Shenzhen-China) Laboratories Zone A, Floor 1, Building 2, Wan Ye Long Technology Park, South Side of Zhoushi Road, Bao'an District, Shenzhen, Guangdong, China Tel: +86-0755-2601 4629 / 2601 4953 Fax: +86-0755-2601 4953-810 Email: [email protected] Test report reference number 13070593-FCC-H2 Date EUT received December 06, 2013 Standard applied FCC 2.1091 Dates of test (from – to) December 09 to December 19, 2013 No of Units #1 Equipment Category DSS Trade Name LAUNCH RF Operating Frequency (ies) GPRS850 TX : 824.2 ~ 848.8 MHz; RX : 869.2 ~ 893.8 MHz GPRS1900 TX : 1850.2 ~ 1909.8 MHz; RX : 1930.2 ~ 1989.8 MHz UMTS-FDD BandVTX : 826.4 ~ 846.6 MHz; RX : 871.4 ~ 891.6 MHz UMTS-FDD BandIITX :1852.4 ~ 1907.6 MHz; RX : 1932.4 ~ 1987.6 MHz 802.11b/g/n(20M): 2412-2462 MHz Bluetooth: 2402-2480 MHz Number of Channels 299CH (GPRS1900) and 124CH (GPRS850) UMTS-FDD BandV: 102CH UMTS-FDD BandII: 277CH Bluetooth: 79CH 802.11b/g/n: 11CH Modulation GPRS: GMSK UMTS-FDD: QPSK 802.11b/g/n: DSSS/OFDM Bluetooth: GFSK& π/4DQPSK&8DPSK FCC ID XUJRCUL Title: EMC Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC 2.1091 Report No.: 13070593-FCC-H2 Issue Date: December 24, 2013 Page: 7 of 9 www.siemic.com.cn 3 FCC §2.1091 - MaximuM Permissible exposure (MPE) 3.1 Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 3.2 Test Data Predication of MPE limit at a given distance Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to …

Text truncated - open the document above for the full version.

Launch Tech Co., Ltd. golo 3 Main Model: golo 3 Serial Model: N/A December 24, 2013 Report No.: 13070593-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Herith Shi Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070593-FCC-R1 Issue Date: December 24, 2013 Page: 2 of 61 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen - China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070593-FCC-R1 Issue Date: December 24, 2013 Page: 3 of 61 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070593-FCC-R1 Issue Date: December 24, 2013 Page: 4 of 61 www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 3. TEST SUMMARY .................................................................................................................................................... 8 4. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ................................................................... 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 45 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 48 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 57 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................. 60 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 61 Title: RF Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070593-FCC-R1 Issue Date: December 24, 2013 Page: 5 of 61 www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programmed was to demonstrate compliance of the Launch Tech Co., Ltd., golo 3 and model: golo 3 against the current Stipulated Standards. The golo 3 has demonstrated compliance with the FCC Part 22(H) & FCC Part 24(E): 2013. EUT Information EUT Description : golo 3 Main Model : golo 3 Serial Model N/A Antenna Gain : UMTS-FDD Band V/GPRS850: -4.95dBi UMTS-FDD Band II/GPRS1900: 2.15dBi Bluetooth: -1.2dBi WIFI: -1.2dBi Input Power : Input: DC 12V Maximum Conducted AV Power to Antenna : GPRS 850: 31.91dBm GPRS 1900: 29.62dBm UMTS-FDD BandV: 22.7dBm UMTS-FDD BandII: 22.58dBm Maximum Radiated ERP/EIRP : GPRS 850: 28.35dBm / ERP GPRS 1900:24.28dBm / EIRP UMTS-FDD BandV: 22.32dBm / ERP UMTS-FDD BandII: 22.01dBm / EIRP Classification Per Stipulated Test Standard : FCC Part 22(H) & FCC Part 24(E): 2013 Title: RF Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070593-FCC-R1 Issue Date: December 24, 2013 Page: 6 of 61 www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of golo3 with stipulated standard Applicant / Client Launch Tech Co., Ltd. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China Manufacturer Launch Tech Co., Ltd. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China Laboratory performing the tests SIEMIC (Shenzhen - China) Laboratories Zone A, Floor 1, Building 2, Wan Ye Long Technology Park, South Side of Zhoushi Road, Bao'an District, Shenzhen, Guangdong, China Tel: +86-0755-2601 4629 / 2601 4953 Fax: +86-0755-2601 4953-810 Email: [email protected] Test report reference number 13070593-FCC-R1 Date EUT received December 06, 2013 Standard applied FCC Part 22(H) & FCC Part 24(E): 2013 Dates of test December 09 to December 19, 2013 No of Units #1 Equipment Category PCE Trade Name LAUNCH RF Operating Frequency (ies) GPRS850 TX : 824.2 ~ 848.8 MHz; RX : 869.2 ~ 893.8 MHz GPRS1900 TX : 1850.2 ~ 1909.8 MHz; RX : 1930.2 ~ 1989.8 MHz UMTS-FDD BandVTX : 826.4 ~ 846.6 MHz; RX : 871.4 ~ 891.6 MHz UMTS-FDD BandIITX :1852.4 ~ 1907.6 MHz; RX : 1932.4 ~ 1987.6 MHz 802.11b/g/n: 2412-2462 MHz Bluetooth: 2402-2480 MHz Number of Channels 299C…

Text truncated - open the document above for the full version.

Title: RF Test Report for golo 3 Main Model: golo 3 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 13070593-FCC-R1 Issue Date: December 24, 2013 Page: 56 of 61 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz –Front View
