XUJX431PADAutomotive Diagnostic Computer

Version: V1.00.001 Revised date: 2012-07-20 II LAUNCH X-431 PAD User's Manual All rights reserved! No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means of electronic, mechanical, photocopying and recording or otherwise, without the prior written permission of LAUNCH. This manual is designed only for the use of this unit. LAUNCH is not responsible for any use of this manual on the other units. The manual and all the samples herein can be changed without prior notice. Neither LAUNCH nor its affiliates shall be liable to the purchaser of this unit or third parties for damages, losses, costs or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this unit, or unauthorized modifications, repairs, or alterations to this unit, or failure to strictly comply with LAUNCH operating and maintenance instructions. LAUNCH shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original LAUNCH Products or LAUNCH Approved Products by LAUNCH. Notice: other product names used herein are for identification purposes only and may be trademarks of their respective owners. LAUNCH disclaims any and all rights in those marks. This device is only for professional technicians and maintenance personnel. Registered Trademark LAUNCH is a registered trademark of LAUNCH TECH. CO., LTD. (LAUNCH) in China and other countries. In other countries where any of the LAUNCH trademarks, service marks, domain names, logos and company names is not registered, LAUNCH claims other rights associated with unregistered trademarks, service marks, domain names, logos and company names. Other products or company names referred to in this manual may be trademarks of their respective owners. You may not use any trademarks, service marks, domain names, logos or company name of LAUNCH or any third party without permission from the owner of the applicable trademarks, service marks, domain names, logos or company name. You may visit LAUNCH at http://www.dbscar.com for the information of Launch’s X-431 PAD and the other specialized diagnostic tools, or contact Launch by visiting http://www.cnlaunch.com or writing to Customer Center, LAUNCH TECH. CO., LTD., Launch Industrial Park, North of Wuhe Avenue, Banxuegang, Bantian, Longgang, Shenzhen, Guangdong. P.R. China, to request written permission to use materials on this manual for purposes or for all other questions relating to this manual. III LAUNCH X-431 PAD User's Manual Precautions on Operating Vehicle’s ECU Do not disconnect the vehicle inner consumer when the ignition switch is on. • High voltage transients may encounter at the moment of disconnecting, which may damage the sensors and the ECU. Protect the computer from magnetic object (such as wireless speaker) • Do cut off the power supply of ECU system before welding on the vehicle.• Pay more attention to the ECU and the sensors when the operation is next to • them. Ground yourself when you disassemble PROM, otherwise ECU and sensors • will be damaged by static electricity. Do not use the pointer ohmmeter instead of DMM to test the ECU and the • sensor without special requirement. Do not test electric devices in relation with ECU with a test lamp unless • otherwise expressly provided. Do wear a metal ground strip that one end around your wrist and the other to • the vehicle body when you get in and out the vehicle. Do connect ECU harness connector firmly, otherwise electro elements, such • as IC inside ECU, will be damaged. Precaution on Operation The appliance is a sophisticated electronic device, never have it clashed • when in use. Make sure the appliance is properly connected to the DLC to avoid • communication interruptions. During operation, keep the screen upward and leveled. Don’t disconnect the wired network or Wi-Fi network while software updating • or sending E-mail, otherwise, it will be interrupted. After the operation, the stylus shall be inserted into the hole on the back of • the main unit, and put away the cable and connector, etc accessories to the box to avoid the lost. Handle with care. Avoid collision. Unplug the power after operation.• IV LAUNCH X-431 PAD User's Manual Safety Precautions Automotive batteries contain sulfuric acid • that is harmful to skin. In operation, direct contact with the automotive batteries should be avoided. Pay attention not to splash the sulfuric acid into eyes. Keep the ignition sources away from the battery at all times. E n g i n e s p r o d u c e v a r i o u s p o i s o n o u s • c o m p o u n d s ( h y d r o c a r b o n , c a r b o n monoxide, nitrogen oxides, etc,) which should be avoided. The vehicles shall be tested in a well-ventilated area. A v o i d c o n t a c t i n g h i g h t e m p e r a t u r e • assembly such as water tank and vent-pipe as the temperature of the running engine is very high. Before starting engine, put the speed lever • in the neutral position or in the P position to avoid injury. Wear an ANSI-approved eye shield when • testing or repairing vehicles. If you use the battery as a power source, • connect the RED (+) battery clip to the positive of the vehicle battery and the BLACK (-) battery clip to the negative. V LAUNCH X-431 PAD User's Manual Content 1 Foreword ..................................................................................................1 1.1 Product Introduction ...............................................................................1 1.2 Product Features ....................................................................................1 1.3 Product Functions...................................................................................1 1.4 Technical Specifications .........................................................................2 2 About X-431 PAD ............................................................................…

Text truncated - open the document above for the full version.

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. RF Exposure: A distance of 20 cm shall be maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna.

Launch Tech Co., Ltd. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China FCC Declaration of Conformity Number: CF302 Version: V03 Date: 22-08-2011 A declaration of conformity can only be issued by a U.S. entity based on a test report from an accredited laboratory. Accredited laboratories are located in the US, or in a country where the FCC has signed an MRA with. For a full list of accredited laboratories recognized by the FCC, please go to the FCC website https://fjallfoss.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm and for Test Firm Type, select “Accredited”. Additional information on administrative requirements for Declaration of Conformity can be found in KDB Publication Number 349827 . We, (responsible party must be a legal entity registered within the U.S., see FCC rule part 2.909 (2), must a U.S. address, such as importer or local manufacturer) Company N Launch Tech Co., Ltd. Address: Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China Postal/Zip: 518129 City: Shenzhen State/Provinc Guangdong Country china Contact Person: Mr. Ms Name Yibing xue Function Manager Email: YIBING.XUE@CHLAUNCH. CO Web: Phone: +86-755-84528031 Fax: +86-755-84528889 declare for the equipment identified by: Product Description Automotive Diagnosis Computer Type or Model(s) X-431 PAD Tradename or Brand(s) LAUNCH that: (if the DoC test reports are available at this moment, please cross item a below) a). The following test reports, issued by an FCC accredited Laboratory, are subject to this declaration: Accredited Test Firm or Laboratory name: Test Report Number: Date of issue: (if no DoC test report is available at this moment, then if you agree with the statement made in item b below, please cross item b below) b). DoC testing is pending at this moment, but will execute and finish the required DoC testing in an FCC accredited Laboratory before marketing the device in the U.S. Attestation: In addition to our declaration above, we also will ensure to label the equipment with the FCC logo, the name of the manufacturer and model number, as required by the FCC rule part 15.19. City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen China October 29, 2012 Yibing xue Manager This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DoC

Launch Tech Co., Ltd. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China FCC Confidentiality Request Number: CF303 Version: V02 Date:17-06-2011 To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Launch Tech Co., Ltd. Address Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China City Shenzhen Country China request for this certification filing under: Grantee Code Product Number FCC ID: XUJ X431PAD to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen China October 29, 2012 Yibing xue Manager

Launch Tech Co., Ltd. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Launch Tech Co., Ltd. Address Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China City Shenzhen Country China declare that the following representative (agent): Name (person) Ruby Zhang Company name Supervisor Address Compliance Certification Services (Shenzhen) Inc. City No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China Country Shenzhen China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Automotive Diagnosis Computer Type or Model(s) X-431 PAD Tradename or Brand(s) LAUNCH We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen China October 29, 2012 Yibing xue Manager

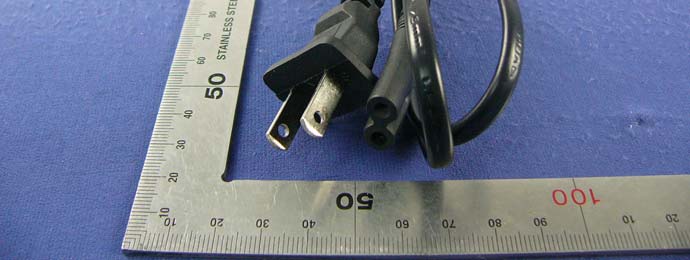

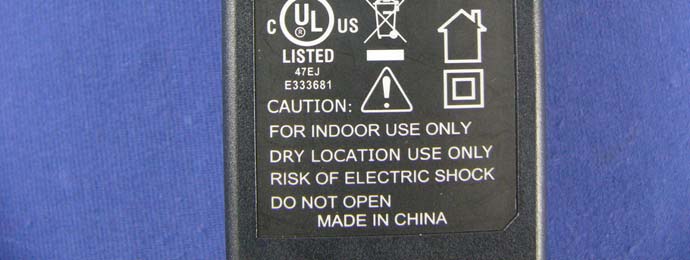

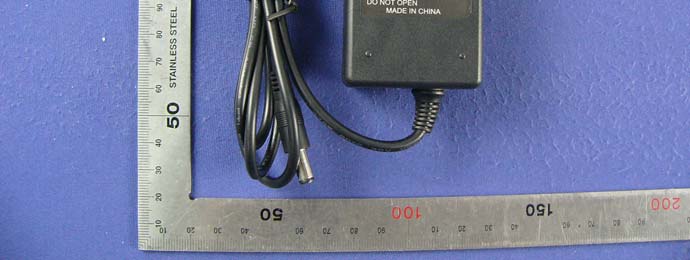

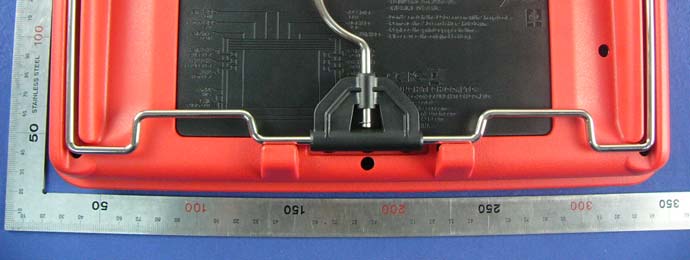

Report No: SZ120619B03-RP Page 1 / 6 External Photos of EUT Report No: SZ120619B03-RP Page 2 / 6 Report No: SZ120619B03-RP Page 3 / 6 Report No: SZ120619B03-RP Page 4 / 6 Report No: SZ120619B03-RP Page 5 / 6 Report No: SZ120619B03-RP Page 6 / 6

Label Location

Automotive Diagnosis Computer Model No: X-431 PAD FCC ID: XUJX431PAD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

Report No: SZ120619B03-RP Page 1 / 23 Internal Photos of EUT Report No: SZ120619B03-RP Page 2 / 23 Report No: SZ120619B03-RP Page 3 / 23 Report No: SZ120619B03-RP Page 4 / 23 Report No: SZ120619B03-RP Page 5 / 23 Report No: SZ120619B03-RP Page 6 / 23 Report No: SZ120619B03-RP Page 7 / 23 Report No: SZ120619B03-RP Page 8 / 23 Report No: SZ120619B03-RP Page 9 / 23 Report No: SZ120619B03-RP Page 10 / 23 Report No: SZ120619B03-RP Page 11 / 23 Report No: SZ120619B03-RP Page 12 / 23 Report No: SZ120619B03-RP Page 13 / 23 Report No: SZ120619B03-RP Page 14 / 23 Report No: SZ120619B03-RP Page 15 / 23 Report No: SZ120619B03-RP Page 16 / 23 Report No: SZ120619B03-RP Page 17 / 23 Module (WIFI) Report No: SZ120619B03-RP Page 18 / 23 Report No: SZ120619B03-RP Page 19 / 23 Report No: SZ120619B03-RP Page 20 / 23 Report No: SZ120619B03-RP Page 21 / 23 Bluetooth Report No: SZ120619B03-RP Page 22 / 23 Report No: SZ120619B03-RP Page 23 / 23

MPE evaluation for multiple transmitters that are able to transmit simultaneously FCC ID: XUJX431PAD The highest measured Peak power for each transmitter in this device: (Peak leads to worst case calculation compared to average): For WLAN (11b mode): 10.12 mW (10.05 dBm), with 3 dBi antenna gain For BT (GFSK mode): 16.79 mW (12.25 dBm), with 3 dBi antenna gain Criterion 1. The power density for each transmitter must be under the given limit. For WLAN (11b mode): P radiated = P conducted + G linear = 10.05 dBm + 3 dBi = 13.5 dBm = 22.39 mW Power density S = (P radiated ) / (4π x d 2 ) = 22.39 / 5026 =0.00446 mW/cm 2 The calculated power density for this transmitter is far below the limit, so PASS. For BT (GFSK mode): P radiated = P conducted + G linear = 12.25 dBm + 3 dBi = 15.25 dBm = 33.50 mW Power density S = (P radiated ) / (4π x d 2 ) = 33.50 / 5026 =0.00667 mW/cm 2 The calculated power density for this transmitter is far below the limit, so PASS. Criterion 2. The sum of (maximum measured Peak power) / (Peak power limit) ratio of each transmitter shall be below 1. Calculation: 0.01012W / 1W + 0.01679W / 1W = 0.02691 The calculated sum value is far below 1, so PASS.

Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 1 / 128 FCC TEST REPORT for Automotive Diagnosis Computer MODEL: X-431 PAD Brand: LAUNCH Test Report Number: SZ120619B03-RP Issued Date: September 25, 2012 Issued for Launch Tech Co., Ltd. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1 Mingkeda Logistics park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 2 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 SZ120619B03-RP Initial Issue ALL Amay Tang Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 3 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION ..................................................................................................4 2 EUT DESCRIPTION .......................................................................................................5 3 TEST METHODOLOGY .................................................................................................6 3.1. DESCRIPTION OF TEST MODES.......................................................................................6 4 SETUP OF EQUIPMENT UNDER TEST........................................................................7 4.1. DESCRIPTION OF SUPPORT UNITS.................................................................................7 4.2. CONFIGURATION OF SYSTEM UNDER TEST..................................................................7 5 FACILITIES AND ACCREDITATIONS...........................................................................8 5.1. FACILITIES ..........................................................................................................................8 5.2. ACCREDITATIONS..............................................................................................................8 5.3. MEASUREMENT UNCERTAINTY.......................................................................................8 6 FCC PART 15.247 REQUIREMENTS ............................................................................9 6.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT.............................................9 6.2. SPURIOUS EMISSIONS MEASUREMENT.......................................................................13 6.3. 6DB BANDWIDTH MEASUREMENT.................................................................................57 6.4. 20DB BANDWIDTH............................................................................................................65 6.5. PEAK OUTPUT POWER (WIFI).........................................................................................69 6.6. PEAK OUTPUT POWER (BLUETOOTH) ..........................................................................77 6.7. BAND EDGES MEASUREMENT.......................................................................................82 6.8. PEAK POWER SPECTRAL DENSITY MEASUREMENT................................................108 6.9. FREQUENCY SEPARATION...........................................................................................116 6.10.NUMBER OF HOPPING FREQUENCY...........................................................................120 6.11.TIME OF OCCUPANCY (DWELL TIME) .........................................................................123 Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 4 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Automotive Diagnosis Computer Model X-431 PAD Brand LAUNCH Tested June 19~ September 13, 2012 Applicant Launch Tech Co., Ltd. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China Manufacturer Launch Tech Co., Ltd. Launch Industrial Park, North of Wuhe Rd., Banxuegang, Longgang, Shenzhen, China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by:Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 5 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product Automotive Diagnosis Computer Brand LAUNCH Model Number X-431 PAD Model Discrepancy N/A Serial Number SZ120619B03-RP Received Date June 19, 2012 Power Supply DC 12V supplied by the adapter Adapter Manufacturer / Model No. WT1203000 I/P: 100-240Vac, 50/60Hz, 1.60A O/P: 12Vdc, 3.00A, DC Output Cable: Unshielded,2.70m Frequency Range IEEE 802.11b/g: 241…

Text truncated - open the document above for the full version.

Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 76 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Peak power (CH Mid) Peak power (CH High) Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 77 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6.6. PEAK OUTPUT POWER (BLUETOOTH) 6.6.1. LIMITS The maximum peak output power of the intentional radiator shall not exceed the following: 1. For frequency hopping systems operating in the 2400-2483.5 MHz band employing at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 5725-5850 MHz band: 1 watt. For all other frequency hopping systems in the 2400-2483.5 MHz band: 0.125 watts. 2. Except as shown in paragraphs (b)(3) (i), (ii) and (iii) of this section, if transmitting antennas of directional gain greater than 6dBi are used the peak output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1) or (b)(2) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6dBi. 3. The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 6.6.2. TEST INSTRUMENTS Name of Equipment Manufacturer Model Serial Number Last Calibration Due Calibration Power MeterAnritsu ML2487A 6K00001491 03/19/2012 03/19/2013 Spectrum Analyzer Agilent E4446A US44300399 03/19/2012 03/19/2013 6.6.3. TEST PROCEDURES (please refer to measurement standard) The transmitter output is connected to the RF Power Meter. The RF Power Meter is set to the peak power detection. 6.6.4. TEST SETUP EUT Power Meter / Spectrum Analyzer Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 78 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6.6.5. TEST RESULTS No non-compliance noted Test Data GFSK Channel Frequency (MHz) Reading Power (dBm) Factor (dB) Output Power (dBm) Output Power (W) Limit (W) Result Low 24027.953.5011.45 0.01396PASS Mid 24418.323.5011.82 0.01521PASS High 24808.753.5012.25 0.01679PASS 1 8DPSK Channel Frequency (MHz) Reading Power (dBm) Factor (dB) Output Power (dBm) Output Power (W) Limit (W) Result Low 24026.903.5010.40 0.01096PASS Mid 24416.803.5010.30 0.01072PASS High 24806.373.509.87 0.00971PASS 1 Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 79 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Test Plot GFSK Peak power (CH Low) Peak power (CH Mid) Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 80 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Peak power (CH High) 8DPSK Peak power (CH Low) Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 81 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Peak power (CH Mid) Peak power (CH High) Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 82 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6.7. BAND EDGES MEASUREMENT 6.7.1. LIMITS According to §15.247(d), in any 100 kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in 15.209(a) (see Section 15.205(c)). 6.7.2. TEST INSTRUMENTS Radiated Emission Test Site 966(2) Name of EquipmentManufacturer Model Number Serial Number Last Calibration Due Calibration PSA Series Spectrum Analyzer Agilent E4446A US44300399 03/19/2012 03/19/2013 ESCI EMI TEST RECEIVER.ESCI ROHDE&SCHWARZESCI 100783 03/17/2012 03/17/2013 Amplifier MITEQ AM-1604-3000 1123808 03/18/2012 03/18/2013 Turn Table EMCO 2081-1.21 N/A N.C.R N.C.R Controller CTN/A N/A N.C.R N.C.R High Noise Amplifier Agilent 8449B 3008A01838 03/18/2012 03/18/2013 Bilog AntennaSCHAFFNERCBL6143 5082 03/17/2012 03/17/2013 Horn AntennaSCHWARZBECK BBHA9120 D28603/17/2012 03/17/2013 Loop AntennaA、R、A PLA-1030/B 1029 03/23/2012 03/23/2013 Temp. / Humidity Meter VICTOR VC230 N/A 03/19/2012 03/19/2013 Antenna TowerSUNOL TLT2 N/A N.C.R N.C.R Test S/W FARAD LZ-RF / CCS-SZ-3A2 NOTE: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 2. The FCC Site Registration number is 101879. 3. N.C.R = No Calibration Required. Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 83 / 128 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6.7.3. TEST PROCEDURES (please refer to measurement standard) 1. The EUT is placed on a turntable, which is 0.8m above the ground plane. 2. The turntable shall be rotated for 360 degrees to determine the position of maximum emission level. 3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest…

Text truncated - open the document above for the full version.

Report No.: SZ120619B03-RP Page 1 / 2 FCC ID:XUJX431PAD PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: SZ120619B03-RP FCC ID: XUJX431PAD Page 2/2 . RADIATED EMISSION TEST Below 1GHz Above 1GHz
