XUN015495RC Toy Transmitter

Instruction Manual For use with Park Flyer, indoor aircraft and small electric coaxial helicopter type models. 2.4GHZ DIGITAL REMOTE CONTROL SYSTEM Includes* Advanced 2.4GHz 7-channel professional transmitter Advanced 2.4GHz micro 7.7g 7-channel receiver *See box label for detailed contents listing Features ■ Simple one-button transmitter/receiver binding Lightweight (7.7 gram) micro 7-channel receiver Dual rate (Ail & Ele) Elevon mixing (Ail & Ele mixing for flying wing types of models) Unique slow-rate retract/flap switch (channel 5) Range check mode Trainer function Low voltage alarm Throttle reverse safety function Side & rear ergonomic grips for maximum transmitter security Steel carry handle and neck strap mount Directional antenna Precision, adjustable height dual-axis stick units Front-mounted reversing switch panel Low power consumption 4-cell transmitter Convenient crystal-free operation Simulator socket (USB simulator cable available separately) LCD display Channel 5, 2 way switch. Channel 6, rotary switch Channel 7, 3 way switch d all el tric xia helic te ty odel For use with recreational radio controlled model aircraft only. Not a toy—suitable only for persons aged 14+. Planet rock-solid r/c V8.10 Contents Warranty conditions ............................................ii EU regulations.......................................................ii Introduction ........................................................... 1 Safety information ................................................ 1 UK Air Law, BMFA & safety ................................ 1 New to Radio Control?......................................... 1 Not what you expected? ..................................... 1 Transmitter features............................................. 2 Control trims...................................................... 2 Channel 5 switch .............................................. 2 Channel 6 rotary switch .................................. 2 Channel 7 switch .............................................. 2 Channel 7 alarm................................................ 2 Trainer switch ................................................... 2 Dual rate switch ............................................... 3 Elevon mixing .................................................... 3 Range check function ..................................... 3 Battery status LCD ........................................... 3 Reversing switches ......................................... 3 Battery fitting .................................................... 3 Charging socket ............................................... 3 Simulator lead socket...................................... 3 Stick tension adjustment ................................ 4 Stick height adjustment .................................. 4 R7M receiver ......................................................... 5 R7M deployment .............................................. 5 Receiver connections ..................................... 5 R7M Specifications.......................................... 5 Servos ..................................................................... 6 Battery and switch ............................................... 6 Binding transmitter to receiver.......................... 6 Transmitter usage................................................. 7 Transmitter aerial positioning ........................ 7 Range and power check ................................. 7 Battery status LCD ........................................... 8 Mode change switch....................................... 8 Planet 7 Failsafe ............................................... 8 Throttle left (mode 2) layout ........................... 9 Throttle right (Mode 1) .................................... 9 Flight controls - Examples ................................ 10 Helicopter Mode 2 ......................................... 10 Aircraft mode 2 ............................................... 11 Helicopter mode 1 .......................................... 12 Aircraft mode 1 ............................................... 13 WARNING! Model aircraft flying is a potentially hazardous sport which has the potential to endanger life, cause injury or damage property. When you see this symbol in this manual, your attention is being drawn to a potential hazard and you should take particular note. WARRANTY CONDITIONS For a period of one year from time of purchase, J. Perkins Distribution Ltd will repair or replace, at it’s discretion, any items showing manufacturing or assembly defects that has been found faulty by our service department. This does not affect your statutory rights. J Perkins Distribution Ltd does not accept any liability for any injury, damage or consequential damage arising as a result of failure to observe the procedures and precautions outlined in this manual. J Perkins Distribution Ltd does not accept any liability that may arise from any misuse or modification of this equipment, Please note that, whilst every effort is made to ensure the accuracy of instructions and materials included with this product, mistakes can occur and neither J. Perkins Distribution Ltd nor it’s distributors will be held liable for any loss or damage arising from the use of this system or for any loss or damage arising from omissions or inaccuracies in the associated instructions, references, web sites or materials included or referred to with this product. We reserve the right to modify the design of this product, the box contents and manual without prior notification. E&OE © 2010 J Perkins Distribution Ltd. All rights reserved. web: www.jperkinsdistribution.co.uk EU REGULATIONS J Perkins Distribution Ltd declares that this remote control system is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC on Radio equipment and Telecommunications Terminal Equipment. A copy of the declaration(s) of conformity can be obtained from J Perkins Dist…

Text truncated - open the document above for the full version.

Shenzhen Shen`s Tongchuang Aeronautic Model Co.,Ltd ShenZhen Shen`s Tongchuang Aeronautic Model Co.,Ltd. The opposition of Xinjiang Community Education Base, Guangming New District, Shenzhen, China Date :Sep 28, 2010 FCC ID: XUN015495 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, “ShenZhen Shen`s Tongchuang Aeronautic Model Co.,Ltd. ” requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) Block Diagram (4) Operational Description Therefore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection.

PAGE 1 OF 4 Shenzhen Shen`s Tongchuang Aeronautic Model Co.,Ltd Date : Sep 28,2010 PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 Blomberg Dear Sirs, Re. : Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Mr. K C Lee as agent for ShenZhen Shen`s Tongchuang Aeronautic Model Co.,Ltd. & The opposition of Xinjiang Community Education Base, Guangming New District, Shenzhen, China to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of ShenZhen Shen`s Tongchuang Aeronautic Model Co.,Ltd.. Product name : Transmitter Model : TX1P17A This authorization will expire one year from the date of this letter. Signature with title James King

PAGE 1 OF1 Shenzhen Shen`s Tongchuang Aeronautic Model Co.,Ltd Date : Sep 28,2010 The Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Attn.: Mr. KC Lee Dear Sir, Re. : Letter of Attestation This equipment has been tested in accordance with the requirements contained in the appropriate Commission Regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, as defined in the Commission’s regulations, will conform to the samples tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by the Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Yours sincerely, James King ________________________ Signature with Title.

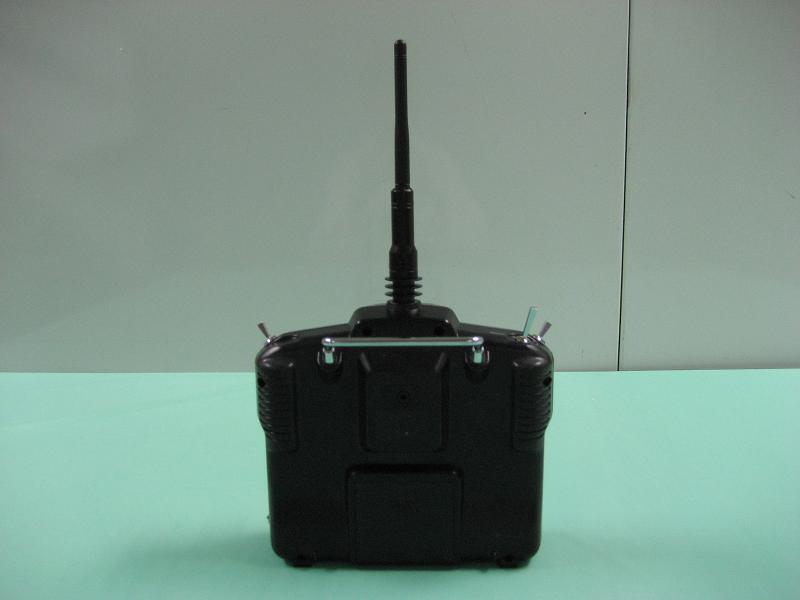

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

STC Test Report Date : 2010-10-12 Page 1 of 20 No. : MH184530 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (C01496): Shenzhen Shen’s Tongchuang Aeronautic Model Co., Ltd The opposition of Xinjiang Community Education Base, Guangming New District, Shenzhen, China Manufacturer: Shenzhen Shen’s Tongchuang Aeronautic Model Co., Ltd The opposition of Xinjiang Community Education Base, Guangming New District, Shenzhen, China Description of Sample(s): Product: Transmitter Brand Name: N/A Model Number: TX1P17A FCC ID: XUN015495 Date Sample(s) Received: 2010-09-14 Date Tested: 2010-09-23 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4:2003 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen, Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2010-10-12 Page 2 of 20 No. : MH184530 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 20 Content Page 2-3 of 20 1.0 General Details 1.1 Equipment Under Test [EUT] Page 4 of 20 Description of EUT operation 1.2 Description of EUT Operation Page 4 of 20 1.3 Date of Order Page 4 of 20 1.4 Submitted Sample Page 4 of 20 1.5 Test Duration Page 4 of 20 1.6 Country of Origin Page 4 of 20 2.0 Technical Details 2.1 Investigations Requested Page 5 of 20 2.2 Test Standards and Results Summary Page 5 of 20 3.0 Test Results 3.1 Radiated Emission Page 6-15 of 20 STC Test Report Date : 2010-10-12 Page 3 of 20 No. : MH184530 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 16 of 20 Appendix B Duty Cycle Correction During 100 msec Page 17-18 of 20 Appendix C Photographs Page 19-20 of 20 STC Test Report Date : 2010-10-12 Page 4 of 20 No. : MH184530 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: Transmitter Manufacturer: Shenzhen Shen’s Tongchuang Aeronautic Model Co., Ltd Brand Name: N/A Model Number: TX1P17A Input Voltage: 6Vd.c. (“AA” size battery×4) 1.2 Description of EUT Operation The Equipment Under Test (EUT) is a Shenzhen Shen’s Tongchuang Aeronautic Model Co., Ltd, Transmitter. The transmission signal is frequency hopping with channel frequency range 2410.0.-2475.0MHz during normal use. The EUT was set to fixed frequency test mode by application. 1.3 Date of Order 2010-09-14 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2010-09-23 1.6 Country of Origin China STC Test Report Date : 2010-10-12 Page 5 of 20 No. : MH184530 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 Regulations and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2010-10-12 Page 6 of 20 No. : MH184530 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions Test Requirement: FCC 47CFR 15.249 Test Method: ANSI C63.4:2003 Test Date: 2010-09…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
