XUR-VELRC12.4G Wireless Remote Control

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following tow conditions: (1)this device may not cause interference, and(2) this device must accept any interference, includinginterference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre lefonctionnement.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 DATE 2015-08-24 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: XUR-VELRC1 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Company Officer: Philip Tan Company address： 21 Bukit Batok Crescent, #11-71 WCEGA Tower, Singapore 658065 Email: [email protected]

Aug. 24, 2015 Eurofins Product Service GmbH Storkower Str. 38c 15526 Reichenwalde GERMANY Subject: Explanation of differences between product types FCC ID : XUR-VELRC1 Model Number: VEL-RC-01, VEL-RC-02, CHV-RC-01, CAV-RC-01, VTX- RC-01, VTX-RC-02, AQU-RC-01, AQU-RC-02 To Whom It May Concern: We, The Xtreme DSP Global Pte Ltd hereby declare that the model : VEL-RC-02, CHV-RC-01, CAV-RC-01, VTX-RC-01, VTX-RC-02, AQU-RC-01, AQU-RC-02 is identical with the model : VEL-RC-01, except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Company Officer: Philip Tan Telephone Number: +65 90062626 Email: [email protected]

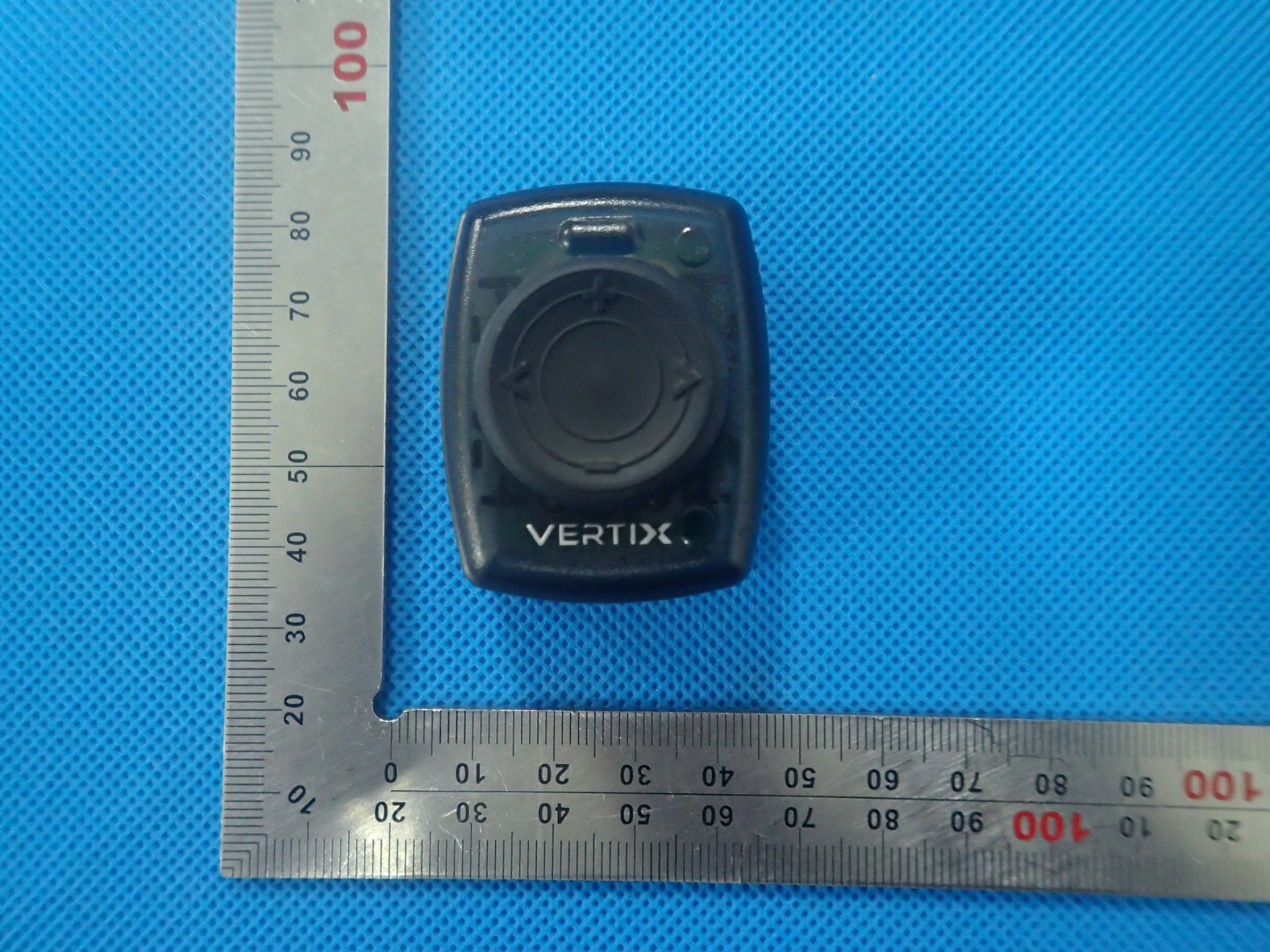

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT OPEN VIEW OF EUT-1

FCC ID Label Location FCC ID: XUR-VELRC1 Model: VEL‐RC‐01 VEL‐RC‐02, CHV‐RC‐01, CAV‐RC‐01, VTX‐RC‐01, VTX‐RC‐02, AQU‐RC‐01, AQU‐RC‐02

Internal Photos OPEN VIEW OF EUT-1 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Antenna

Provided by Eurofins Product Service GmbH v.0. 2 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: VEL-RC-01, VEL-RC-02, CHV-RC-01, CAV-RC-01, VTX-RC-01, VTX-RC- 02 ,AQU-RC-01, AQU-RC-02 FCC ID: XUR-VELRC1 fulfills the requirement relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type described below: Model No. of antenna: N/A Type of antenna: fixed antenna permanently attached Gain of the antenna: 0 dBi Frequency range: 2449.5MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Xtreme DSP Global Pte Ltd Address: 21 Bukit Batok Crescent, #11-71 WCEGA Tower, 658065 City: Singapore ZIP / Postal code: 658065 Country: Singapore Place: Singapore Date: Aug. 24, 2015 Signature:

RF Exposure Evaluation Product Description: 2.4G Wireless Remote Control Model Number: VEL-RC-01 FCC ID: XUR-VELRC1 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The transmitter output power (P t ) formula was showed as the follow: P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the formula described above: Emax=96.24dBuv/m=0.065V/m, d=3m, g t =1 P t =（E x d） 2 /（30 x g t ）=(0.065x3) 2 / (30x1)=0.0012675W=1.27mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -1.27mW output power] (1.27mW / 5mm)*[√2.402(GHz)] = 0.394mW < 3.0 for 1 - g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 25 FCC Test Report Report No.: AGC04916150702FE03 FCC ID : XUR-VELRC1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : 2.4G Wireless Remote Control BRAND NAME : VERTIX MODEL NAME : VEL-RC-01, VEL-RC-02, CHV-RC-01, CAV-RC-01, VTX-RC-01, VTX-RC-02, AQU-RC-01, AQU-RC-02 CLIENT : Xtreme DSP Global Pte Ltd DATE OF ISSUE : Aug.03, 2015 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC04916150702FE03 Page 2 of 25 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Aug.03, 2015 Valid Original Report Report No.: AGC04916150702FE03 Page 3 of 25 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 6 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 6 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 6 6. TEST FACILITY .................................................................................................................... 7 7. 20DB BANDWIDTH .............................................................................................................. 9 7.1. MEASUREMENT PROCEDURE .................................................................................................. 9 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ......................................................... 9 7.3. LIMITS AND MEASUREMENT RESULTS .................................................................................... 9 8. RADIATED EMISSION ....................................................................................................... 11 8.1. MEASUREMENT PROCEDURE ................................................................................................ 11 8.2. TEST SETUP .............................................................................................................................. 13 8.3. TEST RESULT ............................................................................................................................ 14 9. BAND EDGE EMISSION .................................................................................................... 18 9.1. MEASUREMENT PROCEDURE ................................................................................................ 18 9.2. TEST SET-UP ............................................................................................................................. 18 9.3 TEST RESULT ............................................................................................................................. 18 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 20 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 21 Report No.: AGC04916150702FE03 Page 4 of 25 1. VERIFICATION OF CONFORMITY Applicant Xtreme DSP Global Pte Ltd Address 21 Bukit Batok Crescent, #11-71 WCEGA Tower, Singapore 658065 Manufacturer Xtreme DSP Global Pte Ltd Address 21 Bukit Batok Crescent, #11-71 WCEGA Tower, Singapore 658065 Product Designation 2.4G Wireless Remote Control Brand Name VERTIX Test Model VEL-RC-01 Series Model VEL-RC-02, CHV-RC-01, CAV-RC-01, VTX-RC-01, VTX-RC-02, AQU-RC-01, AQU-RC-02 Difference description All the same except for the model name. Date of test July 28, 2015 to July 28, 2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF (2013-03-01) We hereby certify that: The above equipment was tested by Dongguan Precise Testing Service Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Tested By Matt Zhang(Zhang Liang) Aug.03, 2015 Reviewed By Bart Xie(Xie Xiaobin) Aug.03, 2015 Approved By Solger Zhang(Zhang Hongyi) Authorized Officer Aug.03, 2015 Report No.: AGC04916150702FE03 Page 5 of 25 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION The EUT is “2.4G Wireless Remote Control ” designed as a “RF Product”. It is designed by way of utilizing the FSK technology to achieve the system operation. A major technical description of EUT is described as following Operation Frequency 2449.5MHz RF Output Power 1dBm(Max) Modulation FSK Number of channels 1 Hardware Version VERTIX_K1A3 Software Version N/A Antenna Designation Permanent Antenna Antenna Gain 0 dBi Power Supply DC3V by battery Report No.: AGC04916150702FE03 Page 6 of 25 3. MEASUREMENT UNCERTAINTY Conducted measurement: +/- 2.75dB Radiated measurement: +/- 3.2dB 4. DESCRIPTION OF TEST MODES NO. TEST MODE DESCRIPTION 1 Transmitting mode 2 Idle mode 5. SYSTEM TEST CONFIGURATION 5.1. CONFIGURATION OF EUT SYSTEM Configuration: 5.3. SUMMARY OF TEST RESULTS FCC RULES DESCRIPTION OF TEST RESULT §15.203 Antenna Requirement Compliant §15.215(c) 20 dB Bandwidth Complian…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP
