XV7MDM-GCA1-100Modem

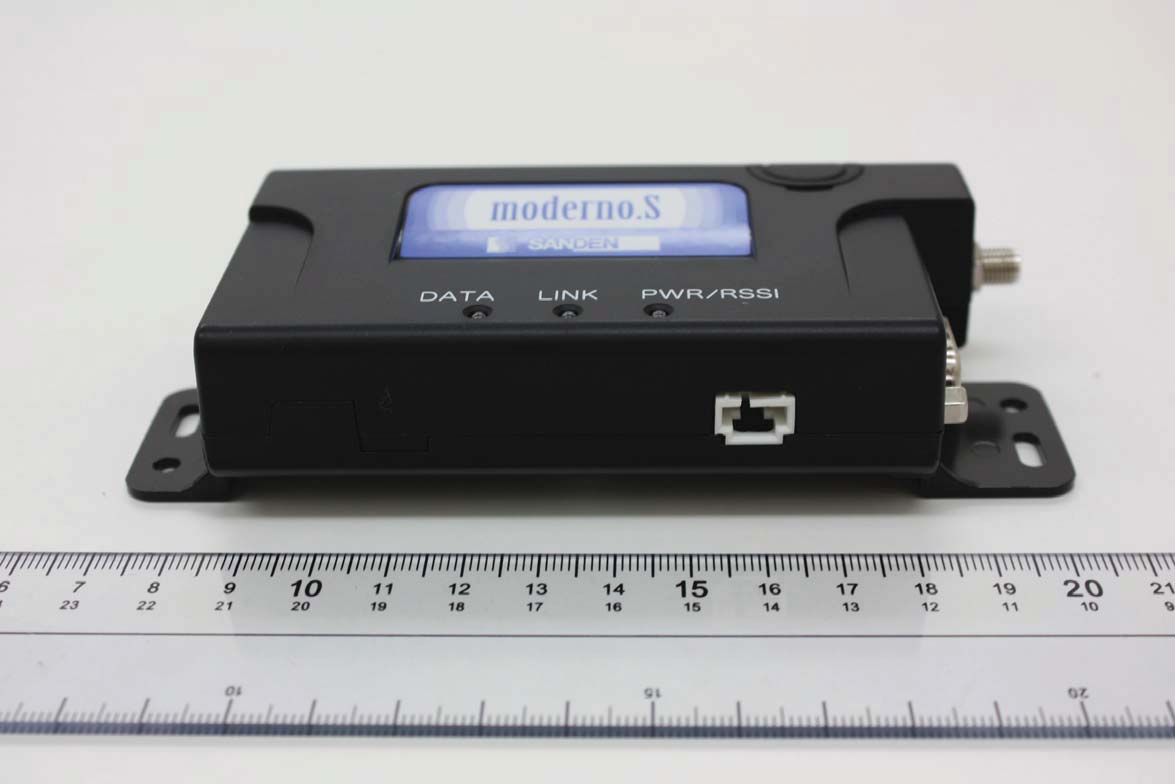

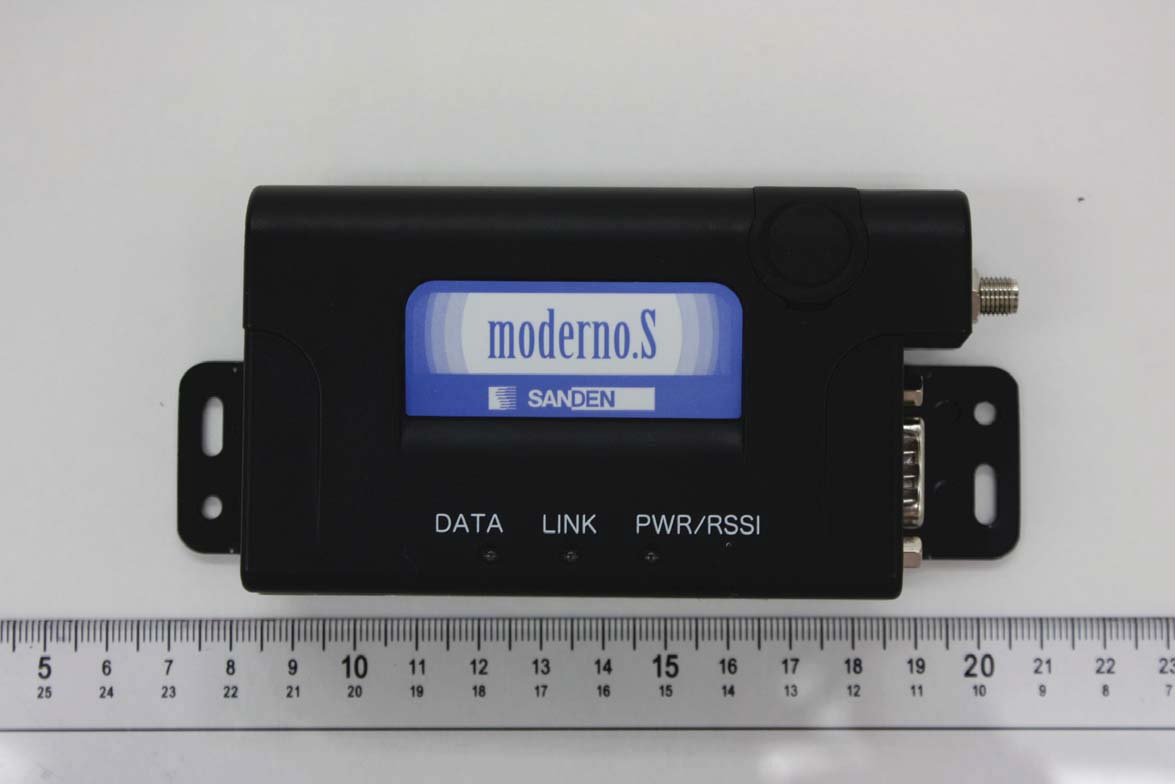

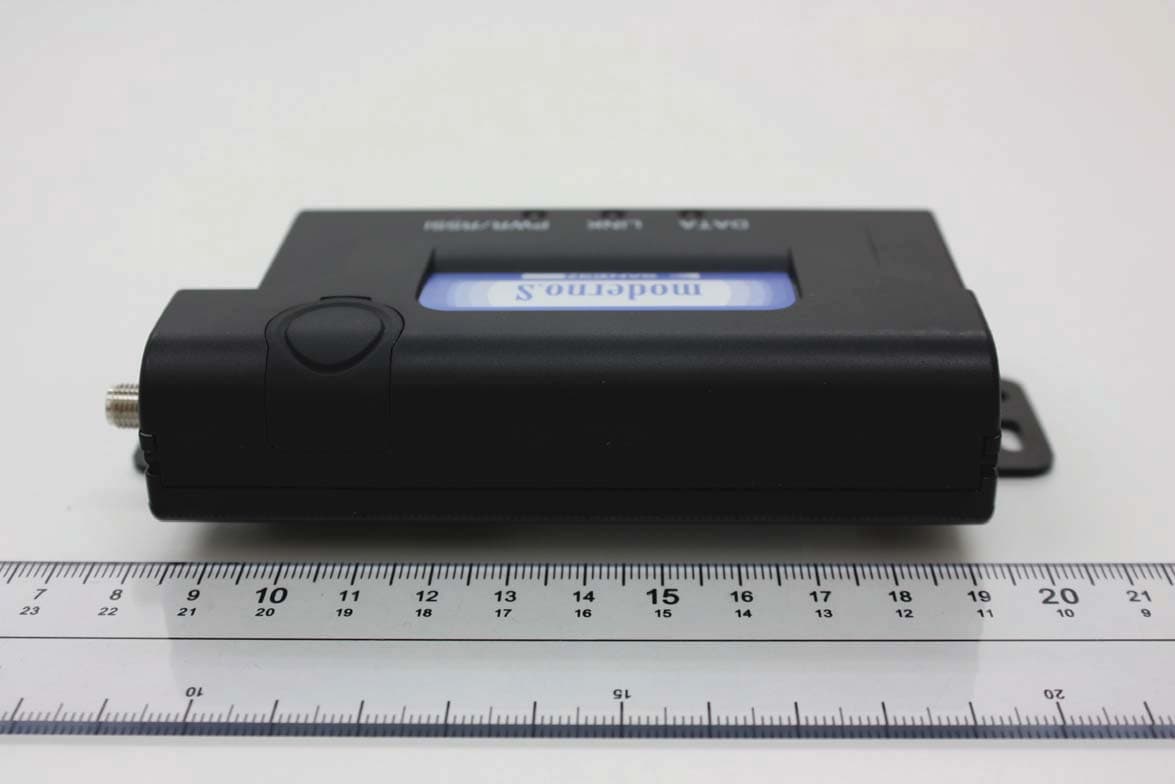

Quick Reference Guide For moderno.S Delivering Excellence 1 TECHNICAL DATA Quick Reference Guide For Modular demodulator MDM-GCA1B1 Model name. moderno.S Communication Supported Mode GSM, GPRS Supported Band 850/900/1800/1900 Connection interface Port RS-232C Connecter D-SUB9 （ #4-40 ） 、 male Data length 7/8bit Stop bit 1bit Communication speed 1,200bps ～ 460.8kbps Communication protocol PPP, TCP/IP Control command Ａ T command Power supply DC5V±5% Dimensions (mm) 100(W)×63(D)×25.6(H) （ except stick out part ・ attachment lug ） LED Indicator DATA 、 LINK 、 PWR/RSSI LED indicator Power supply Connector Switch inside Connecter Antenna connector (R-SMA) 2 1.Connector(RS-232C,D-SUB 9pin: male plug ） Pin no. Si g nal Line I/O Si g nal Name Function 1 CD I Reception carrier search When telecommuni cation line becomes connection, it is ON. 2 RxD I Received Data Data from this device 3 TxD O Transmitted Da t a- 4 DTR O Data Terminal Read y - 5 GND - 6DSR I Da t a Set Ready ON ： During operation of this device OFF: Telecommunication line is disconnected. 7 RTS O Request To Send - 8 CTS I Clear To Send ON: When device is ready to receive data. 9 RI I Ring Indicator RING. Signal of message arrival searched 2.Antenna Connector (R-SMA) Pin no. Terminal name Contents 1 TRX Transmission and Rece p tion Si g nal 2 SG Signal Ground 3. Power supply Connector 4. LED indicator Pin no. Terminal name Direction of a signal Explanation 1 VCC Reception signal DC5.0 ± 0.25V 2 PWR Reception signal SG: Power OFF(3 seconds more), OPEN: Power ON 3 SG - Signal Ground DATA Da t a in transmission / reception LINK Durin g communication PWR/RSSI Power on/ Received Signal Strength Indication, Received Si g nal Stren g th Indicator No １ pin: Signal terminal No2 pin: SG DATA LNK PWR/RSSI 9 8 7 6 5 4 3 2 1 1 2 3 3 5. Dip Switch Setting ・ Dip switch changes a movement mode of this device and sets transmission rate. ・ Be sure to shut off power supply before setting Dip switch. ・ Default :It is setting in factory shipment basically (all OFF). Display: power/in communication / transmission in LED. Function Setting Dip Switch NO. 1234 5 6 7890 Transmission rate setting 9,600bps OFF OFF - - - - - - - - 19,200bps ON OFF - - - - - - - - 15.2Kbps OFF ON - - - - - - - - User settin g ON ON - - - - - - - - Date bit select 8bit - - OFF - - - - - - - 7bit - - ON - - - - - - - Stop bit select 1bit - - - OFF - - - - - - 2bit ---ON - - ---- Parity select Non parity - - - - OFF OFF - - - - Oparity ---- ON OFF ---- odd numbe r ---- OFF ON ---- even numbe r ---- ON ON ---- Communication mode Normal - - - - - - OFF OFF - - Through - - - - - - ON OFF - - Protocol conversion - - - - - - OFF ON - - Protocol conversion A T command ---- - - ONON-- Electric wave reception level Enable(ON) - - - - - - - - ON - 6. The antenna “ Only the listed antenna here should be conn ected and operated toget her with the modem. ” ・ Company ： Smarteq Wireless AB ・ Model ： 1140.26RPSMA(m) 7. Minimum distance required (more than 30cm) "The antenna of this equipment must be installed and operated with a minimum distance more than 30cm from testing person's body " 1 2 3 4 5 6 7 8 9 0 ON 4 Communication mode 1) Through mode: User connects directly the device with a communication module without protocol conversion. 2) Protocol conversion mode Even if the device is without AT command, without TCP/IP functi on, network communication is enabled just to connect to “moderno ”. 3) Protocol conversion AT command mode Even if the device is with AT command, without TCP/IP functi on, network communication is enabled just to connect to “moderno”. Electric wave reception level Electric wave reception level is displayed by LED Bar indicator. Level LED(Red) DATA LINK PWR/RSSI 0(out of Area) OFF OFF OFF 1 OFF OFF ON 2 OFF ON ON 3 ON ON ON 4 ON ON ON FUNCTION 5 LED indication contents Operation status of this devi ce can be monitored by LED. Operation Status LED Remarks on LED DATA LINK PWR/RSSI Power on ON ON ON All Led: On In updating of system setting ON Blink ON In module search - - ON Shift lighting from right to left, and versa vice - ON - ON - - Communication failure with a module Blink Blink Blink All Led Blinks Module activation ON Shift lighting from right to left ON ON Failure of module activati on ON - ON Shit lighting from Top to bottom, versa vice - ON Stand by normal (Electric wave reception level 1-4) - - ON PWR/RSSI Led: ON Out of the communication zone (Electric wave reception level 0) - - Blink PWR/RSSI Led :Blink Phone number is unidentified. (Electric wave reception level 1-4) - Blink ON LINK Led: Blink PWR/RSSI:ON Phone number is unidentified. (Electric wave reception level 0) Blink BLINK LINK Led: Blink PWR/RSSI:Blink FUNCTION 6 Insertion guide of SIM (sum ming impact modulator card) 1 ) Take out two screws of the rear case. 2) Open the rear case, and insert SIM card. Confirm that SIM card is appropriately inserted at the designated position. 3) Set the rear case at appropriate positi on, and close it tightly with two screws. FUNCTION Rear case 7 Installation guide 1) Installation guide of the unit. Before installation, be sure to switch off the power of the device to be installed. a) Screw up the unit to the appropri ate install position of the device. b) Install the unit to the device at l east with 2 screws at diagonal positions (Recommendation is 4 points) 2) Associate power supply connector and communication connector to the device to be installed 3) Installation of antenna. Please install an antenna justly. FUNCTION Communication connector (RS232C 【 # 4-40 】 ) Power supply connector Antenna cable 8 Activation guide 1. Power supply ON 2. Check the LED display whether "DATA, LINK , PWR/RSSI" indicates as following chart. (Refer to the section "trouble diagnosis " except the below indicated cases) 3. Only “PWR/RSS” LED becomes “ON” wh en the unit becomes activated normally 4. The unit status becomes able for communication. (It c ould take a couple of ten seconds to …

Text truncated - open the document above for the full version.

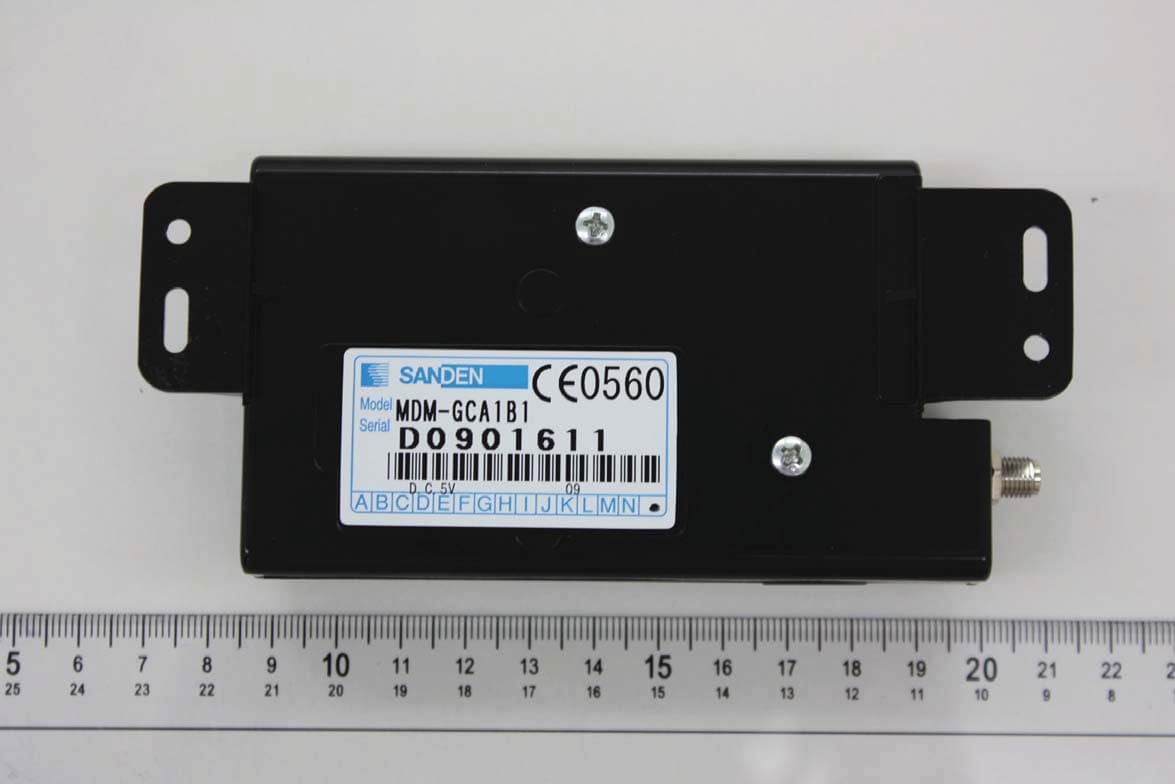

Label Location Here

LabelDesigng Size:49mm*26mm Label Location Here

Date: 27 Nov, 2009 Report No.: RY0911P27R2 Model: MDM-GCA1B1 RF Technologies Ltd. Page 1 of 39 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT TEST REPORT For Radio communication modem In conformity with FCC Part22H (01 Oct, 2008) Model: MDM-GCA1B1 FCC ID: XV7MDM-GCA1-100 Test Item: Radio communication modem (GSM850/GSM1900) Report No: RY0911P27R2 Issue Date: 27 Nov, 2009 This report shall not be reproduced, except in full, without the written permission of RF Technologies Ltd. The test results in this report apply only to the sample(s) tested. RF Technologies Ltd. is managed to ISO17025 and has the necessary knowledge and test facilities for testing according to the referenced standards. Prepared for SANDEN CORPORATION 1-31-7, Taito, Taito-ku, Tokyo, 110-8555, Japan Prepared by RF Technologies Ltd. 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645 FAX: +81+(0)45- 534-0646 Date: 27 Nov, 2009 Report No.: RY0911P27R2 Model: MDM-GCA1B1 RF Technologies Ltd. Page 2 of 39 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT Table of Contents 1 General information ................................................................................................. 3 1.1 Product description .................................................................................................................. 3 1.2 Test(s) performed/ Summary of test result .............................................................................. 3 1.3 Test facility .............................................................................................................................. 4 1.4 Measurement uncertainty ......................................................................................................... 4 1.5 Description of essencial requirements and test results ............................................................. 5 1.5.1 Transmitter requirements .................................................................................................. 5 1.5.2 AC Power Line Parameters ............................................................................................... 5 1.5.3 Normal test conditions ...................................................................................................... 5 1.5.4 Extreme test conditions ..................................................................................................... 5 1.6 Setup of equipment under test (EUT) ...................................................................................... 6 1.6.1 Test configuration of EUT ................................................................................................ 6 1.6.2 Operating condition: ......................................................................................................... 6 1.6.3 Setup diagram of tested system: ........................................................................................ 7 1.7 Equipment modifications ......................................................................................................... 7 1.8 Deviation from the standard ..................................................................................................... 7 2 Test procedure and result......................................................................................... 8 2.1 Transmitter requirements ......................................................................................................... 8 2.1.1 Carrier Output Power (Conducted) ................................................................................... 8 2.1.2 Carrier Output Power (Radiated) .................................................................................... 10 2.1.3 Frequency Stability (Temperature) ................................................................................. 13 2.1.4 Frequency Stability (Voltage) ......................................................................................... 15 2.1.5 Occupied Bandwidth ....................................................................................................... 17 2.1.6 Transmitter Out of Band Spurious Emissions (Conducted)............................................ 22 2.1.7 Transmitter Out of Band Spurious Emissions (Radiated) ............................................... 28 2.1.8 Band Edge Emissions...................................................................................................... 32 2.1.9 Transmitter AC Power Line Emission requirement ........................................................ 35 3 Test setup photographs ........................................................................................... 37 4 List of utilized test equipment/ calibration ........................................................... 39 History Report No. Issue Date Revision Contents Issued by RY0911P27R2 27 Nov, 2009 Initial Issue T.Kato Date: 27 Nov, 2009 Report No.: RY0911P27R2 Model: MDM-GCA1B1 RF Technologies Ltd. Page 4 of 39 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT 1.3 Test facility The Federal Communications Commission has reviewed the technical characteristics of the test facilities at RF Technologies Ltd., located in 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan, and has found these test facilities to be in compliance with the requirements of 47 CFR Part 15, section 2.948, per 01 October, 2008. The description of the test facilities has been filed under registration number 319924 at the Office of the Federal Communications Commission. The facility has been added to the list of laboratories performing these test services for the public on a fee basis. The list of all public test facilities is available on the Internet at http://www.fcc.go…

Text truncated - open the document above for the full version.

Date: 27 Nov, 2009 Report No.: RY091127R1 Model: MDM-GCA1B1 RF Technologies Ltd. Page 1 of 39 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT TEST REPORT For Radio communication modem In conformity with FCC Part24E (01 Oct, 2008) Model: MDM-GCA1B1 FCC ID: XV7MDM-GCA1-100 Test Item: Radio communication modem (GSM850/GSM1900) Report No: RY0911P27R1 Issue Date: 27 Nov, 2009 This report shall not be reproduced, except in full, without the written permission of RF Technologies Ltd. The test results in this report apply only to the sample(s) tested. RF Technologies Ltd. is managed to ISO17025 and has the necessary knowledge and test facilities for testing according to the referenced standards. Prepared for SANDEN CORPORATION 1-31-7, Taito, Taito-ku, Tokyo, 110-8555, Japan Prepared by RF Technologies Ltd. 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645 FAX: +81+(0)45- 534-0646 Date: 27 Nov, 2009 Report No.: RY091127R1 Model: MDM-GCA1B1 RF Technologies Ltd. Page 2 of 39 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT Table of Contents 1 General information ................................................................................................. 3 1.1 Product description .................................................................................................................. 3 1.2 Test(s) performed/ Summary of test result .............................................................................. 3 1.3 Test facility .............................................................................................................................. 4 1.4 Measurement uncertainty ......................................................................................................... 4 1.5 Description of essencial requirements and test results ............................................................. 5 1.5.1 Transmitter requirements .................................................................................................. 5 1.5.2 AC Power Line Parameters ............................................................................................... 5 1.5.3 Normal test conditions ...................................................................................................... 5 1.5.4 Extreme test conditions ..................................................................................................... 5 1.6 Setup of equipment under test (EUT) ...................................................................................... 6 1.6.1 Test configuration of EUT ................................................................................................ 6 1.6.2 Operating condition: ......................................................................................................... 6 1.6.3 Setup diagram of tested system: ........................................................................................ 7 1.7 Equipment modifications ......................................................................................................... 7 1.8 Deviation from the standard ..................................................................................................... 7 2 Test procedure and result......................................................................................... 8 2.1 Transmitter requirements ......................................................................................................... 8 2.1.1 Carrier Output Power (Conducted) ................................................................................... 8 2.1.2 Carrier Output Power (Radiated) .................................................................................... 10 2.1.3 Frequency Stability (Temperature) ................................................................................. 13 2.1.4 Frequency Stability (Voltage) ......................................................................................... 15 2.1.5 Occupied Bandwidth ....................................................................................................... 17 2.1.6 Transmitter Out of Band Spurious Emissions (Conducted)............................................ 22 2.1.7 Transmitter Out of Band Spurious Emissions (Radiated) ............................................... 28 2.1.8 Band Edge Emissions...................................................................................................... 32 2.1.9 Transmitter AC Power Line Emission requirement ........................................................ 35 3 Test setup photographs ........................................................................................... 37 4 List of utilized test equipment/ calibration ........................................................... 39 History Report No. Issue Date Revision Contents Issued by RY0911P27R1 27 Nov, 2009 Initial Issue T.Kato Date: 27 Nov, 2009 Report No.: RY091127R1 Model: MDM-GCA1B1 RF Technologies Ltd. Page 4 of 39 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT 1.3 Test facility The Federal Communications Commission has reviewed the technical characteristics of the test facilities at RF Technologies Ltd., located in 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan, and has found these test facilities to be in compliance with the requirements of 47 CFR Part 15, section 2.948, per 01 October, 2008. The description of the test facilities has been filed under registration number 319924 at the Office of the Federal Communications Commission. The facility has been added to the list of laboratories performing these test services for the public on a fee basis. The list of all public test facilities is available on the Internet at http://www.fcc.gov. …

Text truncated - open the document above for the full version.

Date: 27 Nov, 2009 Report No.: RY091127R1 Model: MDM-GCA1B1 RF Technologies Ltd. Page 37 of 39 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT 3 Test setup photographs Temperature test (Frequency stability) Date: 27 Nov, 2009 Report No.: RY091127R1 Model: MDM-GCA1B1 RF Technologies Ltd. Page 38 of 39 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT Radiated emission 1 Radiated emission 2
