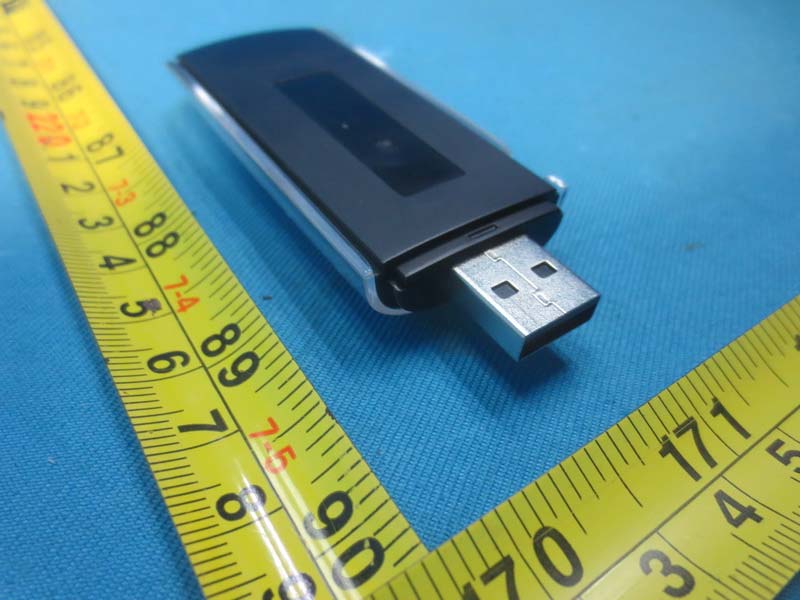

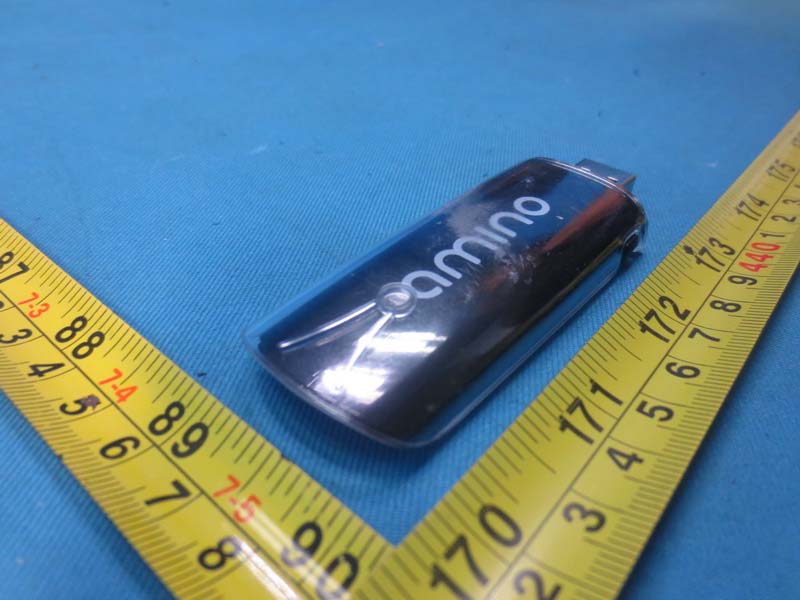

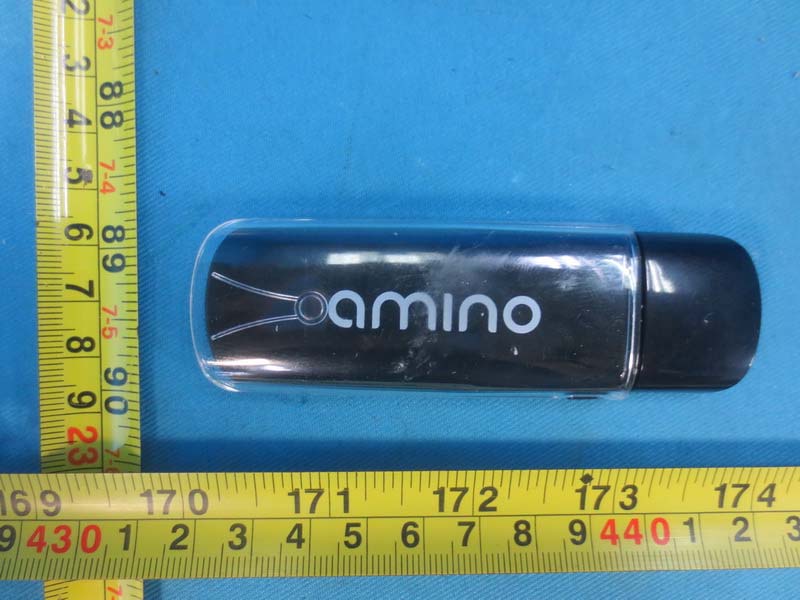

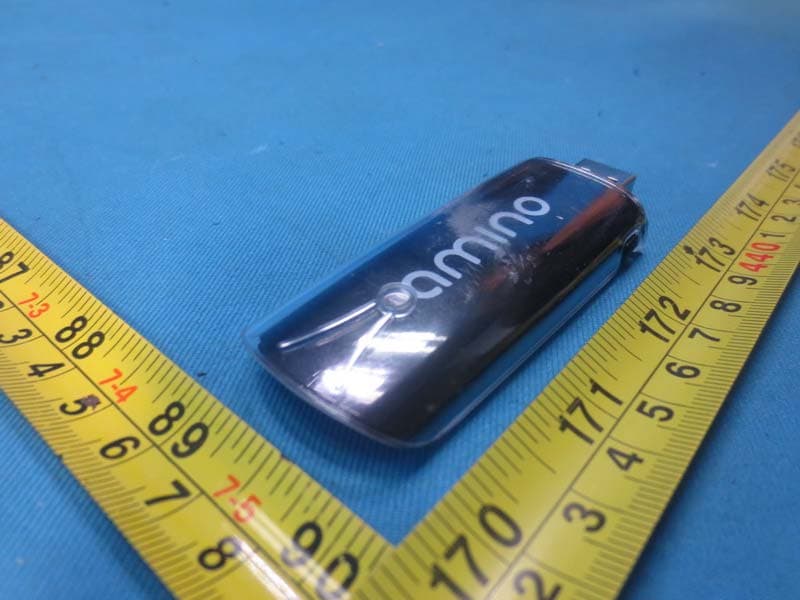

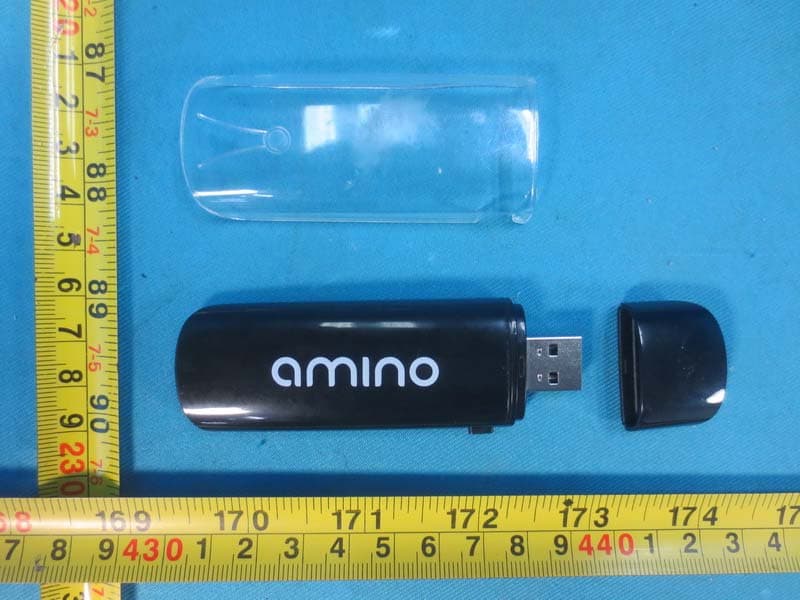

XVGW420802.11ac Wi-Fi USB STB Adapter

IMPORTANT - For Set Top Boxes supplied with a USB Wi-Fi adapter. For correct installation of the USB Wi-Fi dongle with your set-top box (STB) follow the instructions included with this product. Only use the Amino supplied USB Wi-Fi dongle. Initial installation of the STB may require a software download via a wired Ethernet connection to your router / access point before the Wi-Fi dongle can be installed. This device is restricted to be used indoors. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorised modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable. OPERATING TEMPERATURE RANGE: 0 °C - 40 °C. W420 802.11ac Wi-Fi USB STB Adapter User Guide Product Disposal Information - EU only Amino products are labelled in accordance with the European Directive 2012/19/EU concerning Waste Electrical and Electronic Equipment (the WEEE Directive) and therefore should not be disposed of with other household or commercial waste. Product Disposal Instructions for Residential Users: Please remove any batteries and dispose of them and the product as per your local authority’s recycling processes. For further information please contact your local authority or the retailer where the product was purchased. Product Disposal Instructions for Business Users: Business users should contact their supplier and check the terms and conditions of the purchase contract and ensure that the product is not mixed. Manufacturer Amino Communications Ltd Buckingway Business Park, Anderson Road, Swavesey, Cambridge, CB24 4UQ, United Kingdom. The following paragraphs describe requirements and conformity. Conformity The manufacturer supplied USB dongle has been tested in accordance with: 60950-1:2005 (2nd edition) European Approvals This product complies with EU Directives: 2006/95/EC (Low voltage Directive) 2004/108/EC (EMC Directive) 2011/65/EU (RoHS Directive) 1995/5/EC (R&TTE Directive) 514-629-00-00 INSTALLATION AND SET-UP Switch off the set-top box. Insert the Wi-Fi adapter into one of the USB sockets on the set-top box. Unplug the Ethernet (network) connection from the set-top box. Switch on the set-top box. After the set-top box has finished its start up sequence you will be prompted to press ok to configure Wi-Fi. Press ok. You will be prompted to enter your country. Select your country and press ok. The Wi-Fi adapter will perform a scan for nearby wireless networks. From the list of displayed networks, select the network that you want to connect to (this is usually written on the back of your Wireless Access Point). You will be prompted to enter your network security key (this is usually written on the back of your Wireless Access Point). Once the SSID and password have been entered, the set-top box will attempt to connect to your network. If the connection fails you will be prompted to re-enter your network security key. Check that the key is correct (remember it is case sensitive) and try again. You may need to re-boot your set-top box to enable connection to the network. Once connected you should receive the same network services as you would if you were connected using a wired network connection. 1. 2. 3. 4. 5. 6. 7. Bulgarian / Български Cнастоящето, Amino Communications Ltd декларира, че това безжично устройство е в съответствие със съществените изисквания и другите приложими разпоредби на Директива 1999/5/EC. Czech / ČeskyAmino Communications Ltd tímto prohlašuje, že tento Radio LAN device je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Danish / DanskUndertegnede Amino Communications Ltd erklærer herved, at følgende udstyr Radio LAN device overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Dutch / NederlandsHierbij verklaart Amino Communications Ltd dat het toestel Radio LAN device in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Bij deze Amino Communications Ltd dat deze Radio LAN device voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC. EnglishHereby, Amino Communications Ltd, declares that this Radio LAN device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Estoni…

Text truncated - open the document above for the full version.

Amino NemkoCanadaInc 303RiverRoad Ottawa,Ontario,Canada K1V1H2 . BuckingwayBusinessPark, AndersonRoad,Swavesey, Cambridge,C8244UQUK Tel:+44(0)1954234100 Fax:+44(0)1954234101 www.aminocom.com Attn:DirectorofCertification AuthoritytoActasAaent Onourbehalf,Iappoint Companyname:BTLInc.!Ms.CathyWang Address:No.3,JinShaGang?~Road,ShiXia,DaLangTown City:DongGuan Country:China toactasouragentinthepreparationofthisapplicationforequipmentcertification.Icertifythat submitteddocumentsproperlydescribethedeviceorsystemforwhichequipmentcertificationis sought.Ialsocertifythateachunitmanufactured,importedormarketed,asdefinedintheFederal CommunicationsCommission’sregulationswillhaveaffixedtoitalabelidenticaltothat submittedforapprovalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,I acknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification,as specifiedbyNemkoCanadaInc,stillresideswith Companyname:AminoCommunicationsLtd Address:BuckingwayBusinessPark,AndersonRoad,Swavesey, City:Cambridge,CB244U0 Country:UnitedKingdom Datedthis By: 2015-07-30 rifle:HardwareManager Onbehalfof: Telephone: +44-1954-234100 AminoCommunicationsLedisawhollyownedsubsidiaryofAminoTechnologiesplc AminoTechnologiesplcRegisteredInEngland&WalesNo.5083390,Registeredoffice:BucklngwayBusinessPark,AndersonRoad,Swavesey,Cambridge,CB244UQ.UK AminoCommunicationsLtdRegIsteredinEngland&WalesNo.3490180,RegisteredofficeasAminoTechnologiesplc.VATRegistrationNo.G8731996012 Agencyagreement AlJacoutot Printed AminoCommunicationsLtd

The test data, data evaluation, and equipment configuration contained in our test reportsabove was(were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory BTL INC. B1, No. 37, Lane 365, Yang-Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX:+886-2-2657-3331 CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the BTL EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment 802.11ac Wi-Fi USB STB Adapte r Model Name W420 Brand Name Applicant Amino Communications Ltd Address Buckingway Business Park, Anderson Road, Swavesey, Cambridge, CB24 4UQ, UK Standard(s) FCC Part 15, Subpart B: 2014 ANSI C63.4-2014 Report(s) BTL-FCCE-1-1507C111

Project No.: 1507C111 Page 2 of 7 Project No.: 1507C111 Page 3 of 7

Project No.: 1507C111 Page 4 of 7 Project No.: 1507C111 Page 5 of 7 Project No.: 1507C111 Page 6 of 7 Project No.: 1507C111 Page 7 of 7

Amino Communications Ltd Tune-up Procedure Subject: Tune-up procedure To whom it may concern: FCC ID: XVGW420 802.11ac Wi-Fi USB STB Adapter requires no adjustment or tune up procedure except factory default setting. The output power setting of EUT is set in the factory and followed the max level in below: 2.4G WIFI 802.11b 2412MHz~2462MHz 7.9-9.8dBm 802.11g 2412MHz~2462MHz 7.9-9.8dBm 802.11n20 2412MHz~2462MHz 7.9-9.8dBm 802.11n40 2422MHz~2452MHz 7.9-9.8dBm 5G WIFI 802.11a 5180MHz~5240MHz 6-8dBm 5745MHz~5825MHz 5.5-7.5dBm 802.11n20 5180MHz~5240MHz 6-8dBm 5745MHz~5825MHz 5.5-7.5dBm 802.11n40 5190MHz~5230MHz 6-8dBm 5755MHz~5795MHz 5.5-7.5dBm 802.11ac20 5180MHz~5240MHz 6-8dBm 5745MHz~5825MHz 5.5-7.5dBm 802.11ac40 5190MHz~5230MHz 6-8dBm 5755MHz~5795MHz 5.5-7.5dBm 802.11ac80 5210MHz~5210MHz 6-8dBm 5775MHz~5775MHz 5.5-7.5dBm Yours sincerely, Signature: Name: Cathy/ DOC Dept. Assistant Manager Date: 2015-09-17

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison The tune-up max power is 9.8 dBm (9.55mW) at 2.4G (9.55mW /5mm) ·[√2.450 (GHz)]= 2.99 <3.0 for 1-g SAR Then SAR evaluation is not required The tune-up max power is 8 dBm (6.31mW) at 5G Band 1 (6.31mW /5mm) ·[√5.240 (GHz)]= 2.89 <3.0 for 1-g SAR Then SAR evaluation is not required The tune-up max power is 7.5 dBm (5.62mW) at 5G Band 4 (5.62mW /5mm) ·[√5.825 (GHz)]= 2.72 <3.0 for 1-g SAR Then SAR evaluation is not required

Report No.: BTL-FCCP-2-1507C111 Page 1 of 285 FCC Radio Test Report FCC ID: XVGW420 This report concerns (check one): Original Grant Class II Change Project No. : 1507C111 Equipment : 802.11ac Wi-Fi USB STB Adapter Model Name : W420 Applicant : Amino Communications Ltd Address : Buckingway Business Park, Anderson Road, Swavesey, Cambridge, CB24 4UQ, UK Date of Receipt : Jul. 09, 2015 Date of Test : Jul. 09, 2015 ~ Jul. 28, 2015 Issued Date : Jul. 29, 2015 Tested by : BTL Inc. Testing Engineer : (Shawn Xiao) Technical Manager : ( David Mao) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-2-1507C111 Page 2 of 285 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTLshall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-2-1507C111 Page 3 of 285 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 13 3.3 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 15 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 17 3.5 DESCRIPTION OF SUPPORT UNITS 17 4 . EMC EMISSION TEST 18 4.1 CONDUCTED EMISSION MEASUREMENT 18 4.1.1 POWER LINE CONDUCTED EMISSION 18 4.1.2 TEST PROCEDURE 18 4.1.3 DEVIATION FROM TEST STANDARD 18 4.1.4 TEST SETUP 19 4.1.5 EUT OPERATING CONDITIONS 19 4.1.6 EUT TEST CONDITIONS 19 4.1.7 TEST RESULTS 19 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 TEST PROCEDURE 21 4.2.3 DEVIATION FROM TEST STANDARD 21 4.2.4 TEST SETUP 21 4.2.5 EUT OPERATING CONDITIONS 22 4.2.6 EUT TEST CONDITIONS 22 4.2.7 TEST RESULTS (9K TO 30MHz) 23 4.2.8 TEST RESULTS (BETWEEN 30 TO 1000 MHz) 23 4.2.9 TEST RESULTS (ABOVE 1000 MHz) 23 5 . 26dB SPECTRUM BANDWIDTH 24 5.1 APPLIED PROCEDURES / LIMIT 24 5.1.1 TEST PROCEDURE 24 5.1.2 DEVIATION FROM STANDARD 24 5.1.3 TEST SETUP 24 5.1.4 EUT OPERATION CONDITIONS 24 5.1.5 EUT TEST CONDITIONS 24 5.1.6 TEST RESULTS 24 6 . MAXIMUM CONDUCTED OUTPUT POWER 25 Report No.: BTL-FCCP-2-1507C111 Page 4 of 285 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 25 6.1.1 TEST PROCEDURE 25 6.1.2 DEVIATION FROM STANDARD 26 6.1.3 TEST SETUP 26 6.1.4 EUT OPERATION CONDITIONS 26 6.1.5 EUT TEST CONDITIONS 26 6.1.6 TEST RESULTS 26 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 27 7.1 APPLIED PROCEDURES / LIMIT 27 7.1.1 TEST PROCEDURE 27 7.1.2 DEVIATION FROM STANDARD 27 7.1.3 TEST SETUP 27 7.1.4 EUT OPERATION CONDITIONS 27 7.1.5 EUT TEST CONDITIONS 27 7.1.6 TEST RESULTS 27 8 . POWER SPECTRAL DENSITY TEST 28 8.1 APPLIED PROCEDURES / LIMIT 28 8.1.1 TEST PROCEDURE 28 8.1.1 DEVIATION FROM STANDARD 29 8.1.2 TEST SETUP 29 8.1.3 EUT OPERATION CONDITIONS 29 8.1.4 EUT TEST CONDITIONS 29 8.1.5 TEST RESULTS 29 9 . FREQUENCY STABILITY MEASUREMENT 30 9.1 APPLIED PROCEDURES / LIMIT 30 9.1.1 TEST PROCEDURE 30 9.1.2 DEVIATION FROM STANDARD 30 9.1.3 TEST SETUP 31 9.1.4 EUT OPERATION CONDITIONS 31 9.1.5 EUT TEST CONDITIONS 31 9.1.6 TEST RESULTS 31 10 . MEASUREMENT INSTRUMENTS LIST 32 11 . EUT TEST PHOTOS 34 ATTACHMENT A - CONDUCTED EMISSION 38 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 41 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 43 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 56 ATTACHMENT E - BANDWIDTH 175 Report No.: BTL-FCCP-2-1507C111 Page 5 of 285 Table of Contents Page ATTACHMENT F - MAXIMUM OUTPUT POWER 198 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 209 ATTACHMENT H - POWER SPECTRAL DENSITY 232 ATTACHMENT I - FREQUENCY STABILITY 283 Report No.: BTL-FCCP-2-1507C111 Page 6 of 285 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-2-1507C111 Original Issue. Jul. 29, 2015 Report No.: BTL-FCCP-2-1507C111 Page 7 of 285 1. CERTIFICATION Equipment : 802.11ac Wi-Fi USB STB Adapter Brand Name : Model Name : W420 Applicant : Amino Communications Ltd Manufacturer : Amino Communications Ltd Address : Buckingway Business Park, Anderson Road, Swavesey, Cambridge, CB24 4UQ, UK Date of Test : Jul. 09, 2015 ~ Jul. 28, 2015 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart E(15.407) / ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v01 . FCC KDB 644545 D03 Guidance for IEEE 802.11ac v01. The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-2-1507C111) were obtained utilizing the test p…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1507C111 Page 26 of 143 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1507C111 Page 27 of 143 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1507C111 Page 28 of 143 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1507C111 Page 29 of 143 Radiated Measurement Photos Above 1000MHz
