XVKRT-9000HF TRANSCEIVER

Document No. 8128000560 Software Revision – N1B (07 Oct 04) 7-9 RT-9000 B SECTION 7.3 OPERATION 7.3.1 GENERAL This section provides the operator with the location and use of the RT-9000 B front panel controls for proper utilization of the equipment. For convenience of discussion, functions are addressed in normal sequence. However, it is not necessary to observe this order once the user becomes familiar with the equipment. Any setting may be changed independently by referring to the appropriate section in this chapter pertaining to the function in question. Reference to Figure 7.3.1.1 below, shows the location of the control groups, displays, and their general purpose. Figure 7.3.1.1 RT-9000 B Front Panel Controls 1 ON/OFF VOLUME CONTROL When this control is in the full counter clockwise position, the equipment is OFF. To power-up the unit, rotate the control clock-wise. Once on, the internal speaker audio output level is initially at minimum. Rotating the volume control clock-wise increases the speaker audio output level. NOTE: The setting of this control does not affect the level of the Remote Audio Line outputs from the equipment rear panel. RT-9000 B Document No. 8128000560 Software Revision – N1B (07 Oct 04) 7-10 RT-9000 B 2 FAULT INDICATOR This Red indicator is lit if a ‘FAULT’ condition is detected in the RT-9000 B Transceiver. Check the installation and proceed to the section on BITE (Built-In-Test-Equipment), located in section 7.3.3.1 of this manual. 3 OPERATIONAL DISPLAY This Liquid Crystal Display (LCD), provides a variety of information required to operate the equipment. Information is displayed in four primary areas of the display as indicated in Figure 7.3.1.2. Frequency Information Channel Information Meter Information Function & Status Information FIG 7.3.1.2 RT-9000 B Operational Display - Information Location 4 FUNCTION KEYS This group of twelve (12) keys is used to control the primary operating functions of the RT-9000 B Transceiver such as Mode selection, Channel selection, Channel loading, AGC characteristic selection, Local/Remote operation, Power Output level selection, Panel Illumination, Coupler Tune command, and manual tuning. 5 MANUAL TUNING CONTROL This control is used to control manual tuning of the RT-9000 B Transceiver frequency or channel selection. Actual frequency setting or channel selection is indicated in the Operational Display. 6 FREQUENCY/CHANNEL ENTRY KEYS This group of twelve (12) numeric keys is primarily used for frequency information entry. This keypad may be used to enter, select, or load a specific operating frequency or Channel Number. This keypad may also be used to enter other numerical settings and parameters. Document No. 8128000560 Software Revision – N1B (07 Oct 04) 7-11 RT-9000 B 7 SQUELCH CONTROL This control is used to set the silencing threshold for the squelch circuit. When this control is set to the full counter-clockwise position, the squelch circuit is disabled and the equipment is unsquelched (fully unsilenced). Rotating the control clock-wise enables the squelch circuit and sets its silencing threshold. When the control is initially moved, a click will be felt indicting the Squelch switch has been actuated. Clock-wise control rotation is continued until the RT-9000 B’s Receiver noise just silences (or is “Squelched”). When set as described above, the squelch circuit is active but maximum Receiver sensitivity has been maintained. Further clock-wise Squelch control rotation increases the signal strength required to “open” the squelch and allow an incoming signal to be heard. This action also effectively decreases Receiver sensitivity. 8 FEATURE KEY MENU DISPLAY This display provides names of functions or selections for the five (5) keys located directly below the display. In most cases, this display automatically indicates the appropriate selections based upon the condition of other equipment settings. The menu may be changed by depressing the fifth key under ‘MORE’. 9 FEATURE KEYS This group of five (5) “Soft” keys enables various functions as indicated in the display located directly above these keys. NOTE: An asterisk (*) appearing at the right-hand side of a function in the display indicates that the feature preceding it is enabled, selected, or ‘ON’. The RT-9000 B Transceiver controls can be divided into three categories: A. Primary Operations (Section 7.3.2) B. Equipment Set-Up (Section 7.3.3) C. Advanced Operations (Section 7.3.4) Document No. 8128000560 Software Revision – N1B (07 Oct 04) 7-12 RT-9000 B 7.3.2 PRIMARY OPERATIONS The RT-9000 B operations described in this manual section cover the most basic and common operations. Figure 7.3.2.1 RT-9000 B Basic Set Up Controls 7.3.2.1 TRANSCEIVER MODE, AGC, AND TRANSMIT POWER SET UP These settings determine the basic operating characteristics for the Receiver and Transmitter sections of the RT-9000 B Transceiver. These settings are Transceiver Emission Mode, Receiver AGC speed characteristic, and Transmitter RF Power Output level. Unless otherwise noted, refer to Figure 7.3.2.1 for the location of controls and features. Transceiver Emission Mode Selection To select the Emission Mode, depress ‘MODE’ key successively at 2 until the desired selection appears in Operational Display segment at 3. This selection applies to both Receive and Transmit operation. The choices are ‘USB’, ‘LSB’, ‘CW’, and ‘AM’. If the Data filter option has been installed in the RT-9000 B Transceiver, a 'DATA' choice will also be displayed and be available. Receiver AGC Speed Characteristic To select the Receiver AGC speed characteristic, depress ‘AGC’ key successively at 4 until the desired selection appears in the Operational Display segment at 5. The choices are ‘AGC-S’ (Slow), ‘AGC- M’(Medium), and ‘AGC- F’(Fast). The ‘Slow’ AGC characteristic is generally desirable with speech transmission. The Fast AGC characteristic is desirable for data transmission. RT-9000 B 1110 Document No. 8128000560 Sof…

Text truncated - open the document above for the full version.

SUNAIR 2/3/10 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: XVKRT-9000 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: EXHIBIT TYPE NAME OF DOCUMENT Schematic Schematic.pdf Parts List Parts List.pdf Block Diagram Transceiver block diagram.pdf Theory of operation Theory of operation.pdf Tuning procedure Tuning procedure.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Mark Allen Sunair Electronics

9000 Series Expanded Frequency Justification The Sunair Electronics 9000 series communication radios are commonly used by US military and foreign governments. These users are located world wide. The 9000 series radios are designed to comply with all communication standards in use throughout the world. Foreign users are not within FCC jurisdiction. US military users are exempt from adhering to all FCC guidelines. Mark Allen Senior Vice President 2921 W. Cypress Creek Road, Fort Lauderdale, FL 33309 USA Company: 954-623-3131 / Fax: 954-623-3121

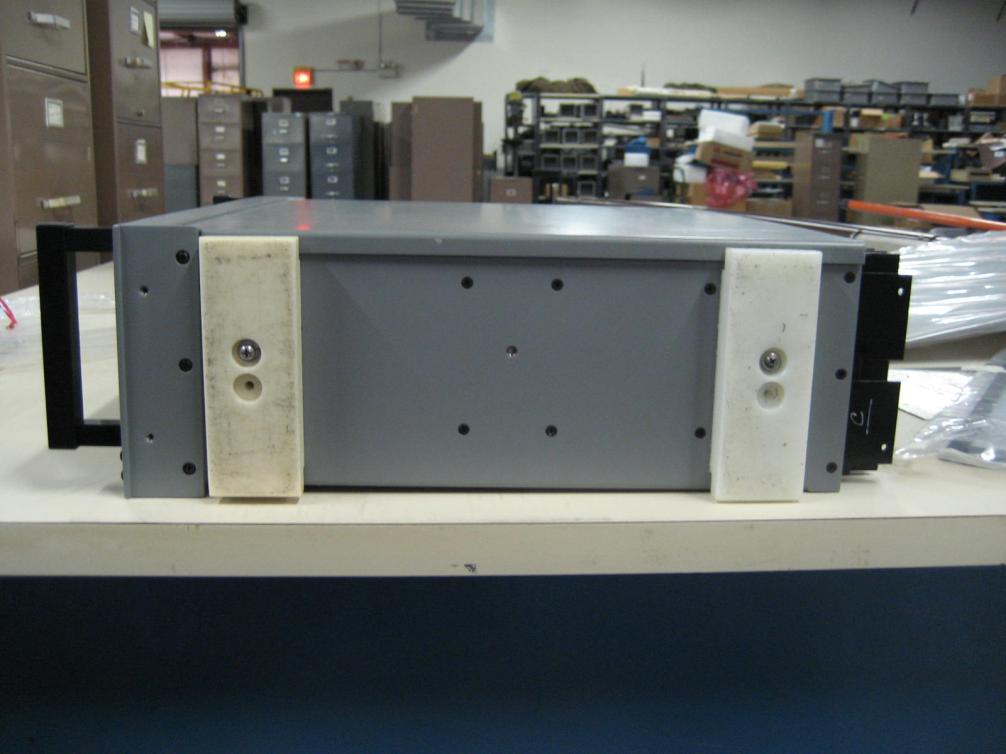

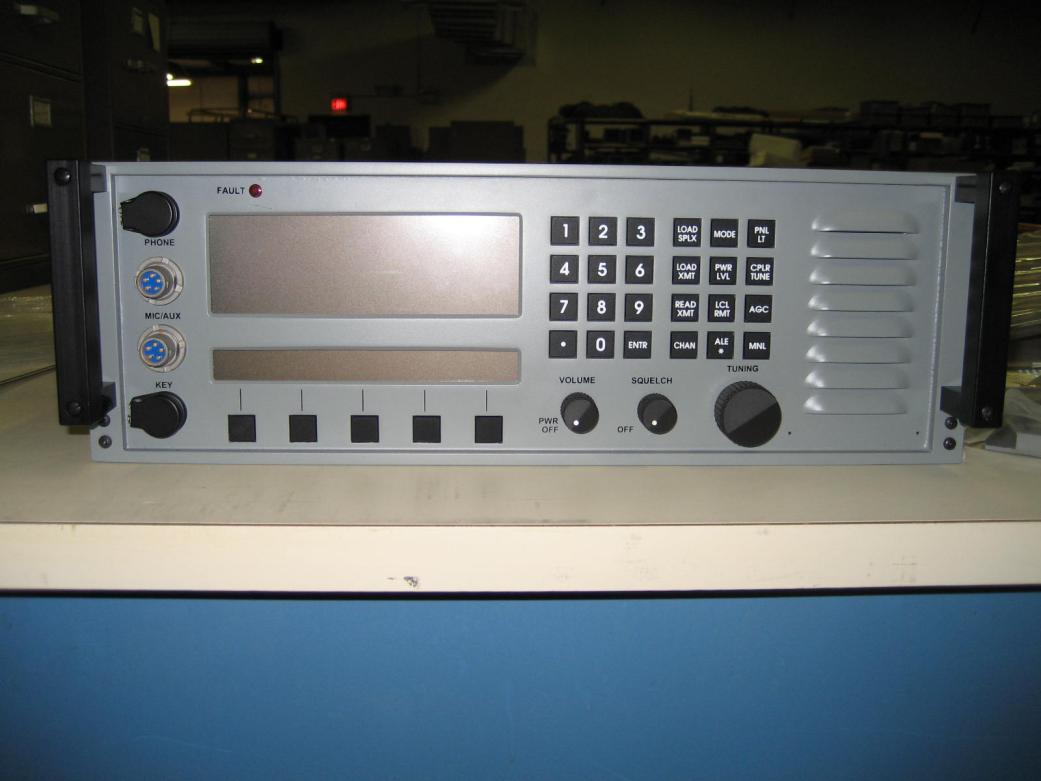

APPLICANT: RIIMIC, LLC DBA SUNAIR ELECTRONICS EXTERNAL PHOTOS

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: XVKRT-9000 MODEL #: RT-9000

APPLICANT: RIIMIC, LLC DBA SUNAIR ELECTRONICS INTERNAL PHOTOS

APPLICANT: RIIMIC, LLC DBA SUNAIR ELECTRONICS INTERNAL PHOTOS

FCC PART 90 TEST REPORT APPLICANT RIIMIC, LLC DBA SUNAIR ELECTRONICS 2941 W. CYRPRESS CREEK ROAD FT. LAUDERDALE, FL 33309 FCC ID XVKRT-9000 MODEL NUMBER RT-9000 PRODUCT DESCRIPTION HF TRANSCEIVER DATE SAMPLE RECEIVED 10/23/2007 DATE TESTED 11/12/2007 TESTED BY Richard Block APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 98BUT10TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: RIIMIC, LLC DBA SUNAIR ELECTRONICS FCC ID: XVKRT-9000 Report: Z:\R\RIIMIC_SUNAIR\98BUT10\98BUT10TestReport.doc Page 2 of 23 TABLE OF CONTENTS GENERAL REMARKS ................................................................................................... 3 GENERAL INFORMATION ............................................................................................ 4 REPORT SUMMARY ..................................................................................................... 5 TEST ENVIRONMENT .................................................................................................. 5 TEST SETUP SUMMARY .............................................................................................. 5 SUPPORTING PERIPHERAL EQUIPMENT .................................................................... 5 EQUIPMENT LIST ........................................................................................................ 6 TEST PROCEDURE ...................................................................................................... 7 RF POWER OUTPUT .................................................................................................... 8 MODULATION CHARACTERISTICS.............................................................................. 9 VOICE MODULATED COMMUNICATION EQUIPMENT .............................................. 10 OTHER MODULATION CHARACTERISTICS ............................................................... 12 OCCUPIED BANDWIDTH ........................................................................................... 13 OCCUPIED BANDWIDTH PLOTS ............................................................................... 15 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED)............................ 18 METHOD OF MEASURING CONDUCTED SPURIOUS EMISSIONS ............................. 19 FIELD STRENGTH OF SPURIOUS EMISSIONS .......................................................... 20 FREQUENCY STABILITY ............................................................................................ 22 Applicant: RIIMIC, LLC DBA SUNAIR ELECTRONICS FCC ID: XVKRT-9000 Report: Z:\R\RIIMIC_SUNAIR\98BUT10\98BUT10TestReport.doc Page 3 of 23 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 11/12/2007 Applicant: RIIMIC, LLC DBA SUNAIR ELECTRONICS FCC ID: XVKRT-9000 Report: Z:\R\RIIMIC_SUNAIR\98BUT10\98BUT10TestReport.doc Page 4 of 23 GENERAL INFORMATION DUT Specification DUT Description HF TRANSCEIVER FCC ID XVKRT-9000 Model Number RT-9000 Serial Number N/A Operating Frequency 1.6-30.0 MHz No. of Channels Single Type of Emission J3E, J2B, A1A, and R3E Modulation SSB, CW, AM DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Applicant: RIIMIC, LLC DBA SUNAIR ELECTRONICS FCC ID: XVKRT-9000 Report: Z:\R\RIIMIC_SUNAIR\98BUT10\98BUT10TestReport.doc Page 5 of 23 REPORT SUMMARY Applicable Rule(s) ANSI C63.4: 2003 and ANSI/TIA 603-C: 2004 TEST ENVIRONMENT Test Facility Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition in the laboratory Temperature: 26ºC Relative humidity: 50% TEST SETUP SUMMARY Test Setup Diagram/ Description The DUT was placed on the turntable per setup per ANSI C63.4: 2003. A test set up photo is provided for clarification. Deviation from the standard/procedure No deviation Modification of DUT No modification SUPPORTING PERIPHERAL EQUIPMENT None Applicant: RIIMIC, LLC DBA SUNAIR ELECTRONICS FCC ID: XVKRT-9000 Report: Z:\R\RIIMIC_SUNAIR\98BUT10\98BUT10TestReport.doc Page 6 of 23 EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/11/07 5/11/10 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/10 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Coaxial Cable #64 Semflex Inc. 60637 Timco #64 CHAR 3/30/09 3/30/11 Antenna: Dipole Kit Electro-Metrics TDA-30/1- 4 152 CAL 3/3/09 3/3/12 Antenna: Dipole Kit Electro-…
