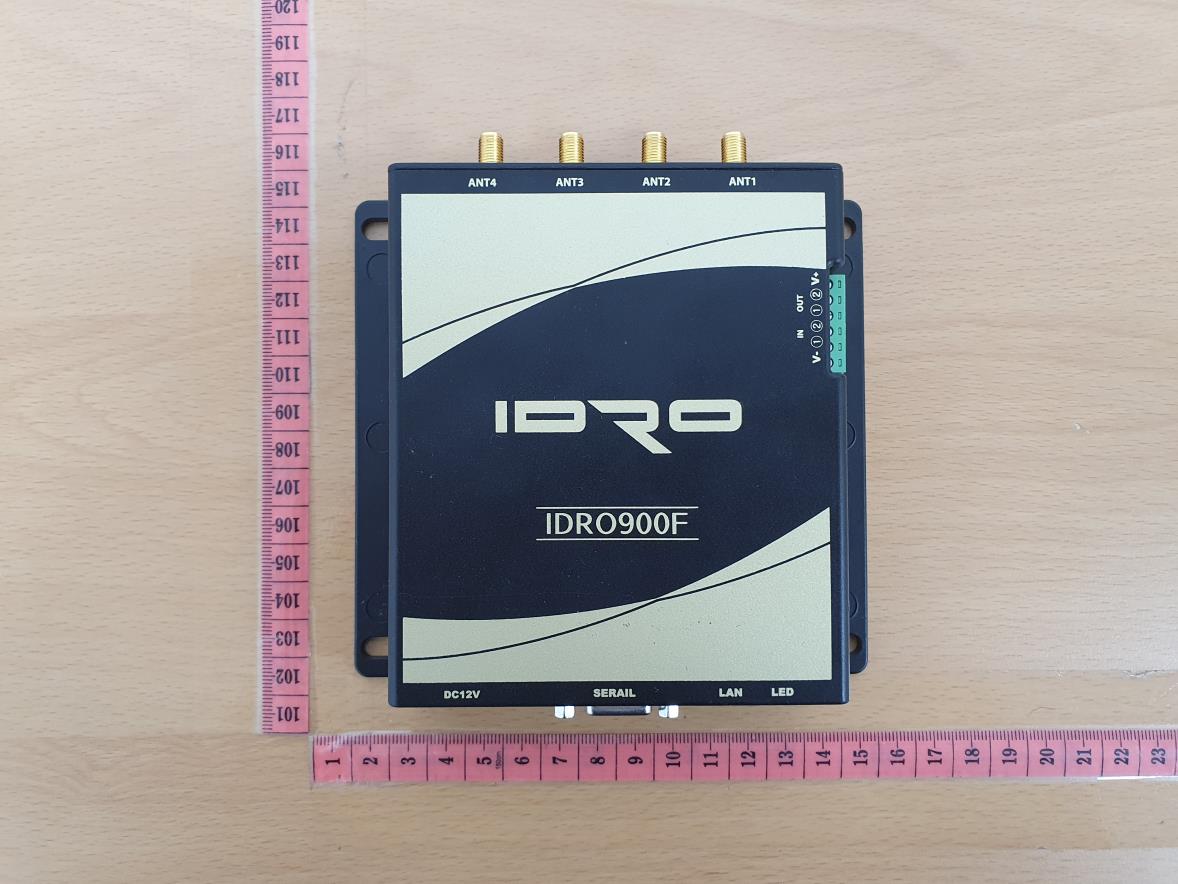

XVY-IDRO900F-V2UHF Fixed Type 4 Port RFID Reader

Fixed Type 4-port RFID Reader IDRO900F User's Manual UHF RFID Reader Visible RFID Reader & Tag Visible Light Communication System DateCopyright(c)2011 by IDRO All right reserved #219, 17, Daehak 4-ro, Yeongtong-gu, Suwon-si, Gyeongi-do, Korea IDRO Co.,Ltd www.idro.co.kr February 17th, 2020 Ver. 20021701 IDentification with Radio and Optical IDRO900F User's Manual 2 IDentification with Radio and Optical 1. Revision History .................................................................................................................................. 4 2. About This Guide ................................................................................................................................ 6 2. 1 Overview .................................................................................................................................................... 7 2. 2 Configurations ......................................................................................................................................... 7 2. 3 About the Chapter ................................................................................................................................. 7 2. 4 Related Documents and Software ................................................................................................. 8 2. 5 Service Information.............................................................................................................................. 8 3. Getting Started .................................................................................................................................... 9 3. 1 RFID Reader Hardware ..................................................................................................................... 10 3. 2 RFID Reader Software ....................................................................................................................... 11 3. 2. 1 Reader@Express .............................................................................................................................................................................. 11 4. RFID Reader Installation ............................................................................................................ 12 4. 1 Mechanical Installation .................................................................................................................... 13 4. 1. 1 Mounting the RFID Reader ....................................................................................................................................................... 13 4. 1. 2 Mounting the Antennas ............................................................................................................................................................... 13 4. 2 Electrical Installation ......................................................................................................................... 14 4. 2. 1 Connecting and Configuring the Ethernet Port ........................................................................................................... 15 4. 2. 2 Connecting and Configuring the RS232 Port ............................................................................................................... 15 4. 2. 3 Connecting the Antennas........................................................................................................................................................... 15 4. 2. 4 Connecting Digital Inputs/Outputs ..................................................................................................................................... 16 4. 2. 5 Connecting the Power .................................................................................................................................................................. 16 5. RFID Reader Components ........................................................................................................... 17 5. 1 Components ............................................................................................................................................... 18 6. RFID Reader Electrical Specifications ........................................................................................... 20 6. 1 Environmental Specifications ........................................................................................................... 21 6. 2 Power Supply Specifications ............................................................................................................ 21 6. 3 Reader Specifications ........................................................................................................................... 21 6. 4 Ethernet & RS232 Specifications .................................................................................................... 22 6. 5 GPIO (General Purpose Input/Output) ...................................................................................... 23 6. 5. 1 Specifications ..................................................................................................................................................................................... 23 6. 5. 2 Connection Diagram and Operating method ................................................................................................................ 23 7. RFID Reader Mechanical Specifications ....................................................................................... 29 Table of Contents IDRO900F User's Manual 3 IDentification with Radio and Optical 7. 1 Drawing and Dimension ...................................................................................................................... 30 8. RFID Reader Packing Dimension ............................................................................................ 31 8. 1 Reader Packing ......................................................................................................................…

Text truncated - open the document above for the full version.

IDRO Co.,Ltd. June 4, 2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370a Newberry, Florida 32669 USA Letter of Authorization We, the undersigned, hereby authorize Kenneth Kim of NCT Co.,Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: XVY-IDRO900F-V2 including signing of all documents relating to these matters. Any and all acts carried out by Kenneth Kim of NCT Co.,Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from IDRO Co.,Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Jong-Sung, Park / R&D Dpt. Director IDRO Co.,Ltd.

IDRO Co.,Ltd. Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: XVY-IDRO900F-V2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Part List [IDRO900F] BLK [IDRO900F] SCH [IDRO900F] OpDes [IDRO900F] Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); Exhibit Type File Name External Photos Internal Photos Test Setup Photos Manual [IDRO900F] EXT Photo [IDRO900F] INT Photo [IDRO900F] Test Setup Photo [IDRO900F] Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. Sincerely, Jong-Sung, Park / R&D Dpt. Director IDRO Co.,Ltd.

Component Antenna

아이디로_IDRO900F_Label & Location

Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm2) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824 / f 2.19 / f *180 / f2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1 30 Model Name : FCC ID : (dBm) (dB) (dBm) (mW) (dBi) (numeric) (mW/cm2) (mW/cm2) 902.75 29.54 30.54 1132.40 5.65 3.67 0.8274 1.00 PASS 915.25 29.53 30.53 1129.80 5.65 3.67 0.8255 1.00 PASS 927.25 29.53 30.53 1129.80 5.65 3.67 0.8255 1.00 PASS The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. MPE Calculation Antenna Gain(dBi) : 5.65 IDRO900F XVY-IDRO900F -V2 Separation distance (R) : 20.0 cm S = EIRP/(4R2π) S = Maximum power density (mW/cm2)P = Power input to the antenna (mW)G = Numeric power gain of the antennaR = Distance to the center of the radiation of the antennaEIRP = Equivalent Isotropic Radiated Power(mW) (=P*G) Frequency range (MHz) Result Frequency (MHz) Measured Maximum Output Power Tune-up tolerance Max. Power with tune-up tolerance ( P) Antenna Gain ( G) Power Density (S) Limit of Power Density (S) Modulation ± 1.00 RFID Antenna Gain(dBic) : 8.65

Certificate of Test NTP-015-F06(Rev.03) NCT.CO., LTD. NCT Co., Ltd. 211-71, Geumgok-ro, Hwaseong-si, Gyeonggi-do, 18511, Korea (Tel: +82-31-323-6070 / Fax: +82-31-323-6071) Report No.: NW2006-F001 Page (1) / (37) 1. Client ○ Name : IDRO Co.,Ltd. ○ Address : 219, 17, (ACE Guangkyo Tower1), 17, Daehak 4-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea ○ Date of Receipt : 2020-05-07 2. Use of Report : FCC Approval 3. Test Sample ○ Description / Model Name : UHF Fixed Type 4 Port RFID Reader / IDRO900F ○ FCC ID : XVY-IDRO900F-V2 4. Date of Test : 2020-05-11 ~ 2020-05-19 5. Test method used : FCC Part 15 Subpart C 15.247 6. Testing Environment : ○ Temperature: (25  5) °C, Humidity: Less than 75 % R.H. * Unless specified otherwise in the individual methods, the tests were conducted on ambient conditions. 7. Test Results : Refer to the test results The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full This test report is prepared according to the requirements of ISO / IEC 17025. Affirmation Tested by Jong-Myoung, Shin (signature) Technical Manager Kyung-Taek, Lee (signature) June 04, 2020 NCT CO., LTD. (seal) Test Repot No.: NW2006-F001 Test Repot No.: NR1709-W015 211-71, Geumgok-ro, Hwaseong-si, Gyeonggi-do, Korea 18511 www.nct.re.kr TEL: +82-31-323-6070 FAX: +82-31-323-6071 Page 2 of 37 Table of contents 1. General Information -------------------------------------------------------------------------------- 2. Information’s about Test Item ------------------------------------------------------------------- 3. Test Report -------------------------------------------------------------------------------------------- 3.1 Test Summary ------------------------------------------------------------------------------------- 3.2 Test Report Version ----------------------------------------------------------------------------- 3.3 Transmitter Requirements 3.3.1 Antenna Requirement --------------------------------------------------------------------- 3.3.2 20 ㏈ Bandwidth --------------------------------------------------------------------------- 3.3.3 Number of Hopping Frequencies ------------------------------------------------------- 3.3.4 Time of Occupancy (Dwell Time) ------------------------------------------------------- 3.3.5 Carrier Frequencies Separation -------------------------------------------------------- 3.3.6 Peak Output Power ------------------------------------------------------------------------ 3.3.7 TX Radiated Spurious Emission and Conducted Spurious Emission --------- 3.3.8 Conducted Emission ----------------------------------------------------------------------- APPENDIX APPENDIX I TEST SETUP ---------------------------------------------------------------------- APPENDIX II TEST EQUIPMENT USED FOR TESTS ---------------------------------- 3 3 5 5 6 7 8 11 13 15 17 20 31 34 36 Test Repot No.: NW2006-F001 Test Repot No.: NR1709-W015 211-71, Geumgok-ro, Hwaseong-si, Gyeonggi-do, Korea 18511 www.nct.re.kr TEL: +82-31-323-6070 FAX: +82-31-323-6071 Page 3 of 37 1. General Information’s 1.1 Test Performed Laboratory : NCT Co., Ltd. Address : 211-71, Geumgok-ro, Hwaseong-si, Gyeonggi-do, 18511, Korea Telephone : +82-31-323-6070 Facsimile : +82-31-323-6071 FCC Designation No. : KR0166 FCC Registration Number : 409631 2. Information’s about Test Item 2.1 Applicant Information Company name : IDRO Co.,Ltd. Address : 219, 17, (ACE Guangkyo Tower1), 17, Daehak 4-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Telephone / Facsimile : +82-31-225-7883 / - 2.2 Equipment Under Test (EUT) description Test item particulars : UHF Fixed Type 4 Port RFID Reader Model and/or type reference : IDRO900F Additional model name : - Serial number : Identification Antenna type and gain : Patch Antenna(M/N: IDRO260-915) Max Gain 8.65 ㏈ic Date (s) of performance of tests: : 2020-05-11 ~ 2020-05-19 Date of receipt of test item : 2020-05-07 EUT condition : Pre-production, not damaged Number of channel : 50 EUT Power Source : DC 12.0 V Type of Modulation : A1D Fir㎽are version : 1.0 Hardware version : 1.0 Test software name(version) : Reader@Express V20.03.11 Test Repot No.: NW2006-F001 Test Repot No.: NR1709-W015 211-71, Geumgok-ro, Hwaseong-si, Gyeonggi-do, Korea 18511 www.nct.re.kr TEL: +82-31-323-6070 FAX: +82-31-323-6071 Page 4 of 37 2.3 Tested Frequency Test Mode Test frequency (㎒) Low frequency Middle frequency High frequency RFID (900 ㎒ FHSS) 902.75 915.25 927.25 Test Repot No.: NW2006-F001 Test Repot No.: NR1709-W015 211-71, Geumgok-ro, Hwaseong-si, Gyeonggi-do, Korea 18511 www.nct.re.kr TEL: +82-31-323-6070 FAX: +82-31-323-6071 Page 5 of 37 3. Test Report 3.1 Test Summary Applied Test Items Clause Test Condition Result Antenna Requirement 15.203 Conducted C 20 ㏈ Bandwidth 15.247(a) C Number of Hopping Frequencies 15.247(a) C Time of Occupancy (Dwell Time) 15.247(a) C Carrier Frequencies Separation 15.247(a) C Peak Output Power 15.247(b) C Conducted Spurious Emission 15.247(d) C Radiated Spurious Emission 15.247(d) 15.205 & 15.209 Radiated C note2 Conducted Emissions 15.207 AC Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. The sample was tested according to the following specification: ANSI C63.10:2013 Compliance was determined by specification limits of the applicable standard according to customer requirements. Test Repot No.: NW2006-F001 Test Repot No.: NR1709-W015 211-71, Geumgok-ro, Hwaseong-si, Gyeonggi-do, Korea 18511 www.nct.re.kr TEL: +82-31-323-6070 FAX: +82-31-323-6071 Page 6 of 37 3.2 Test Report Version Test Report No. Date Description NW2006-F001 2020-06-04 Initial issue Test Repot No.: NW2006-F001 Test Repot No.: NR1709-W015 211-71, Geumgok-ro, Hwaseong-si, Gyeonggi-do, Korea 18511 www.nct.re.kr TEL: +82-31-323-6070 FAX: +82-31-323-6071 Page 7 of 37 3.3 Transm…

Text truncated - open the document above for the full version.

Below 30 MHz Below 1 GHz Above 1 GHz Conducted Emission
