XVY-IDRO900ME-LUHF RFID Reader Module

August 29 2023 IDRO900ME-L USER’S MANUAL V23.08.29 IDRO900ME-L User’s Manual Company Date Version IDRO Co., Ltd 2023-08-29 V3.08.29 2 Identification with Radio and Optical  Revision history Version Revision Date Revision Page Revision Description V1.11.01 2021-11-01 Draft V2.06.01 2023-06-01 8 page Reader Specification Update (Red Line) V3.08.29 2023-08-29 Revised for Certification IDRO900ME-L User’s Manual Company Date Version IDRO Co., Ltd 2023-08-29 V3.08.29 3 Identification with Radio and Optical FCC Certification Requirements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, a separation distance of at least 30 cm must be maintained between the antenna of this device and all persons. Any Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. IMPORTANT NOTE : FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. OEM/integrators Installation Manual the modules limited to OEM installation only the OEM integrator is responsible for ensuring that the end-user has no manual instruction to remove or install module. the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Instructions to the OEM/integrator The OEM integrator must include the instructions or statements required by part 15.19 and 15.21 in the user manual. the OEM integrator must include a separate section in the host user's manual concerning the operating conditions to satisfy RF exposure compliance. there is requirement that the grantee provide guidance to the host manufacturer for compliance with part 15b requirements. IDRO900ME-L User’s Manual Company Date Version IDRO Co., Ltd 2023-08-29 V3.08.29 4 Identification with Radio and Optical This deivice is intended only for OEM integrators under the following conditions: (1) This equipment should be installed and operated with a minimum distance of 30 centimeters between the radiator and your body. (2) This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements with this device installed. This module has been granted modular approval for mobile applications. OEM integrators for host products may use the module in their final products without additional FCC certification if they meet the following conditions. Otherwise, additional FCC approvals must be obtained. The host product with the module installed must be evaluated for simultaneous transmission requirements. The user’s manual for the host product must clearly indicate the operating requirements and conditions that must be observed to ensure compliance with current FCC RF exposure guidelines. To comply with FCC regulations limiting both maximum RF output power and human exposure to RF radiation, use this module only with the included onboard antenna. The final host / module combination may also need to be evaluated against the FCC Part 15B criteria for unintentional radiators in order to be properly authorized for operation as a Part 15 digital device. These modules are designed to comply with the FCC single modular FCC grant - End Product Labeling To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product. Contains Transmitter module FCC ID: XVY-IDRO900ME-L - Manual Information to the End User The OEM integrator is responsible for ensuring the end-user has no manual instruction to remove or install module. The end user manual shall include all required regulatory information/warning as show in this manual. IDRO900ME-L User’s Manual Company Date Version IDRO Co., Ltd 2023-08-29 V3.08.29 5 Identification with Radio and Optical Contents 1. Introduction & System composition diagram .......................................................... 6  Introduction ................................................................................................................................................. 6  System composition diagram ............................................................................................................ 6 2. Composition parts .......................................................................................................... 7 3. Reader Description ......................................................................................................... 8 4. Reader Specification .................................................................................................... 10  Reader Performance (KOREA, USA, EUROPE, etc)............................................................... 10  Interface ...................................................................................................................................................... 10  Physical Dimension ............................................................................................................................... 10  Channel number & Frequency table ........................................................................................... 11  Mechanical Dimension .........................................................…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 09-21-2023 FCC ID: XVY-IDRO900ME-L Attestation Statements Part 2.911(d)(5)(i) Filing IDRO Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Attestation Statements Part 2.911(d)(5)(ii) Filing IDRO Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ■ - is not identified on the Covered List( as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, NAME: Jong-Sung Park TITLE: Director Applicant: IDRO Co., Ltd.

9525 Forest View Street, Dallas, Texas 75243 USA +1 888-457-7755 www.star-int.net U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Star Systems America, LLC Contact Name: Stephen Lockhart Street Address: 9525 Forest View Street City/Province/Zip: Dallas/Texas/75243 Tel.: +1 469-708-4004 Email: [email protected] FRN #: 0024387144 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 09/21/2023 Signed by (Printed Name/Title): Stephen Lockhart / *This letter is valid indefinitely for all applications submitted within the period of 09/21/2023 – 09/20/2025. The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: IDRO Co., Ltd. Grantee FRN: 0019248905 Grantee Code: XVY FCC ID: XVY-IDRO900ME-L Contact Name: Jong-Sung Park Street Address: 11, Jiphyeondong-ro City/Province/Zip: Sejong-si, Republic of Korea, 30141 9525 Forest View Street, Dallas, Texas 75243 USA +1 888-457-7755 www.star-int.net Telephone No: +82-10-4363-5267 Email: [email protected] Applicant Signature: Date: 09/21/2023 Signed by (Printed Name/Title): Jong-Sung Park / Director

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date : September 12, 2023 SUBJECT: FCC Application for (FCC ID : XVY-IDRO900ME-L) To Whom It May Concern: We, the undersigned, hereby authorize Gwan-Yong, Kim at CTK on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CTK on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, NAME: Jong-Sung Park Applicant: IDRO Co., Ltd.

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID : XVY-IDRO900ME-L Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block diagram Schematics Schematics_PCB Layout Parts list Operational description File Name Block Diagram_IDRO900ME-L.pdf Schematics_IDRO900ME-L.pdf Schematics_PCB Layout_IDRO900ME-L.pdf Part list_IDRO900ME-L.pdf Operational description_IDRO900ME-L.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, NAME: Jong-Sung Park Applicant: IDRO Co., Ltd.

MODULAR APPROVAL LETTER 2023-09-12 Applicant : IDRO Co., Ltd. FCC ID : XVY-IDRO900ME-L We would like to answer for Single Modular Approval in accordance with the requirement of rule part 15.212 as described below No. Requirements Comment Comply (Y/N) 1 The radio element of the modular transmitter has its own shielding Refer to the external photo Y 2 The modular transmitter must have buffered modulation data/inputs (if such inputs are provided) All input to the modules are buffered through microprocessor inputs. Y 3 The modular transmitter must have its own power supply regulation. Internal power regulators Refer to the Block-diagram Y 4 The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). This module meets the antenna requirements ofsection 15.203 Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The EUT (module) was tested a stand alone configuration Y 6 The modular transmitter must be labeled with its own FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module Refer to the Label Photo Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements Refer to the user manual Y 8 The modular transmitter must comply with any applicable RF exposure requirements Refer to the RF exposure statement for more details. Y Sincerely, Jong-Sung Park / Director IDRO Co., Ltd.

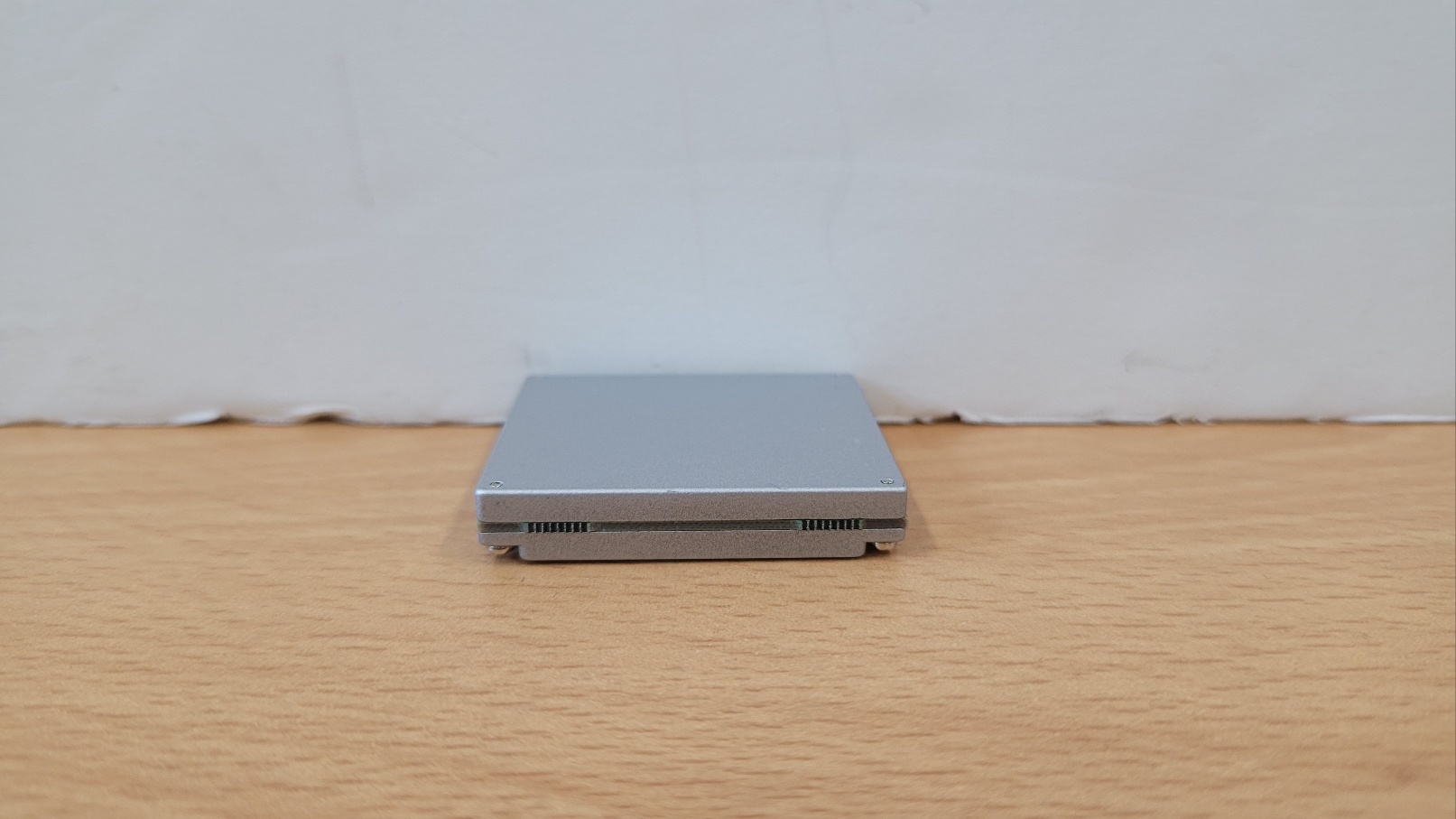

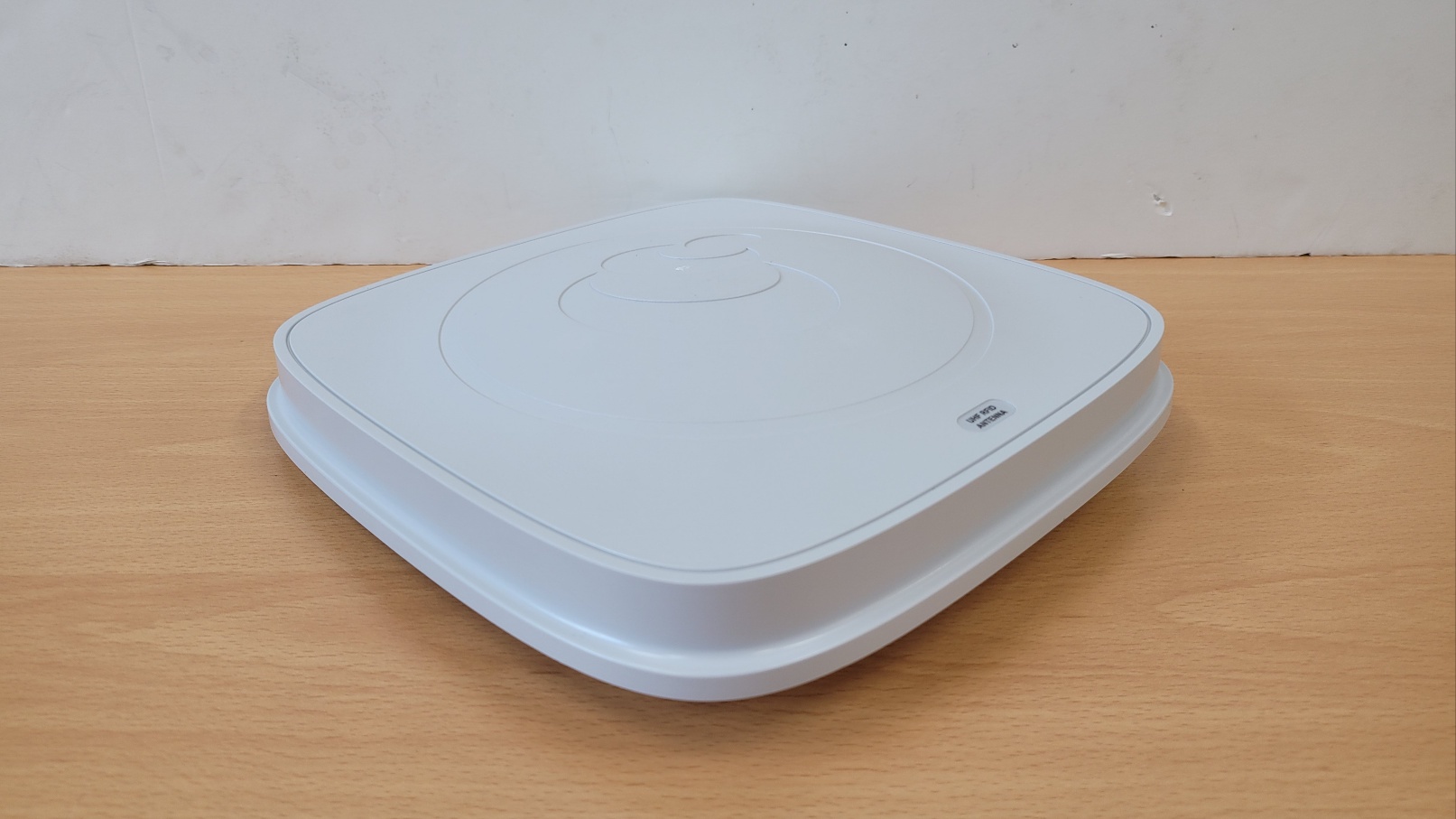

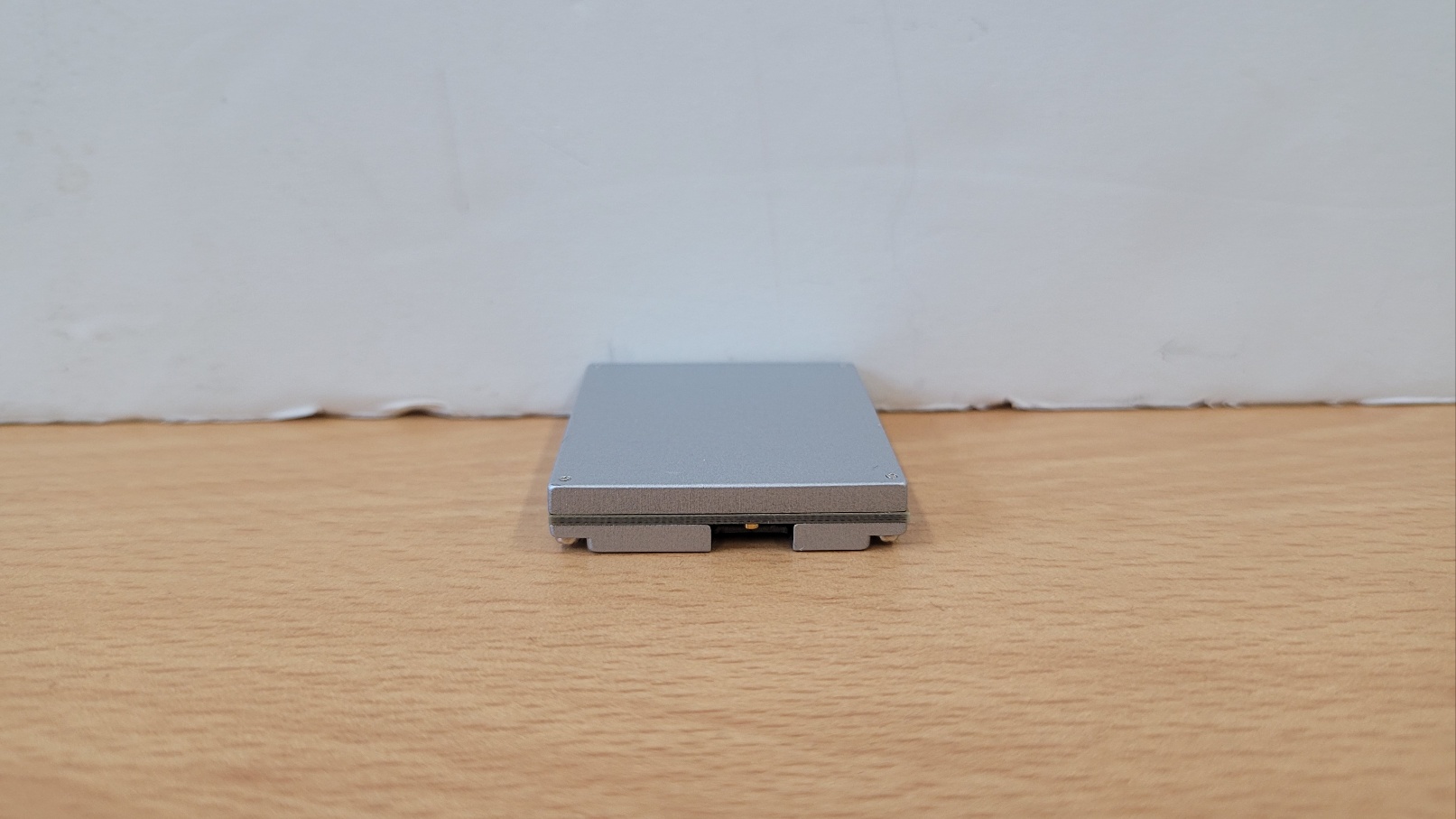

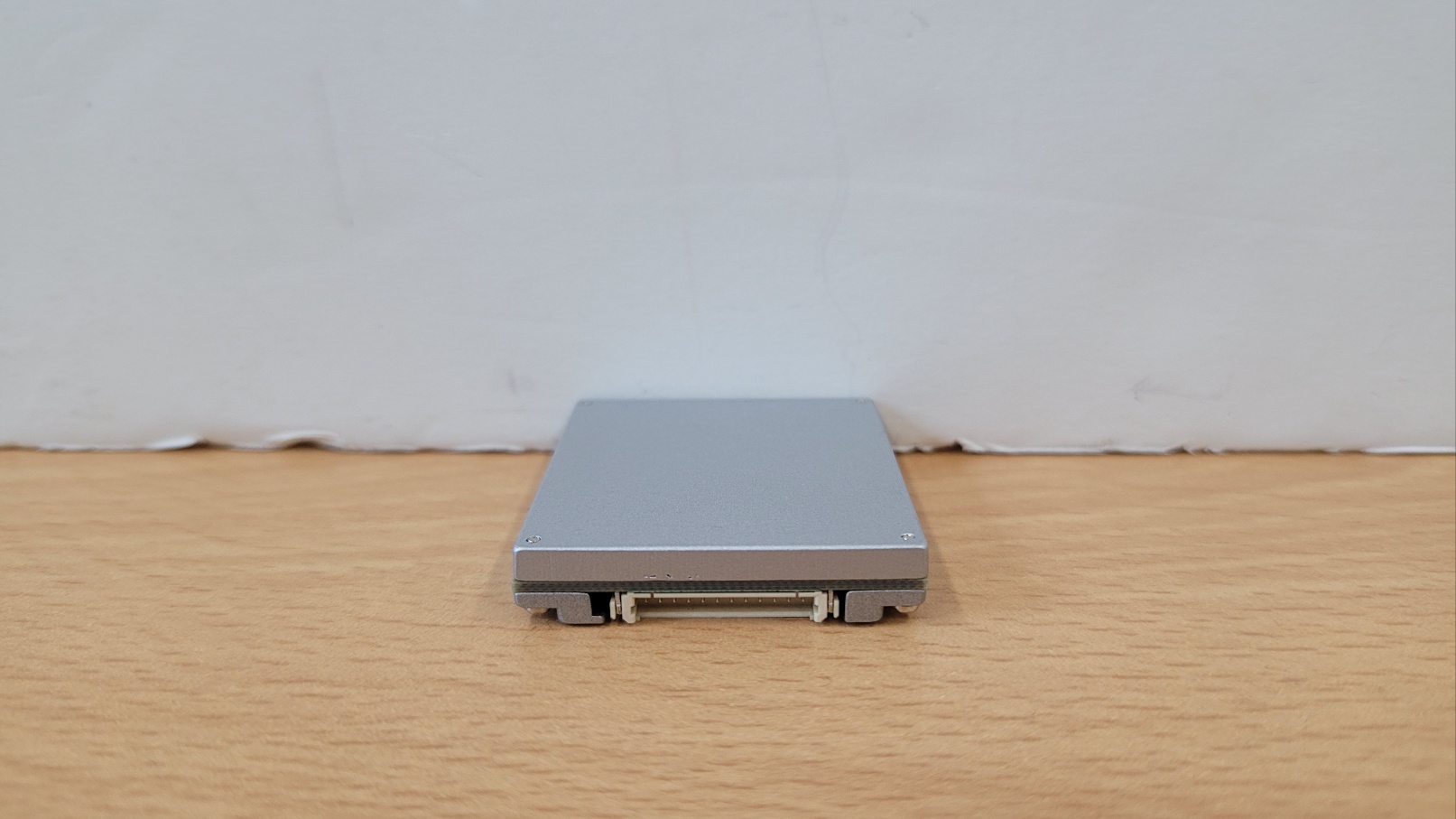

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [Antenna] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com

IDRO900ME-L_Label & Location

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 1 of 2 RF EXPOSURE EVALUATION FCC ID : XVY-IDRO900ME-L Standard Requirement The following FCC Rule Parts and procedures are applicable : Part 1.1310 Radiofrequency radiation exposure limits Table 1 below sets forth limits for Maximum Permissible Exposure (MPE) to radiofrequency electromagnetic fields. Table 1—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 f/300 6 1,500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 2 of 2 MPE calculation S = EIRP / (4πR 2 ) Where S : Power density (mW/cm 2 ) EIRP (mW) : P * T * G EIRP (dBm) : P + T + G P (dBm) : Maximum transmitter power G (dBi) : Antenna gain T (dB) : Power tolerance R (cm) : Safety distance Safety distance(R) : 30 cm EUT RF Exposure Frequency [MHz] Declared output power [dBm] Antenna Gain [dBi] Power tolerance [dB] EIRP [dBm] EIRP [mW] Power density [mW/cm 2 ] Limit [mW/cm 2 ] 902.75 30.00 6.12 + 0.5 36.62 4591.98 0.4060 0.6018 * The values in the table above are the worst case, and it was confirmed that they are within the declared output tolerance when measuring the actual output. Conclusion This confirms compliance to the required Radio frequency radiation exposure limit.

IDRO A4 (210x297) 1 Identification with Radio and Optical www.idro.co.kr Specifications of Air Patch Ant. IDRO.Co.,Ltd ITEM : Air Patch Antenna PART NAME : IDRO260-915 MODEL NAME FEATURES : 900 MHz ISM Band Provide highly stabilized performance Circular microstrip patch antenna DATE : June 03, 2021 QUANTITY : pcs SUPPLIER : IDRO DRAWN CHECKED APPROVED IDRO260 ANT Specification Company Draw up date version IDRO Co.,Ltd 2021-06-03 V1.6.03 IDRO A4 (210x297) 2 Identification with Radio and Optical www.idro.co.kr 1. Electrical Specifications. NO. Parameter Spec. Unit Remark 1 Center Frequency 915.0 MHz 2 Band Width 94 typ. MHz @ -15 dB R.L 3 VSWR 1.3 : 1 max. Ratio 4 Impedance 50 Ohms 5 Peak Gain 6.0 typ. dBi 6 Polarization RHCP 7 Beam Width 62 typ. Deg. 2. Mechanical Dimensions. (unit : mm) IDRO260 ANT Specification Company Draw up date version IDRO Co.,Ltd 2021-06-03 V1.6.03 IDRO A4 (210x297) 3 Identification with Radio and Optical www.idro.co.kr 3. S11 Measurement Data IDRO260 ANT Specification Company Draw up date version IDRO Co.,Ltd 2021-06-03 V1.6.03 IDRO A4 (210x297) 4 Identification with Radio and Optical www.idro.co.kr 4. Radiation Patterns. (Test date 2014.02.24) 4-1. H-Pol. (Frequency 902.0, 908.0, 915.0, 922.0, 928.0 MHz) 4-2. V-Pol. (Frequency 902.0, 908.0, 915.0, 922.0, 928.0 MHz) IDRO260 ANT Specification Company Draw up date version IDRO Co.,Ltd 2021-06-03 V1.6.03 IDRO A4 (210x297) 5 Identification with Radio and Optical www.idro.co.kr 4-3. Gain Test data Source Antenna Polarization Gain 902.0 MHz 908.0 MHz 915.0 MHz 922.0 MHz 928.0 MHz H-pol. (dBi) 5.12 5.17 5.46 5.84 6.12 V-pol. (dBi) 5.57 5.47 5.33 5.37 5.37 RHCP(dBic) 8.28 8.26 8.32 8.52 8.65 4-4. List of utilized test equipment (IDRO) NO Kind of Equipment and Precision Manufacturer Model No. Serial Number Calibration Date Specification Note 1 Anechoic Chamber MTG/ETS Full Anechoic Chamber - N/A 15.24 m X 7.9 m X 7.9 m (0.4 ~ 18 GHz) 2 Network Analyzer Agilent E8362B MY43021301 13/09/06 10 MHz ~ 20 GHz 3 Dual-Polarization Horn Antenna with RF Switch MTG QRH-004060 - 0.4 MHz ~ 6 GHz Source 4 Calibration Antenna Schwarzbeck Mess - Elektronik BBHA 9120 LF 254 10/12/24 0.7 MHz ~ 6 GHz Source/ Reference 5 Absorber Installation ETS EHP series Reflectivity : -25 dB @ 0.4 GHz -50 dB @ 18 GHz IDRO260 ANT Specification Company Draw up date version IDRO Co.,Ltd 2021-06-03 V1.6.03 IDRO A4 (210x297) 6 Identification with Radio and Optical www.idro.co.kr 5. Option : Antenna Attachment Bracket NOTE The antenna bracket specifications can be changed due to product discontinuance. Please contact our sales team before purchasing the antenna bracket.

TEST REPORT CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2023-02000 Page (1) / (38) Pages [QF-QP15-07] Ver.01 R105 1. Applicant ◦ Name : IDRO Co., Ltd. ◦ Address : 11, Jiphyeondong-ro, Sejong-si, Republic of Korea ◦ Date of Receipt : 2023-08-28 2. Manufacturer ◦ Name : IDRO Co., Ltd. ◦ Address : 11, Jiphyeondong-ro, Sejong-si, Republic of Korea 3. Use of Report : For FCC Certification 4. Test Sample / Model: UHF RFID Reader Module / IDRO900ME-L 5. Date of Test : 2023-09-12 to 2023-09-18 6. Test Standard(method) used : FCC 47 CFR part 15 subpart C 15.247 7. Testing Environment: refer to 6 page 8. Test Results : Compliance 9. Location of Test : Permanent Testing Lab On Site Testing (Address : 5, Dongbu-ro 221beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This report cannot be reproduced or copied without the written consent of CTK. Approval Tested by Gwanyong Kim: (Signature) Technical Manager Young-taek Lee: (Signature) Remark. This report is not related to KOLAS accreditation and relevant regulation. 2023-09-18 CTK Co., Ltd. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2023-02000 Page (2) / (38) Pages [QF-QP15-07] Ver.01 R105 REPORT REVISION HISTORY Date Revision Page No 2023-09-18 Issued (CTK-2023-02000) all This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2023-02000 Page (3) / (38) Pages [QF-QP15-07] Ver.01 R105 CONTENTS 1. General Product Description ....................................................................................... 4 1.1 Applicant Information ........................................................................................ 4 1.2 Product Information ........................................................................................... 4 1.3 Peripheral Devices ............................................................................................. 4 2. Accreditations .......................................................................................................... 5 2.1 Laboratory Accreditations and Listings .................................................................. 5 2.2 Calibration Details of Equipment Used for Measurement .......................................... 5 3. Test Specifications .................................................................................................... 6 3.1 Standards ........................................................................................................ 6 3.2 Testing Environment .......................................................................................... 6 3.3 Mode of operation during the test ........................................................................ 7 3.4 Maximum Measurement Uncertainty .................................................................... 7 3.5 Test Software ................................................................................................... 7 4. Technical Characteristic Test ....................................................................................... 8 4.1 Carrier Frequency Separation .............................................................................. 8 4.2 Number of Hopping Frequencies ........................................................................ 10 4.3 20 dB bandwidth & 99% Bandwidth ................................................................... 12 4.4 Time of Occupancy .......................................................................................... 15 4.5 Maximum peak Conducted Output Power ............................................................ 18 4.6 Unwanted Emissions (Conducted) ...................................................................... 21 4.7 Radiated Emission ........................................................................................... 26 4.8 AC Conducted Emissions .................................................................................. 34 4.9 Frequency Hopping System Requirements ........................................................... 37 5. APPENDIX A – Test Equipment Used For Tests ............................................................. 38 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2023-02000 Page (4) / (38) Pages [QF-QP15-07] Ver.01 R105 1. General Product Description 1.1 Applicant Information Company IDRO Co., Ltd. Contact Point 11, Jiphyeondong-ro, Sejong-si, Republic of Korea Contact Person Name : Jong-Sung Park E-mail : [email protected] Tel : +81-44-866-9560 Fax : +81-44-866-9559 1.2 Product Information FCC ID XVY-IDRO900ME-L Product Description UHF RFID Reader Module Basic model (HVIN) IDRO900ME-L Variant Model name - Operating Frequency 902.75 MHz – 927.25 MHz RF Output Power 29.77 dBm (0.948 W) Antenna type Air Patch Antenna Antenna gain 6.12 dBi Number of channels 50 Channel Spacing 500 kHz Type of Modulation ASK Power Source DC 4 V Test Software E710Tester_2023_03_31_normal RF Power setting in Test SW Power Setting “300” 1.3 Peripheral Devices Device Manufacturer Model No. Serial No. Note Computer HP 15-bs563TU CND7253R6P AC/DC Adapter HP HSTNN-LA40 7628011101 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Repor…

Text truncated - open the document above for the full version.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (1) / (3) Pages Test Setup Photo AC Power Line Emissions measurement CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (2) / (3) Pages Radiated Emissions measurement 9 kHz to 30 MHz 30 MHz to 1 GHz CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (3) / (3) Pages 1 GHz to 10 GHz Conducted Emissions measurement
