XWA-I10X-XTiny Bluetooth Transmitter for iPod/ iPhone

www.kokkia.com CE 1588 FCC ID: XWA-i10X-X GETTING TO KNOW YOUR TX This Bluetooth Stereo transmitter (TX) offers the l atest innovation in Bluetooth technology. It is specially designed f or iPod player. It can transfer stereo audio from Apple iPod/iPhone to Bluetooth stereo headset/receiver wirelessly. It also support s remote control functions. TX will finish Searching, Pairin g, and connecting by itself automatically. Users just need to start up TX to start the operation. PAIR TX TO YOUR BLUETOOTH STEREO HEADSET/ AUDIO RECEIVER Pairing is the process of linking the Tx with your Bluetooth stereo headset/receiver. Before you using the TX wi th Bluetooth stereo headset/audio receiver, you should pair both devices. After pairing completed, you can use the T X only with the paired Bluetooth stereo headset/ audio receiver . If you wish to use the TX with a different Bluetooth stere o headset/ audio receiver, you need to redo the pairing proces s with the new devices. In this case, the TX will no longer wo rk with the previous Bluetooth stereo headset/ audio receiver. To pair the Bluetooth receiver device 1. Power on iPod/iPhone. Plug TX in the bottom sock et of iPod/iPhone, iPod/iPhone will authenticate with TX automatically, this process will take a few seconds . After authentication, TX will flash with fast speed and e nter into pairing mode 2. Turn on the Bluetooth stereo headset/ audio rece iver and place it within 10 meters to the TX. 3. Place the Bluetooth stereo headset/ audio receiv er into pairing mode. Refer to the Bluetooth stereo headset / audio receiver user guide for instructions for this feature. 4. If you want to pair with another device, you sho uld turned off the paired device first, and follow step s 2 and 3 to put the new device into paring mode. TX will t ry to pair with the new device after the previously paire d device is powered off. Tips : Please make sure the PIN code of Bluetooth stereo headset/ audio receiver is 0000, 1111, 1234 or 8888 . Otherwise, TX will not pair with it. For this part, please refer to your Bluetooth Stereo headset/ audio receiver instr uctions. If disconnection occurs, it maybe due to the follow ing reason a) The range is over 10 meters between both Bluetoo th stereo headset/ audio receiver and the TX. b) Bluetooth stereo headset/ audio receiver disconn ected the link for some certain conditions. c) Either device has been switched off. Note : The TX, in normal operation, should maintain the connection with the Bluetooth stereo headset/ audio receiver at all times once the pairing mode and connection h as been established between the two devices. If any unexpected behavior, and music cannot strea m from TX, user should restart the TX (by unplugging TX, t hen plug in and reset iPod/iPhone in play mode). USING TX TO TRANSFER MUSIC 1. With the Bluetooth stereo headset/ audio receive r paired with TX, turn on the paired Bluetooth stereo headse t/ audio receiver. TX will connect to your headset/ au dio receiver. The blue LED will flash every 5 secs to i ndicate TX is transferring audio. 2. Place your stereo headset/ audio receiver within 10 meters to TX. 3. If connection is lost due to out of range, bring the Bluetooth stereo headset/ audio receiver near to TX within 10 meters. Tx will reconnect automatically. REMOTE CONTROL YOUR iPod player If your Bluetooth stereo headset/ audio receiver ha s remote control function, you can control iPod/iPhone in pl ay/pause, forward and backward operation smode remotely. 1. With the Bluetooth stereo headset/ audio receive r connected with Tx. 2. Place your stereo headset/audio receiver within 10 meters to Tx. 3. Control your iPod player by operation on the Blu etooth stereo headsets/audio receiver. For detail operatio n, please refer to the related user guide for instruct ions for this feature. Button Action State Function Press and release idle Let the Tx go to pairing mode Bluetooth Wireless Tiny Transmitter for iPod and iPhone i10x-x USER GUIDE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications to device will void the user’s authority to operate the device.

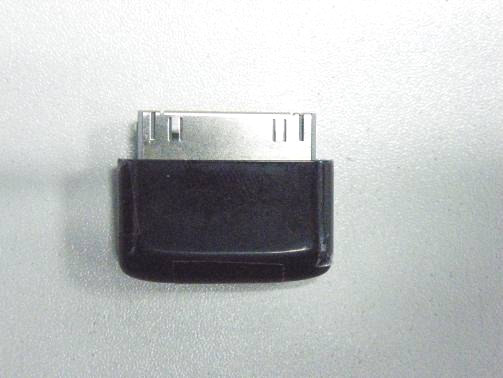

External Photo of EUT Front View: Back View Side View 1 Side View 2 Side View 3

Internal Photo of EUT Front side Back Side
