XWLSSBT5-28WLong shape support electron fluorescent lamp

User Manual Dear Customer, Thank you for buying ZHEJIANG SUNSEA LIGHTING ELECTRICAL APPLIANCE CO., LTD RLF. Please read carefully the product instruction before using! The models of SSBT5-28W-L011SSBT5-21W-L011, SSBT5-14W-L011, SSBT5-13W-L011, use only on 120 volt, 60Hz circuit. The wattage marked on the lamp. And the operating Frequency is more than 40kHz and less than 60kHz Features Energy Saves up to 70% compared to common incandescent Lamps Two years limited warrant; Rapid on/off with silent operation; Reduces Carbon Dioxide Electromagnetic Volume Consumes natural resources Generate less heat in the building Note & Attention Always turn-off power before re-lamping; Avoid installing lamp by gripping the glass tube; Do not use with electronic timers Reliable operating temperature -15~55 Not suitable for damp surroundings or sealed occasions Risk of electric shock-use in dry locations For best result use in proper voltage range as mentioned on lamp base Applications: Home, Office, Hotel, Shop, Restaurant...and so on lighting Warning: This product do not dismantle two side plugs arbitrarily, replaces when the tube must shut off the power source. Dimmer is not compatible, does not have the waterproof function. The power source out-port connects identical model product 3 at most, otherwise burns out the live wire the danger. FCC Information 1. This device complies with Part 18 of the FCC Rules. 2. Information on the following matters shall be provided to the user in the Instruction manual: (a) The interference potential of the device or system; (b) Maintenance of the system; (c) Simple measures that can be taken by the user to correct interference; (d) Manufacturers of RF lighting devices must provide an advisory statement, either on the product packaging or with other user documentation, similar to the following: This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating is between 40kHz and 60kHz. Variations of this language are permitted provided all the points of the statement are addressed and may be presented in any legible font or text style. .

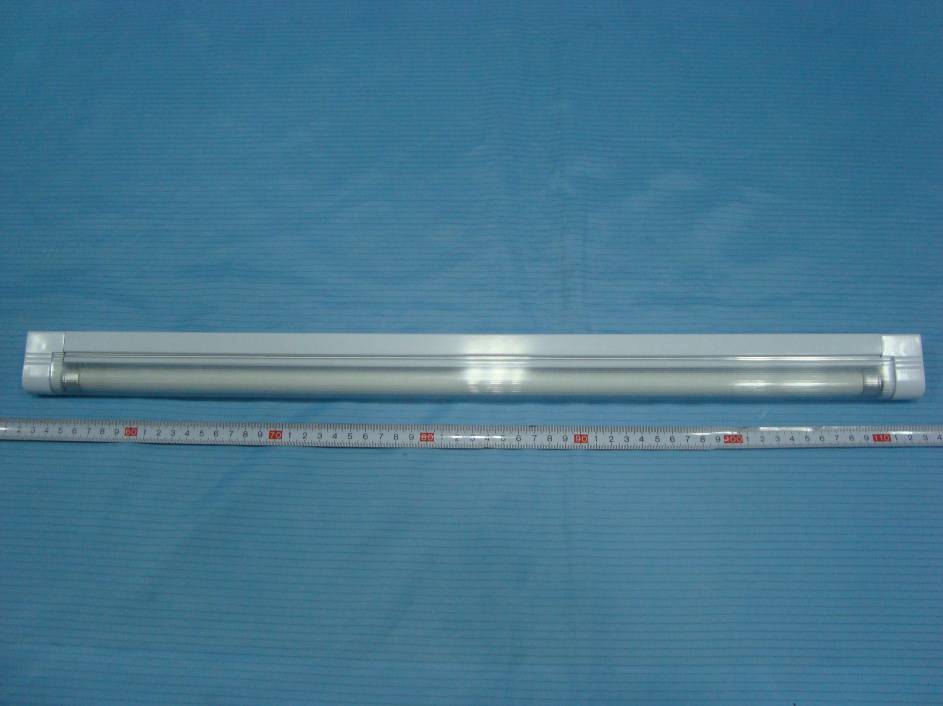

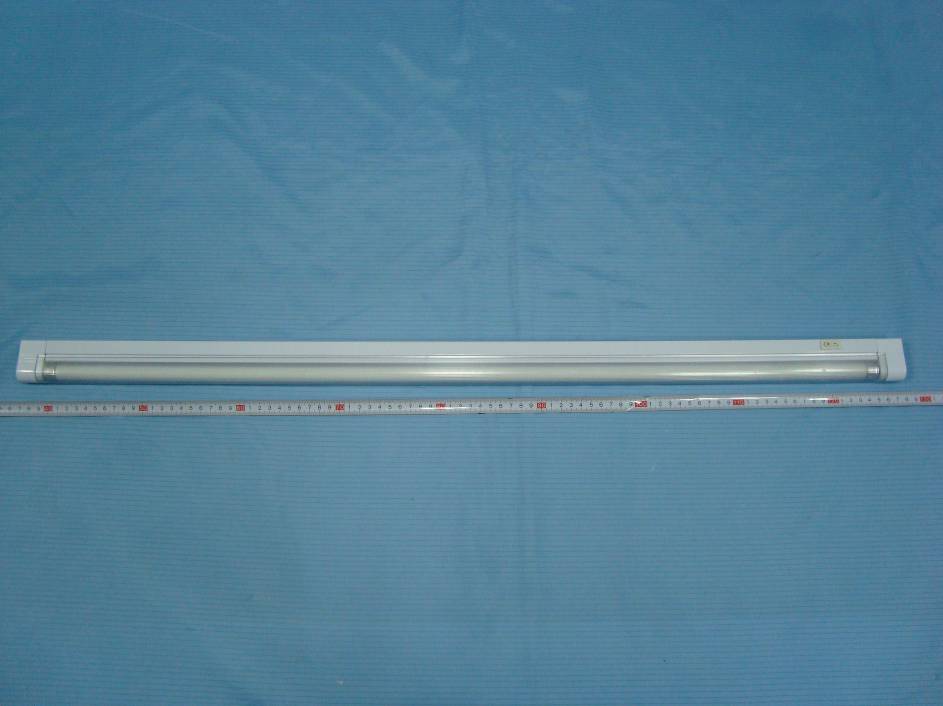

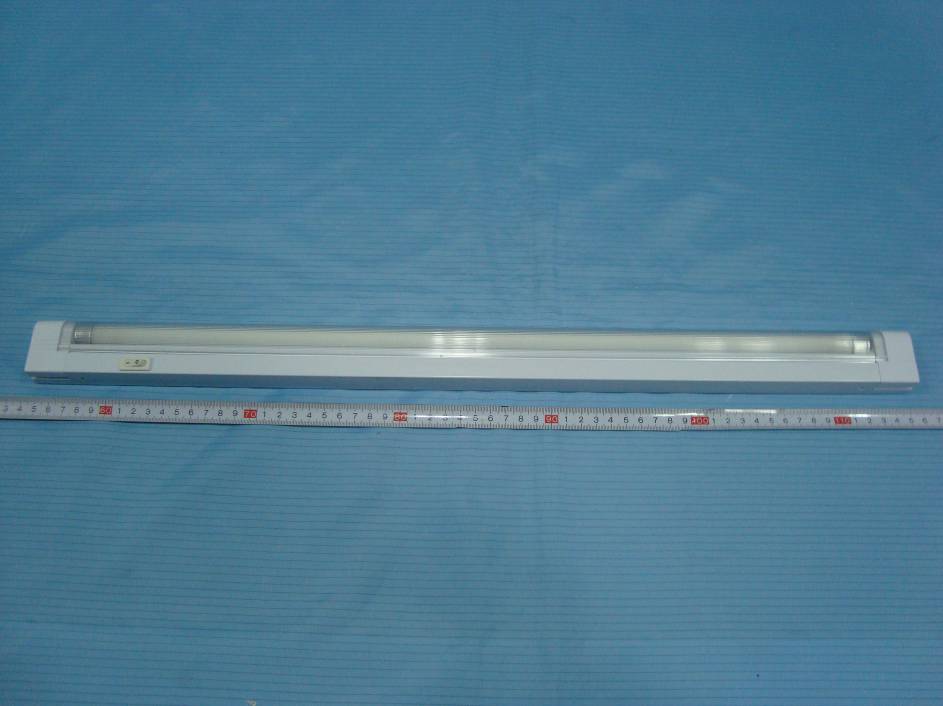

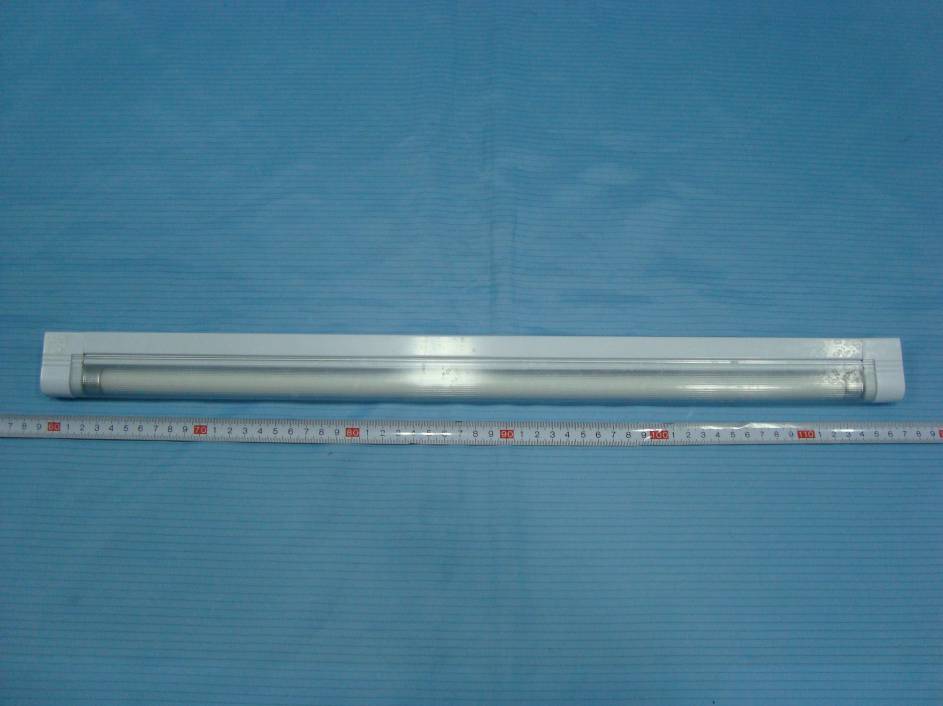

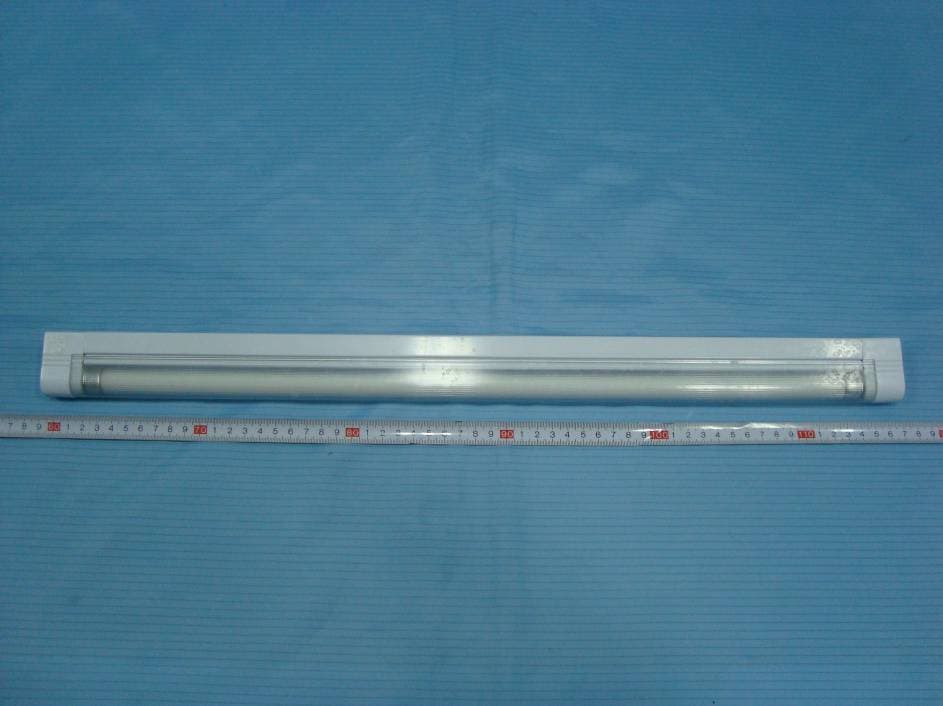

External Photos SSBT5-13W-L011: EUT – Top View SSBT5-13W-L011: EUT – Bottom View SSBT5-14W-L011: EUT – Top View SSBT5-14W-L011: EUT – Bottom View SSBT5-21W-L011: EUT – Top View SSBT5-21W-L011: EUT – Bottom View SSBT5-28W-L011: EUT – Top View SSBT5-28W-L011: EUT – Bottom View

ID Label/Location FCC ID Label FCC ID Label Location Model: SSBT5-13W-L011 Model: SSBT5-14W-L011 Model: SSBT5-21W-L011 Model: SSBT5-28W-L011

Internal Photos SSBT5-13W-L011: EUT - Cover off View SSBT5-13W-L011: EUT – Main Board Components View SSBT5-13W-L011: EUT – Main Board Circuit View SSBT5-14W-L011: EUT - Cover off View SSBT5-14W-L011: EUT – Main Board Components View SSBT5-14W-L011: EUT – Main Board Circuit View SSBT5-21W-L011: EUT - Cover off View SSBT5-21W-L011: EUT – Main Board Components View SSBT5-21W-L011: EUT – Main Board Circuit View SSBT5-28W-L011: EUT - Cover off View SSBT5-28W-L011: EUT – Main Board Components View SSBT5-28W-L011: EUT – Main Board Circuit View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 18 MEASUREMENT AND TEST REPORT For Zhejiang Sunsea Lighting Electrical Appliance Co., Ltd. NO 66, Luoyang Road, Luqiao District, Taizhou City, Zhejiang, China FCC ID: XWLSSBT5-28W Report Type: Original Report Product Type: Long shape support electron fluorescent lamp Test Engineer: Jessica He Cassio Wu Report Number: RSH09103051 Report Date: 2009-12-08 Reviewed By: Lisa Zhu EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Zhejiang Sunsea Lighting Electrical Appliance Co., Ltd. FCC ID: XWLSSBT5-28W Report #: RSH09103051 Page 2 of 17 FCC Part 18 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 EXTERNAL I/O CABLE..................................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSIONS ........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................8 PLOT(S) OF TEST DATA................................................................................................................................................9 Zhejiang Sunsea Lighting Electrical Appliance Co., Ltd. FCC ID: XWLSSBT5-28W Report #: RSH09103051 Page 3 of 17 FCC Part 18 Test Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The ZHEJIANG SUNSEA LIGHTING ELECTRICAL APPLIANCE CO., LTD’s model: SSBT5-28W-L011, SSBT5-21W-L011, SSBT5-14W-L011, SSBT5-13W-L011, or the “EUT” as referred to in this report is a Long shape support electron fluorescent lamp, which measures approximately: SSBT5-28W-L011: 120.3 cm L x 2.2 cm W x 4.2 cm H, SSBT5-21W-L011: 90.2 cm L x 2.2 cm W x 4.2 cm H, SSBT5-14W-L011: 60.3 cm L x 2.2 cm W x 4.2 cm H, SSBT5-13W-L011: 57.0 cm L x 2.2 cm W x 4.2 cm H rated input voltage: AC 120V/60Hz. * All measurement and test data in this report was gathered from production sample serial number: 0901037 (Assigned by BACL, Shenzhen). The EUT was received on 2009-10-30. Objective The following test report is prepared on behalf of ZHEJIANG SUNSEA LIGHTING ELECTRICAL APPLIANCE CO., LTD in accordance with Part 2, Subpart J, and Part 18, Subparts A, B and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to determine compliance with FCC Part 18 limits. Related Submittal(s)/Grant(s) No related submittal(s). Test Methodology All measurements contained in this report were conducted…

Text truncated - open the document above for the full version.

Test Setup Photos SSBT5-13W-L011: Conducted Emissions - Front View SSBT5-13W-L011: Conducted Emissions - Side View SSBT5-14W-L011: Conducted Emissions - Front View SSBT5-14W-L011: Conducted Emissions - Side View SSBT5-21W-L011: Conducted Emissions - Front View SSBT5-21W-L011: Conducted Emissions - Side View SSBT5-28W-L011: Conducted Emissions - Front View SSBT5-28W-L011: Conducted Emissions - Side View
