Cleankeys Keyboard User Guide 2 Cleankeys Keyboard User Guide Cleankeys Keyboard User Guide 3 Contents Regulatory information 4 About the Cleankeys ® keyboard 5 Specifications 5 Opening the Cleankeys box 5 Connecting your Cleankeys keyboard to a computer 7 Connecting your Cleankeys keyboard using a wireless connection 7 Connecting your Cleankeys keyboard using the USB cable 7 Mounting 8 Using your Cleankeys keyboard 8 Typing on your Cleankeys keyboard 8 Key indentations 8 Proximity sensing 9 Low Battery Mode 9 Pausing your Cleankeys keyboard 9 Cleaning 9 Disinfecting 10 Infection control 10 Checking the battery level 10 Charging your Cleankeys keyboard 10 Changing the Cleankeys keyboard volume 11 Changing the touch sensitivity of the keys 11 Changing the tap sensitivity of the keys 12 Updating the Cleankeys keyboard firmware 12 Installing the Cleankeys Update Utility 12 Using the Cleankeys Update Utility 13 Using the Cleankeys Update Utility to manually select the firmware version 13 Troubleshooting 14 4 Cleankeys Keyboard User Guide Regulatory information European Union Directives Conformance Statement This device complies with the essential requirements and other relevant provisions of directive 2004/108/EC. FCC Rules – Part 15 Keyboard FCC registration number: XWS-CKPxxW Wireless Receiver FCC registration number: XWS-CKD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada (IC) Notice This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Keyboard Certification Number IC: 8721A-CKPxxW Wireless Receiver Certification Number IC: 8721A-CKD WARNING Changes or modifications to this equipment not approved by Cleankeys can cause this equipment to not comply with Part 15 of the FCC rules and void the user’s authority to operate this equipment. Cleankeys corporate address Cleankeys Inc. 4664 - 99 Street Edmonton, Alberta T6E 5H5 Canada +1-780-702-1473 Cleankeys Keyboard User Guide 5 About the Cleankeys ® keyboard The Cleankeys keyboard is the ideal keyboard and trackpad for infection controlled environments, or any place where the computer keyboard can easily become contaminated. The Cleankeys keyboard has a smooth top surface made from glass or acrylic. The base is made of Corian ® or ABS plastic. This makes it one of the world’s easiest keyboards to clean. Just spray and wipe, and your keyboard is spotless in seconds. The Cleankeys keyboard is also extremely resistant to microbial growth. The keys are both touch and tap sensitive and have an audible click for feedback. The touch sensitivity can be adjusted, allowing Cleankeys to be touched directly or through gloves. Specifications Keyboard Size: 14.68” x 5.64” x 0.68” (373mm x 143mm x 17mm) Wireless Receiver Size: 1.89” x 0.68” x 0.35” (48.0mm x 17.3mm x 8.9mm) Keyboard Weight: Glass: 2.0 lbs (0.91 kg), Acrylic: 1.6 lbs (0.73 kg) Wireless Receiver Weight: 0.21 oz (6 gr) Color: White Cable: 8 ft. (2.46m) Interface: USB over Nordic Semiconductor Frequency Agility Protocol Wireless Keyboard (Charging) Power: 5V @ 1A (max) Wireless Receiver Power: 5V @ 22mA Supported operating systems: Windows®, Mac, Linux, Unix Regulatory approvals: FCC, CE, ROHS, IP65 Mounting option: Three #6-32 inserts spaced in a MIS-D 75 Vesa standard pattern Operating Environment: 32º F (0º C) to 95º F (35º C) Warranty: Two year (extended options available) Opening the Cleankeys box The following items are in your Cleankeys keyboard box. • Cleankeys keyboard • wireless receiver • battery charger • USB cable • Quick Reference Card If any of these items are missing, contact you local distributor. 6 Cleankeys Keyboard User Guide Cleankeys keyboard Back of the Cleankeys keyboard Wireless receiver Pairing button Pairing LED Cleankeys Keyboard User Guide 7 Connecting your Cleankeys keyboard to a computer You can connect your Cleankeys keyboard to your computer using a wireless connection or a USB cable. Connecting your Cleankeys keyboard using a wireless connection To connect your Cleankeys keyboard using the wireless connection, connect the wireless receiver to your computer and then link the wireless receiver with your Cleankeys keyboard. Connecting the wireless receiver 1. Turn on your computer. 2. Plug the wireless receiver into a USB port on your computer. 3. Wait for your computer to recognize the wireless receiver. Linking the wireless receiver to your Cleankeys keyboard Note: Your Cleankeys keyboard and wireless receiver have been linked at the factory, so you do not have to link them when you first install the keyboard. 1. Press the power button on your Cleankeys keyboard. If your Cleankeys keyboard does not turn on, the built in battery may need to be charged. See Charging your Cleankeys keyboard on page 10. 2. Press the Pairing button on the wireless receiver. The LED on the wireless receiver begins to flash. 3. Press the Pairing button on the Cleankeys keyboard. The wireless LED on the Cleankeys keyboard flashes at least once. When the wireless receiver and the Cleankeys keyboard have finished pairing, the LEDs on the wireless receiver and the keyboard stop flashing. Note: You must press the Pairing button on the Cleankeys keyboard within 10 seconds of pressing the Pairing button on the wireless receiver. 4. To verify the Cleankeys keyboard is working, touch the caps key. The caps LED will light if the Cleankeys keyboard is recognized by the computer. Connecting your Cleankeys keyboard using the USB cable 1. Turn on your computer. 2. Plug the smaller end of the USB cable into the USB port on your Cleankeys keyboard. 3. Plug the larger end of the USB cable into a USB port on your computer. 4. Press the power button on your Cleankeys keyboard. …

Text truncated - open the document above for the full version.

Cleankeys Quick Reference Card Regulatory information European Union Directives Conformance Statement This device complies with the essential requirements and other relevant provisions of directive 2004/108/EC. FCC Rules – Part 15 Keyboard FCC registration number: XWS-CKPxxW Wireless Receiver FCC registration number: XWS-CKD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada (IC) Notice This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Keyboard Certification Number IC: 8721A-CKPxxW Wireless Receiver Certification Number IC: 8721A-CKD WARNING Changes or modifications to this equipment not approved by Cleankeys can cause this equipment to not comply with Part 15 of the FCC rules and void the user’s authority to operate this equipment. Specifications Keyboard Size: 14.68” x 5.64” x 0.68” (373mm x 143mm x 17mm) Wireless Receiver Size: 1.89” x 0.68” x 0.35” (48.0mm x 17.3mm x 8.9mm) Keyboard Weight: Glass: 2.0 lbs (0.91 kg), Acrylic: 1.6 lbs (0.73 kg) Wireless Receiver Weight: 0.21 oz (6 gr) Color: White Cable: 8 ft. (2.46m) Interface: USB over Nordic Semiconductor Frequency Agility Protocol Wireless Keyboard (Charging) Power: 5V @ 1A (max) Wireless Receiver Power: 5V @ 22mA Supported operating systems: Windows ® , Mac, Linux, Unix Regulatory approvals: FCC, CE, ROHS, IP65 Mounting option: Three #6-32 inserts spaced in a MIS-D 75 Vesa standard pattern Operating Environment: 32º F (0º C) to 95º F (32º C) Warranty: Two year (extended options available) References For more information about your new Cleankeys keyboard, go to the Cleankeys web site (www.cleankeysinc.com). The web site has: • The Cleankeys keyboard User Guide which contains more detailed information about the Cleankeys keyboard. • FAQs and other support information • Contact information Limited Warranty Coverage Cleankeys Inc. warrants Cleankeys to be free from malfunctions and defects in both materials and workmanship for two years from the date of purchase. Retain the original dated sales receipt. Proof of the date of purchase will be required with any request for warranty repair. Warranty service is only available from within the country where Cleankeys was originally purchased. You may be required to ship Cleankeys, at your expense, to the authorized service facility designated by Cleankeys Inc. Cleankeys Inc. will repair or replace your Cleankeys if it fails to function properly during the warranty period, subject to any conditions and/or limitations stated herein. Warranty service will include all labor as well as any necessary adjustments and/or replacement parts. If Cleankeys Inc. is unable to repair or replace your Cleankeys, Cleankeys Inc. will, at its option, refund the purchase price paid for your Cleankeys provided it has been returned to Cleankeys Inc. along with proof of purchase price paid. Repair, replacement, or refund of the purchase price are the sole remedies under the warranty. If replacement parts are used in making repairs, those parts may be remanufactured, or may contain remanufac- tured materials. If it is necessary to replace the entire Cleankeys, it may be replaced with a remanufactured Cleankeys. Remanufactured Cleankeys, parts and materials are warranted for the remaining war- ranty term of the original Cleankeys, or 90 days after the date of repair or replacement, whichever is longer. Limitations This warranty does not cover circumstances beyond Cleankeys Inc. control. This warranty does not apply when failure is due to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, dropping, failure to follow Cleankeys Inc. operation, maintenance or repacking instructions, or claims made after the duration of this warranty. Cleankeys Inc. makes no other express or implied warranty for this product, and disclaims the implied warran- ties of merchantability and fitness for a particular purpose. In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied warranty will be one year from the purchase date or such longer period as required by law. The option of repair, replacement, or refund is Cleankeys Inc. only obligation. Cleankeys Inc. will not be responsible for any special, consequential or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause. Liability for any special, consequential or incidental damages (including but not limited to loss of revenue or profit, downtime costs, loss of the use of the equipment, cost of sub- stitute equipment, facilities or services, or claims of your customers for such damages resulting from the purchase, use, or failure of your Cleankeys), regardless of cause or for breach of any written or implied warranty is expressly disclaimed. Product registration Please go to the Cleankeys web site (www.cleankeysinc.com) and register your Cleankeys keyboard. Part number: 12515 Printed in Canada Document version: 01 Connecting the Cleankeys — wireless 1. Turn on your computer. 2. Plug the wireless receiver into a USB port on your computer. 3. Wait for your computer to recognize the wireless receiver. 4. Press the power button on your Cleankeys key- board. If your Cleankeys keyboard does not turn on, the built in battery may need to be charged. 5. Press the Pairing button on the wireless receiver. The LED on the wireless receiver begins to flash. 6. Press the Pairing button on the Cleankeys key- board. The LED on the Cleankeys keyboard flashes at least once. When the wireless receiver and the Cleankeys key- board have finished pairing, the pairing LEDs on the wireless receiver and the keyboard stop flashing. Note: You must…

Text truncated - open the document above for the full version.

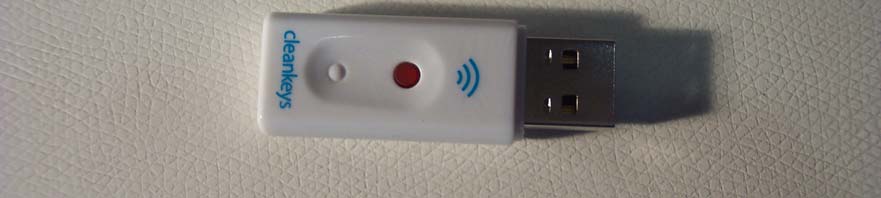

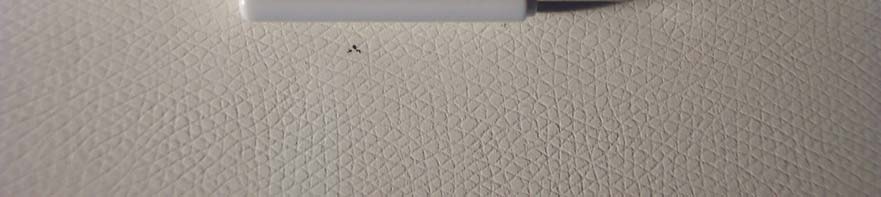

Cleankeys FCC/IC Exhibit Model CKD FCC ID # XWS-CKD IC ID # 8721-CKD Date: December 23, 2009 Revision #: 0 Dongle External Photographs Top view Bottom view

Cleankeys FCC/IC Exhibit Model CKD FCC ID # XWS-CKD IC ID # 8721-CKD Date: December 23, 2009 Revision #: 0 Dongle Label Location 5V 22mA5V 22mA Made in Canada FCC ID: XWS-CKD IC: 8721A-CKD M/N: CKD Rel:01 RoHS Compliant Wireless Receiver PID: CKD

NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 47 th Street NE • Calgary, Alberta T2E 3R2 (403)295-5134 • • (403) 295-4190 fax January 04, 2009 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 FCC ID: XWS-CKD IC ID : 8721A-CKD SAR/RF Exposure: Although SAR/MPE calculations are not required for this device due to the low power output, the following SAR evaluation is included for reference. As per FCC rules no SAR/MPE evaluation is required provided the power is below the following threshold: Tunable range of device: 2402 -2481 MHz Center of tunable band : 2441 MHz SAR Limitation in mW based on center of band = 60/fmhz = 60/2441 = 0.02458 w or 24.58 mW Therefore 24.58 mW is the threshold for no SAR Evaluations. In this case the maximum output powers are as follows: Max Antenna Gain = 0.68 dBi Conducted Power = -0.55 dbm RF Power output of device (Antenna gain + Maximum Conducted RF Power output)= 0.13 dBm RF Power out put in mW = 1 mW S (power density) at 20 cm: 0.000205 mW/cm2 Therefore the maximum output power including antenna gain is 1 mW, well below the SAR evaluation threshold of 24.58 mW. Sincerely, Glen Moore Wireless/EMC Manager NTS

Confidentiality Statement: This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer. Certification Test Report CFR 47 FCC Part 15, Subpart C Section 15.247 Industry Canada RSS 210, Issue 7 Cleankeys Inc. CKD FCC ID # XWS-CKD IC ID # 8721A-CKD Project Code CG-1369 (Report CG-1369-RA-2-1) Revision: 1 ((This report supersedes CG-1281-RA-1-1) December 23, 2009 Prepared for: Cleankeys Inc Author: Deniz Demirci Senior Wireless / EMC Technologist Approved by: Nick Kobrosly Director of Canadian Operations CG-1369-RA-2-1 Cleankeys Inc. Certification Test Report Model CKD FCC ID # XWS-CKD IC ID # 8721A-CKD ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 39 December 23, 2009 Report Summary Test Facility: National Technical Systems, Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers: 0214.22 Electrical 0214.23 Mechanical Accredited by A2LA The American Association for Laboratory Accreditation CLIENTS SERVED: All interested parties FIELDS OF TESTING: Electrical/Electronic, Mechanical/Physical ACCREDITATION DATE:: May 14, 2009 VALID TO: December 31, 2009 Applicant: Cleankeys Inc. 4664 - 99 Street Edmonton, AB T6E 5H5 Canada Phone: (780)702-1473 Customer Representative: Randy Marsden CEO & CTO 4664 - 99 Street Edmonton, AB T6E 5H5 Canada Phone: (780)702-1473 x223 CG-1369-RA-2-1 Cleankeys Inc. Certification Test Report Model CKD FCC ID # XWS-CKD IC ID # 8721A-CKD ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 39 December 23, 2009 Test Summary Deviations* from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable FCC Rule Parts Applicable Industry Canada Rule Parts A Power line Conducted Emission No No No Pass FCC Subpart C 15.207 (a) RSS-Gen Issue 2 7.2.2 B 6 dB Bandwidth No No No Pass FCC Subpart C 15.247 (a) (2) RSS 210 Issue 7 A8.2 (a) C Occupied Bandwidth (99% emission bandwidth) No No No N/A N/A RSS-Gen Issue 2 4.6.1 D Peak Power Output No No No Pass FCC Subpart C 15.247 (b) (3) RSS 210 Issue 7 A8.4 (4) E Power Spectral Density No No No Pass FCC Subpart C 15.247 (e) RSS 210 Issue 7 A8.2 (b) F Conducted Spurious Emissions No No No Pass FCC Subpart C 15.247 (d) RSS 210 Issue 7 A8.5 G Conducted Spurious Emissions Band Edge No No No Pass FCC Subpart C 15.247 (d) RSS 210 Issue 7 A8.5 H Duty Cycle Correction Factor No No No N/A FCC Subpart C 15.35 (c) RSS-Gen Issue 2 4.5 I Radiated Spurious Emissions Band Edge No No No Pass FCC Subpart C 15.247, 15.205 RSS 210 Issue 7 2.6, A8.5 J Radiated Spurious Emissions (TX and RX) No No No Pass FCC Subpart C 15.247, 15.205 RSS 210 Issue 7 2.6, A8.5 RSS Gen Issue 2 4.10 Test Result: The product presented for testing complied with test requirements as shown above. Prepared By: _______________________ Deniz Demirci Senior Wireless / EMC Technologist Reviewed By: ______________________ Glen Moore Wireless / EMC Manager Approved By: ______________________ Alex Mathews Quality Management Representative CG-1369-RA-2-1 Cleankeys Inc. Certification Test Report Model CKD FCC ID # XWS-CKD IC ID # 8721A-CKD ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 39 December 23, 2009 Table of Contents REPORT SUMMARY ........................................................................................................................................................2 TEST SUMMARY..............................................................................................................................................................3 REGISTER OF REVISIONS .............................................................................................................................................5 1.0 INTRODUCTION ................................................................................................................................................6 1.1 PURPOSE.........................................…

Text truncated - open the document above for the full version.

Confidentiality Statement: This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer. Certification Test Report CFR 47 FCC Part 15, Subpart C Section 15.247 Industry Canada RSS 210, Issue 7 Cleankeys Inc. CKD FCC ID # XWS-CKD IC ID # 8721A-CKD Project Code CG-1369 (Report CG-1369-RA-2-2) Revision: 2 (This report supersedes CG-1369-RA-2-1) January 14, 2010 Prepared for: Cleankeys Inc Author: Deniz Demirci Senior Wireless / EMC Technologist Approved by: Nick Kobrosly Director of Canadian Operations CG-1369-RA-2-2 Cleankeys Inc. Certification Test Report Model CKD FCC ID # XWS-CKD IC ID # 8721A-CKD ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 39 January 14, 2010 Report Summary Test Facility: National Technical Systems, Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers: 0214.22 Electrical 0214.23 Mechanical Accredited by A2LA The American Association for Laboratory Accreditation CLIENTS SERVED: All interested parties FIELDS OF TESTING: Electrical/Electronic, Mechanical/Physical ACCREDITATION DATE:: May 14, 2009 VALID TO: February 28, 2010 Applicant: Cleankeys Inc. 4664 - 99 Street Edmonton, AB T6E 5H5 Canada Phone: (780)702-1473 Customer Representative: Randy Marsden CEO & CTO 4664 - 99 Street Edmonton, AB T6E 5H5 Canada Phone: (780)702-1473 x223 CG-1369-RA-2-2 Cleankeys Inc. Certification Test Report Model CKD FCC ID # XWS-CKD IC ID # 8721A-CKD ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 39 January 14, 2010 Test Summary Deviations* from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable FCC Rule Parts Applicable Industry Canada Rule Parts A Power line Conducted Emission No No No Pass FCC Subpart C 15.207 (a) RSS-Gen Issue 2 7.2.2 B 6 dB Bandwidth No No No Pass FCC Subpart C 15.247 (a) (2) RSS 210 Issue 7 A8.2 (a) C Occupied Bandwidth (99% emission bandwidth) No No No N/A N/A RSS-Gen Issue 2 4.6.1 D Peak Power Output No No No Pass FCC Subpart C 15.247 (b) (3) RSS 210 Issue 7 A8.4 (4) E Power Spectral Density No No No Pass FCC Subpart C 15.247 (e) RSS 210 Issue 7 A8.2 (b) F Conducted Spurious Emissions No No No Pass FCC Subpart C 15.247 (d) RSS 210 Issue 7 A8.5 G Conducted Spurious Emissions Band Edge No No No Pass FCC Subpart C 15.247 (d) RSS 210 Issue 7 A8.5 H Duty Cycle Correction Factor No No No N/A FCC Subpart C 15.35 (c) RSS-Gen Issue 2 4.5 I Radiated Spurious Emissions Band Edge No No No Pass FCC Subpart C 15.247, 15.205 RSS 210 Issue 7 2.6, A8.5 J Radiated Spurious Emissions (TX and RX) No No No Pass FCC Subpart C 15.247, 15.205 RSS 210 Issue 7 2.6, A8.5 RSS Gen Issue 2 4.10 Test Result: The product presented for testing complied with test requirements as shown above. Prepared By: _______________________ Deniz Demirci Senior Wireless / EMC Technologist Reviewed By: ______________________ Glen Moore Wireless / EMC Manager Approved By: ______________________ Alex Mathews Quality Management Representative CG-1369-RA-2-2 Cleankeys Inc. Certification Test Report Model CKD FCC ID # XWS-CKD IC ID # 8721A-CKD ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 39 January 14, 2010 Table of Contents REPORT SUMMARY ........................................................................................................................................................2 TEST SUMMARY..............................................................................................................................................................3 REGISTER OF REVISIONS .............................................................................................................................................5 1.0 INTRODUCTION ................................................................................................................................................6 1.1 PURPOSE..............................................…

Text truncated - open the document above for the full version.

CG-1369-RA-2-1 Cleankeys FCC/IC Exhibit Model CKD FCC ID # XWS-CKD IC ID # 8721A-CKD Test Setup Photographs Radiated Emission Conducted Emission Date: December 23, 2009 Revision #: 0
