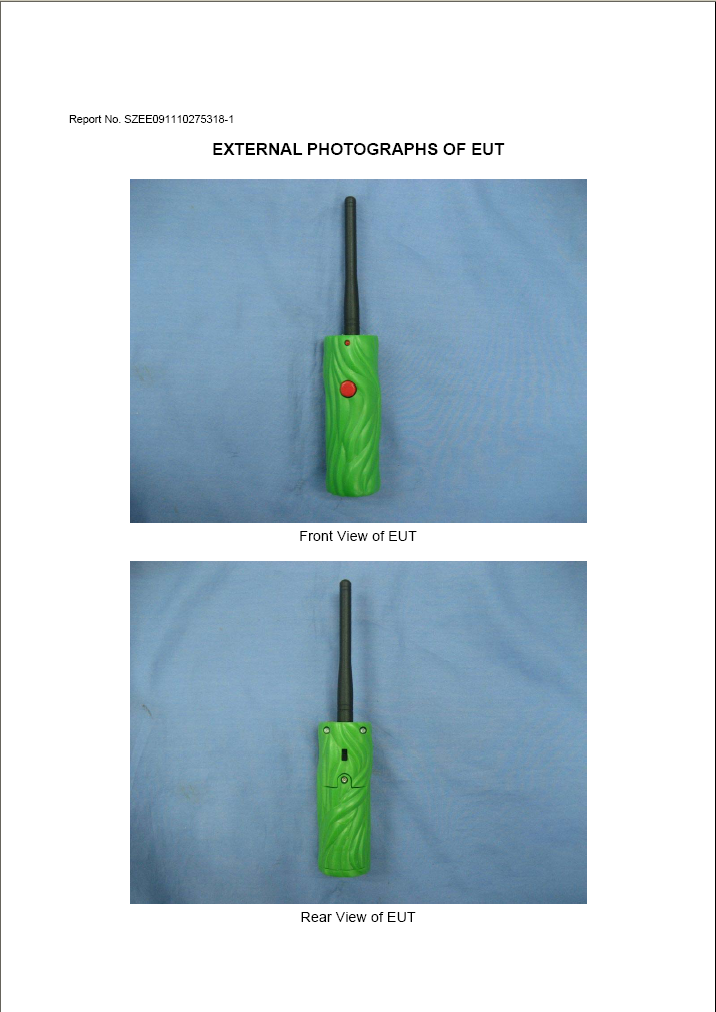

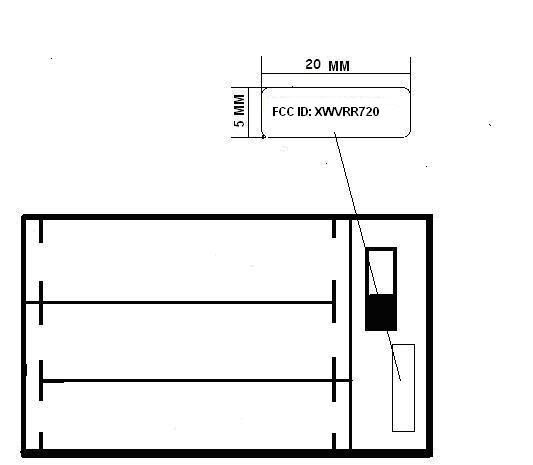

R&R Games Presents HIDE & SEEK Safari ® junior Play hide and seek with your animal friends! Your seeker wand tracks the Hide & Seek Junior animal with a signal that only they can hear. When the animal hears it, they’ll answer you back! So listen for their sounds and hunt around to be the first to find where the animal is hiding! Wands work with all Hide & Seek Jun ior animals. INSTRUCTIONS: Note – When first removing animal from package, disconnect Try-Me wire by pulling it from the animal and discard it. 1- Switch the animal on and hide it. Can be hidden indoors or out. 2- Player switches on wand and presses button. Animal will briefly call out. Seek out the animal by listening for its’ calls. O ne player can also control the wand while other players seek for the animal. 3- Multiple animals can be hidden. Those in range of Seeker will call out when wand button is pushed. FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interference received, including interferen ce that may cause undesired operation. FCC ID of Rx part is shown inside of sound unit of plush, when you open the battery cover of sound uint, it is on the top right corner. FCC ID of Tx part is shown on the bottom of wand. WARNING: : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's au thority to operate the equipment. NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the F CC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio fr equency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will no t occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit di fferent from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help.

Block Diagram

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2009/10/16Sheet of File:C:\Documents and Settings\..\Block digram of RX.SchDocDrawn By : Super Regenerative Receive 49.860MHz Q1 Decode ICR2C U1 Voice ICESH060 Power supply 4.5V RF: 49.860MHz ANT U2 Speaker RF or Try me mode transform switch S1

Operational Description

Technical Description : The brief circuit description is listed as follows : 1. Q1 and associated circuit act as Super-regenerative Receiver. 2. U1 (R2C) and associated circuit act as Decoder. 3. U2 (ESH060), Speaker and associated circuit act as Voice play 4. SW1 and associated circuit act as Power on, RF or Try me function transform Antenna Used : An integral antenna (non-extendable) has been used.

Schematics

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 31-Oct-2009 Sheet of File: E:\zhuomian\RFTX\49\SCH\RX2.DDB Drawn By: V12 VO1 V11 A3 VDD A1 A2 LDB VO2 A4 GND SI OSC1 A0 OSC0 RDB C2 NA R5 4.7M R22K2 C1222 R1 240K C5 104 R8 2K2 R9 4.7M C9 471 C10104 R102.2K R114K7 C12104 C2147UF R72.2K C22 47UF 5.5T* C6 15P R12180k C20 4.7UF C4103 Q1 LG 5.6UH L2 R6 560R C11472J C3 3P ANT R41K VRF C7 30 R2C 1 2345678 9 10 11 12 13 14 15 16 D1 1N4148 LS?SPEAKER R3 100K TRYME SW-PB P31 P10 P20 P21 P22P23 P32 4.5V P33 OSC1 VSSD VSSC VDD VCC D21N4148 C18 47UF P33 S1 P33 VDD VDD VRF VDD Try me OFF ON

Test Report

Report No. SZEE091110275318-2 Page 1 of 16 FCC CLASS B CONFORMITY REPORT Product Name : Hide & Seek Safari Jr. Assortment-Elephant, Monkey, Lion Trade Name : N/A Model Number : RR720(721/722/723)-Receiver(Rx) FCC ID XWVRR720 Report Number : SZEE091110275318-2 Date : Nov. 30, 2009 Prepared for: Toys Treasure Pucheng South Road, Luzhi Town, Wuzhong zone, Suzhou, China TEL:+86-512-6501 0906 FAX: +86-21-6129 4049 Prepared by: CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results FCC Part 15B: 2008 PASS Report No. SZEE091110275318-2 Page 2 of 16 TABLE OF CONTENTS Description Page 1. DECLARATION OF CONFORMITY .............................................................................3 2. TEST SUMMARY .........................................................................................................4 3. MEASUREMENT UNCERTAINTY ...............................................................................4 4. PRODUCT INFORMATION ..........................................................................................4 5. FACILITIES AND ACCREDITATIONS .........................................................................4 6. FCC RADIATED EMISSION TEST ..............................................................................5 6.1 LIMITS OF FCC RADIATED EMISSION TEST..........................................................5 6.2 BLOCK DIAGRAM OF TEST SETUP ........................................................................5 6.3 PROCEDURE OF RADIATED EMISSION TEST......................................................5 6.4 TEST RESULT OF RADIATED EMISSION TEST.....................................................6 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP..............................................................8 APPENDIX 2 EXTERNAL PHOTOS OF EUT .....................................................................9 APPENDIX 3 INTERNAL PHOTOS OF EUT ....................................................................13 Report No. SZEE0901012430911-3 Page 3 of 16 1. Declaration of Conformity Applicant & Address: Toys Treasure Pucheng South Road, Luzhi Town, Wuzhong zone, Suzhou, China Manufacturer Site: Toys Treasure Pucheng South Road, Luzhi Town, Wuzhong zone, Suzhou, China Type of Test: FCC Part 15B Product Name: Hide & Seek Safari Jr. Assortment-Elephant, Monkey, Lion Model Number: RR720(721/722/723)-Receiver(Rx) FCC ID Number: XWVRR720 Test Model: 722 Model Discrepancy : There are 3 models, and all the models are the same except the outer shape and color. Date of test: Nov.10, 2009 to Nov. 30, 2009 Condition of Test Sample: Normal The above equipment was tested by Centre Testing International for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart B and the measurement procedure according to ANSI C63.4. The test results of this report relate only to the tested sample identified in this report. Pre pared by : Saky Yan Reviewed b y : Louisa Lu Approved by : Jim Zhang Mana ger Date : Nov 30, 2009 Report No. SZEE0901012430911-3 Page 4 of 16 2. TEST SUMMARY The EUT has been tested according to the following specifications: EMISSION Standard Test Type ResultRemark FCC Part 15 Radiated emission PASS See clause 6 in this report 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement items Value Radiated emission 4.6 dB 4. PRODUCT INFORMATION Technical Data: DC 4.5V 5. FACILITIES AND ACCREDITATIONS 5.1 TEST FACILITY All measurement facilities used to collect the measurement data are located at Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China. The sites are constructed in conformance with the requirements of ANSI C63.4, and CISPR 16. 5.2 TEST EQUIPMENT LIST Instrumentation: The following list contains equipments used at CTI for testing. The calibrations of the measuring instruments, including any accessories that may effect such calibration, are checked frequently to assure their accuracy. Adjustments are made and correction factors applied in accordance with instructions contained in the manual for the measuring instrument. Equipment used during the tests: 3M Semi-anechoic Chamber — Radiation Test Site Equipment Type Manufacturer Model Number Serial Number Due Date 3M Chamber & Accessory Equipment ETS-LINDGRENFACT-3 3510 01/29/2010 Spectrum Analyzer Agilent E4443A MY46185649 01/29/2010 Biconilog Antenna A.H.System SAS-521-2 487 06/05/2010 Multi device Controller ETS-LINGREN 2090 00057230 01/29/2010 Report No. SZEE0901012430911-3 Page 5 of 16 5.3 LABORATORY ACCREDITATIONS AND LISTINGS The test facilities used to perform radiated and conducted emissions tests are accredited by China National Accreditation Board for Laboratories (CNAS). Electromagnetic Interference tests according to ANSI C63.4 and CISPR 16 requirements. 6. FCC RADIATED EMISSION TEST 6.1 LIMITS OF FCC RADIATED EMISSION TEST Frequency (MHz) Distance (m) Maximum Field Strength Limit** (dBuV/m Q.P.) 30-88 3 40.0 88-216 3 43.5 216-960 3 46.0 Above 960 3 54.0 Note: the tighter limit applies at the band edges. 6.2 BLOCK DIAGRAM OF TEST SETUP For the actual test configuration, please refer to the related item – Photographs of the Test Configuration. 6.3 PROCEDURE OF RADIATED EMISSION TEST a. The EUT was placed on the top of a turntable 0.8 meters above the ground in the chamber, 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-heig…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No. SZEE0901012430911-3 PHOTOGRAPHS OF TEST SETUP TEST SETUP OF RADIATED EMISSION
