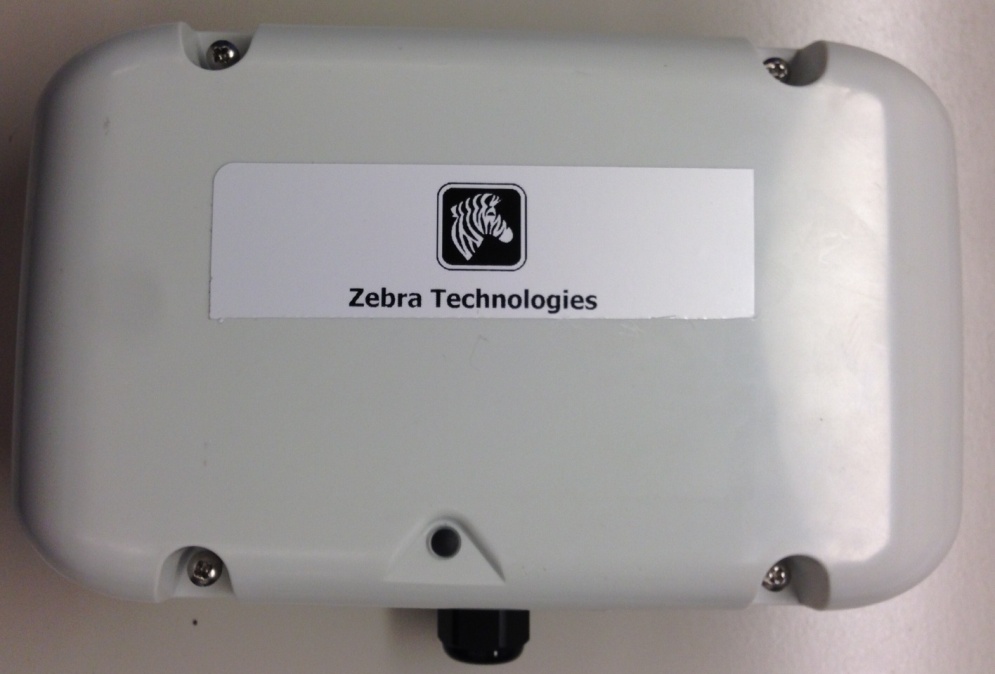

XWX-TFF3110WhereTag IV GT

User Guide 1 User Guide, WhereTag IV GT, TFF-3110 D2280 Rev 02 © Copyright Zebra Technologies Corporation Confidential and Private WhereTag IV GT™ Models TFF-3110 User Guide User Guide 2 User Guide, WhereTag IV GT, TFF-3110 D2280 Rev 02 © Copyright Zebra Technologies Corporation Confidential and Private Name: WhereTag IV GT Basic Part Number: TFF-3110-00AA Name: WhereTag IV GT Vehicle Part Number: TFF-3110-01AA User Guide 3 User Guide, WhereTag IV GT, TFF-3110 D2280 Rev 02 © Copyright Zebra Technologies Corporation Confidential and Private Typographical Conventions Warnings call attention to a procedure or practice that could result in personal injury if not correctly performed. Do not proceed until you fully understand and meet the required conditions. Cautions call attention to an operation procedure or practice that could damage the product if not correctly performed. Do not proceed until understanding and meeting these required conditions. Notes provide information that can be helpful in understanding the operation of the product. CAUTION NOTE WARNING User Guide 4 User Guide, WhereTag IV GT, TFF-3110 D2280 Rev 02 © Copyright Zebra Technologies Corporation Confidential and Private REGULATORY COMPLIANCE INFORMATION FCC Regulatory Compliance Information This device complies with FCC Part 15.247. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference which may cause undesired operation This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. RF Notice Any changes or modifications to equipment not expressly approved by Zebra Technologies Corporation could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. User Guide 5 User Guide, WhereTag IV GT, TFF-3110 D2280 Rev 02 © Copyright Zebra Technologies Corporation Confidential and Private Industry Canada Compliance Statements Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnant en conjonction avec une autre antenne ou transmetteur. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body Cet équipement doit être installé et utilisé à une distance minimale de 20cm entre le radiateur et votre corps. It is the responsibility of the installer to ensure that when using the outdoor antenna kits, only those antennas certified with the product are used. The use of any antenna other than those certified with the product is expressly forbidden by FCC rules 47 CFR part 15.204 and IC RSS standards. Il est de la responsabilité de l'installateur de s'assurer que lorsque vous utilisez les kits d'antennes extérieures, seules les antennes certifiés avec le produit sont utilisés. L'utilisation d'une antenne autre que ceux qui sont certifiés avec le produit est expressément interdite par la réglementation FCC partie 47 CFR 15.204 et IC normes RSS. User Guide 6 User Guide, WhereTag IV GT, TFF-3110 D2280 Rev 02 © Copyright Zebra Technologies Corporation Confidential and Private EU & EFTA Compliance Information Approved for use in the following countries. AT BE BG CY CZ DK EE FI FR DE GR HU IE IT LV LT LU MT NL PL PT RO SK SI ES SE GB IS LI NO CH TR User Guide 7 User Guide, WhereTag IV GT, TFF-3110 D2280 Rev 02 © Copyright Zebra Technologies Corporation Confidential and Private Cautions: • No modifications to the tag allowed. This includes any type of modification to the case, such as adding metal foils, holes, disassembly or modifications to the PCB assembly, antenna, battery or modifications to the product labels, etc. • Prior to installation, carefully inspect the tag, looking for crack, puncture or any other breach of the plastic case. Damaged tags must not be used. Properly dispose of any damaged tag. • Never dispose of the tag in a fire. • Deactivate the tag when not in use. It is mandatory to deactivate the tag prior to shipment by airplanes. • Follow limitations of use as set forth by any applicable regulatory bodies. • The tag contains replaceable primary Lithium Thionyl Chloride (Li-SOCl 2 ) batteries, which must be replaced only by trained service technicians. ZTC offers service to re…

Text truncated - open the document above for the full version.

TFF‐3110 Label and Location 3.75 in x 1.75 in

ZEBA05 WhereTag IV GT Maximum Permissible Exposure FCC, Part 15 §1.1310 Industry Canada RSS-Gen §5.6 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 The calculations in the table below use highest gain antennas for the client EUT. Where the antenna gain exceeds 6dBi the transmitter power is reduced where necessary to meet the EIRP requirements. These calculations represent worst case in terms of the exposure levels. Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 2400 – 2483.5 2.0 1.58 21.77 151 4.4 20 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.6 Category I and Category II equipment shall comply with the applicable requirements of RSS-102. Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty ±1.33 dB

Company: Zebra Technologies Corporation Test of: WhereTag IV GT To: FCC CFR 47 Part 15 Subpart C (--) 15.247 (DTS) Test Report Serial No.: ZEBA05-U2 Rev A TEST REPORT FROM Test of: Zebra Technologies Corporation, WhereTag IV GT to To: FCC CFR 47 Part 15 Subpart C15.247 (DTS), IC RSS-210 Test Report Serial No.: ZEBA05-U2 Rev A This report supersedes: None Applicant: Zebra Technologies Corporation 333 Corporate Woods Parkway Vernon Hills Illinois 60061, United States Product Function: Remote Telemetry Module Issue Date: 19th Jun 2014 This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton, California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Zebra Technologies Corporation, WhereTag IV GT To: FCC CFR 47 Part 15 Subpart C, 15.247 (DTS), IC RSS-210 Serial #: ZEBA05-U2 Rev A Issue Date: 27th June 2014 Page: 3 of 110 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Table of Contents 1. ACCREDITATION, LISTINGS & RECOGNITION .................................................... 5 1.1. TESTING ACCREDITATION.................................................................................... 5 1.2. RECOGNITION ........................................................................................................ 6 1.3. PRODUCT CERTIFICATION ................................................................................... 7 2. DOCUMENT HISTORY ............................................................................................. 8 3. TEST RESULT CERTIFICATE .................................................................................. 9 4. REFERENCES AND MEASUREMENT UNCERTAINTY ....................................... 10 4.1. Normative References ........................................................................................... 10 4.2. Test and Uncertainty Procedure ............................................................................. 12 5. PRODUCT DETAILS AND TEST CONFIGURATIONS .......................................... 13 5.1. Technical Details .................................................................................................... 13 5.2. Scope Of Test Program.......................................................................................... 14 5.3. Device Photos ........................................................................................................ 15 5.4. Equipment Model(s) and Serial Number(s)............................................................. 17 5.5. Antenna Details ...................................................................................................... 17 5.6. Cabling and I/O Ports ............................................................................................. 17 5.7. Test Configurations ................................................................................................ 17 5.8. Equipment Modifications ........................................................................................ 18 5.9. Deviations from the Test Standard ......................................................................... 18 6. TEST EQUIPMENT CONFIGURATION(S) ............................................................. 19 7. TEST SUMMARY .................................................................................................... 24 8. TEST RESULTS ...................................................................................................... 26 8.1. 6 dB & 99% Bandwidth .......................................................................................... 26 8.2. Conducted Output Power ....................................................................................... 30 8.3. Emissions .............................................................................................................. 34 8.3.1. Conducted Emissions .............................................................................34 8.3.1.1. Conducted Spurious Emissions ................................................................................................... 34 8.3.1.2. Conducted Band-Edge Emissions ............................................................................................... 38 8.3.2. Radiated Emissions ................................................................................46 8.3.2.1. Restricted Band Emissions .......................................................................................................... 51 8.3.3. Digital Emissions (0.03 - 1 GHz) .............................................................60 8.3.4. AC Wireline Emissions ............................................................................61 8.4. Power Spectral Density .......................................................................................... 62 9. PHOTOGRAPHS ..................................................................................................... 66 9.1. Conducted Test Set-up .......................................................................................... 66 9.2. Radiated Emissions below 1 GHz .......................................................................... 67 9.3. Radiated Emissions above 1 GHz .......................................................................... 68 Title: Zebra Technologies Corporation, WhereTag IV GT To: FCC CFR 47 Part 15 Subpart C, 15.247 (DTS), IC RSS-210 Serial #: ZEBA05-U2 Rev A Issue Date: 27th June 2014 Page: 4 of 110 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulde…

Text truncated - open the document above for the full version.

the wireless lab ZEBA05 Test Set up Photos Company Name: ZEBRA Technologies the wireless lab the wireless lab
