XX6SEP8040DMR Two Way Radio

Quick Reference Guide 1 Quick Reference Guide DMR Two Way Radio SEP8040 Quick Reference Guide 1 General This guide covers the basic operation of the DMR Portable. Please refer to the DMR Portable user guide for more detailed information on using this product. Disclaimer notice Sepura‟s policy is to continually improve its products. The features and facilities described in this document were correct at publication, but are subject to change without notice. Contact Us Sepura plc. Radio House, St Andrew‟s Road, Cambridge CB4 1GR United Kingdom Tel: +44 (0)1223 876000 Fax: +44 (0)1223 879000 SPR-DOC-03801/1 Original Instructions: ENGLISH © Sepura plc. 2014 All rights reserved. This document is intended for the use of Sepura plc‟s customers and/or other parties only for the purposes of the agreement or arrangement under which this document is submitted, and no part of it may be reproduced or transmitted in any form or means without the prior written permission of Sepura plc. Contents Safety ...................................................................................... 2 Regulatory .............................................................................. 5 Disposing of this product ...................................................... 5 Disposing of batteries ........................................................... 5 Caring for your product ........................................................ 5 Connectors, controls, buttons and keys ............................. 7 Keys, buttons and knobs overview ...................................... 7 Power/volume knob ............................................................. 7 Context keys ........................................................................ 7 Emergency/Programmable button ......................................... 7 Channel selector knob .......................................................... 7 Navigate left, right, up and down buttons .............................. 7 Cancel/Home key ................................................................. 7 Status indicators and icons .................................................. 8 Battery information .............................................................. 10 Battery safety .................................................................... 10 Storage and transportation ................................................. 10 Charging your battery ........................................................ 11 Accessory information ........................................................ 11 Attaching the battery ......................................................... 11 Removing the battery ......................................................... 11 Attaching the antenna ........................................................ 12 Attaching the belt clip ........................................................ 12 Basic operation .................................................................... 12 Power On/Off .................................................................... 12 Adjusting the volume ......................................................... 12 Selecting a channel ............................................................ 12 Making a PTT call ............................................................... 12 Receiving a PTT call ........................................................... 13 Emergency alarm ............................................................... 13 DMR Two Way Radio SEP8040 2 Safety Read these safety instructions carefully. Attention! Sepura terminals are designed for use by mobile workforces, often working alone, and are intended for use in occupational and controlled conditions. It is the responsibility of the person operating the product to ensure that it is operated safely at all times, and that local laws and regulations governing the usage of Radio Frequency (RF) products are observed. This product must not be operated in environments that exceed those listed in the Regulatory section of the user guide. Users must be trained to operate this product safely. Their personal safety could be affected if they do not understand how to operate this product correctly. Exposure to RF energy Sepura designs and manufactures products to meet strict guidelines and international standards relating to Radio Frequency energy and the potential health risks associated with using such products. Sepura terminals contain low powered radio transmitters and receivers that receive and transmit Radio Frequency (RF) signals when switched on. The antenna radiates RF energy only when transmitting and not in standby mode. Users should be informed of the potential health risks associated with long term exposure to RF energy by their employer. RF energy interference with electronic equipment Some personal medical devices, such as hearing aids and pacemakers, can be affected by RF energy. Always consult your service provider or the manufacturer of the medical device before using RF wireless devices. Some electronic devices are sensitive to RF energy. Always obey signs restricting the use of wireless devices. It is recommended that the terminal be switched off when operating within health care facilities. Safely operating the product Users should always ensure that the terminal is operating correctly before entering any environment that has a potential risk to personal safety. The terminal should be used in its normal operating position when hand-held, worn on the body or secured within a cradle. Always ensure that the antenna is pointed away from the body, particularly the eyes, during operation. When worn on the body, the terminal should be secured using a clip or body vest. Operate the terminal in a vertical position and with the microphone 5 cm(2 in.) away from your mouth when transmitting. When body-worn, the antenna must be at least 2.5 cm (1 in.) away from the body when transmitting. The terminal has a loud speaker designed for hand-hel…

Text truncated - open the document above for the full version.

Abuse Act of 1988, 21 U.S.C. 862. Subject: Agent Authori ation FCC Authori ation Date: 2014-06-04 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, Sepura plc , the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug This authorization is valid until further written notice from the applicant. Sincerely, Company Officer: Steve Wood Telephone Number: +44 (01223) 877354 Email: [email protected] Position: Verification Engineering Team leader zzzz z FEDERAL COMMUNICATIONS COMMISSION

--- (Long term) XX6SEP8040
ietary information not ion will not be made before Date: 2014-06-04 FCC Confidential Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:
Detailed Circuit Schematics of EUT--- (Long term)
Block Diagram--- (Long term)
Circuit Description--- (Long term) The above materials contain trade secrets and propr customarily released to the public. The public dis closure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentat the date of the Grant for this application. Sincerely, Company Officer: Steve Wood Telephone Number: +44 (01223) 877354 Email: [email protected] Position: Verification Engineering Team leader Part List
Tune up --- (Long term)

Sepura plc attests that the DMR Two way Radio will not b The DMR Two way Radio with FCC ID: XX6SEP8040 was design 467.7357-470MHz FCC Part 90 462.7375-467.5375MHz FCC Part 90 456-460MHz FCC Part 22/ FCC Part 90 454-455MHz FCC Part 22 450-454MHz FCC Part 90 allowed by the rule part 22 and 90. and 90 quencies 400~470MHz, under FCC Rule Parts 22 Date: 2014-01-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Extended Frequency Justification Dear Sir/Madam, ed to operate in the frequency bands 400~470MHz To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Sepura plc is requesting that the FCC lists the fre on the FCC Grant. e marketed to USA users with the frequency band whi ch is not FCC’s KDB634817 guidance, as an alternative to lis ting the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range（MHz） FCC Rule Part 406.1-450 MHz FCC Part 90 460-462.5375MHz FCC Part 90 Also, equipment programming is the responsibility of Authorized Service Personnel, the DMR Repeater complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Sincerely: Company Officer: Steve Wood Telephone Number: +44 (01223) 877354 Email: [email protected] Position: Verification Engineering Team leader Per the

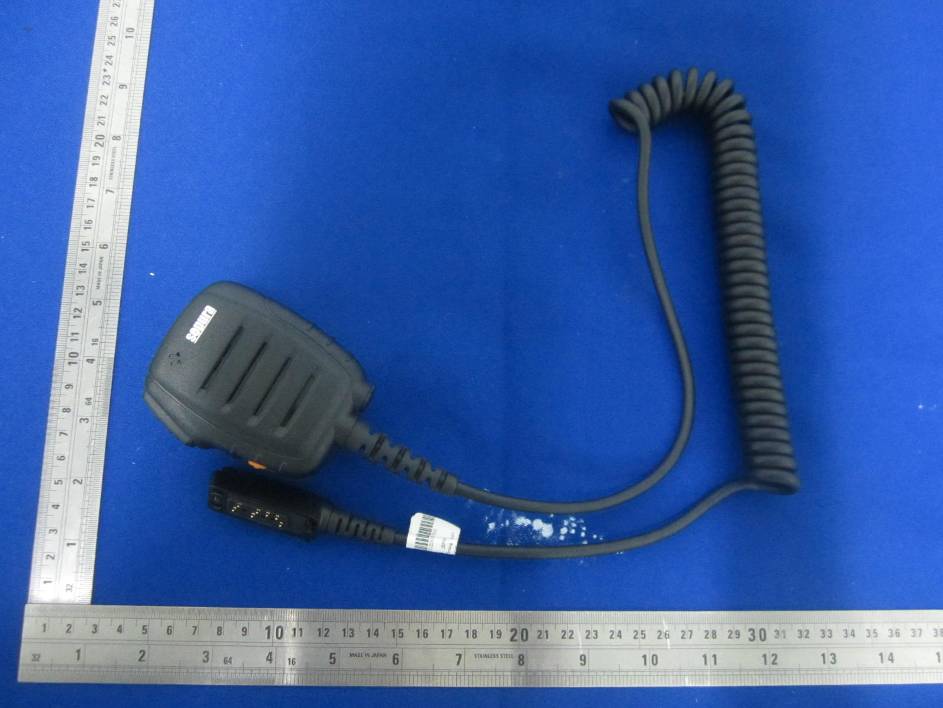

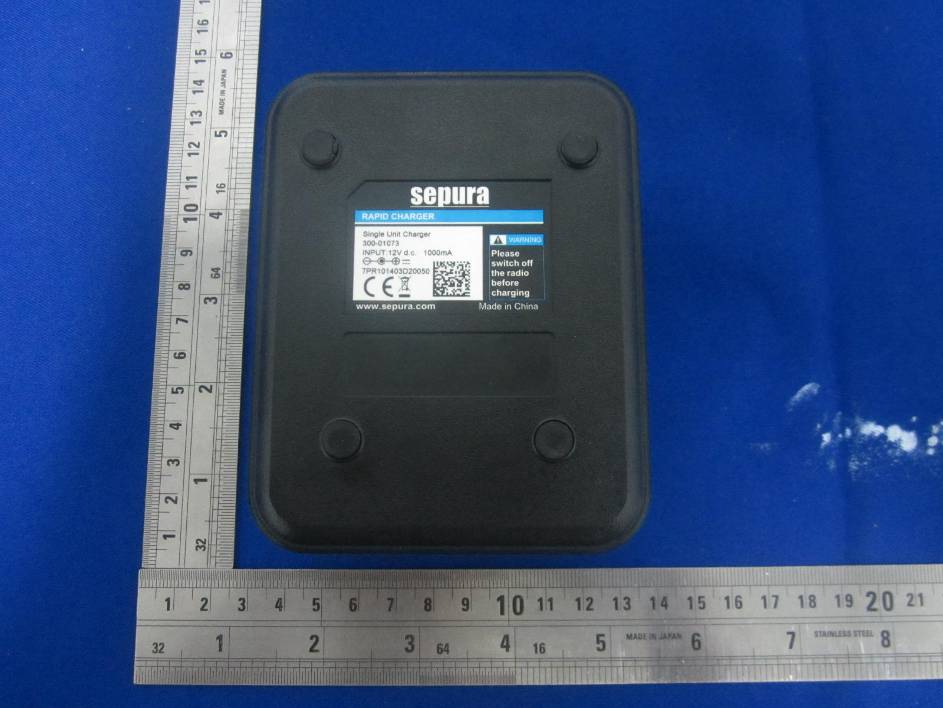

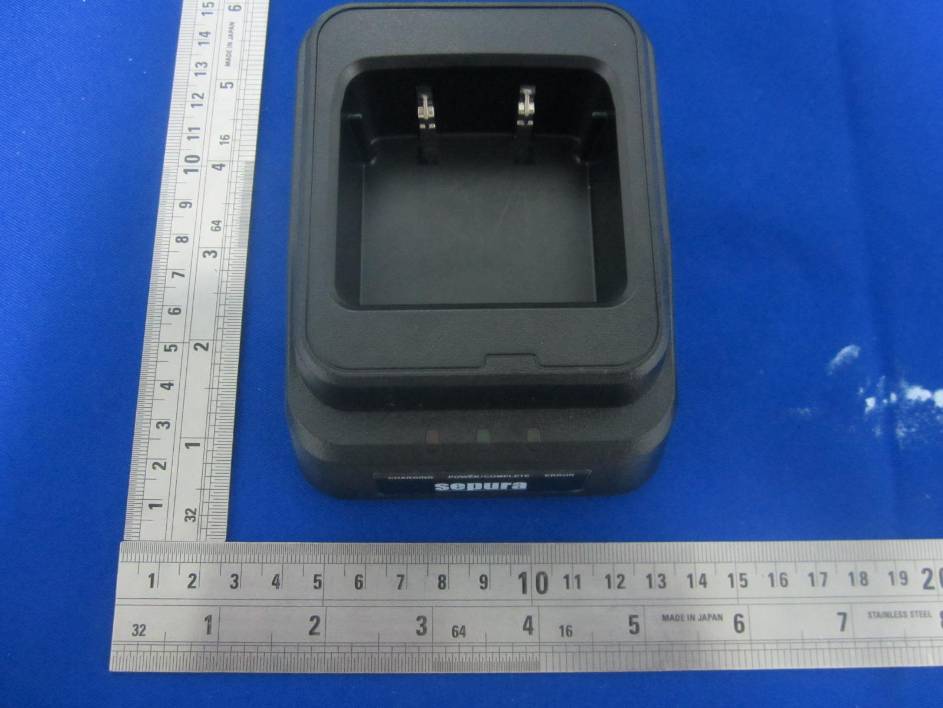

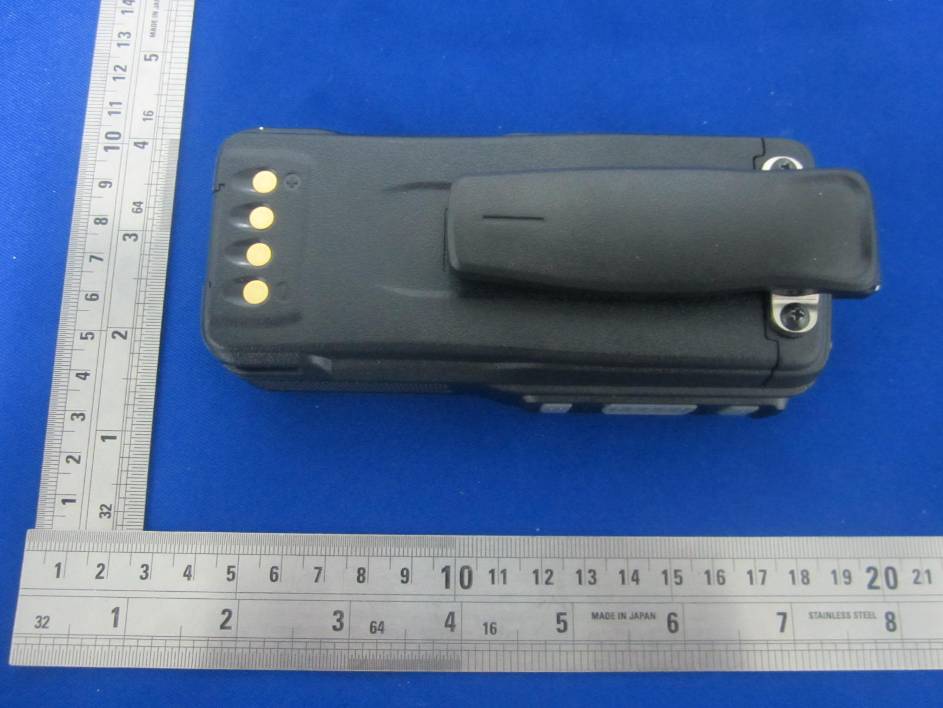

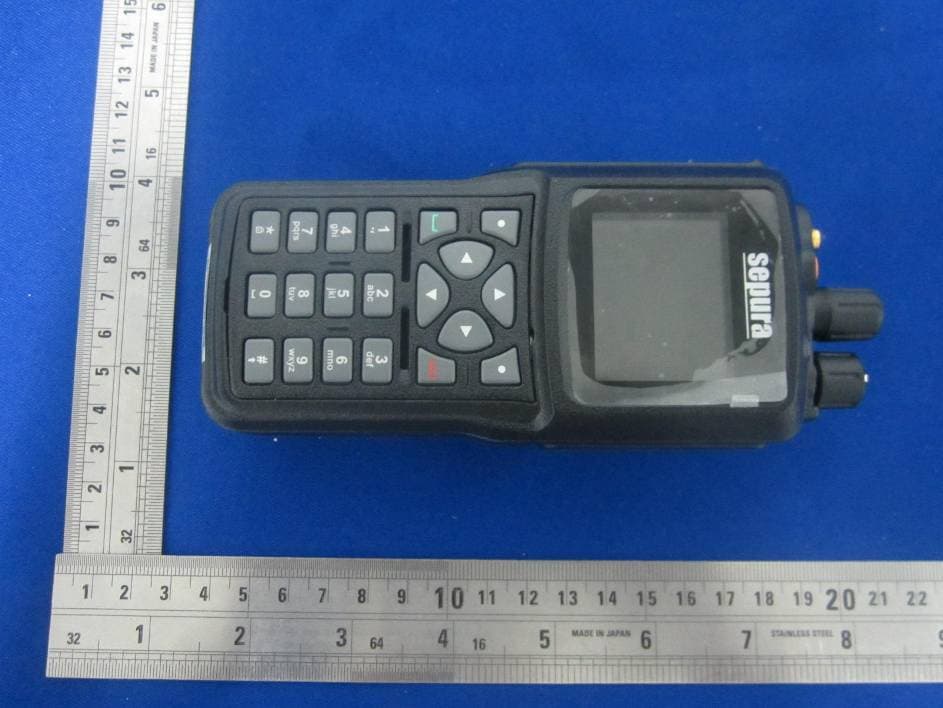

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT –All View EUT – Top View EUT – Bottom View EUT – Side View EUT –Side View EUT – Antenna View EUT –Earphone View EUT – RSM View EUT –Base Top View EUT – Base Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery Off View EUT – Uncover View EUT –Cover Off View EUT – Cover Off View EUT – Main Board Top With Shielding View EUT – Main Board Top Without Shielding View EUT – Main Board Bottom View EUT – Sub Board Top View EUT – Sub Board Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For Sepura plc Radio House, St. Andrews Road, Cambridge CB4 1GR, UK FCC ID: XX6SEP8040 Report Type: Original Report Product Type: DMR Two Way Radio Test Engineer: Wilson Chen Report Number: R1DG131225002-20 Report Date: 2014-07-08 Reviewed By: Bell Hu SAR Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131225002-20A SAR Evaluation Report 2 of 73 Attestation of Test Results EUT Information Company Name Sepura plc EUT Description DMR Two Way Radio Product S/N 7PR111403GA0052 FCC ID XX6SEP8040 Model Number SEP8040, Test Date 2014-07-03 and 2014-02-27 Battery Modulation Max. SAR Level(s) Report Limit (W/Kg) High capacity Analog 12.5kHz Face up: 1.617 W/kg (corrected by Multiplying 50%.) Body-Back: 2.946 W/kg (corrected by Multiplying 50%.) 8 Digital 12.5kHz Face up: 1.508 W/kg Body-Back: 2.787 W/kg Standard Analog 12.5kHz Face up: 2.243 W/kg (corrected by Multiplying 50%.) Body-Back: 3.018 W/kg (corrected by Multiplying 50%.) Digital 12.5kHz Face up: 1.698 W/kg Body-Back: 2.925 W/kg Applicable Standards ANSI/IEEE C95.1: 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI/IEEE C95.3: 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. IEEE1528: 2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB Procedures KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01. KDB 643646 SAR Test Reduction Considerations fo rOccupational PTT Radios Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for Occupational/Controlled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131225002-20A SAR Evaluation Report 3 of 73 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ............................................................................................................................ 4 EUT DESCRIPTION ........................................................................................................................................................ 5 TECHNICAL SPECIFICATION............................................................................................................................................. 5 REFERENCE, STANDARDS, AND GUILDELINES ................................................................................................. 6 SAR LIMITS ..................................................................................................................................................................... 7 FACILITIES ...................................................................................................................................................................... 8 DESCRIPTION OF TEST SYSTEM ............................................................................................................................. 9 EQUIPMENT LIST AND CALIBRATION ................................................................................................................ 16 EQUIPMENTS LIST & CALIBRATION INFORMATION ...................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION ................................................................................................ 17 LIQUID VERIFICATION ................................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION .............................................................................................................................. 21 SAR SYSTEM VALIDATION DATA ........................................................................................................................ 22 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................... 30 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ......................................................................... 30 CHEEK/TOUCH POSITION .............................................................................................................................................. 31 EAR/TILT POSITION ....................................................................................................................................................... 31 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................................................ 32 SAR EVALUATION PROCEDURE .................................................................................................................................... 33 TEST METHODOLOGY .................................................................................................................................................... 33 CONDUCTED OUTPUT POWER MEASUREMENT .....…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” (Rev.2) FCC PART 22 and 90 TEST REPORT For Sepura plc Radio House, St. Andrews Road, Cambridge CB4 1GR UK FCC ID: XX6SEP8040 Report Type: Original Report Product Type: DMR Two Way Radio Test En gineer: Leon Chen Re port Number: R2DG131225002-00 Re port Date: 2014-07-24 Reviewed B y: Jerry Zhang EMC Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R2DG131225002-00 FCC Part 22 and 90 Page 2 of 41 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §1.1310 & §2.1093 - RF EXPOSURE .................................................................................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST RESULT ............................................................................................................................................................... 8 FCC §2.1046 &§ 22.727 & §90.205- RF OUTPUT POWER .................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST PROCEDURE ........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 TEST DATA .................................................................................................................................................................. 9 FCC §2.1047 & §90.207 - MODULATION CHARACTERISTIC .......................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049& §22.357 & § 22.731 &§90.209 & §90.210 – OCCUPIED BANDWIDTH & EMISSION MASK 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 16 TEST PROCEDURE ...................................................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 16 FCC §2.1051& §22.861 & §90.210 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ........................... 26 APPLICABLE STANDARD ............................................................................................................................................ 26 T…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission View (Below 1 GHz) Radiated Emission View (Above 1 GHz)
