XX6SEP8050DMR Two Way Radio

Quick Reference Guide DMR Hand - portable radio For SBP8000 / SCP8000 / SEP8000 Quick Reference Guide 1 General This guide covers the basic operation of the DMR ha nd-portable radio. Please refer to the user guide for more deta iled information on using this product. Disclaimer notice Sepura’s policy is to continually improve its produ cts. The features and facilities described in this document were correct at publication, but are subject to change without noti ce. Contact Us Sepura plc. Radio House, St Andrew’s Road, Cambridge CB4 1GR United Kingdom Tel: +44 (0)1223 876000 Fax: +44 (0)1223 879000 SPR-DOC-03801/3a Original Instructions: ENGLISH © Sepura plc. 2015 All rights reserved. This document is intended for the use of Sepura plc’s customers and/or other parties only for the purposes of the a greement or arrangement under which this document is submitted, and no part of it may be reproduced or transmitted in any form or means without the prior written perm ission of Sepura plc. Contents Safety ............................................ .................................................. 2 Regulatory ........................................ ............................................. 4 Caring for your product ........................... .................................... 5 Connectors, controls, buttons and keys ............ ........................ 7 Keys, buttons and knobs overview .................. ......................... 8 Status icons ...................................... .............................................. 8 LED status indicator .............................. ..................................... 10 Battery information ............................... ..................................... 10 Battery safety .................................... .............................. 10 Storage and transportation ........................ ........................ 11 Charging your battery ............................. .......................... 11 Accessory information ............................. .................................. 12 Fit the battery ................................... ............................... 12 Remove the battery ................................ .......................... 12 Fit the antenna ................................... ............................. 12 Fit the belt clip ................................. ................................ 12 Basic operation ................................... ......................................... 13 Power On/Off....................................... ............................ 13 Adjusting the volume .............................. .......................... 13 Selecting a channel ............................... ........................... 13 Making a PTT call ................................. ............................ 13 Receiving a PTT call .............................. ........................... 13 Emergency alarm ................................... .......................... 14 2 DMR Hand-portable radio SBP8000, SCP8000, SEP8000 Safety Read these safety instructions carefully. Attention! Sepura products are designed for use by mobile work forces, often working alone, and are intended for use in oc cupational and controlled conditions. It is the responsibility of the person operating th e product to ensure that it is operated safely at all times, and that local laws and regulations governing the usage of Radio Freque ncy (RF) products are observed. Obey all signs and instructi ons relating to the usage to RF wireless devices. It is recommended that you obtain training on how t o safely operate this product. Your personal safety could be affected if you do not understand how to operate this product c orrectly. This product must not be operated in environments t hat exceed those listed in the product technical datasheet and in the Regulatory section of the product user guide. Unauthorised modifications to the product could cau se the product to become non-operational. Always use Sepur a approved antenna, battery and accessories with this product. Exposure to RF energy Sepura designs and manufactures products to meet st rict guidelines and international standards relating to Radio Frequency (RF) energy and the potential health risk s associated with using such products. If you have any concerns about potential health risks associated with long term ex posure to RF energy, you should obtain advice from your employer . RF energy interference with electronic equipment Some personal medical devices, such as hearing aids and pacemakers, can be affected by RF energy. Always co nsult your service provider or the manufacturer of the medical device before using RF wireless devices. Some electronic devices are sensitive to RF energy. POWER OFF your radio when operating within health care facili ties or other areas that are sensitive to RF energy. Safely operating your radio Your radio is not intrinsically safe and has not be en designed for use in hazardous environments such gas fumes, flamm able chemicals, or blasting areas. Check the compliance ratings of this product before operating the radio in any haza rdous environment. Your radio should be used in its normal operating p osition when hand-held, worn on the body or secured within a cradle. Always ensure that the antenna is pointed away from the body, particularly the eyes. When body-worn, the radio mu st be secured using a Sepura approved attachment. Ensure the antenna is at least 2.5 cm (1 in.) away from the bo dy when transmitting. Always ensure that your radio is operating correctl y before entering any environment that has a potential risk to personal safety. Only remove the antenna, battery or accessories whe n it is safe to do so. Protection against hearing loss NEVER place the radio next to your ear, like a mobi le phone when making a PTT call. Your radio has a powerful l oudspeaker that could potentially damage your hearing if held next to your Q…

Text truncated - open the document above for the full version.

FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 10 November 2015 FCC Part 90 Section 203 (e) (g) Declaration To whom it may concern We, Sepura plc, hereby declare that the following products covered by their relevant certifications meet the requirements of the FCC Rules, Parts 90.203(e) and (g), as applicable. Programming of these products’ transmit frequencies can be performed only by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment’s external operation controls. Product FCC ID DMR Repeater XX6SER8010 DMR Repeater XX6SER8040 DMR Repeater XX6SER8050 DMR Mobile Radio XX6SEM8010 DMR Mobile Radio XX6SEM8040 DMR Mobile Radio XX6SEM8050 DMR Mobile Radio XX6SEM8010H DMR Mobile Radio XX6SEM8040H DMR Mobile Radio XX6SEM8050H DMR Two Way Radio XX6SEP8010 DMR Two Way Radio XX6SEP8040 DMR Two Way Radio XX6SEP8050 Yours faithfully, Steve Wood Verification Engineering Team Leader

BACL Reference: QA-FR-170-B FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 21 August 2015 FCC Authorization To whom it may concern We, Sepura plc, the undersigned, hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from Sepura plc. Yours faithfully, Steve Wood Verification Engineering Team Leader

BACL Reference: QA-FR-171-A FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 21 August 2015 FCC Confidential Authorization Dear Sir or Madam RE: Confidentiality Request regarding application for certification of FCC ID: XX6SEP8050 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Sepura plc, hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram --- (Long term)  Circuit Description --- (Long term)  Schematic --- (Long term)  Parts list --- (Long term)  Tune up procedure --- (Long term) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Yours faithfully, Steve Wood Verification Engineering Team Leader

FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 21 August 2015 Dear Sir or Madam RE: Extended Frequencies Justification The radio with FCC ID: XX6SEP8050 was designed to operate in the frequency bands 450-520MHz. To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Sepura plc is requesting that the FCC lists the above frequencies 450-520 MHZ, under FCC Rule Part 90 and 22 on the FCC Grant. Sepura plc attests that the radio will not be marketed to USA users with the frequency band which is not allowed by the rules Part 90 and 22. As per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range(MHz) FCC rule part 450-454MHz Part 90 454-455MHz Part 22 456-460MHz Part 90/Part 22 460-462.5375MHz Part 90 462.7375-467.5375MHz Part 90 467.7375-470 MHz Part 90 470-512 MHz Part 90/Part 22 Please contact me if you require any additional information. Yours faithfully, Steve Wood Verification Engineering Team Leader

Statement of Voice Channel Support To whom it may concern We, Sepura plc, hereby declare that the following products covered by their relevant certifications are capable of supporting a voice channel and a minimum data rate of 4800 bits per second per 6.25kHz of channel bandwidth. Product FCC ID DMR Repeater XX6SER8010 DMR Repeater XX6SER8040 DMR Repeater XX6SER8050 DMR Mobile Radio XX6SEM8010 DMR Mobile Radio XX6SEM8040 DMR Mobile Radio XX6SEM8050 DMR Mobile Radio XX6SEM8010H DMR Mobile Radio XX6SEM8040H DMR Mobile Radio XX6SEM8050H DMR Two Way Radio XX6SEP8010 DMR Two Way Radio XX6SEP8040 DMR Two Way Radio XX6SEP8050 Yours faithfully, Steve Wood Verification Engineering Team Leader 10 November 2015

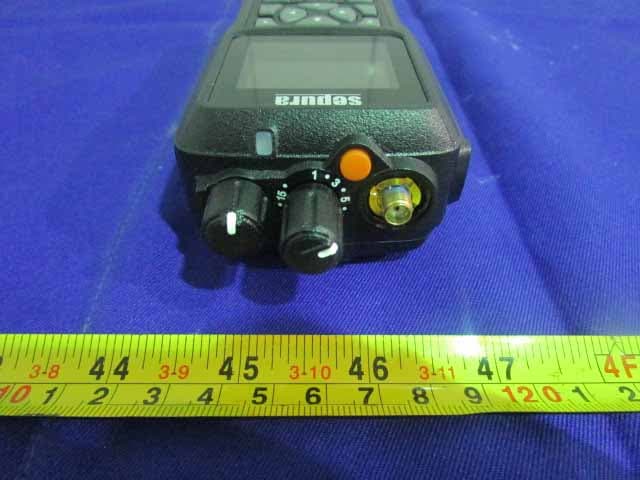

Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT –Top View EUT – Bottom View Page 2 of 4 EUT – Side View EUT – Side View Page 3 of 4 EUT – Antenna Port View EUT – Antenna View Page 4 of 4 EUT – Earpiece View EUT –Remote Speaker Microphone View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

Page 1 of 5 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncover View EUT – Uncover View Page 2 of 5 EUT – Cover off View EUT – Main Board Top View Page 3 of 5 EUT – Main Board Top Uncover View EUT – Main Board Bottom View Page 4 of 5 EUT – Sub Board Top View EUT – Sub Board Bottom View Page 5 of 5 EUT – Screen View EUT – Battery View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) SAR EVALUATION REPORT For SEPURA PLC. Radio House, St. Andrews Road, Cambridge CB4 1GR, UK FCC ID: XX6SEP8050 Report Type: Original Report Product Type: Portable DMR Two Way Radio Prepared By: Bell Hu Test Engineer Report Number: R15082520-FCC SAR Report Date: 2015-10-30 Reviewed By: Simon Ma RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Sepura plc. FCC ID: XX6SEP8050 Report Number: R15082520-FCC SAR SAR Evaluation Report Page 2 of 72 Summary of Test Results Rule Part(s): FCC §2.1093 Test Procedure(s): IEEE 1528: 2013, IEC62209-2:2010, KDB 643646, KDB 447498,KDB 865664 Device Category: Exposure Category: Portable Device Occupational/Controlled Device Type: Portable Device Modulation Type: FM/4FSK TX Frequency Range: 450-520 MHz Maximum Conducted Power Measured: 36.00dBm Antenna Type(s) Tested: External Antenna Body-Worn Accessories: Belt Clip & RSM; Belt Clip & Earphone Face-Head Accessories: None Std. Battery: Li-Ion: 7.4V/2000mAh High capacity Battery: Li-Ion: 7.4V/2500mAh Max.1-g Reported SAR Level (s): Level (W/Kg) Position Operational Mode 1.809 Face-up Digital 2.922 Body-Worn 3.54 Face-up Analog 12.5KHz 5.7 Body-Worn Sepura plc. FCC ID: XX6SEP8050 Report Number: R15082520-FCC SAR SAR Evaluation Report Page 3 of 72 TABLE OF CONTENTS 1 GENERAL DESCRIPTION ................................................................................................................................ 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 6 1.2 EUT TECHNICAL SPECIFICATION .................................................................................................................... 6 2 TEST FACILITY .................................................................................................................................................. 7 3 REFERENCE, STANDARDS AND GUIDELINES .......................................................................................... 8 3.1 SAR LIMITS .................................................................................................................................................... 9 4 EQUIPMENT LIST AND CALIBRATION ..................................................................................................... 10 4.1 EQUIPMENT LIST & CALIBRATION INFO........................................................................................................ 10 5 EUT TEST STRATEGY AND METHODOLOGY ......................................................................................... 11 5.1 TEST POSITIONS FOR BODY-SUPPORTED DEVICE AND OTHER CONFIGURATIONS ............................................ 11 5.2 CHEEK/TOUCH POSITION .............................................................................................................................. 12 5.3 EAR/TILT POSITION....................................................................................................................................... 12 5.4 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................................. 13 5.5 SAR EVALUATION PROCEDURE .................................................................................................................... 14 5.6 TEST METHODOLOGY ................................................................................................................................... 14 6 DASY4 SAR EVALUATION PROCEDURE .................................................................................................. 15 6.1 POWER REFERENCE MEASUREMENT ............................................................................................................. 15 6.2 AREA SCAN ................................................................................................................................................... 15 6.3 ZOOM SCAN .................................................................................................................................................. 16 6.4 POWER DRIFT MEASUREMENT ....................................................................................................................... 16 6.5 Z-SCAN ......................................................................................................................................................... 16 7 DESCRIPTION OF TEST SYSTEM ................................................................................................................ 17 7.1 TISSUE DIELECTRIC PARAMETERS ................................................................................................................ 18 7.2 MEASUREMENT SYSTEM DIAGRAM .............................................................................................................. 19 7.3 SYSTEM COMPONENTS .................................................................................................................................. 20 8 SAR MEASUREMENT SYSTEM VERIFICATION ..................................................................................... 28 8.1 SYSTEM ACCURACY VERIFICATION .............................................................................................................. 28 8.2 SAR SYSTEM VERIFICATION SETUP AND PROCEDURE .................................................................................. 28 8.3 LIQUID AND SYSTEM VALIDATION ..........................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliant Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “” (Rev.2) FCC PART 22 and 90 TEST REPORT For Sepura plc Radio House, St. Andrews Road, Cambridge CB4 1GR UK FCC ID: XX6SEP8050 Report Type: Original Report Product Type: DMR Two Way Radio Test En gineer: Dean Liu Re port Number: RDG150804003-00 Re port Date: 2015-11-05 Reviewed B y: Sula Huang RF Leader Test Laboratory: Bay Area Compliant Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliant Laboratories Corp. (Dongguan) Report No.: RDG150804003-00 FCC Part 22 and 90 Page 2 of 46 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCC §1.1310 & §2.1093 - RF EXPOSURE .................................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 TEST RESULT ............................................................................................................................................................... 7 FCC §2.1046 &§ 22.727 & §90.205- RF OUTPUT POWER .................................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST PROCEDURE ........................................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 8 TEST DATA .................................................................................................................................................................. 8 FCC §2.1047 & §90.207 - MODULATION CHARACTERISTIC .......................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC §2.1049& §22.357 & § 22.731 &§90.209 & §90.210 – OCCUPIED BANDWIDTH & EMISSION MASK 16 APPLICABLE STANDARD ............................................................................................................................................ 16 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 17 TEST PROCEDURE ...................................................................................................................................................... 17 TEST DATA ................................................................................................................................................................ 17 FCC §2.1051& §22.359 & §90.210 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ........................... 25 APPLICABLE STANDARD ............................................................................................................................................ 25 TEST EQUIPMENT LIST…

Text truncated - open the document above for the full version.

Page 1 of 1 EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission View (Below 1 GHz)-with RSM Radiated Emission View (Above 1 GHz)-with RSM
