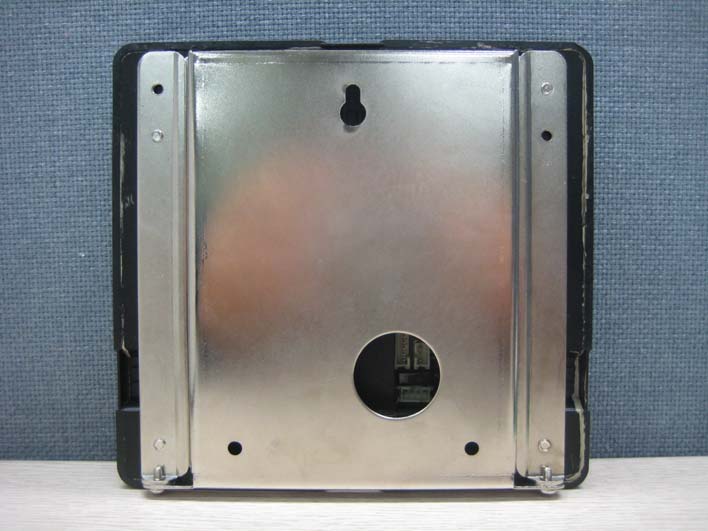

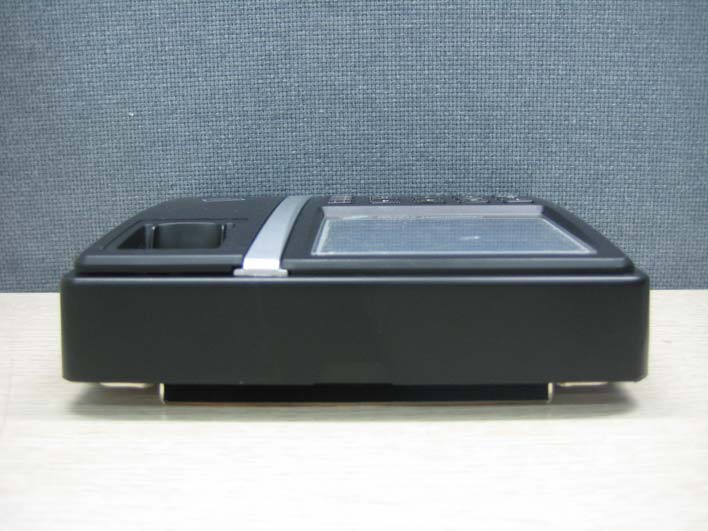

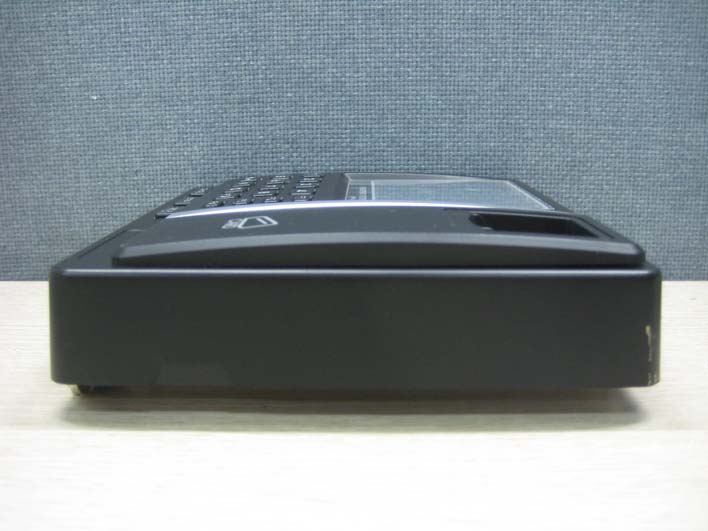

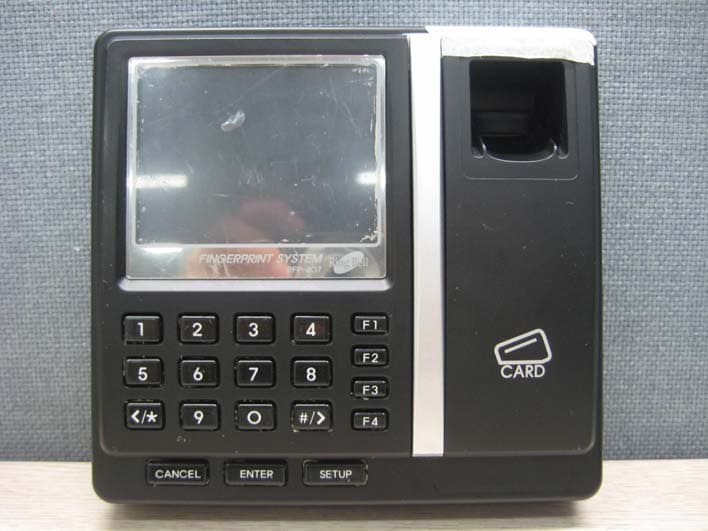

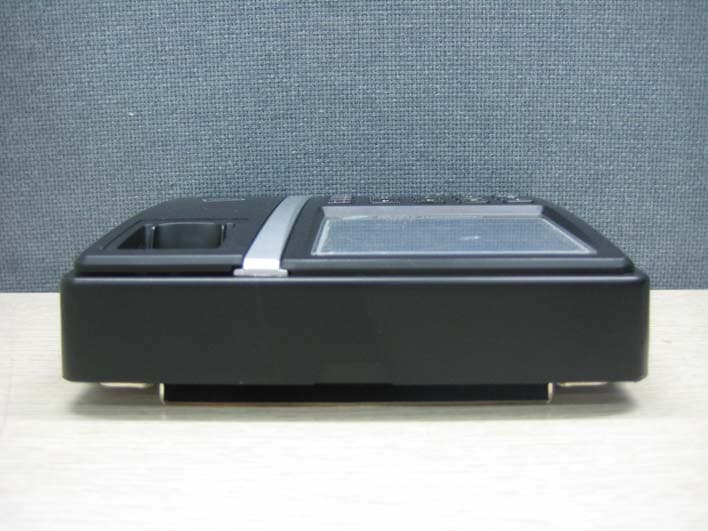

XXI-RBF900Fingerprint System (RFID)

1 RB-F900 User Manual Fingerprint System 2 Ver 1.1 User Guide  Thank you for Using RingBell F-900. This manual can be change anytime without notice and also can be miss print or spelling error. (주)링벨 Copyright © Ring Bell Co., Ltd 2009 All rights reserved. This manual have copy right. Manual cannot be reproduction or copy without permission. 3 1-1 Confirm contents ---------------------------------------- -4 1-2 Install place ----------------------------------------------- -5 1-3 Parts name ------------------------------------------------ -7 1-4 RB-F900 Sepcification---------------------------------- -9 1-5 RB-F900 summary --------------------------------------10 Section 1 Introduction 4 Introduction 1-1 Confirm contents ※ Contents can be change without notice. RB-F900 Holder/Screw Software Program CD/ Manual Adaptor 5 1-2 Install place To get best specification for RB-F900, please install in safe place suggest below.  Select install place Please get enough place to install RB-F900.  About Install place Please select safety place to install to get the best specification for RB-F900. (RB-F900 can be effect noise from TV, Radio, Telephone ) .  Avoid high temperature & moisture  Please advise install condition below..  Please avoid stove, heater, air condition. Warning Careful when unpack RB-F900. LCD screen is on the surface. Please Keep RB-F900 in package when you carrying long time trip. . Please check contents and call Ringbell if anything is not included. 6  Avoid radical temperature changes Please avoid radical temperature change place. Radical temperature change can make dew inside RB-F900.  Avoid electromagnetic (radio, TV, microwave). Please avoid electromagnetic noise from RB-F900. Can be have trouble shooting with RF card and interphone.  Keep out of sun. Please avoid sun, our solution is optical method, so sun can cause delay authorization.  Vertical and steady Install vertical way and steady place, not shaken. 7 1-3 Parts name  Front side 1. LCD (3.5”) color TFT screen 2. Fingerprint scanner 3. RF Card scanner 4. Key button ① ② ③ ④ 8  Back side 1. Slide Holder 2. MIC authorize sticker 3. Please see Pg.38 for terminal connection ① ① ② ③ 9 1-4 RB-F900 Specification  “RB-F900” Specification is below. This specification can be upgrade without further notice. Model Name RB-F900 CPU ARM9 2440, 32Bits, 400Mhz, (128+64)MB Memory LCD 3.5 inch COLOR TFT LCD Graphic display Key 0,1,2,3,4,5,6,7,8,9,</*,#/>,CANCEL,ENTER,SETUP,F1,F2,F3,F4 Communication Host[com1] : comm.[RS-485], TCP/IP, WIEGEND Fingerprint r/g Max 10,000 person registration Log data Max 1,000,000 data LAN Convertor Built in TCP/IP LAN Convertor RF-ID Built in RF-ID Module – Temic 125Khz Voice Message : 2 language Operating time Card reading : 30ms [13.56Mhz] Verification : Less than 0.3 sec Operating Temp Fingerprint Module: -20 ̊to +60 ̊, LCD: -20 ̊to +70 ̊ RF Reader: -35 ̊ to+65 ̊ Operating humidity 10% to 90% relative humidity non-condensing Power 12V / 600 mA Dimension 160 mm[W] * 140 mm[L] * 35 mm[H] 10 1-5 RB-F900 Summary 1. Summary Ringbell RB-F900 is link with Internet & Intranet Computing. Cannot be authorize by some else. All fingerprint and RF card data will convert to digital data and save in our database in RB-F900 and user PC. RB-F900 has three ways to authorize user (Fingerprint, RF card, Password) to link to security panel RB-3010, RB-3020 for security system. RB-F900 can be use as employee time management system & payroll system. 2. Special feature 1) Smart authorize speed Using 32bit ARM9 to speed up process and provide stable authorization. 0.3 sec. to authorize user fingerprint 2) Dimension System formation Using RS485 communicate up to 1.2Km length data and link up to 32 units. Also have TCP/IP communication to secure and steady data communication. 3) High volume of fingerprint and log data Up to 100,000 fingerprint and 2million data can save in flash memory. 4) Smart authorize system Basic 1:N authorization system can register up to 8000 people and search 3 deferent fingerprint in 1 second. Compare up to 45 deferent point of fingerprint. 0% of miss authorize. 5) DATA storage ability and expanse. User register 10,000, Event Data 1,000,000 same time disposal. Using FLASH MEMORY to protect losing data. 6) Remote operation ability Using software to monitoring real time door status and search users status on / off line. 7) Multi user ability 3.5 inch COLOR TFT LCD Graphic display to show clear Message, LCD Back-Light can be easy to use at night. Using Key, Card + Password, Password user and RF-ID card user select. 8) Variety application range RB-F900 has variety application like Time management & Access control. 11 2-1 Employee time management --------------------------12 2-1-1 Function button guide ---------------------------------------- 12 2-1-2 In/Out & Clock In/Out mode ------------------------------- 13 2-2 System mode entry --------------------------------------13 2-3 System setup----------------------------------------------14 2-3-1 General setting------------------------------------------------- 14 2-3-2 Time & Date setting ------------------------------------------ 15 2-3-3 Operation setting ---------------------------------------------- 15 2-3-4 Time manage setting------------------------------------------ 16 2-4 Network setup--------------------------------------------17 2-4-1 TCP/IP Setting------------------------------------------------- 18 2-4-2 RS-485 Setting ------------------------------------------------- 18 2-4-3 Network address & error confirm ------------------------- 19 2-5 Device setup ----------------------------------------------21 2-5-1 Fingerprint Authoize ----------------------------------------- 22 2-5-2 Input setting---------------------------------------------------- 23 2-5-3 RF Card setting------------------------------------------------ 23 2-5-4 Gate setting----------------------------------------------------- 24 2-6 User setup ---------------------------------…
