XXT-HE130S4HD Multimedia Home Server

1 CE-HE130S4 Series HD Multimedia Home Server User Manual Version 0.1 2 Safety Instructions ............................ 4 Regulations ........................................ 5 Precautions ........................................ 5 Notes on Disc Handling ..................... 6 Notes about This Server ..................... 6 Home Server Overview ...................... 7 Introduction ............................................... 7 Main Features ............................................ 7 Index to Parts and Controls ............... 8 Top Panel ................................................... 8 Rear Panel .................................................. 9 Remote Controller ................................... 10 Getting Started ................................ 12 Step1. Checking the Accessories .............. 12 Step2. Open the back cover ..................... 12 Step3. Connecting to the TV or Monitor . 12 Step4. Connecting to the Network .......... 13 Step5. Connecting to the Power Cord ..... 13 Step6. Connecting to the Speaker ........... 13 Step7. Checking HDD .............................. 13 Step8. Preparing the Remote Controller 14 Step9. Power On/Off the system ............. 14 Inserting HDDs ................................ 15 Inserting/Removing Discs ............... 15 Inserting Discs ......................................... 15 Eject Discs ................................................ 15 Manually Eject Discs ............................... 15 Inserting Memory Cards .................. 16 Various Connections ........................ 17 Connecting a TV (or Monitor) ....... 17 Selecting a video cable ...................... 17 Connecting with an HDMI cable ...... 17 Connecting with an DVI cable .......... 17 Connecting with an HDMI cable ...... 18 Connecting an AV Amplifier .......... 18 Selecting an audio cable ................... 18 Connecting with a Coaxial Audio Cable ............................................... 18 Connecting with a Toslink Optical Digital Audio Cable ................ 19 Connecting with an HAMI Cable ...... 19 Connecting Multi-Channel Audio ..... 19 Enjoying Videos, Photos, and Music 20 Getting started with Widows Media Center .................................. 20 Step1. Setting up Windows Media Center .................................... 20 Step2. Optimize how Windows Media Center looks on your display. 20 Step3. Set up your speakers ............. 20 Step4. Set up your media libraries .... 21 Step5. Configure tuners, TV signal, and Guide ............................... 21 Watching TV ..................................22 To watch live TV ............................... 23 To watch live TV using a Media Center remote controller .................. 23 To find movies that are schedule to be broadcast ............................... 24 To watch Internet TV in Media Center ............................................... 24 Record TV .................................... 24 To record a live TV show or movie ... 25 To schedule recordings using the Guide ..................................... 25 To schedule recordings using Search ............................................... 25 To record a TV series ........................ 25 To play a recorded TV program ....... 25 To schedule recordings based on channel and time ................... 26 3 To schedule recordings based on keywords ................................ 26 To add or remove folders that Windows Media Center searches when it looks for recorded TV ........................... 26 Play video and watch pictures ....... 27 To find and view a picture ................ 27 To view or import pictures or videos from a removable device ....... 27 To create a slide show .......................28 To play a slide show ..........................28 To customize setting for slide shows 28 To rate and play your favorite pictures ................................................ 29 To find and play a video file .............. 29 To slow down, speed up, or rewind a video file ................................. 29 To change the video background color ................................................ 29 Play a CD or DVD or BD ................ 30 To play a DVD .................................. 30 To change the setting for DVD playback ................................. 31 To play an audio CD .......................... 31 To play media files from a data CD, data DVD, or removable device ................................................ 31 Supporting File Types ................... 32 Music file types ................................. 32 Video file types .................................. 32 Picture file types ................................ 32 Changing the Server Settings ........... 32 Display Settings ............................ 32 Change your screen resolution ......... 32 Make the text on your screen larger or smaller .................................... 32 Audio Settings ............................... 33 Network Settings .......................... 34 Bluetooth Settings ......................... 35 DTV Settings .................................. 37 Windows Home Server Setting ........ 37 Sharing Folders ....................................... 37 User Accounts Setup ............................... 39 Additional Information .................... 41 About Windows update ................. 41 The new Windows Update is easier to use compared to its predecessor. ......................... 41 Finding Windows Updates ................ 41 Specification ....................................43 4 Safety Instructions 1. Always read the safety instructions carefully. 2. Keep this user’s manual for future reference. 3. Keep this equipment away from humidity. 4. Lay this equipment on a reliable flat surface before setting it up. 5. The ventilator on the enclosure is used for air convection and to prevent the equip- ment from overheating. Do not cover the ventilator. 6. Make sure that the power voltage is within its safety range and has been adj…

Text truncated - open the document above for the full version.

Ablecom Technology, Inc. 5F, No.228, Lian-Cheng Rd., Chung-Ho City, Taipei Hsien, Taiwan Date: 1/7/2010 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID : XXT-HE130S4 , would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature, Name/Title: CS Lee / Vice President Company Name: Ablecom Technology, Inc. Address: 5F, No.228, Lian-Cheng Rd., Chung-Ho City, Taipei Hsien, Taiwan TEL: +886-2-8226-5958 FAX: +886-2-8226-3958 Email: [email protected]

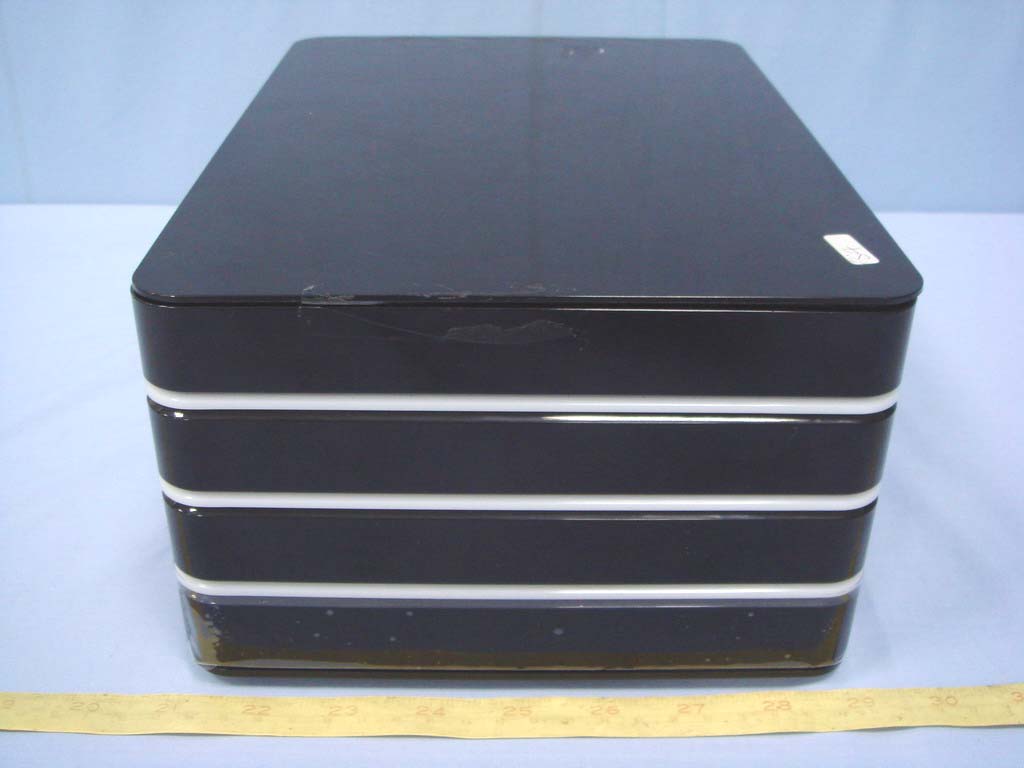

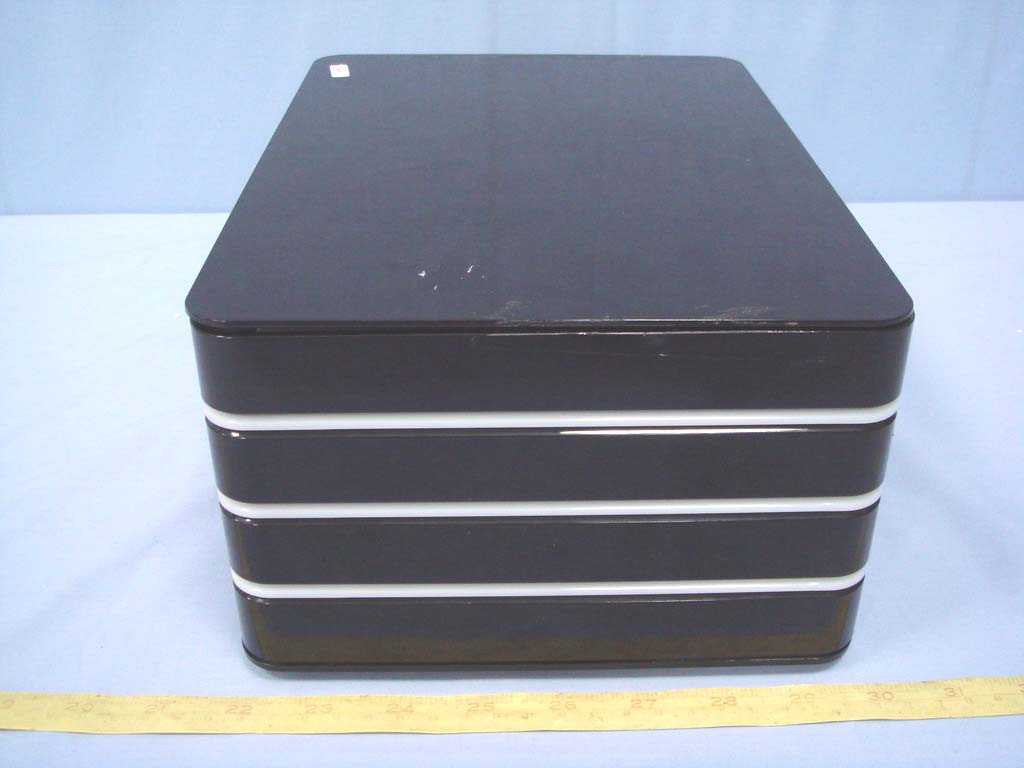

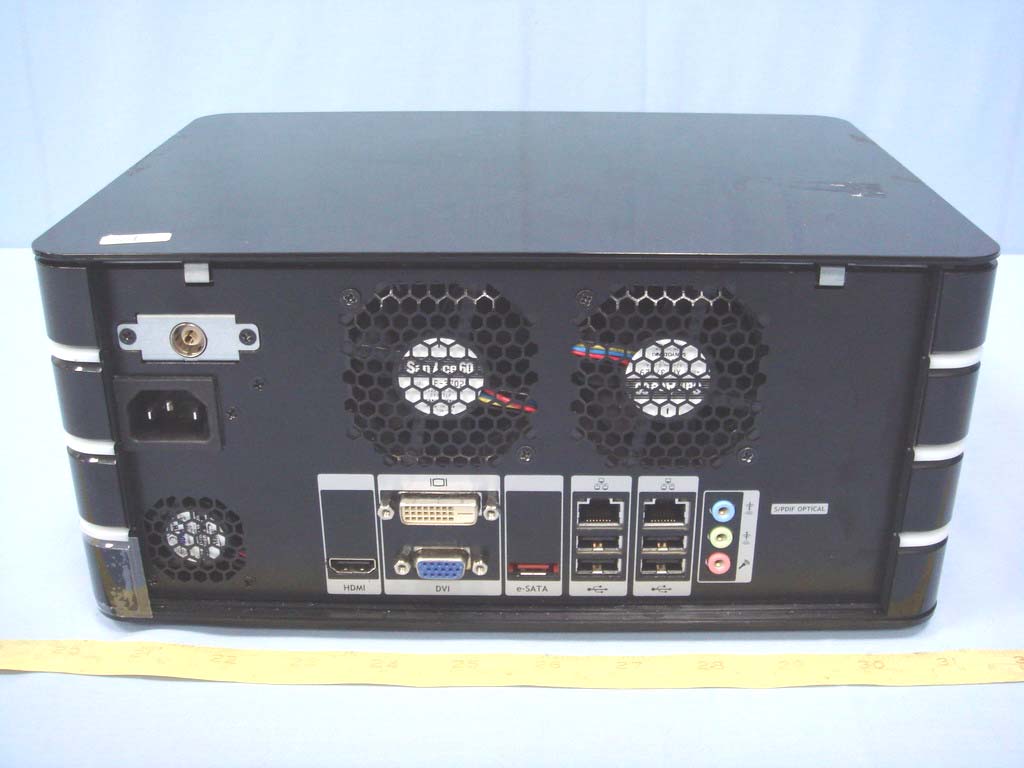

Report No: 91116102 Page 1 / 3 EXTERNAL PHOTOGRAPHS OF EUT Report No: 91116102 Page 2 Report No: 91116102 Page 3 Antenna

Label Location

Report No: 91116102 Page 1 / 6 INTERNAL PHOTOGRAPHS OF EUT Report No: 91116102 Page 2 Report No: 91116102 Page 3 Report No: 91116102 Page 4 Report No: 91116102 Page 5 Report No: 91116102 Page 6 PIFA Antenna

Operational Description This device is a 2.4GHz Wireless module that PC, Notebook and MID included wireless transmitter of Notebook /PC/ MID and receiver. This device follows 802.11b/g/n standard and modulation is 802.11 g/n: OFDM, 802.11b: DSSS(1,2, 5.5 and 11Mbps) and it is operated in 2.4 GHz ISM Bands 2.412-2.462 GHz. The wireless module is USB interface and it is capable to receive signal from transmitter to control PC or notebook.

程智科技股份有限公司 Compliance Certification Services Inc. RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT HD Multimedia Home Server Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 18.61 dBm IEEE 802.11g mode: 24.17 dBm draft 802.11n 20 MHz Channel mode: 24.49 dBm draft 802.11n 40 MHz Channel mode: 23.90 dBm Antenna gain (Max) 0.32 dBi (Numeric gain: 1.08) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is 24.49dBm (281.19mW) at 2462MHz (with 1.08 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. (According to RF Exposure Procedures and Equipment Authorization Policies, SAR evaluation is not required for the PORTABLE device while its maximum average output power is lower than 60/f (GHz) =60/2.441=24.58mW) 程智科技股份有限公司 Compliance Certification Services Inc. Remark: 802.11b maximum average power is 13.63dBm = 23.07mW <(60/f); Individual SAR is not required. 802.11g maximum average power is 13.47dBm = 22.23mW <(60/f); Individual SAR is not required. 802.11n 20 MHz maximum average power is 13.49dBm = 22.34mW <(60/f); Individual SAR is not required. 802.11n 40 MHz maximum average power is 13.17dBm = 20.75mW <(60/f); Individual SAR is not required. For Wify Module Antenna Gain is 0.32dBi or 1.08 (numeric) For BT Module Antenna Gain is 1dBi or 1.26 (numeric) Output power into Antenna & RF Exposure value at distance 20cm: Wify Max out power: 0.0429(W) (0.0092mW/cm 2 ) BT Max out power: 0.00056(W) (0.000139mW/cm 2 ) Test mode: draft 802.11n 40 MHz Channel mode CONCULSION: Both of eh modules can transmit simultaneously, the formula of calculated the MIP is CPD1/LPD1+CPD2/LPD2+ etc.<1 CPD= Caleulation Power density LPD= limit of power density Therefore, the worst-cast situationis 0.0092/1+0.000139/1= 0.009339, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No: 91116102-RP1 FCC ID: XXT-HE1304S Date of Issue: December 30, 2009 Page 1 / 84 FCC 47 CFR PART 15 SUBPART C TEST REPORT For HD Multimedia Home Server Model: CE-HE130S4 Series Trade Name: ABLECOM Issued to Ablecom Technology Inc. 5F, No. 228, Lian-Cheng Rd., Chung-Ho City, Taipei Hsien, Taiwan Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Pa-De 2nd Rd., Luchu Hsiang, Taoyuan Shien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No: 91116102-RP1 FCC ID: XXT-HE1304S Date of Issue: December 30, 2009 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 29, 2009 Initial Issue All Sabrina Wang Report No: 91116102-RP1 FCC ID: XXT-HE1304S Date of Issue: December 30, 2009 Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION........................................................................................... 4 2 EUT DESCRIPTION ............................................................................................................... 5 3 TEST METHODOLOGY ......................................................................................................... 6 3.1. EUT CONFIGURATION .................................................................................................... 6 3.2. EUT EXERCISE ................................................................................................................ 6 3.3. GENERAL TEST PROCEDURES ..................................................................................... 6 3.4. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ......................................... 7 3.5. DESCRIPTION OF TEST MODES .................................................................................... 8 4 INSTRUMENT CALIBRATION............................................................................................... 9 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................... 9 4.2. MEASUREMENT EQUIPMENT USED ............................................................................. 9 4.3. MEASUREMENT UNCERTAINTY .................................................................................. 10 5 FACILITIES AND ACCREDITATIONS................................................................................. 11 5.1 FACILTIES....................................................................................................................... 11 5.2 EQUIPMENT ................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................. 12 6 SETUP OF EQUIPMENT UNDER TEST.............................................................................. 13 6.1. SETUP CONFIGURATION OF EUT ............................................................................... 13 6.2. SUPPORT EQUIPMENT ................................................................................................. 13 7 FCC PART 15.247 REQUIREMENTS .................................................................................. 14 7.1. 6 DB BANDWIDTH ........................................................................................................... 14 7.2. PEAK POWER................................................................................................................. 20 7.3. AVERAGE POWER ......................................................................................................... 26 7.4. BAND EDGES MEASUREMENT .................................................................................... 32 7.5. PEAK POWER SPECTRAL DENSITY ............................................................................ 49 7.6. SPURIOUS EMISSIONS ................................................................................................. 57 7.7. RADIATED EMISSIONS.................................................................................................. 62 7.8. POWERLINE CONDUCTED EMISSIONS ...................................................................... 78 APPENDIX II PHOTOGRAPHS OF TEST SETUP..................................................................... 81 Report No: 91116102-RP1 FCC ID: XXT-HE1304S Date of Issue: December 30, 2009 Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Applicant: Ablecom Technology Inc. 5F, No. 228, Lian-Cheng Rd., Chung-Ho City, Taipei Hsien, Taiwan Manufacturer: Ablecom Technology Inc. 5F, No. 228, Lian-Cheng Rd., Chung-Ho City, Taipei Hsien, Taiwan Equipment Under Test: HD Multimedia Home Server Trade Name: ABLECOM Model: CE-HE130S4 Series Date of Test: November 24 ~ December 23, 2009 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report …

Text truncated - open the document above for the full version.

Report No: 91116102-RP1 FCC ID: XXT-HE1304S Date of Issue: December 30, 2009 Page 79 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Report No: 91116102-RP1 FCC ID: XXT-HE1304S Date of Issue: December 30, 2009 Page 80 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Report No: 91116102-RP1 FCC ID: XXT-HE1304S Date of Issue: December 30, 2009 Page 81 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Set Up Photos Report No: 91116102-RP1 FCC ID: XXT-HE1304S Date of Issue: December 30, 2009 Page 82 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Powerline Conducted Emissions Setup Photos
