XXU-PR092BLE Pedometer Clip

PR092 user manual 1. Features : Wireless communication with iPhone using with Bluetooth 4.0 LE technology Calories Burned (Basal metabolic rate (BMR) + activity) Step count Calories goal setting Goal achievement indication in percentage Real Time Display (synchronized with smartphone) 30 days data logging of the activity 2. Key flow and display : Mode button a. short press : switching the display mode as below, Calories -­‐> Step -­‐> Goal Achievement -­‐> Clock The display would turn off after 8 seconds if no more key is pressed. b. press and hold 2 seconds : the recorded data would synchronize with smartphone, the device would show the “SYNC” icon for 2 seconds (at least) and back to the previous display when finish the process. In case, the sync process cannot be completed, it would flash “FAIL” (1 Hz) 5 seconds and back to previous display. c. Key t apping : u ser can simply tap the display area of the device acting as to push the button. 3. Display range and default values 3.1 Steps display range : 0 ~ 99999 Calories display range : 0 ~ 99999 Goal achievement indication : 0 ~ 100% 3.2 Default setting at Apps : Height 5’3” Weight 165 pound Age 25 Gender F Goal setting Calories : 1800 4. Data logging The device can store the activity records (calories and steps ) up to 30 days (resolution in day) and synchronize to smartphone by pressing the button 2 seconds. 5. Enter /Quit the sleep Mode 5.1 Press the button during power up the system, and hold the button 2 seconds, the device will enter into sleep mode. Under sleep mode, the device will not have any function or display, it maintains a minimum current consumption. 5.2 The device would quit the sleep mode and return to normal operating mode by press and hold the button 5 seconds. 6. FCC Statement The device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter mush not be co-located or operating with any other antenna or transmitter.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] FCC Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 FCC Confidentiality Request Letter Feb 21,2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XXU-PR092 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Circuit Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Feb 21,2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Organix Concept Limited hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name: BLE Pedometer Clip Model No.: PR092 FCC ID: XXU-PR092 We affirm that between SIEMIC and Organix Concept Limited , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely,

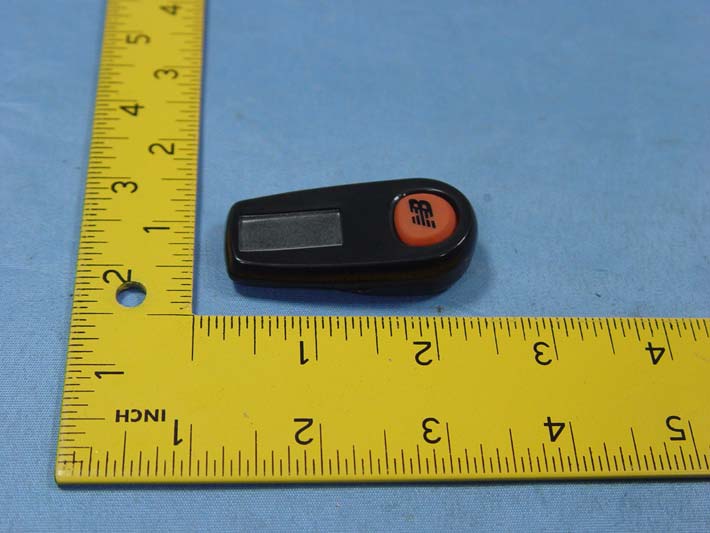

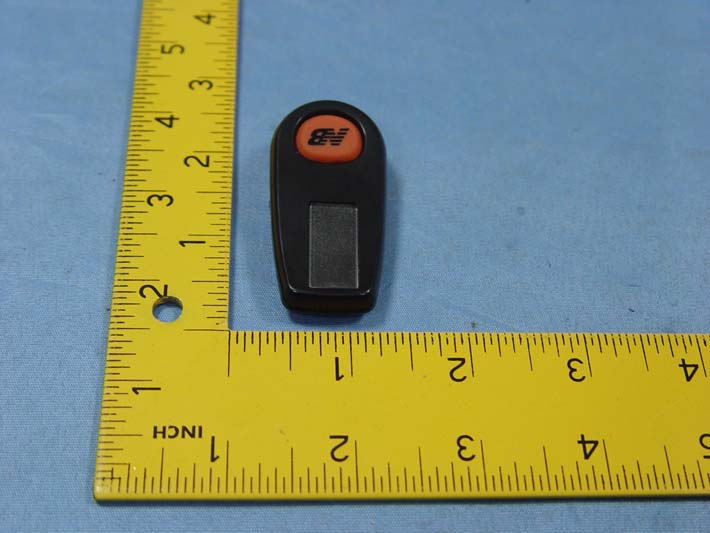

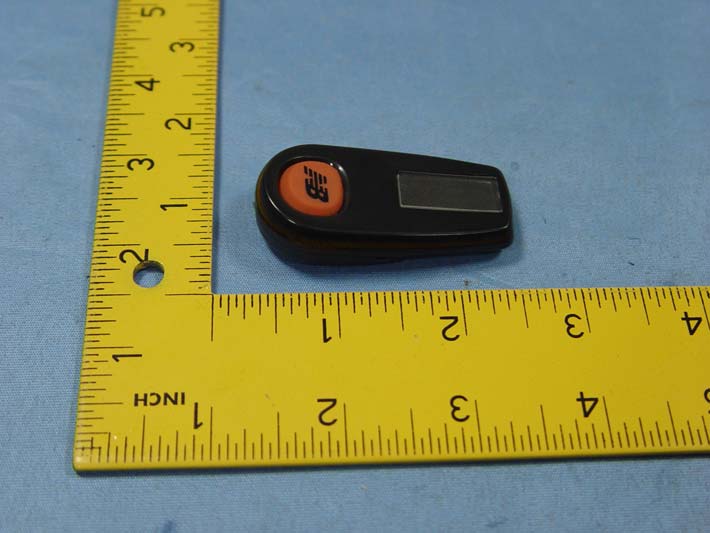

External photos

Label and Label location

Internal photos Antenna

FCC ID : XXU-PR092 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT 4.0 Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2402 -7.59 0.174 0.054 3.0 2440 -7.58 0.175 0.055 3.0 2480 -7.63 0.173 0.055 3.0 For example:[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)]= 0.175/5*√2.440=0.055≤ 3.0 Threshold at which no SAR required is ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Report No.: ATE20131897 Page 1 of 49 FCC ID: XXU- PR092 ACCURATE TECHNOLOGY CO., LTD APPLICATION CERTIFICATION FCC Part 15C On Behalf of Organix Concept Limited BLE Pedometer Clip Model No.: PR092 FCC ID: XXU-PR092 Prepared for : Organix Concept Limited Address : Unit 504, East town building 41 Lockhart, WanChai, Hong Kong. Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Chan Yuan New Material Port, Keyuan Rd. Science & Industry Park, Nan Shan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report No. : ATE20131897 Date of Test : Jan 14-Jan 17, 2014 Date of Report : Jan 17, 2014 Report No.: ATE20131897 Page 2 of 49 FCC ID: XXU- PR092 ACCURATE TECHNOLOGY CO., LTD TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Carrier Frequency of Channels .................................................................................................................6 1.3. Special Accessory and Auxiliary Equipment ...........................................................................................6 1.4. Description of Test Facility ......................................................................................................................7 1.5. Measurement Uncertainty.........................................................................................................................7 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 8 3. OPERATION OF EUT DURING TESTING ................................................................................. 9 3.1. Operating Mode ........................................................................................................................................9 3.2. Configuration and peripherals ..................................................................................................................9 4. TEST PROCEDURES AND RESULTS ....................................................................................... 10 5. 6DB BANDWIDTH MEASUREMENT ........................................................................................ 11 5.1. Block Diagram of Test Setup..................................................................................................................11 5.2. The Requirement For Section 15.247(a)(2) ............................................................................................11 5.3. EUT Configuration on Measurement .....................................................................................................11 5.4. Operating Condition of EUT ..................................................................................................................11 5.5. Test Procedure ........................................................................................................................................11 5.6. Test Result ..............................................................................................................................................12 6. MAXIMUM PEAK OUTPUT POWER ....................................................................................... 14 6.1. Block Diagram of Test Setup..................................................................................................................14 6.2. The Requirement For Section 15.247(b)(3)............................................................................................14 6.3. EUT Configuration on Measurement .....................................................................................................14 6.4. Operating Condition of EUT ..................................................................................................................14 6.5. Test Procedure ........................................................................................................................................14 6.6. Test Result ..............................................................................................................................................15 7. POWER SPECTRAL DENSITY MEASUREMENT.................................................................. 17 7.1. Block Diagram of Test Setup..................................................................................................................17 7.2. The Requirement For Section 15.247(e).................................................................................................17 7.3. EUT Configuration on Measurement .....................................................................................................17 7.4. Operating Condition of EUT ..................................................................................................................17 7.5. Test Procedure ........................................................................................................................................18 7.6. Test Result ..............................................................................................................................................19 8. BAND EDGE COMPLIANCE TEST ........................................................................................... 21 8.1. Block Diagram of Test Setup..................................................................................................................21 8.2. The Requirement For Section 15.247(d) ................................................................................................21 8.3. EUT Configuration on Measurement .....................................................................................................21 8.4. Operating Condition of EUT ...........................................…
