XZ4-1000-0710AGILE CONTROL RTU, PART NUMBER: 1000-0710

Agile Radio System User Manual 2 | P a g e Agile User Manual - SQ1 DRAFT 20121217a DocumentVersion Revision Description of Change Change Number Date Approval Draft Original Version 0000 20120217 Draft RF exposure statement. Professional install 0001 20121217 © Copyright 2012, Square One Laboratories Pty Ltd. No part of this publication may be reproduced, stored in an automated data file or made public in any form or by any means, whether electronic, mechanical, by photocopying, recording or in any other manner without prior written permission of the publisher. Square One Laboratories will not however accept responsibility for damage resulting from the use of its products or damage resulting from the use of this manual. Square One Laboratories also reserves the right to make changes and improvements to its products or to the associated manuals without notice. 3 | P a g e Agile User Manual - SQ1 DRAFT 20121217a 1 INDEX 2 IMPORTANT ..................................................................................................................................... 4 3 SAFETY ............................................................................................................................................. 5 4 INTRODUCTION ............................................................................................................................... 6 4.1 Agile Host Unit ......................................................................................................................... 6 4.2 Agile Base Unit ......................................................................................................................... 6 4.3 Agile Remote Unit .................................................................................................................... 7 4.4 Agile Store and Forward (SAF) Unit .......................................................................................... 7 4.5 Antenna ................................................................................................................................... 7 4.6 Solar Panel ............................................................................................................................... 7 4.7 Grounding ................................................................................................................................ 7 5 OPERATION ..................................................................................................................................... 8 5.1 Agile Host Unit ......................................................................................................................... 8 5.2 Agile Base Unit ......................................................................................................................... 9 5.3 Agile Remote Unit .................................................................................................................. 10 5.4 Antenna ................................................................................................................................. 11 5.5 Solar Panel ............................................................................................................................. 13 5.6 Grounding .............................................................................................................................. 14 6 SPECIFICATIONS ............................................................................................................................. 15 6.1 Agile Host............................................................................................................................... 15 6.2 Agile Base .............................................................................................................................. 16 6.3 Agile Remote Unit .................................................................................................................. 17 6.4 Solar Panel ............................................................................................................................. 18 6.5 Battery 12 V DC ...................................................................................................................... 19 6.6 Battery 6 V DC ........................................................................................................................ 19 7 TROUBLE SHOOTING ...................................................................................................................... 20 7.1 Agile Host............................................................................................................................... 20 7.2 Agile Base .............................................................................................................................. 20 7.3 Agile Remote Unit .................................................................................................................. 20 4 | P a g e Agile User Manual - SQ1 DRAFT 2012 2 IMPORTANT READ ALL INSTRUCTIONS KEEP THIS USER MANUAL be useful in the future. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. protection against harmful interference in uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. no guarantee that interference will not occur in a particular installation. does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to try to correct the int one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connect • Consult the dealer or an experienced radio/TV technicia…

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 176 Harrick VIC 3043 Australia Ph: +613 9365 1000 Fax: +613 9331 7455www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road, Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] To: Federal Communications Commission Attention: Certification Manager No. of pages: 1 From: Chieu Huynh Date: 26 th November 2012 EMC Ref: M091201_FCC_1000-0710 Subject:FCC APPROVAL–FCC ID:XZ4-1000-0710 Please receive EMC Technologies’ Report M091201_FCC-1000-0710 and certification files for review. The EUT is an Agile Control RTU, Part number: 1000-0710. The Control RTU (1000-0710) is part of an Agile Radio System. The minimum system consist of a Base Station, a Control RTU (1000-0710) &/ a Data RTU (1000-0730) and a Host (unintentional). The intention of this application is to FCC certifies an Agile Control RTU, Part number: 1000-0710 to FCC Part 90.217. This is a composite submission. Base Station (1000-0700) and Data RTU (1000-0730) are certifying under FCC ID: XZ4-1000-0700 and XZ4-1000-0730 respectively. EMC Technologies Pty Ltd is acting as agent for Square One Laboratories Pty Ltd during this product approval. Regards ______________ Chieu Huynh Senior EMC Engineer EMC Technologies Pty Ltd

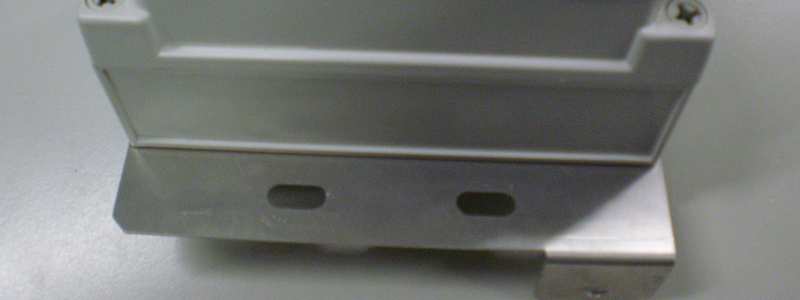

FCC ID: XZ4-1000-0710 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX A1 EXTERNAL PHOTOS FCC ID: XZ4-1000-0710 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX A1 EXTERNAL PHOTOS

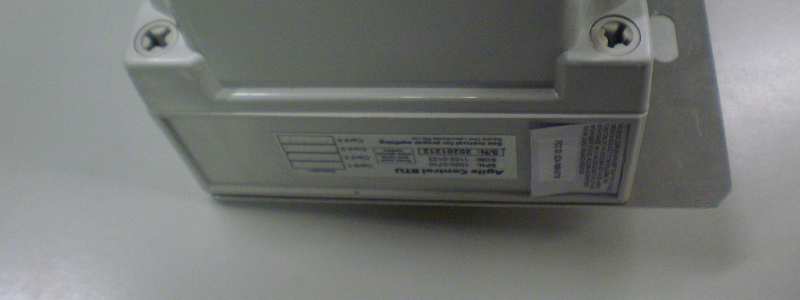

XZ4-1000-0710 FCC Label location (Simulated with paper label) 42.0 2 4 . 0 R0.5 x 4 places PANTONE 5665 CVC Clear window (25.4 x 10.0) FCC ID Laser printed on Avery L6008 Heavy duty silver label (25.4 x 10.0) stuck behind polyester label THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Polyester outer label. To measure 42.0 x 24.0 +/-0.3mm with R0.5mm on all four corners, to be screen printed 2 colours (PMS Black, PMS 5665 light gray <On back>, with a clear windows, onto the rear of 0.007” smooth Polyester film type Autotex EB180. Adhesive backed with 3M 467MP (or better), all over, and forme cut to size. P/N 4100-0128A Adhesive backed Label (UV stable for outdoors application) FCC ID: XZ4-1000-0710

FCC ID: XZ4-1000-0710 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX A2 INTERNAL PHOTOS FCC ID: XZ4-1000-0710 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX A2 INTERNAL PHOTOS

FCC ID: XZ4-1000-0710 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au RF EXPOSURE INFORMATION Transmitters operating in the 450 - 470 MHz band is required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). The MPE calculation shown below is for the antenna with a minimum separation distance of 20cm. In accordance with Section 1.1310, the Maximum Permissible Exposure (MPE) limit for the General Population/Uncontrolled Exposure of 1.0 has been applied, i.e 0.3mW/cm 2 . Friis transmission formula: Pd = (P*G) / (4**r 2 ) where:Pd = power density (mW/cm 2 ) P = power input to the antenna (mW) G = antenna gain (numeric) r = distance to the center of radiation of the antenna (cm) Prediction frequency = 450 – 470 MHz Maximum peak output power with unity antenna gain = 19.37 dBm = 86.5 mW Prediction distance = 20 cm The power density calculated = 0.017 mW/cm 2 Results:Calculations show that the device with described antennas complied with MaximumPermissibleExposure(MPE)limitfortheGeneral Population/Uncontrolled Exposure with a separation distance of 20cm.

Page 1 of 22 EMI TEST REPORT FOR CERTIFICATION to FCC PART 90.217 FCC ID:XZ4-1000-0710 Test Sample: Agile Control RTU Part Number: 1000-0710 Manufacturer: Square One Laboratories Pty Ltd Report Number: M091201R_FCC_1000-0710 Issue Date: 17 th December 2012 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components.EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph:+ 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] FCC ID: XZ4-1000-0710Report No. M091201R_FCC_1000-0710Page 2 of 22 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate of pg 3 may be reproduced in full. www.emctech.com.au EMI TEST REPORT FOR CERTIFICATION to FCC PART 90.217 EMC Technologies Report No. M091201R_FCC_1000-0710 Issue Date: 17 th December 2012 CONTENTS 1.0INTRODUCTION 2.0GENERAL INFORMATION 3.0OUTPUT POWER 4.0OCCUPIED BANDWIDTH 5.0EMISSION MASK 6.0CONDUCTED EMISSIONS 7.0RADIATED EMISSIONS 8.0FREQUENCY STABILITY 9.0TRANSIENT FREQUENCY 10.0COMPLIANCE STATEMENT 11.0MEASUREMENT UNCERTAINTIES 12.0MEASUREMENT INSTRUMENT DETAILS APPENDIX A: PHOTOGRAPHS APPENDIX B: OPERATIONAL DESCRIPTION APPENDIX C: BLOCK DIAGRAM APPENDIX D: SCHEMATICS APPENDIX E: ANTENNA APPENDIX F: FCC LABELLING DETAILS APPENDIX G: USER MANUAL Attachment 1: Tune-up Statement FCC ID: XZ4-1000-0710Report No. M091201R_FCC_1000-0710Page 3 of 22 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate of pg 3 may be reproduced in full. www.emctech.com.au EMI TEST REPORT FOR CERTIFICATION to FCC PART 90.217 Report No. M091201R_FCC_1000-0710 Test Sample: Agile Control RTU Part Number: 1000-0710 Manufacturer: Square One Laboratories Pty Ltd FCC ID: XZ4-1000-0710 Equipment Type: Intentional Radiator (Transceiver) Tested for: Square One Laboratories Pty Ltd Address: 2/25 Manton Road, Oakleigh South, VIC 3167 Australia (PO Box 303, Oakleigh MDC VIC 3166 Australia) Phone: +61 3 9545 5777 Fax: +61 3 9545 6777 Responsible Party: Motti Grinberg Test Standards: FCC Part 90.217 FCC Part 2 ANSI/TIA/EIA-603-C ANSI C63.4 Test Dates: 4 th December 2009 to 13 th December 2012 Test Officers: Kevin Hansen Chieu Huynh Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory:Chieu Huynh Senior EMC Engineer EMC Technologies Pty Ltd FCC ID: XZ4-1000-0710Report No. M091201R_FCC_1000-0710Page 4 of 22 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate of pg 3 may be reproduced in full. www.emctech.com.au EMI TEST REPORT FOR CERTIFICATION to FCC PART 90.217 1.0INTRODUCTION EMI testing was performed on the Agile Control RTU, Part number: 1000-0710. The test results and procedures were performed in accordance with the following Federal Communications Commission (FCC) standards/regulations. The test samplecompliedwith the requirements of FCC: 47 CFR, Part 90.217. Test results and procedures were performed in accordance with the following Federal Communications Commission (FCC) standards/regulations: FCC Part 90.217 and FCC Part 2 Clauses Test DescriptionResults FCC 2.1046Output Power Complied FCC 2.1049Occupied Bandwidth Complied FCC 2.1049Emission mask Complied FCC 2.1051Conducted Emissions Complied FCC 2.1053Radiated Emissions Complied FCC 2.1055Frequency stability Complied The measurement procedure used was in accordance with ANSI/TIA/EIA-603-C and ANSI C63.4. 1.1EUT – Voltage Power Conditions The Control RTU is DC powered (12V DC from Host unit). 1.2Modifications No modifications were required. 2.0GENERAL INFORMATION (Information supplied by the Client) 2.1EUT Details Agile Control RTU: (also sold under the name RadioNET RTU) Part Number: 1000-0710 Serial Number: 20201212 Power Rating: 6V DC, 1.8W max Frequency Range: 450 – 470 MHz Antenna Type: ¼ Wave Whip Gain: Unity Microprocessor: MSP430 Crystal Frequency: 14.7456 MHz Real Time Clock Freq: 32768 Hz Manufacturer: Square One Laboratories Pty Ltd FCC ID: XZ4-1000-0710Report No. M091201R_FCC_1000-0710Page 5 of 22 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate of pg 3 may be reproduced in full. www.emctech.com.au 2.2Description supplied by Client The Control RTU (1000-0710) is part of an Agile Radio System. The minimum system consist of a Base Station, a Control RTU (1000-0710) &/ a Data RTU (1000-0730) and a Host (unintentional). Base Station:The Base unit is connected via a 2m standard cable which is supplied with the Host. The Base unit manages the radio network and mediates all communications between the RTUs and the Host. RTU:RTUs are powered by 6V DC provided by 4 x AA batteries, or by optional solar power. RTUs are available in two flavours: a Control RTU designed to control and directly drive up to 9 valves; and a Data RTU designed to collect data. Host:The host interfaces a PC for configuration and a controller to the Base Station. The host is designed to be powered by a 12V DC rechargeable battery. All command and data sent to and from the PC and the controller are managed by the host unit. The host communicates with, and supplies power to, …

Text truncated - open the document above for the full version.

FCC ID: XZ4-1000-0710 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX A3 TEST SETUP PHOTOS FCC ID: XZ4-1000-0710 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX A3 TEST SETUP PHOTOS
